DECKEL S 11 is a Tool and cutter grinder engineered for precision, high accuracy and reliability. Working capacities: centre height 300 mm, distance between centres 380 mm; table 500 x 180 mm; max. grinding diameter 238/620 mm; max. wheel Ø 125 mm; transverse table travel 220 mm; travels: crosswise 100 mm, longitudinal 190 mm, vertical 325 mm; grinding head and axes 360°. Technical specs: grinding spindle speeds 2 steps 400–8000 t/min; spindle motor 1.3 kW; voltage 3x380 V 50 Hz; total power 2 kVA; weight ~500 kg; dimensions L1100×W800×H1760 mm. Accessories: tool cabinet, dial gauge, sets of collets (ESX), universal dividing attachment, lamp, microscope, radius grinding and spin/relief grinding attachments, wheel guard. Achieves tight tolerances; ideal for automotive, watchmaking, machine tools, aerospace, medical.
| Centre height | 300 mm |
| Distance between centres | 380 mm |
| Table length | 500 mm |
| Table width | 180 mm |
| Max. grinding diameter | 238 / 620 mm |
| Max. grinding wheel diamter | 125 mm |
| Longitudinal way of table | mm |
| Transversal way of the table | 220 mm |
| Axial motion: | |
| Crosswise | 100 mm |
| Longitudinal | 190 mm |
| Vertical | 325 mm |
| Vertical adjustment of grinding head | 325 mm |
| Slewing range of grinding head: | |
| horizontal | 360 ° |
| vertical | 360 ° |
| rotary axis of the grinding spindle head | 360 ° |
| Grinding spindle speeds: | |
| number (steps) | 2 |
| from | 400 t/min |
| up to | 8000 t/min |
| Voltage 50 Hz 3x | 380 Volt |
| Grinding spindle motor | 1.3 kW |
| Total power required | 2 kVA |
| Machine's weight about | 500 kg |
| Overall dimensions machine: | |
| Length | 1100 mm |
| Width | 800 mm |
| Height | 1760 mm |

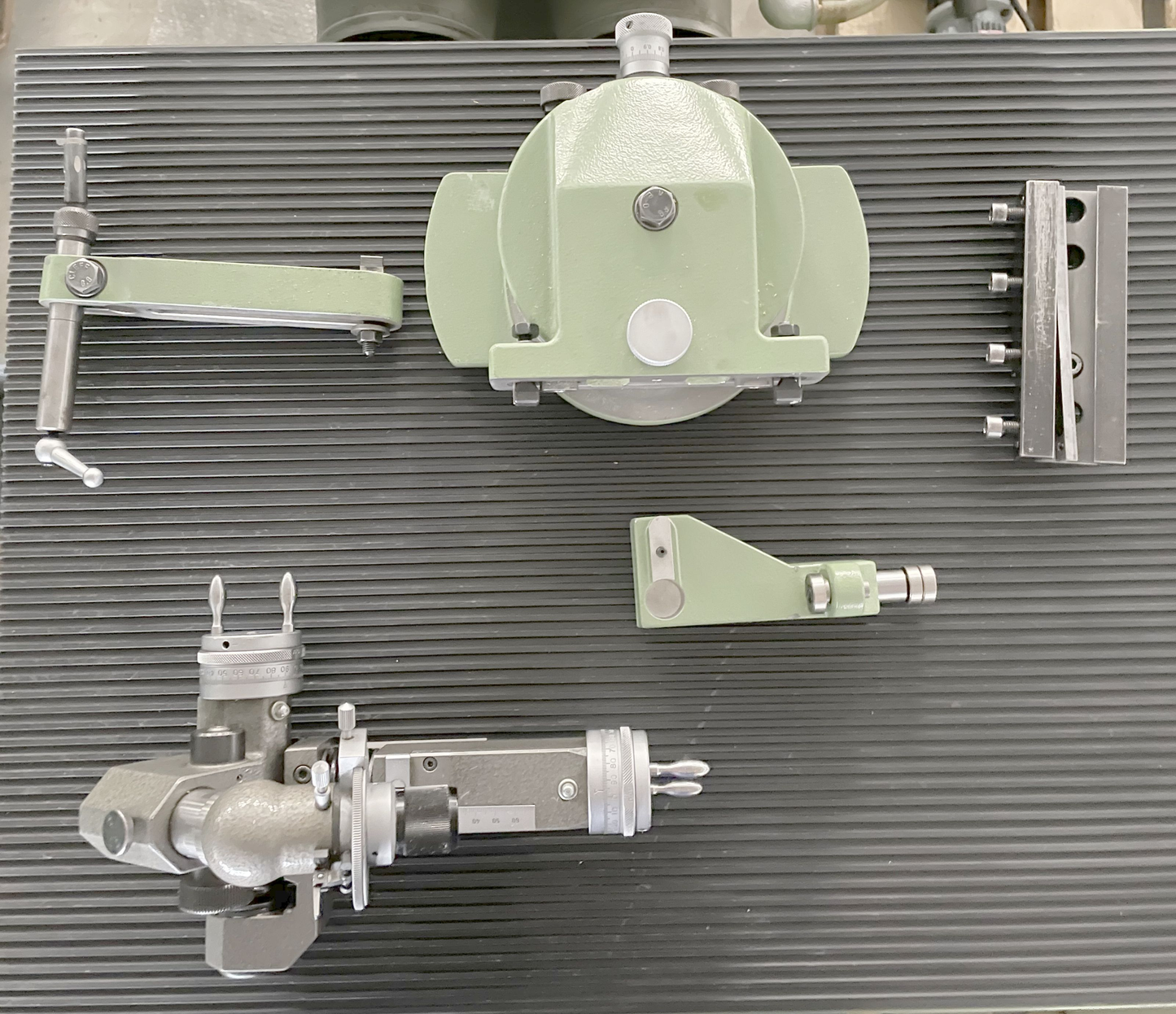

| Various accessories: | |
| Tool cabinet | |
| Dial gauge | |
| Set of collets | |
| Set of collets | ESX |
| Dividing attachment universal | |
| Lamp | |
| Microscope | |
| Radius grinding attachment | |
| Spin- and relief grinding attachment | |
| Grinding wheel guard |
