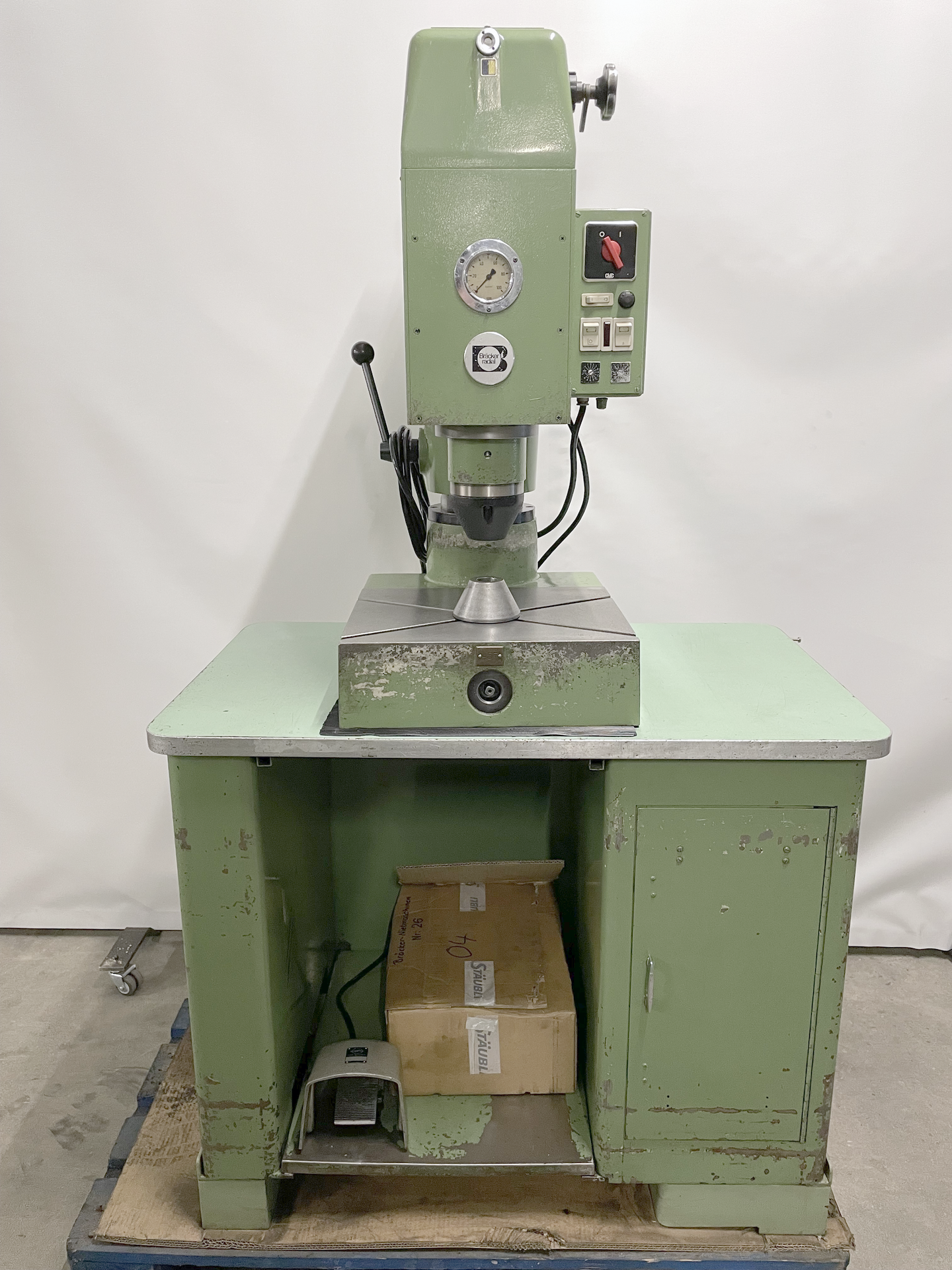

BRÄCKER PN 300 is a riveting machine of precision, high accuracy and reliability. Working capacities: riveting diameter 4–16 mm; table 400×330 mm; tool stroke up to 50 mm; riveting time 1–12 s; max. pressure 60 kp; oil pressure up to 60 atm. Main specifications: voltage 3x 380 V 50 Hz; motor 2 kW, 3000 t/min; overall dimensions 1000×750×1530 mm; weight approx. 320 kg. Delivers tight tolerances; suitable for automotive, aerospace, watchmaking, machine tools and medical applications.
| Min. riveting diameter | 4 mm |
| Max. riveting diameter | 16 mm |
| Table length | 400 mm |
| Table width | 330 mm |
| Max. pressure | 60 kp |
| Riveting time: | |
| from | 1 s |
| up to | 12 s |
| Tool stroke: | |
| up to | 50 mm |
| Oil pressure: | |
| up to | 60 atm |
| Voltage 50 Hz 3x | 380 Volt |
| motor speeds | 3000 t/min |
| Driving motor (motor power) | 2 kW |
| Machine's weight about | 320 kg |
| Overall dimensions machine: | |
| Length | 1000 mm |
| Width | 750 mm |
| Height | 1530 mm |
| Various accessories: | |

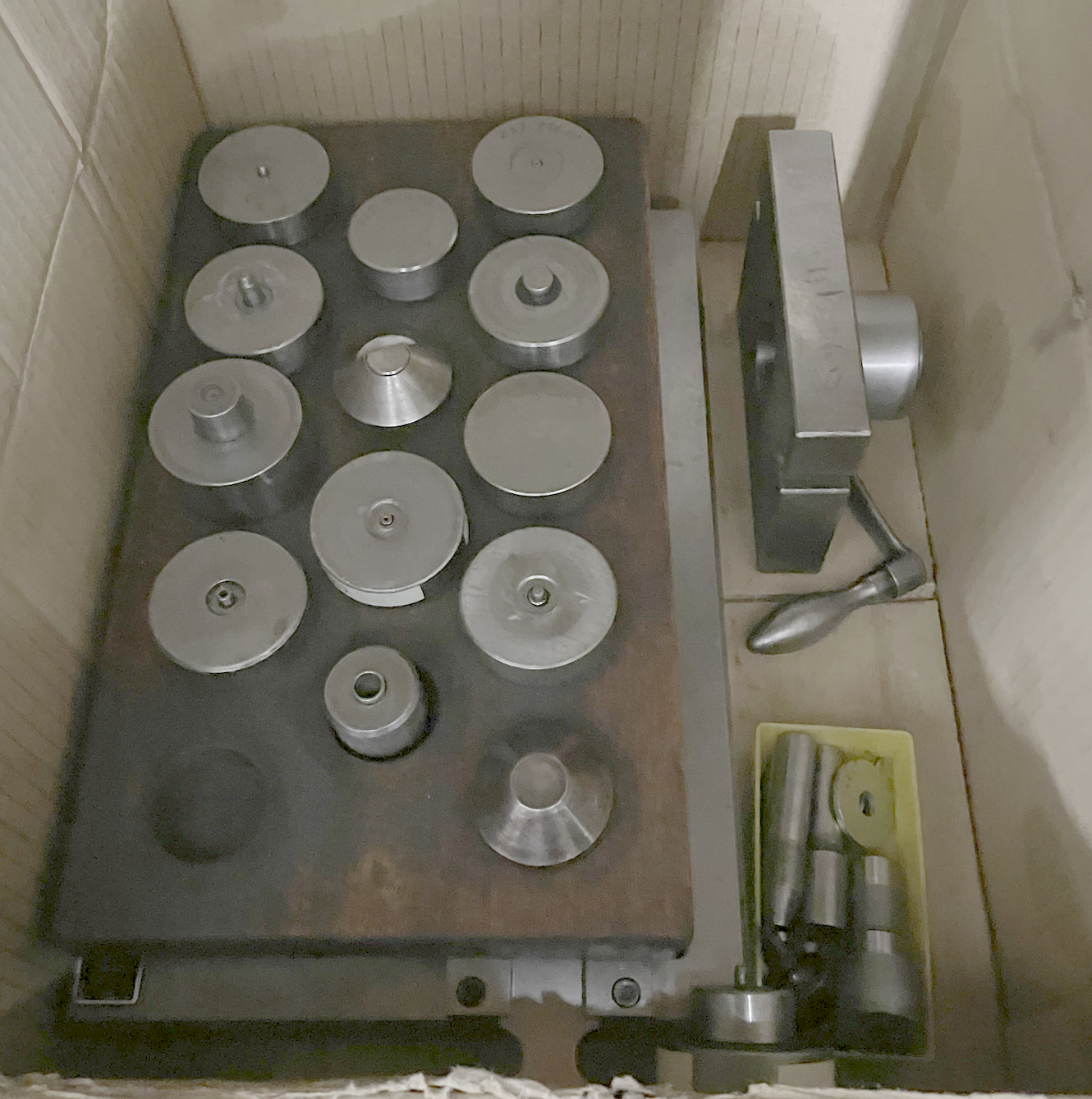

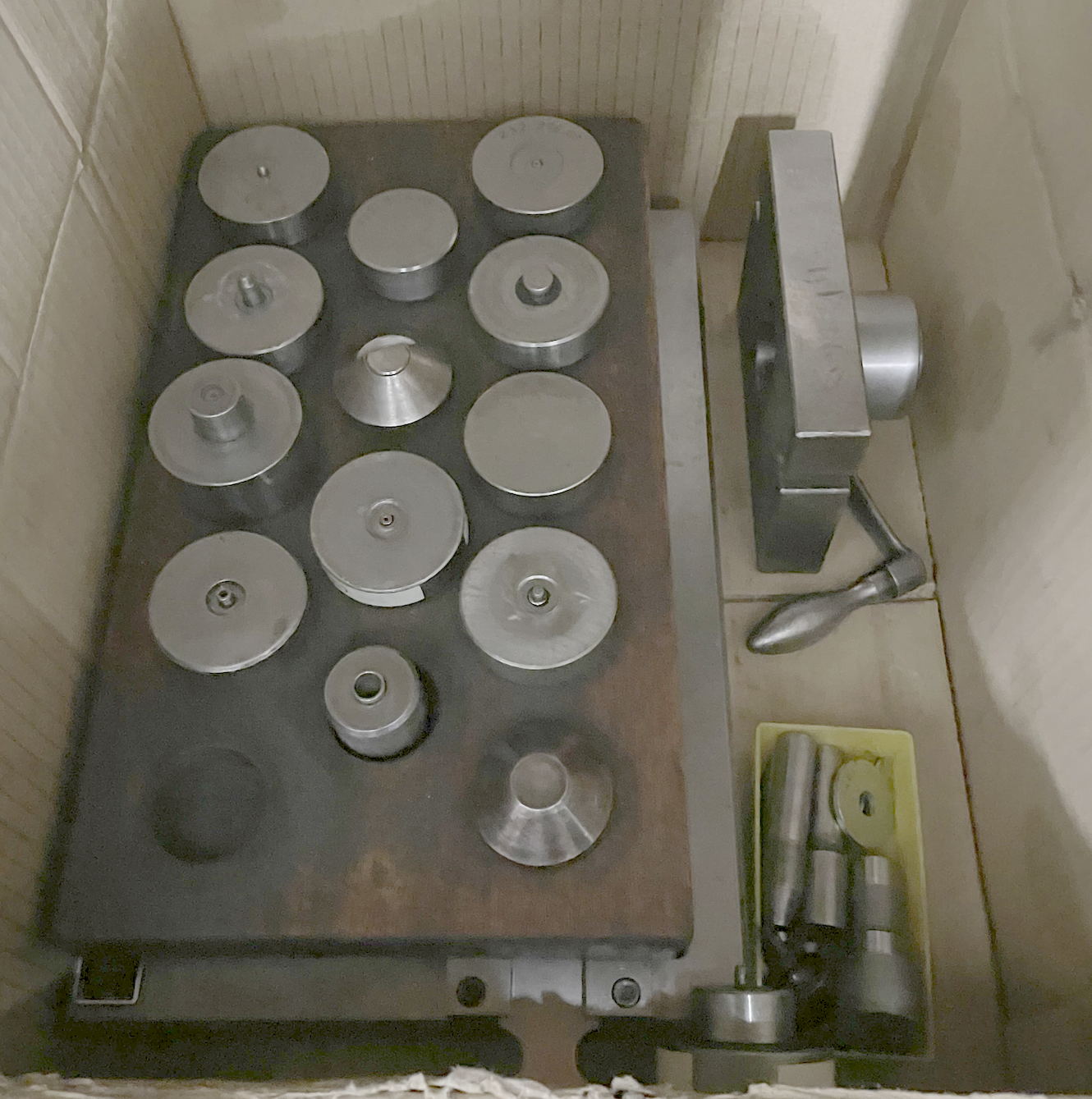

| Riveting tools |
