JENNYDENISON T 4
Type: T 4
Manufacturer: JENNYDENISON
Subgroup: Hydraulic press
Stock: 021529
Download technical sheet (PDF)

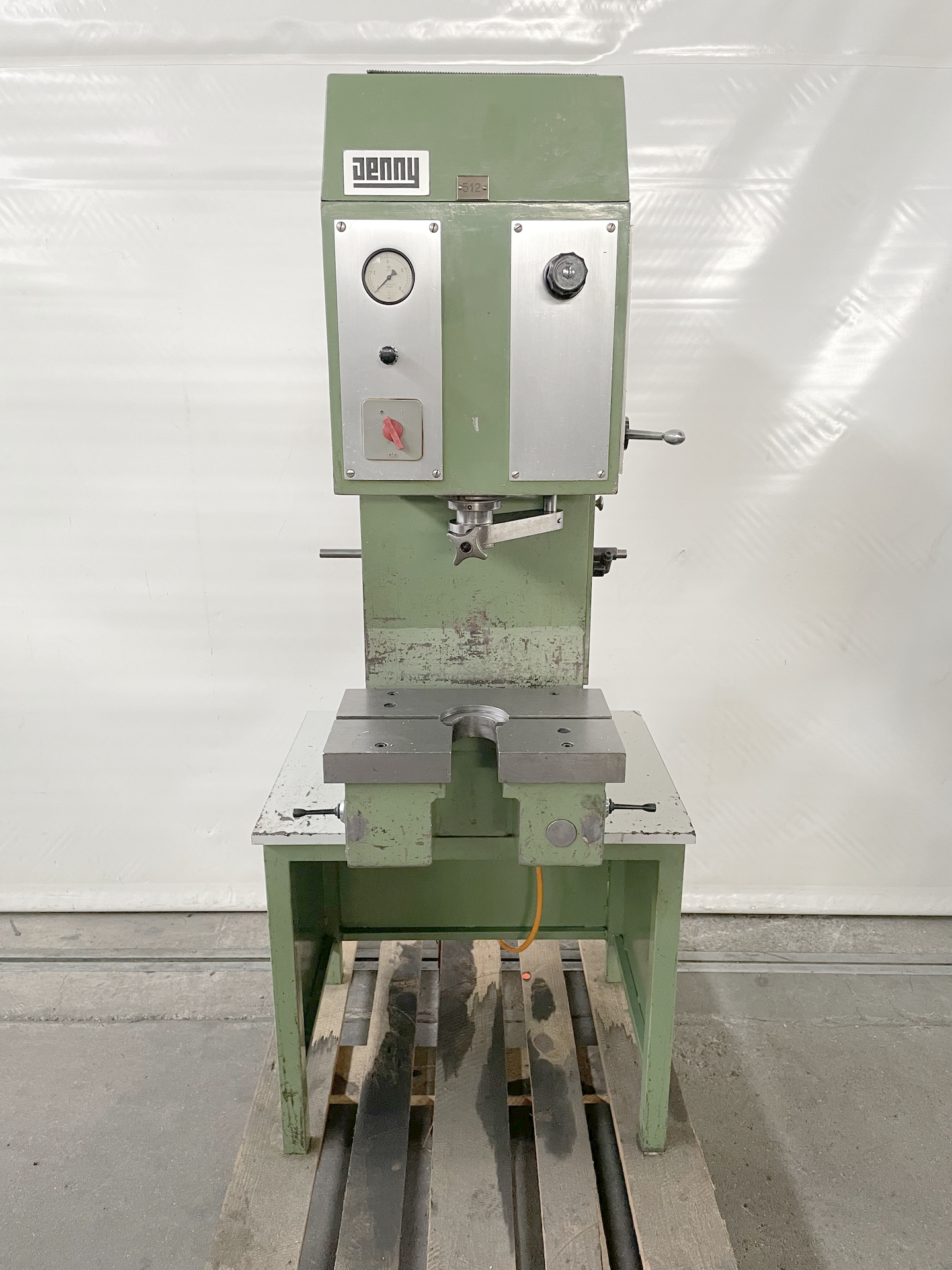

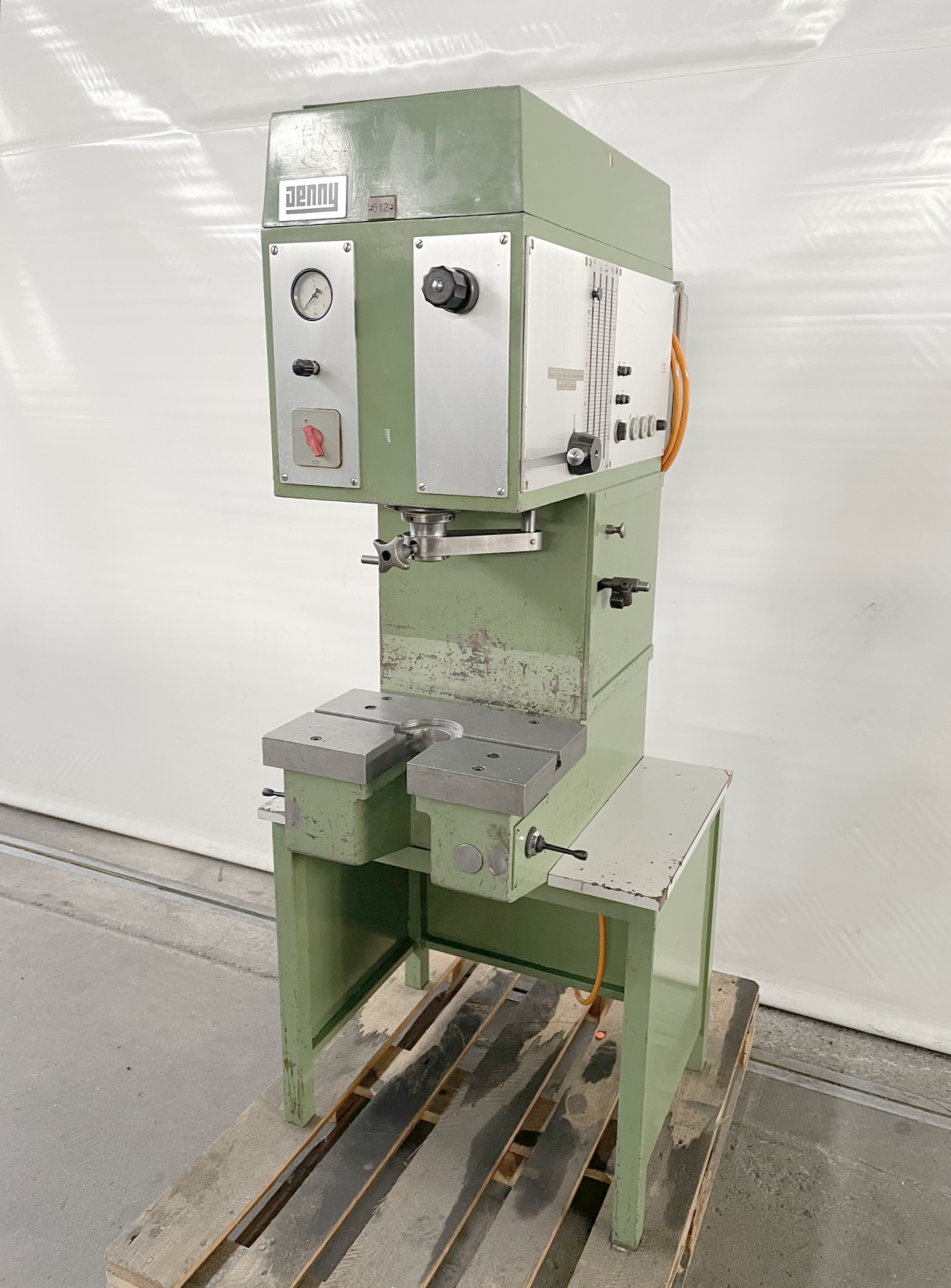

JENNYDENISON T 4 is a Hydraulic press with high precision, excellent accuracy and proven reliability. Capacities: pressure 4 t, total stroke 200 mm, table 290×230 mm, slide-nose min 0 / max 250 mm, throat depth 118 mm, slide pressure 4000 kg. Main specs: voltage 3×380 V 50 Hz, total power 3 CV, machine weight ≈400 kg, dimensions L900×W700×H1800 mm. Designed to achieve tight tolerances; typical applications include automotive, precision engineering, toolmaking, aerospace and medical.

Pressure 4 to
Total stroke 200 mm
Execution: 1 support

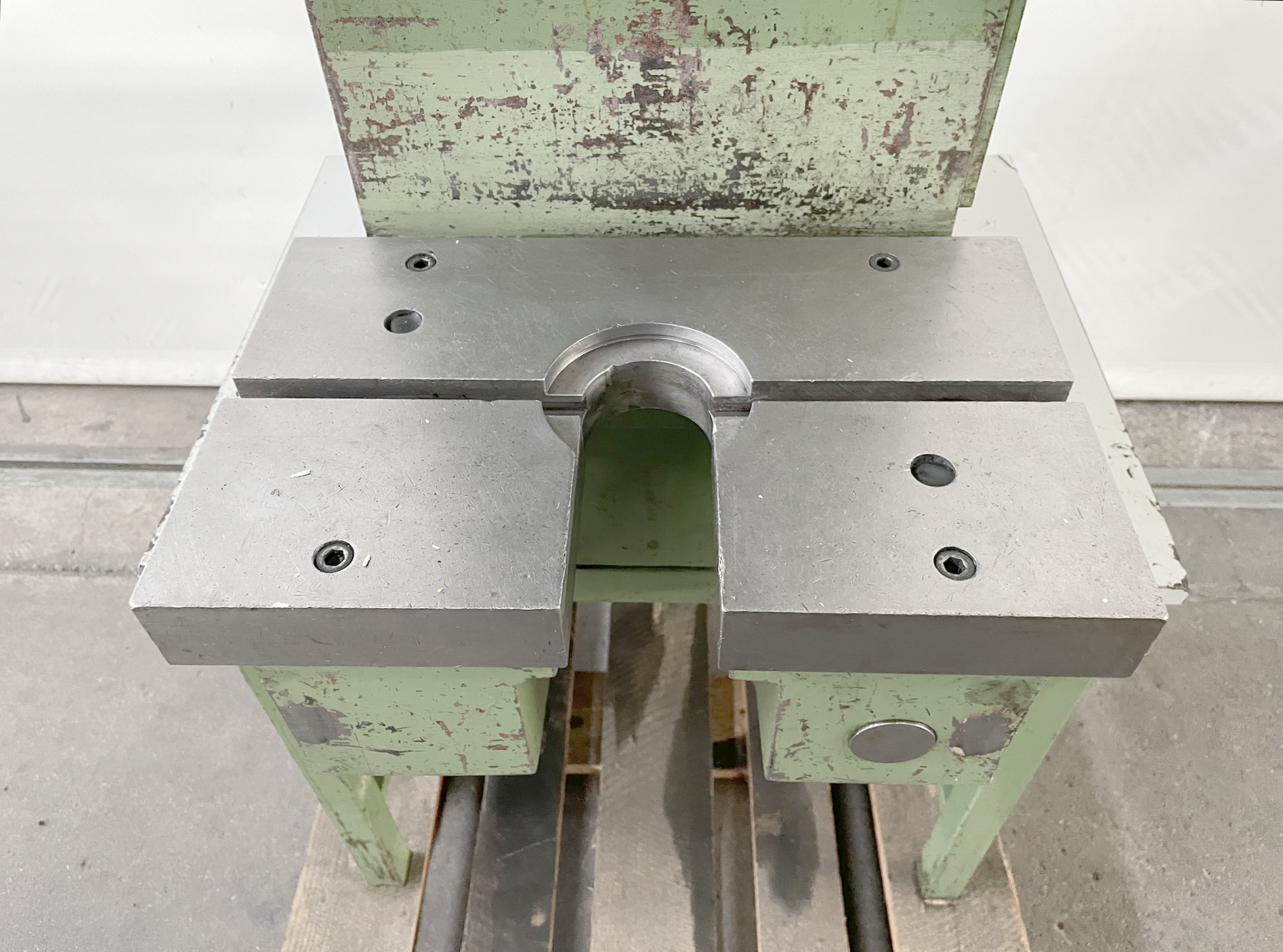

Table surface:
   Length 290 mm
   Width 230 mm
Slide pressure 4000 kg
Distance from table to
   slide-nose: min. 0 mm
   max 250 mm
Depth of throat 118 mm
Voltage 50 Hz 3x 380 Volt
Total power required 3 CV
Machine's weight about 400 kg
Overall dimensions machine:
   Length 900 mm
   Width 700 mm
   Height 1800 mm
