SCHÜTTE WU 50 is a Tool and cutter grinder designed for precision, high accuracy and reliability. Capacities: centre height 115 mm, distance between centres 720 mm, max grinding Ø 260 mm, table–spindle distance 70–370 mm; table travels L 520 mm, T 270 mm; head vertical travel 300 mm; table and head 360°. Specs: grinding spindle 4 steps 1,100–6,000 rpm; supply 50 Hz 3×380 V; grinding spindle motor 1.6 CV; weight ≈840 kg; dimensions L1800×W1400×H1700 mm. Accessories: set of flanges, set of grinding wheel arbors, set of arbors, lamp, rotatable vice, workpiece spindle head, radius redressing device. Achieves tight tolerances; typical applications: automotive, watchmaking, machine tools, aerospace, medical.
| Centre height | 115 mm |
| Distance between centres | 720 mm |
| Max. grinding diameter | 260 mm |
| Distance from table to | |
| grinding spindle: | |
| min. | 70 mm |
| max | 370 mm |
| Longitudinal way of table | 520 mm |
| Transversal way of the table | 270 mm |
| Vertical adjustment of grinding head | 300 mm |
| Table swivels | 360 ° |
| Slewing range of grinding head: | |
| horizontal | 360 ° |
| Grinding spindle speeds: | |
| number (steps) | 4 |
| from | 1100 t/min |
| up to | 6000 t/min |
| Voltage 50 Hz 3x | 380 Volt |
| Grinding spindle motor | 1.6 CV |
| Machine's weight about | 840 kg |
| Overall dimensions machine: | |
| Length | 1800 mm |
| Width | 1400 mm |
| Height | 1700 mm |
| Various accessories: | |

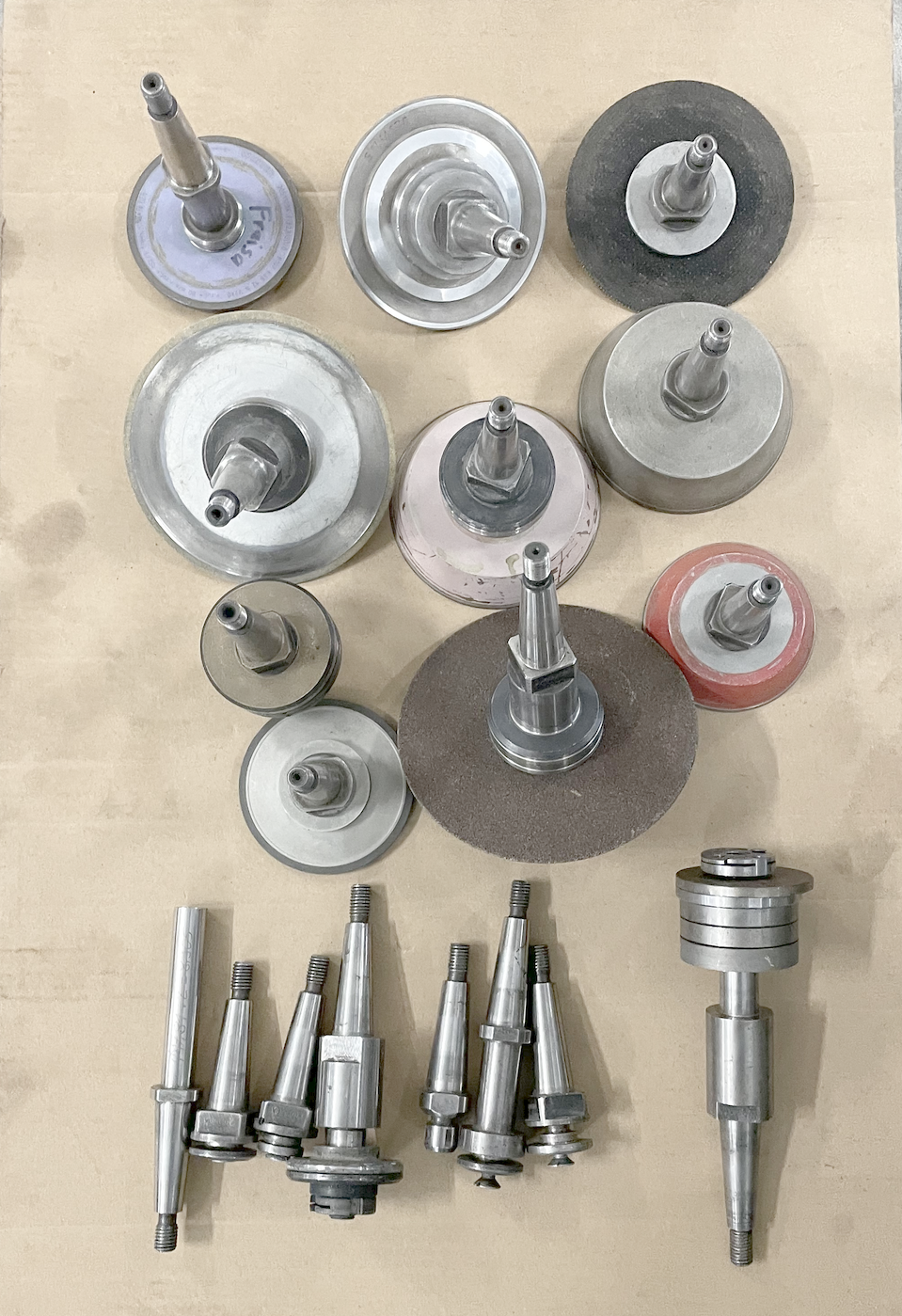

| Set of flanges | |
| Set of grinding wheel arbors | |
| Set of arbors | |
| Lamp | |
| Vice rotatable | |
| Work piece spindle head | |
| Rayon redressing device |
