| Centre height | 115 mm |
| Distance between centres | 500 mm |
| Max. grinding length | 320 mm |
| Axial motion: | |
| Longitudinal | 340 mm |
| Vertical | 300 mm |
| Slewing range of grinding head: | |
| vertical | 360 ° |
| Grinding spindle speeds: | |
| from | 3650 t/min |
| up to | 6100 t/min |
| Voltage 50 Hz 3x | 380 Volt |
| Machine's weight about | 700 kg |
| Overall dimensions machine: | |
| Length | 1000 mm |
| Width | 905 mm |
| Height | 1500 mm |

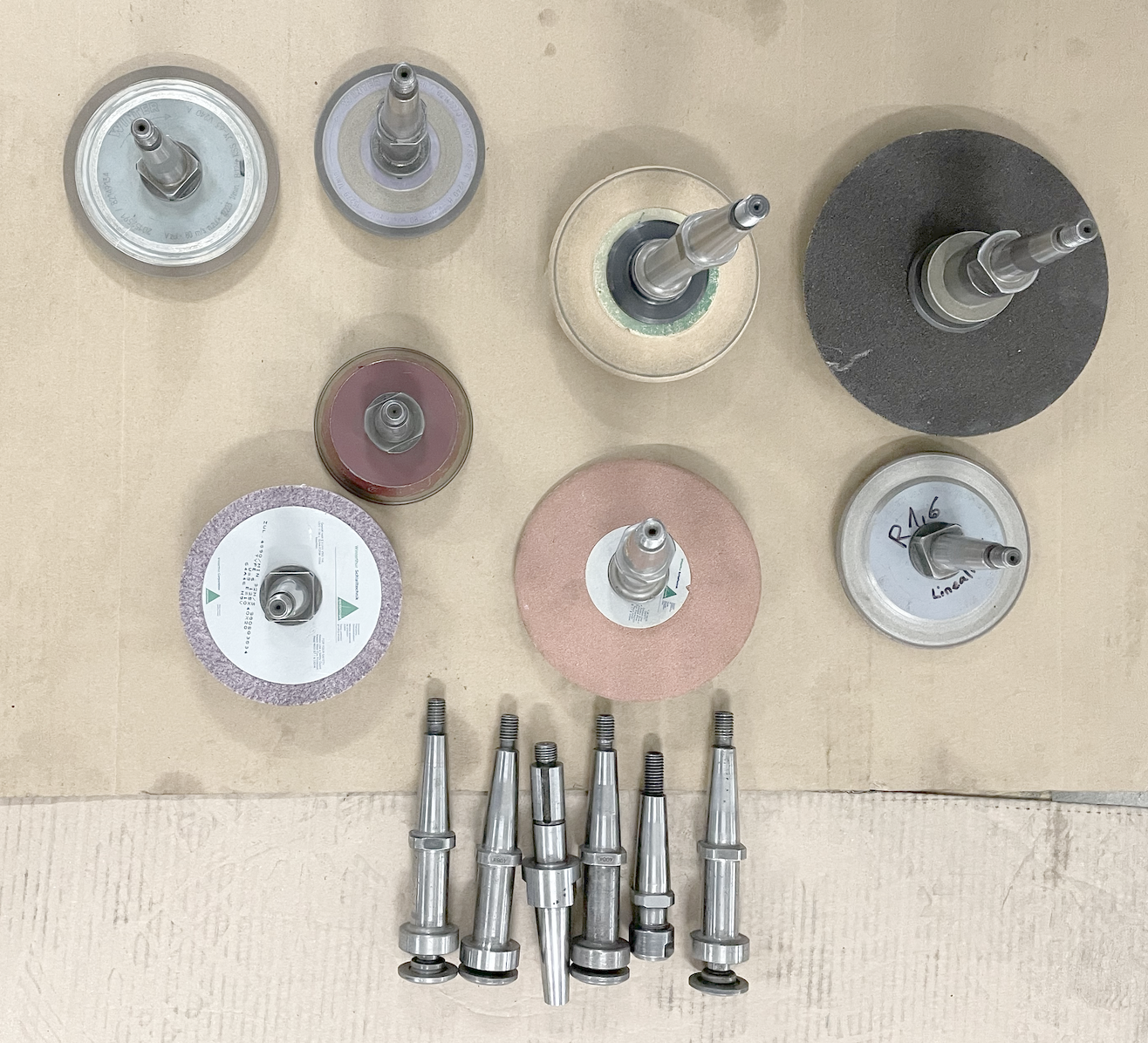

| Various accessories: | |
| Set of grinding wheel arbors | |
| Tailstock | |
| Set of arbors | |
| Lamp | |
| Measuring device | |
| Microscope | |
| Work piece spindle head | |
| Rayon redressing device |
