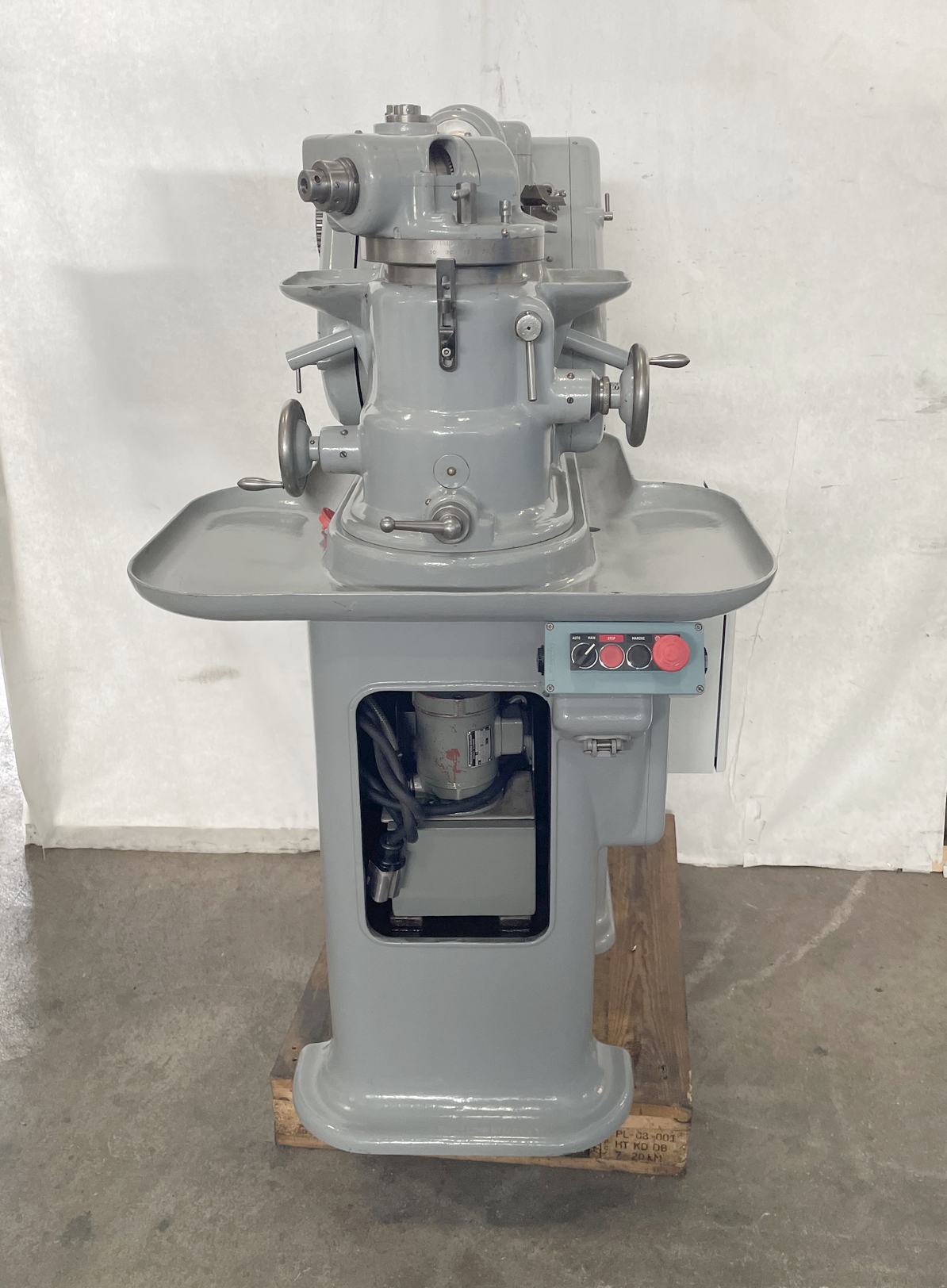

MIKRON 134 is a gear shaping machine engineered for precision machining with high accuracy and reliability. Working range: module up to 1.25 / 1.50, helix/tilt angle +30 / -30°, max. gear cutting width 28 mm; max. length to be shaped 440 mm, max. width 28 mm; device for toothed racks provided. Main technical specifications: 3 ram stroke lengths; min. ram stroke 10 or 20 mm, max. 28 mm; ram stroke speeds 7 steps from 165 to 750 c/min; table spindle feeds 5 speeds (values not specified); voltage 50 Hz 3x380 V; machine weight ≈225 kg; overall dims L900×W750×H1300 mm. Achieves tight tolerances; typical applications: automotive, watchmaking, machine tools, aerospace, medical.
| Working range: | |
| Module from | |
| up to | 1.25 / 1.50 |
| Helix angle | +30 / -30 ° |
| Max. gear cutting width | 28 mm |
| Toothed racks: | |
| Max. length to be shaped | 440 mm |
| Max. width to be shaped | 28 mm |
| Number of ram stroke lengths: | 3 |
| Min. ram stroke | 10 , 20 mm |
| Max. ram stroke | 28 mm |
| Ram stroke speeds: | |
| number (steps) | 7 |
| from | 165 c/min |
| up to | 750 c/min |
| Table leading spindle speeds: | |
| number (steps) | 5 |
| from | mm |
| up to | mm |
| Voltage 50 Hz 3x | 380 Volt |
| Machine's weight about | 225 kg |
| Overall dimensions machine: | |
| Length | 900 mm |
| Width | 750 mm |
| Height | 1300 mm |
| Various accessories: | |

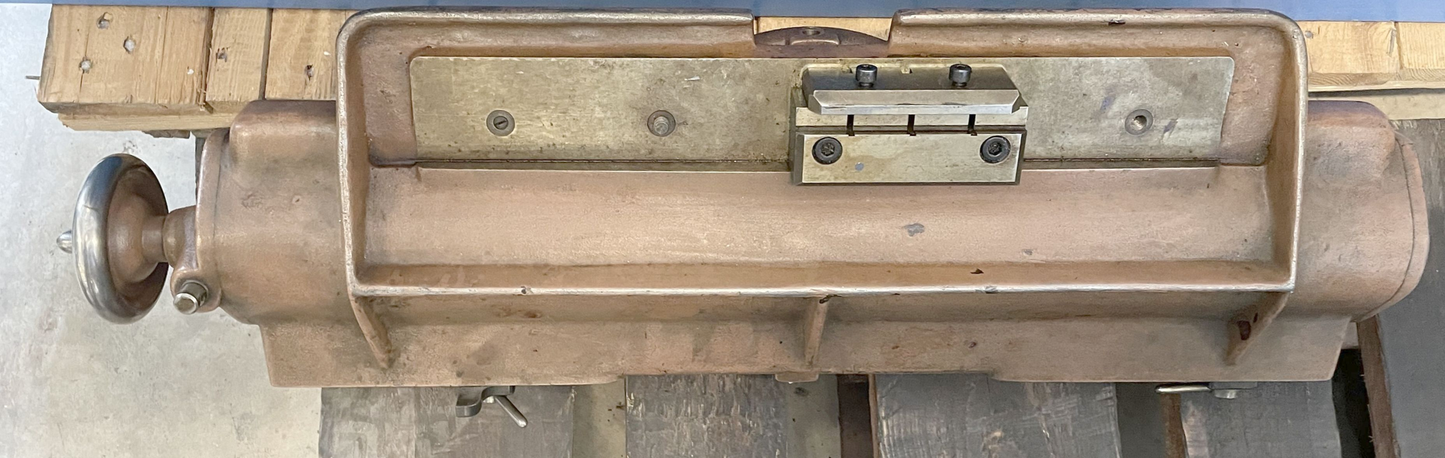

| Device for toothed racks |
