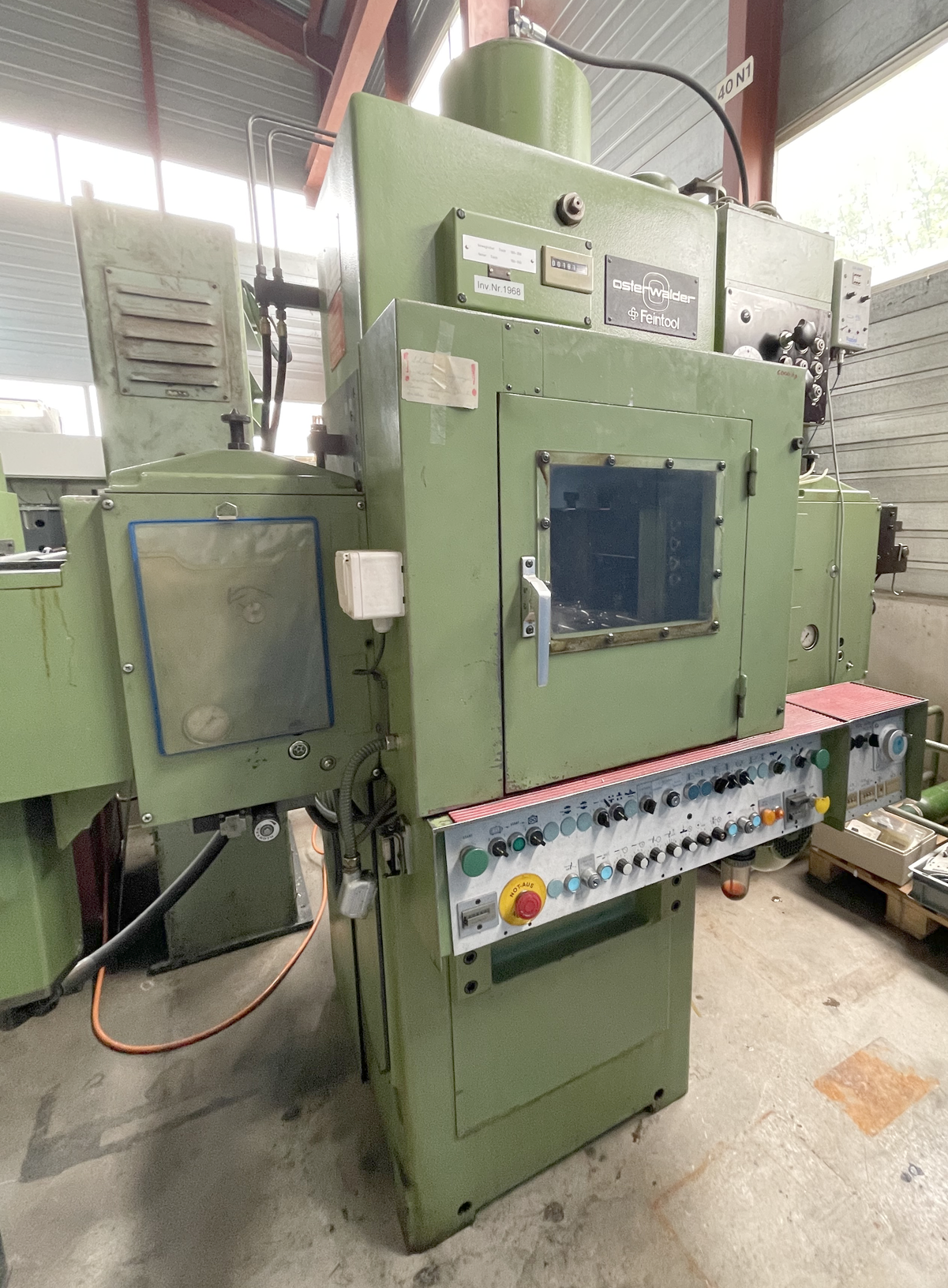

FEINTOOL GKP-FN 80 is a Fine blanking machine, engineered for precision, high accuracy and reliability. Working capacities: upper/lower tool clamping surfaces 420 x 420 mm, band width 90 mm, max material thickness 3 mm, die stroke up to 90 mm, stepless stroke rate 30–120 strokes/min, tool height 150–250 mm. Main technical specs: slide pressure 80 t (800 kN), main motor 6 kW, voltage 3x 380 V 50 Hz, machine weight approx. 6000 kg, overall dimensions L 2970 x W 1665 x H 2420 mm. Accessories: forward feed device and workpiece counter. Delivers tight tolerances; typical applications include automotive, watchmaking, machine tools, aerospace and medical industries
| Slide pressure | 80 to |
| Total capacity | 800 kN |

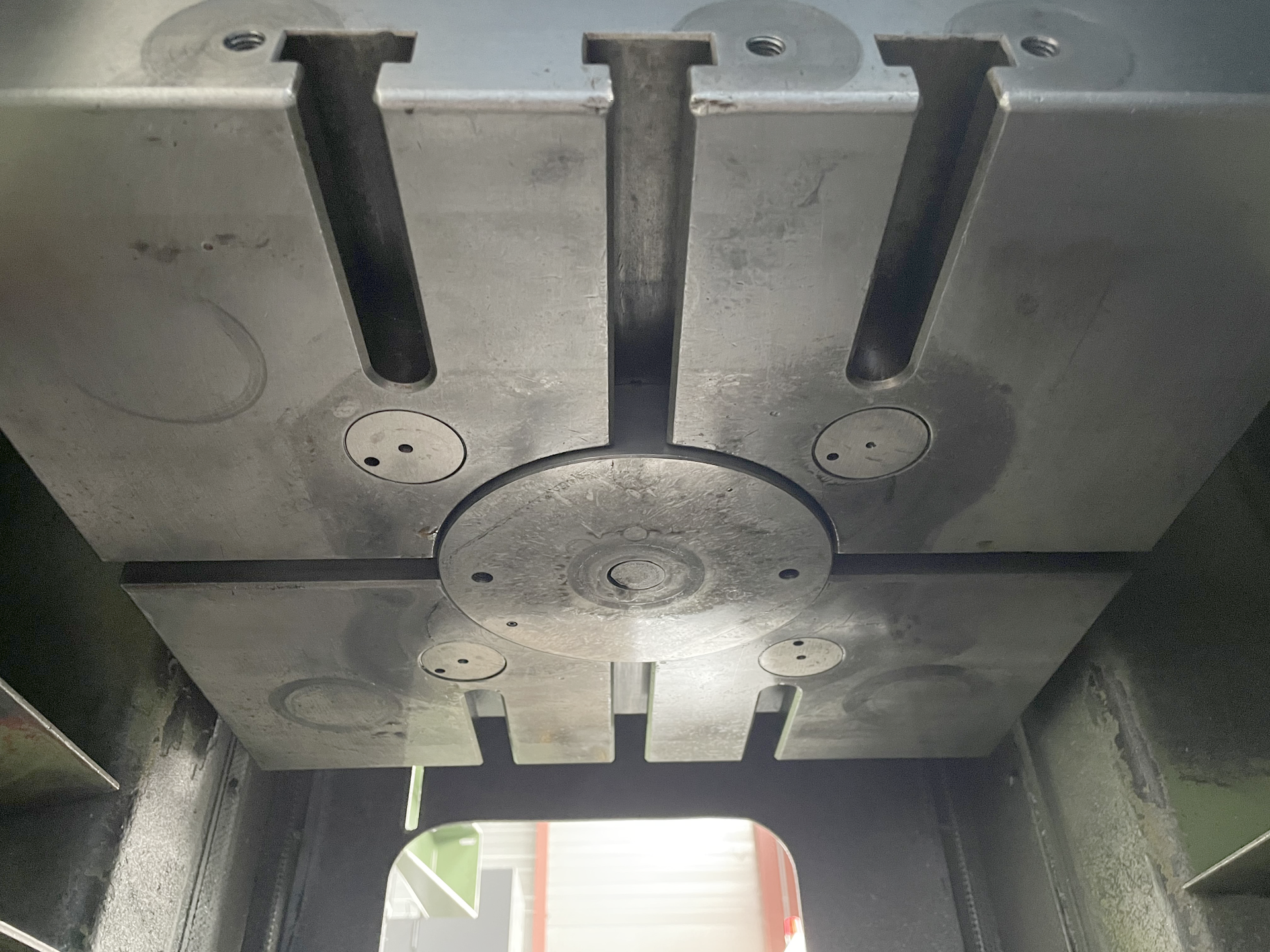

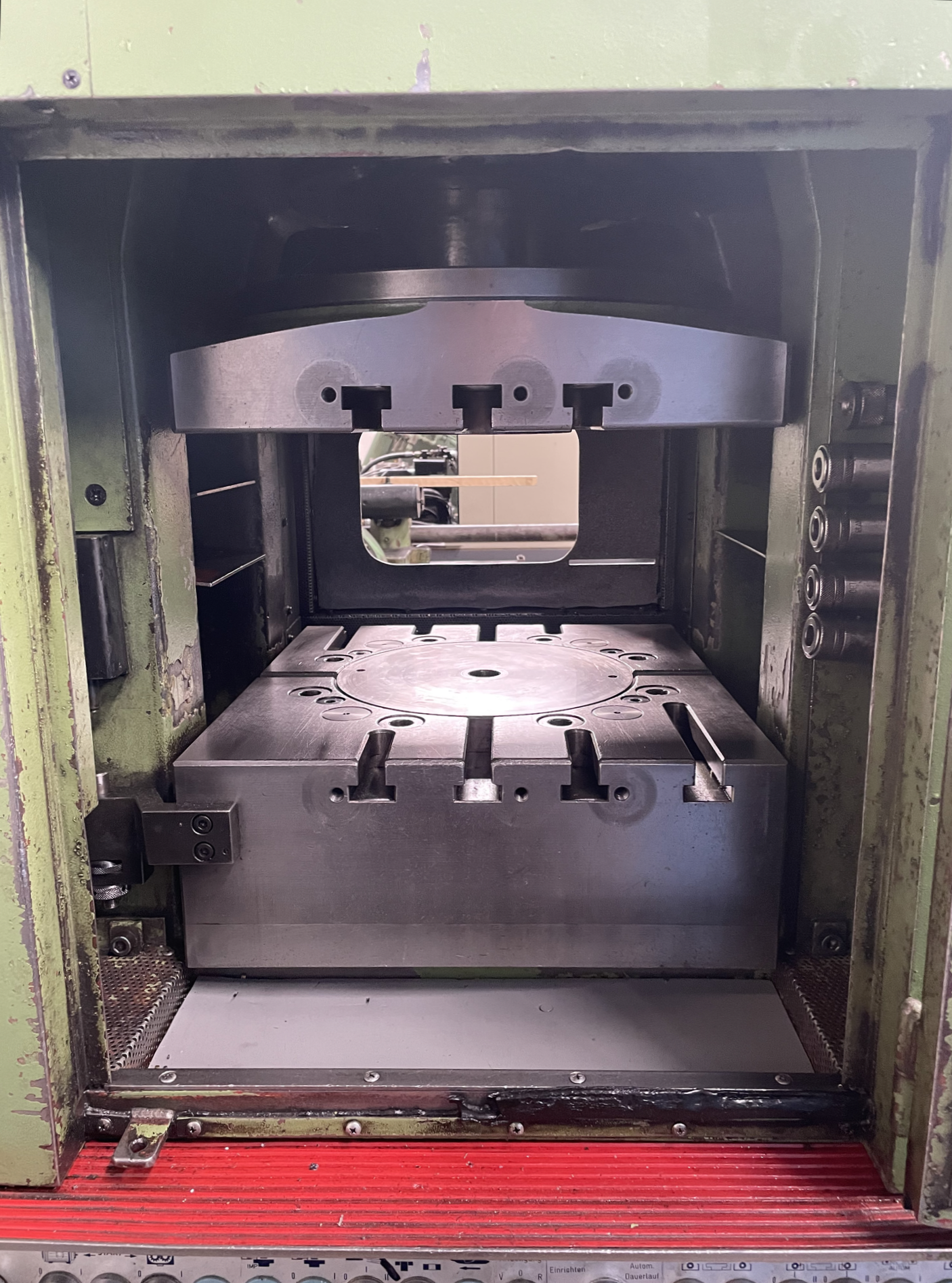

| Tool clamping surface: | |

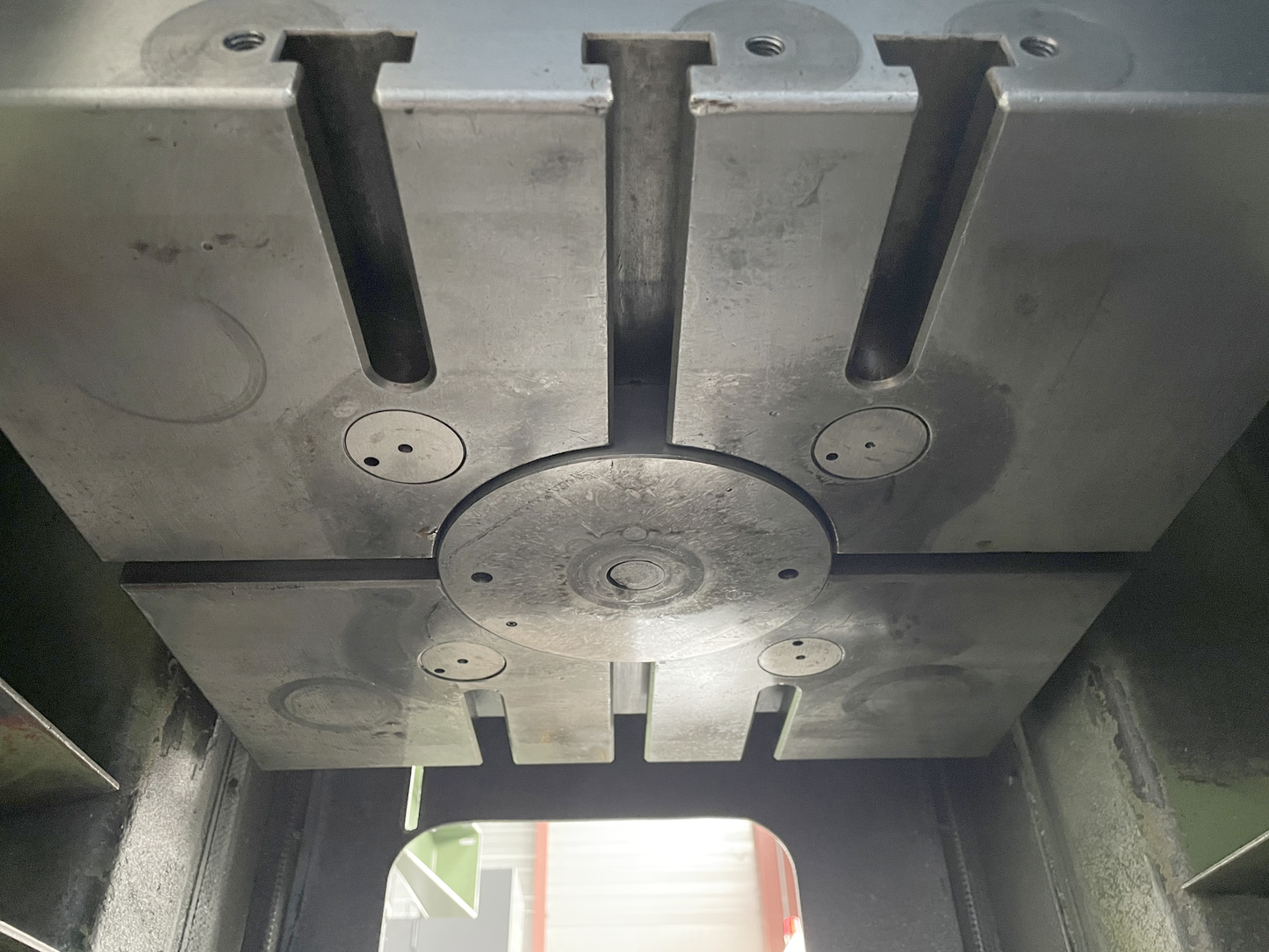

| superior: length | 420 mm |
| Width | 420 mm |

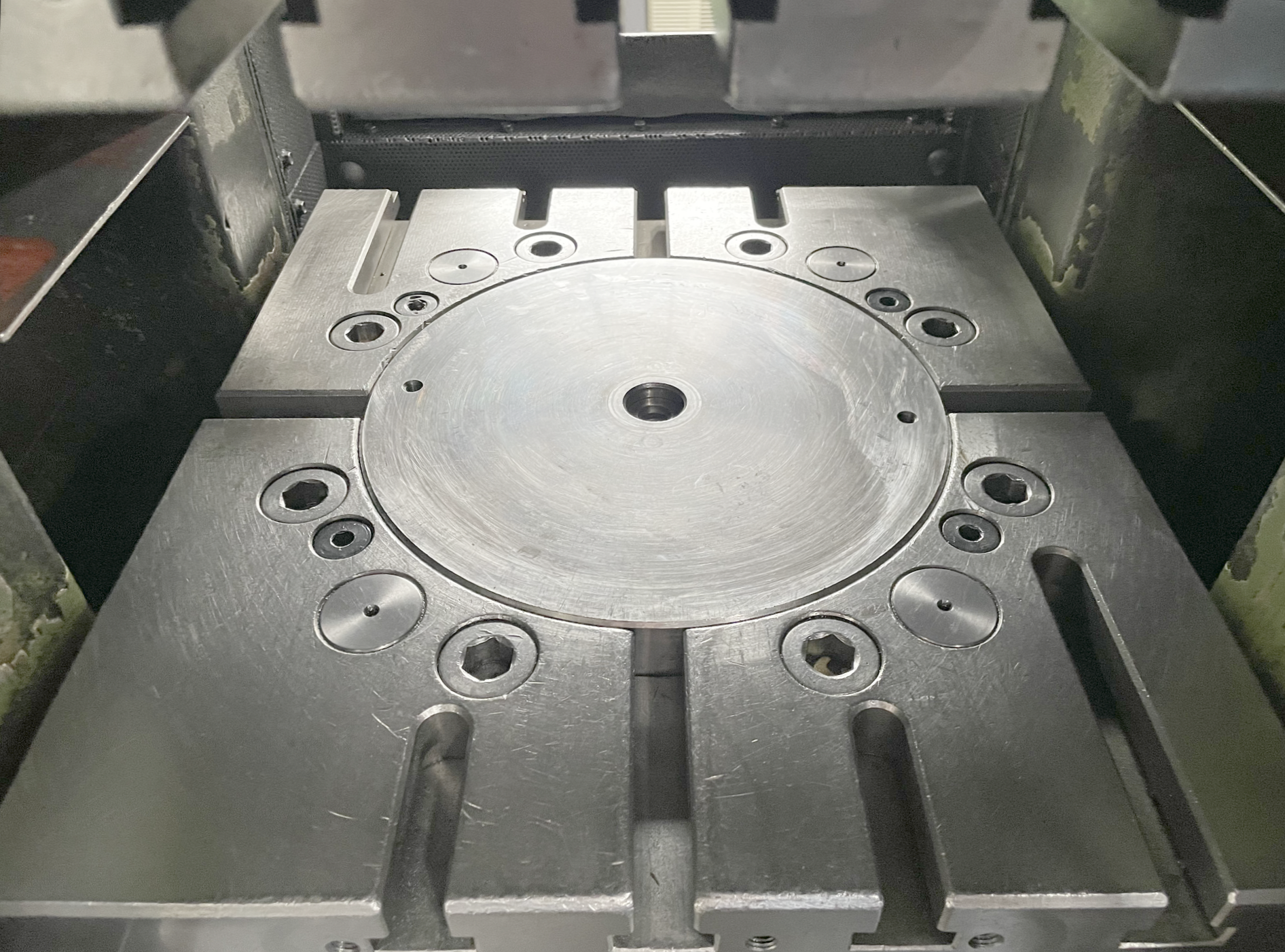

| inferior: length | 420 mm |
| Width | 420 mm |
| Die stroke from | mm |
| up to | 90 mm |
| Number of strokes: | |
| stepless | |
| from | 30 c/min |
| up to | 120 c/min |
| Tool height: | |
| from | 150 mm |
| up to | 250 mm |
| Band width | 90 mm |
| Maximum thickness of material | 3 mm |
| Voltage 50 Hz 3x | 380 Volt |
| Main motor | 6 kW |
| Machine's weight about | 6000 kg |
| Overall dimensions machine: | |
| Length | 2970 mm |
| Width | 1665 mm |
| Height | 2420 mm |
| Various accessories: | |

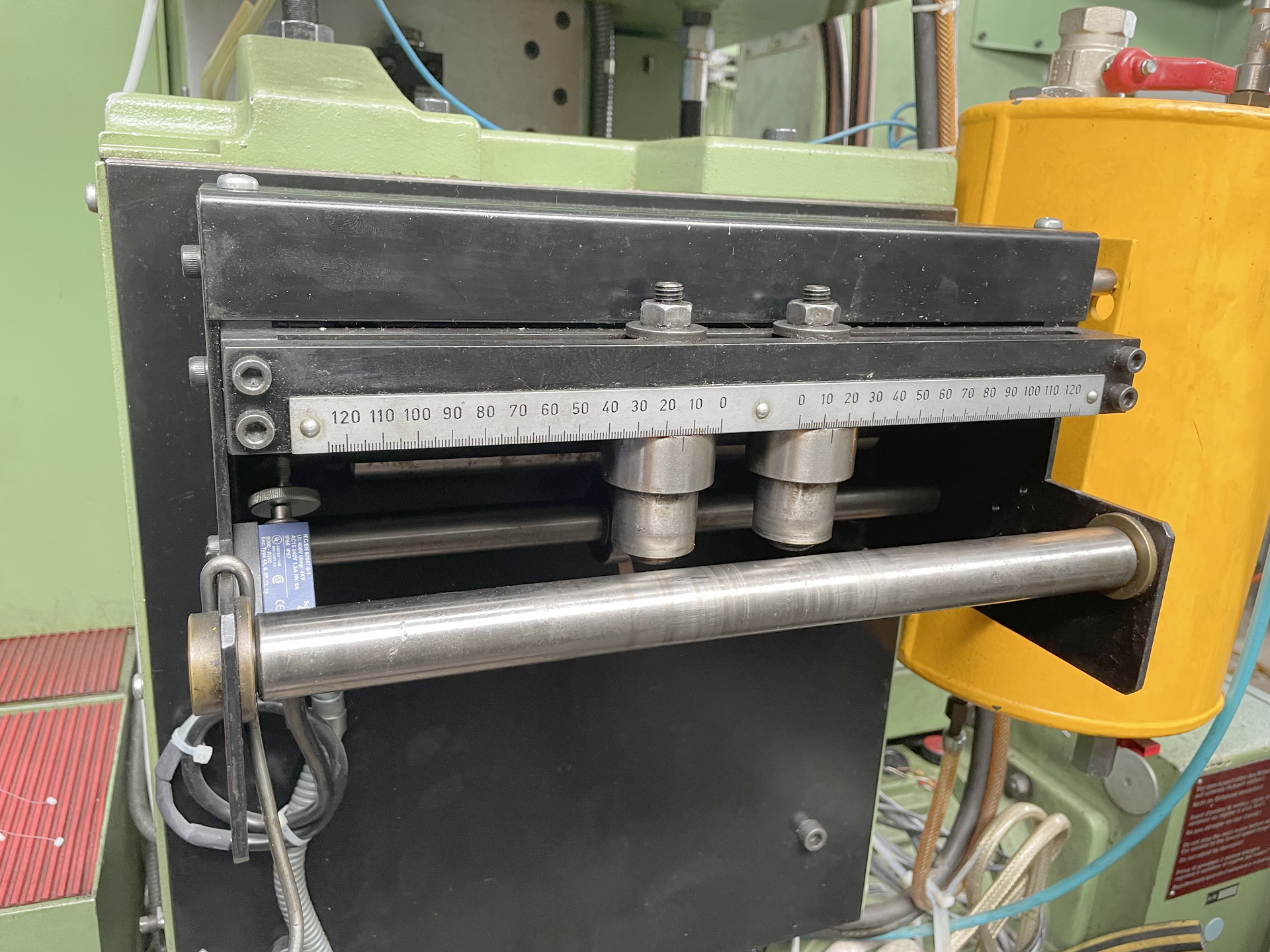

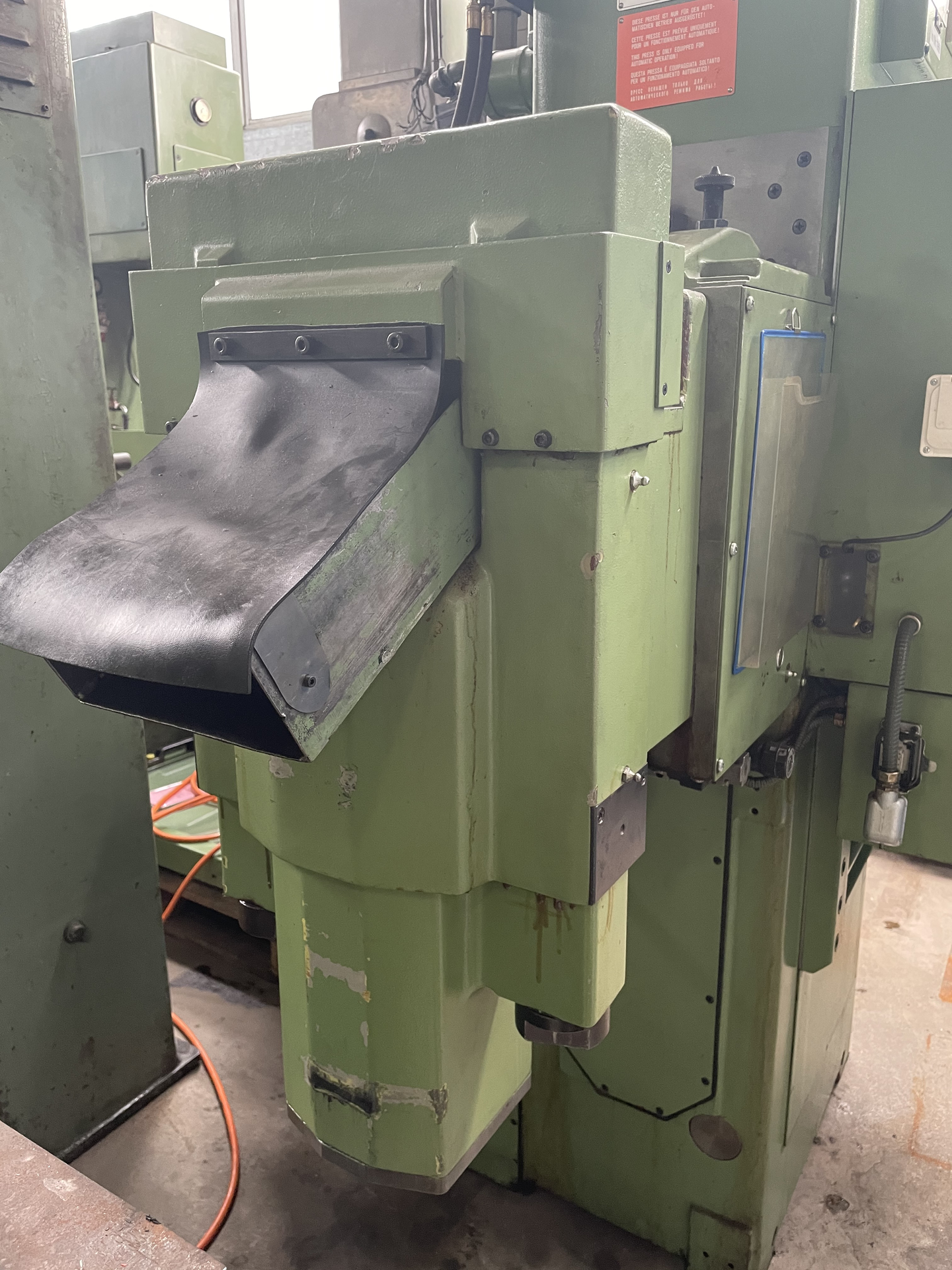

| Forward feed device | |

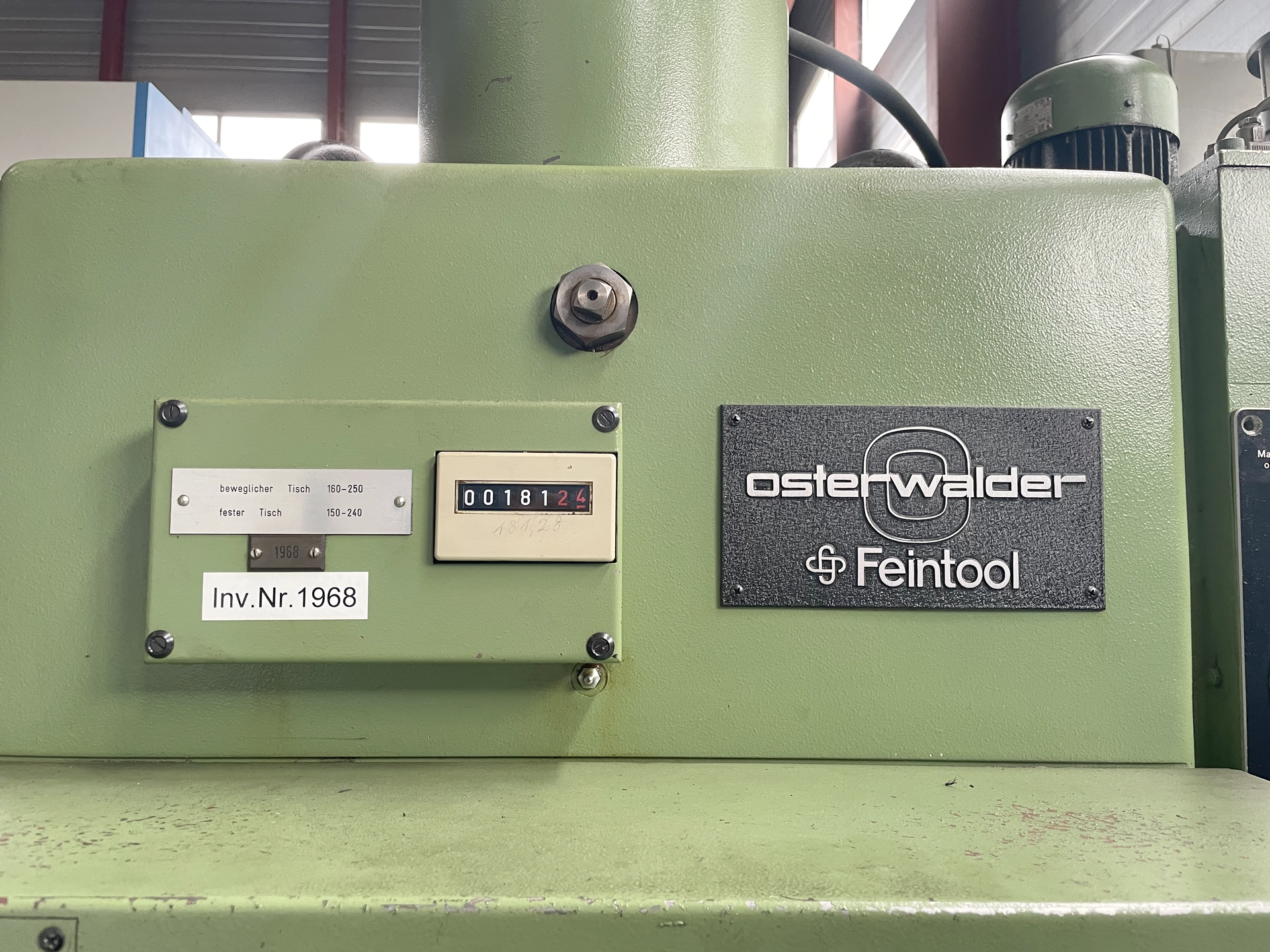

| Workpiece counter |
