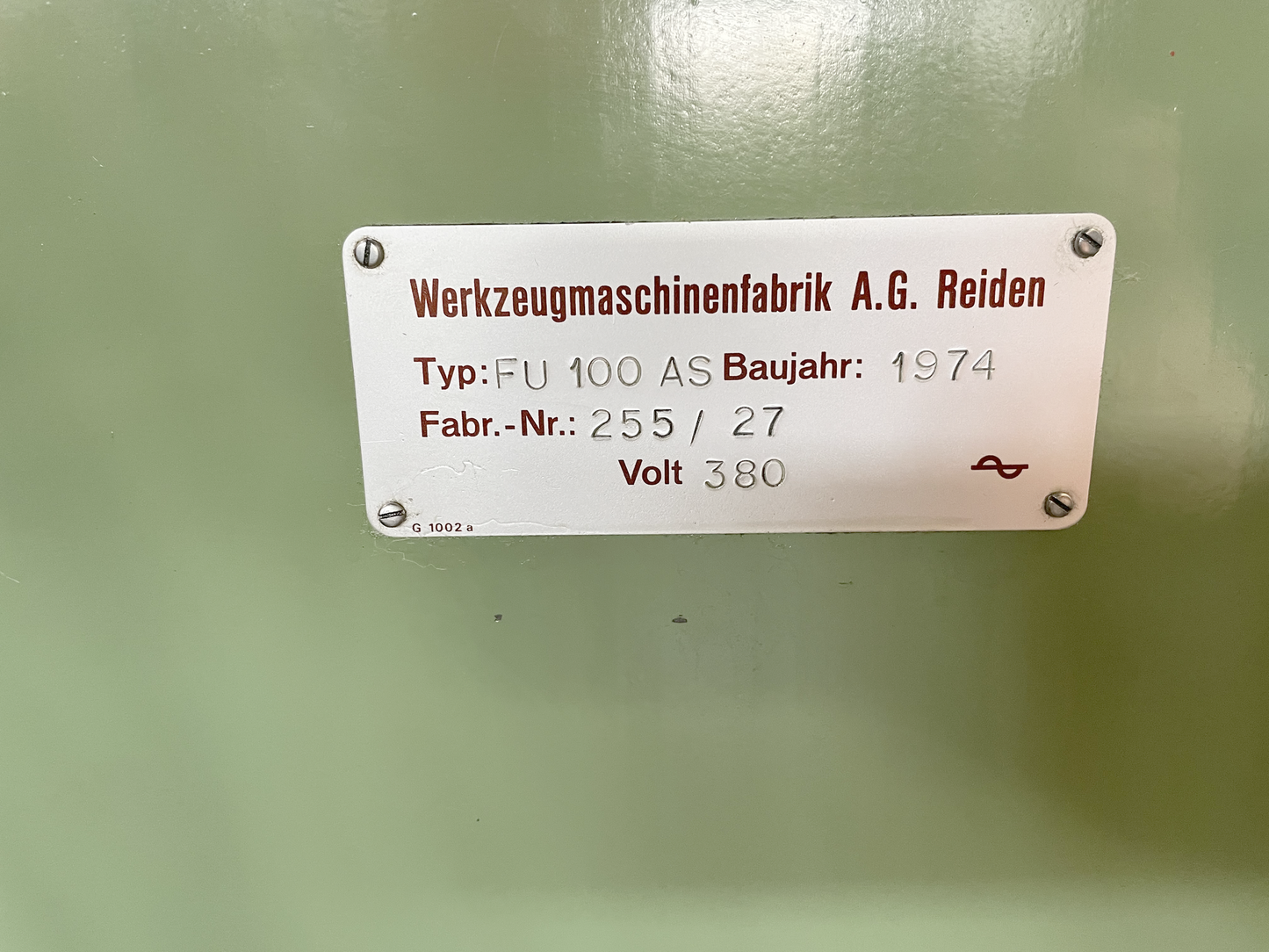

REIDEN FU 100 AS
Download technical sheet (PDF)
Need Assistance? Just WhatsApp Us!
REIDEN FU 100 AS is a universal milling machine designed for precision machining with high accuracy and reliability. Table 1100×300 mm; travels X 700 mm, Y 250 mm, Z 470 mm; upper slide travel 400 mm. Spindle 12 steps 45–2000 t/min, taper ISO 40; feeds 12 steps: X/Y 18–800 mm/min, Z 7.2–320 mm/min; rapid traverse X/Y 2.5 m/min, Z 1.0 m/min; supply 3x380 V 50 Hz; motor 6.0 CV; weight ~1900 kg; overall 2000×1600×1700 mm. Digital readout 3 axes (Mitutoyo). Delivers tight tolerances; suitable for automotive, aerospace, medical, tooling and watchmaking industries
| Table length | 1100 mm |
| Table width | 300 mm |
| Longitudinal travel (X-axis) | 700 mm |
| Transversal travel (y axis) | 250 mm |
| Vertical travel (z axis) | 470 mm |
| Travel of the upper slide | 400 mm |
| Spindle speeds: | |
| number (steps) | 12 |
| from | 45 t/min |
| up to | 2000 t/min |
| Taper in spindle | 40 ISO |
| Feeds steps: | 12 |
| longitudinal from | 18.0 mm/min |
| up to | 800 mm/min |
| transversal from | 18.0 mm/min |
| up to | 800 mm/min |
| vertical from | 7.2 mm/min |
| up to | 320 mm/min |
| Rapid traverse: | |
| longitudinal | 2.5 m/min |
| transversal | 2.5 m/min |
| vertical | 1.0 m/min |
| Voltage 50 Hz 3x | 380 Volt |
| Motor output | 6.0 CV |
| Machine's weight about | 1900 kg |
| Overall dimensions machine: | |
| Length | 2000 mm |
| Width | 1600 mm |
| Height | 1700 mm |
| Various accessories: | |
| Digital readout number of axis: | 3 |
| Manufacturer | Mitutoyo |
| Coolant system | |
| Lamp | |
| Chip tray |
