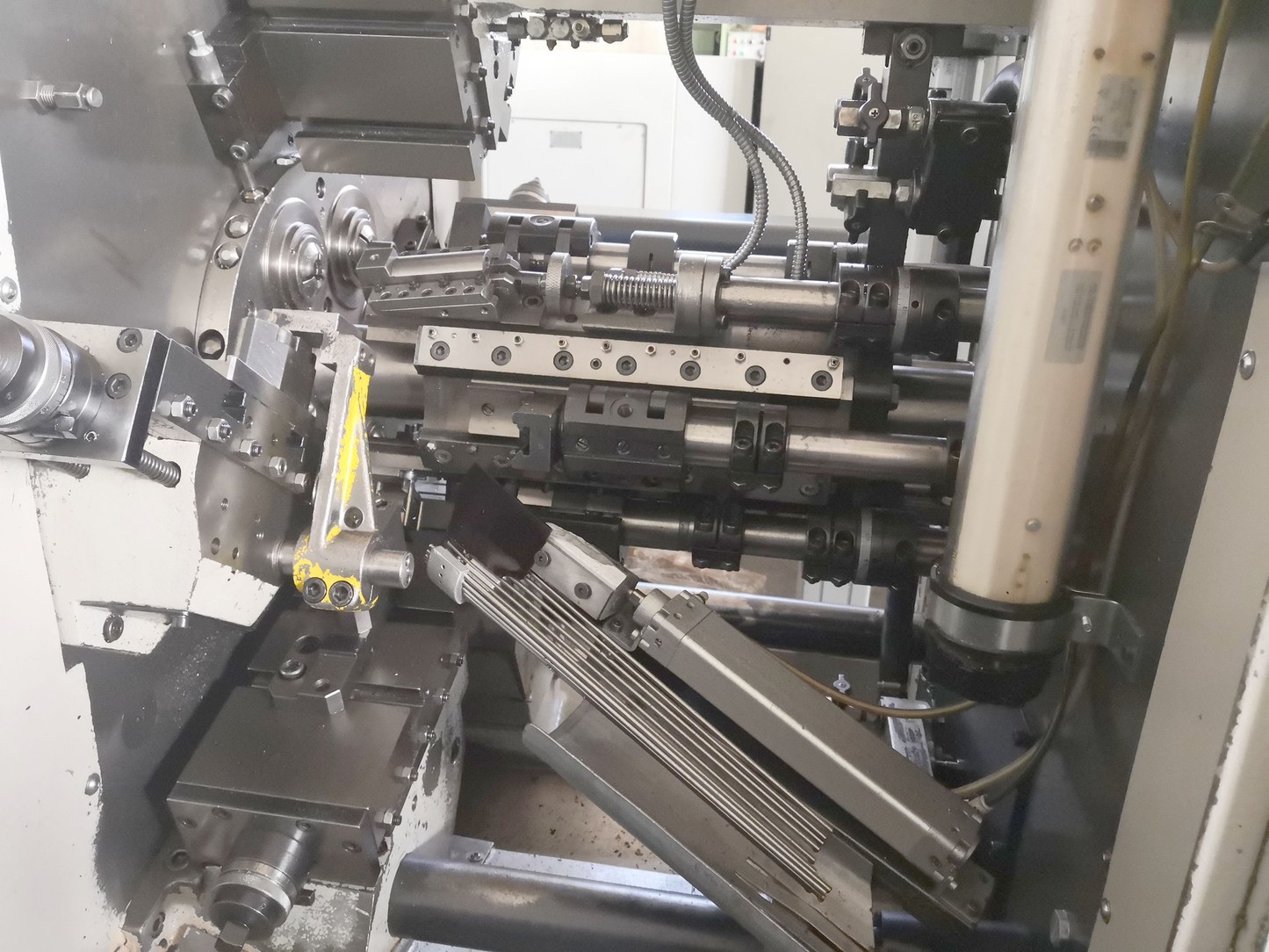

SCHÜTTE SF 20-6 is a multi-spindle turning lathe designed for precision, high accuracy and reliable performance. Capacities: 6 spindles; round bar 20 mm, square 14 mm, hexagon 17 mm; max. bar advance 80 mm; max. turning length 40 mm; long slide stroke 63/39.6 mm; up to 31 pieces. Technical specs: stepless spindle speeds 355–5000 t/min; voltage 50 Hz 3×380 V; power 15 kW; weight approx. 4000 kg; dimensions L3125×W1030×H2000 mm. Enables tight tolerances; typical applications include automotive, watchmaking, tooling, aerospace and medical.
| Number of spindles | 6 |
| Capacity round bar | 20 mm |
| Capacity square bar | 14 mm |
| Capacity hexagon bar | 17 mm |
| Max. advance of bar | 80 mm |
| Max. turning length | 40 mm |
| Max. stroke of long slide | 63 / 39.6 mm |
| Number of possible pieces | 31 |
| Machining rate: | |
| from | s |
| up to | 95 s |
| Spindle speeds: | |
| stepless | |
| from | 355 t/min |
| up to | 5000 t/min |
| Voltage 50 Hz 3x | 380 Volt |
| Power | 15 kW |
| Machine's weight about | 4000 kg |
| Overall dimensions machine: | |
| Length | 3125 mm |
| Width | 1030 mm |
| Height | 2000 mm |
