021340 - HAHN + KOLB WS 54
Download technical sheet (PDF)
Message us on WhatsApp
| Centre height | 200 mm |
| Distance between centres | 280 mm |
| Max. grinding diameter | 200 mm |
| Grinding-wheel diameter | 125 mm |
| Taper in spindle: | 5 CM |
| grinding spindle: | |
| Longitudinal way of table | 150 mm |
| Transversal way of the table | 140 mm |
| Slewing range of grinding head: | |
| horizontal | 90 ° |
| vertical | 90 ° |
| Grinding spindle speeds: | |
| number (steps) | 3 |
| from | 4500 t/min |
| up to | 7100 t/min |
| Voltage 50 Hz 3x | 380 Volt |
| Grinding spindle motor | 3 CV |
| Machine's weight about | 560 kg |
| Overall dimensions machine: | |
| Length | 620 mm |
| Width | 500 mm |
| Height | 1500 mm |

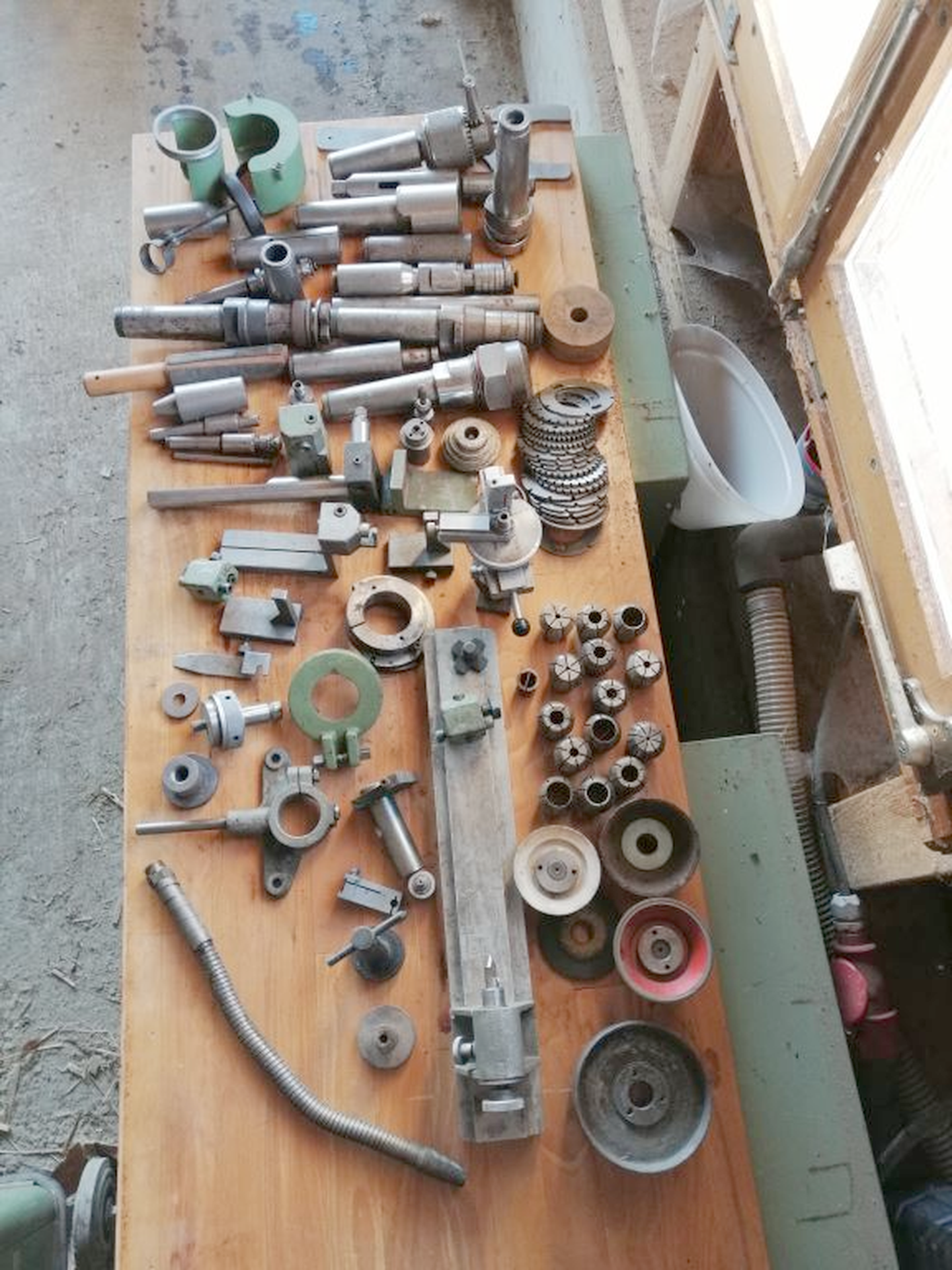

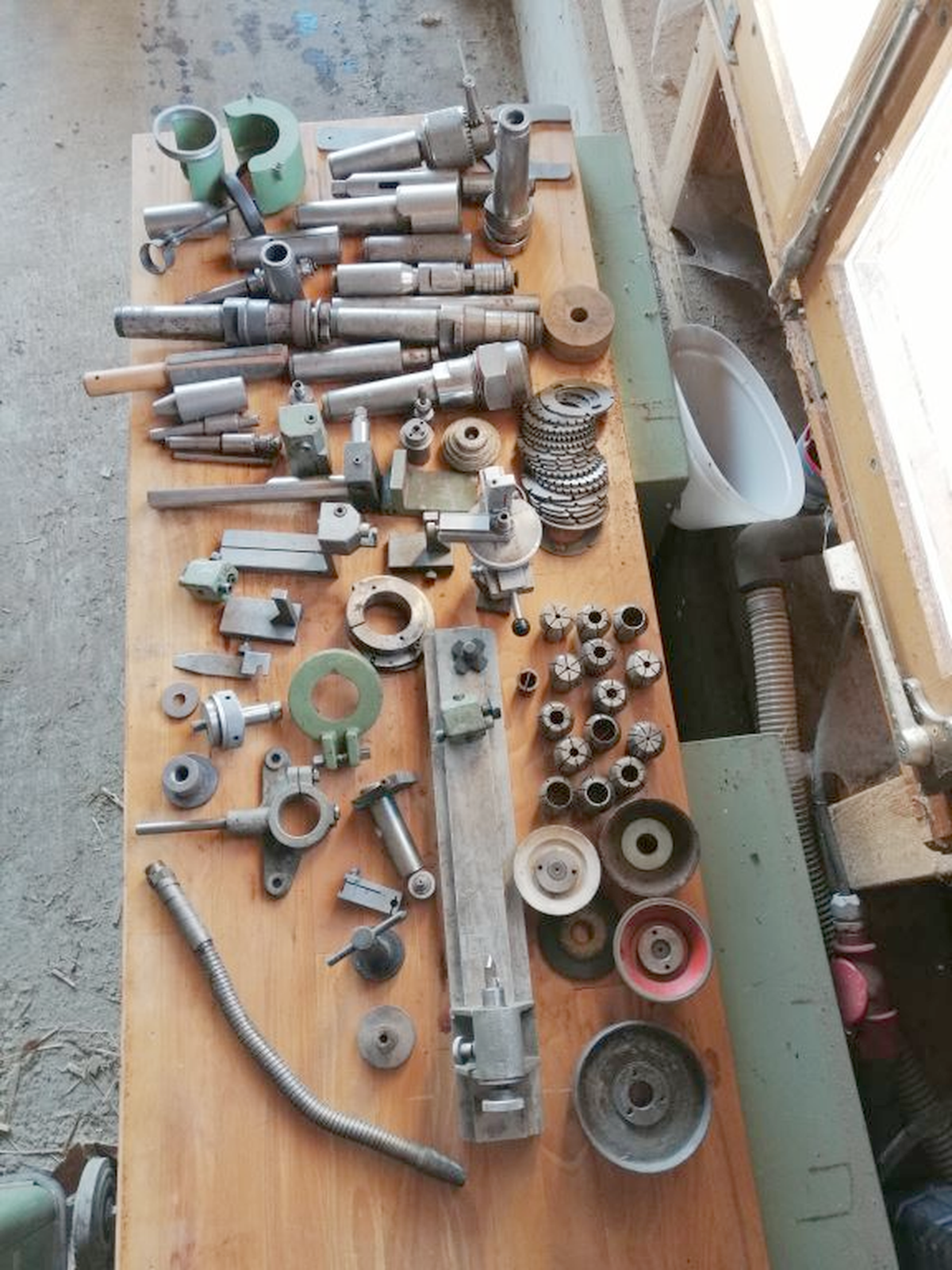

| Various accessories: | |
| Set of collets | |
| Set of grinding wheel arbors | |
| Dividing plates | |
| Set of grinding wheels | |
| Grinding wheel guard |
