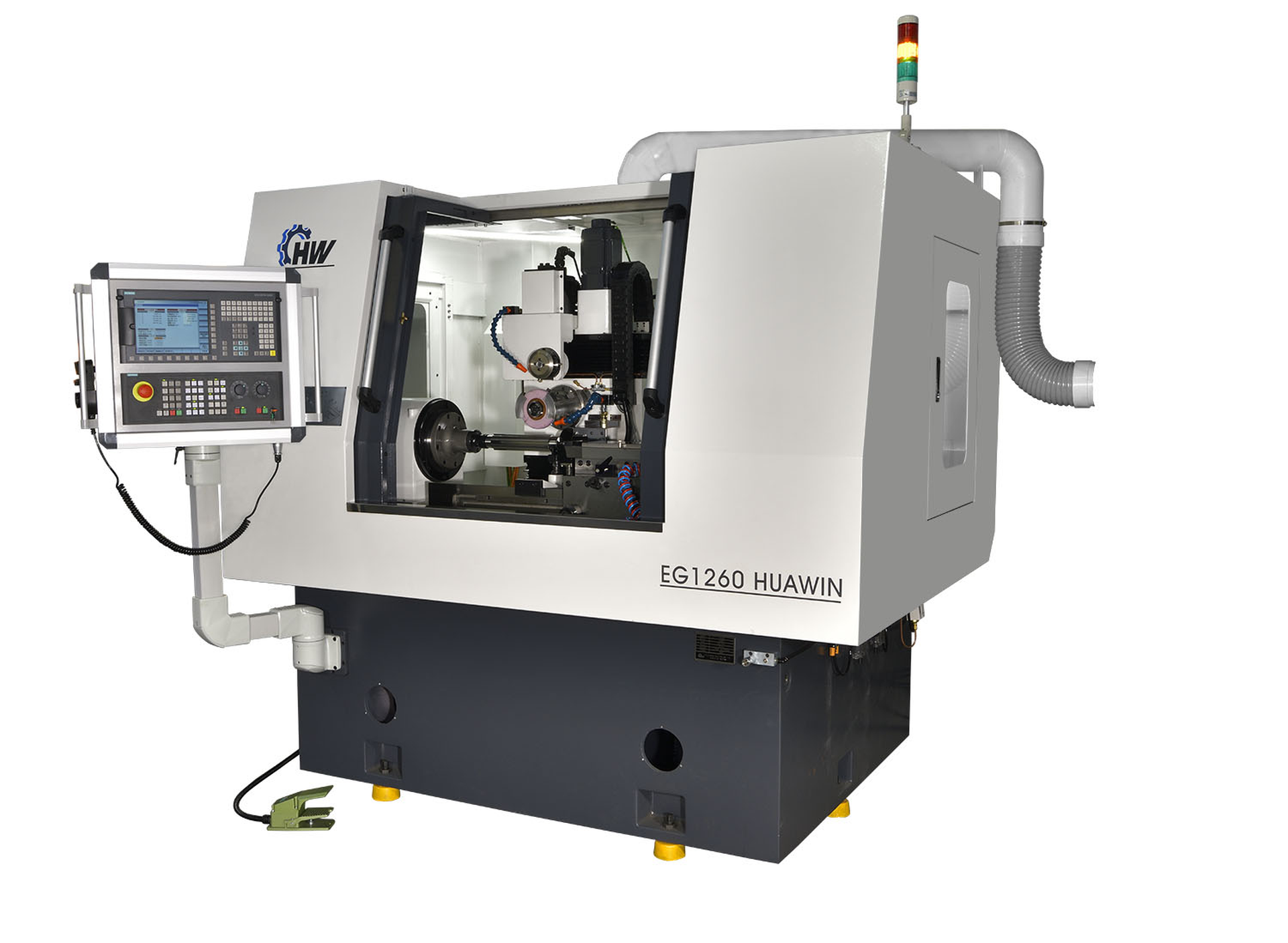

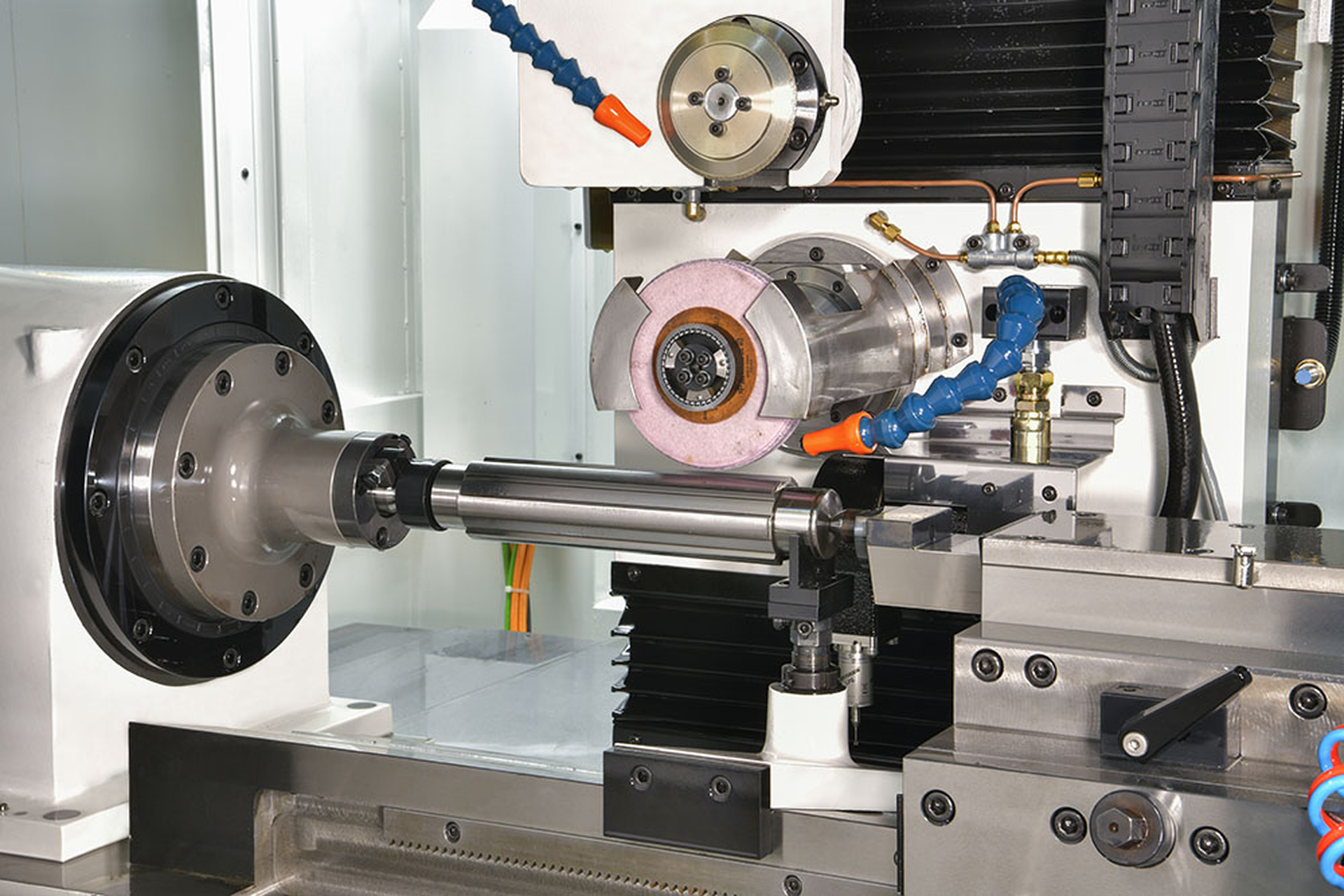

HUAWIN EG 1260 is an External spline grinder designed for precision, high accuracy and reliability. Capacities: spline diameter 20–120 mm, width 4–20 mm, 1–99 splines; travels X 70 mm, Y 150 mm, Z 600 mm, U 40 mm. Specs: spindle motor 8 kW, max speed 10000 rpm, max torque 500 Nm; air connect 5 bar; total power 20 kVA; weight ~4500 kg; dimensions L2200×W1650×H2000 mm. Delivers tight tolerances; suitable for automotive, aerospace, machine tools, medical and watchmaking.
Technical specifications are subject to change without notice
| Max. Spline major diameter | 20 mm |
| Max. spline major diameter | 120 mm |
| Spline width min. | 4 mm |
| Spline width max. | 20 mm |
| Number of spline | 1 - 99 |

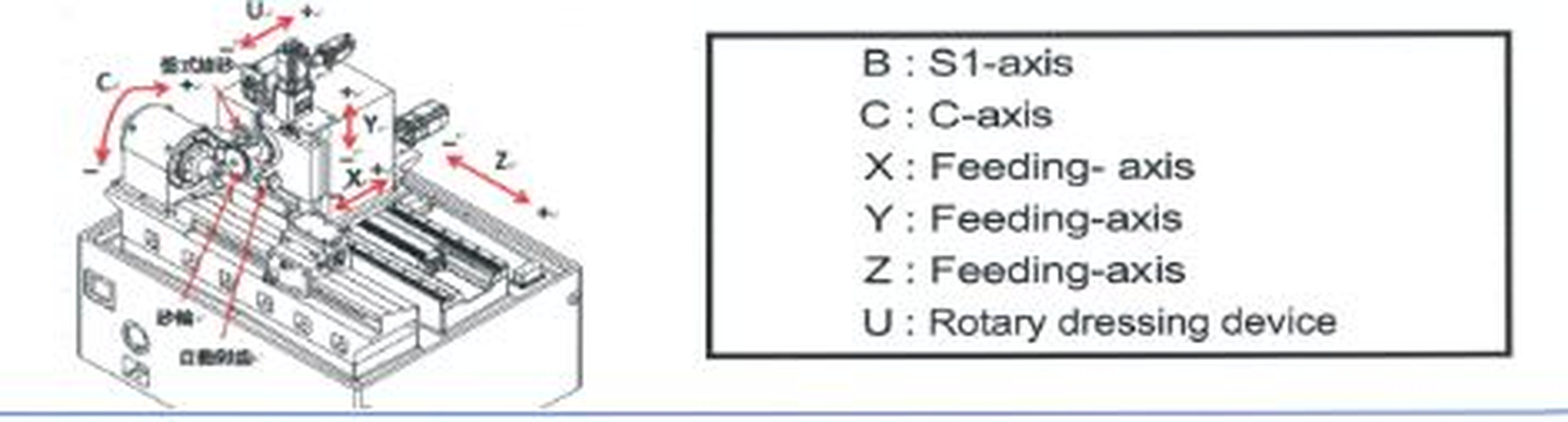

| Travels: | |
| X axis | 70 mm |
| Y axis | 150 mm |
| Z axis | 600 mm |
| U axis | 40 mm |
| Spindle motor | 8 kW |
| max. speed | 10000 t/min |
| Torque max. | 500 Nm |
| Air connect | 5 bar |
| Total power required | 20 kVA |
| Machine's weight about | 4500 kg |
| Overall dimensions machine: | |
| Length | 2200 mm |
| Width | 1650 mm |
| Height | 2000 mm |
