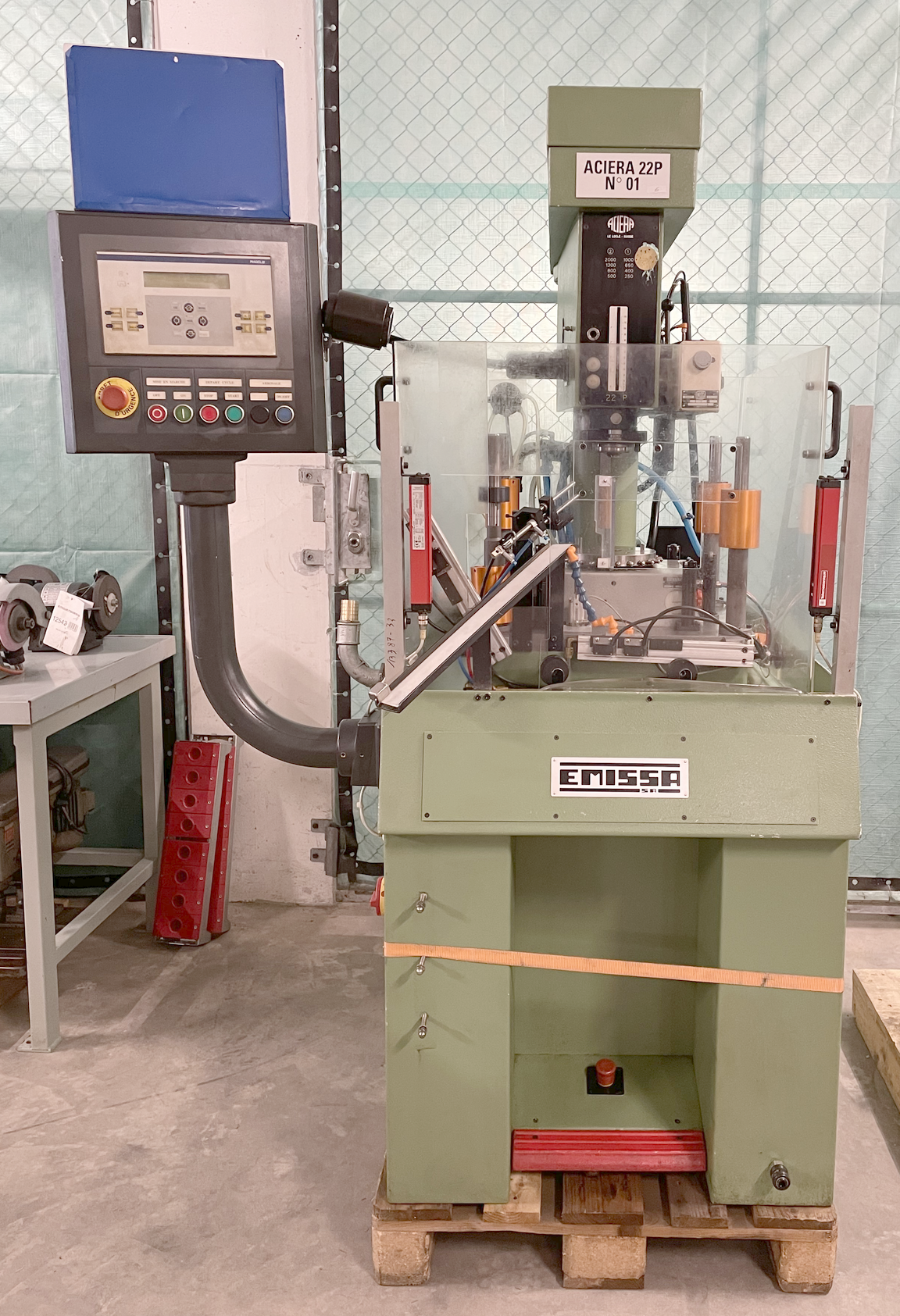

ACIERA 22 P is a pillar drilling machine of high precision, built for superior accuracy and reliability. Table 700x370 mm; drill capacity Ø22 mm in steel, Ø24 mm in cast iron; throat 300 mm; spindle stroke 120 mm; head adjustment 300 mm; travels X330 Y210 Z350 mm. Stepless spindle speeds 250–2000 t/min; spindle motor 2 CV; supply 3x 380 V 50 Hz; weight ≈990 kg; footprint 1200x1000x1900 mm. Fitted with coolant system and lamp. Enables tight tolerances; suited to automotive, watchmaking, machine tools, aerospace and medical sectors.
Technical specifications are subject to change without notice
| Table length | 700 mm |
| Table width | 370 mm |
| Drill capacity in steel | 22 mm |
| Drill capacity in cast-iron | 24 mm |
| Depth of throat | 300 mm |
| Drill depth (spindle stroke) | 120 mm |
| Spindle head adjustment | 300 mm |
| Table travels: | |
| Longitudinal travel (X-axis) | 330 mm |
| Transversal travel (y-axis) | 210 mm |
| Vertical travel (z axis) | 350 mm |

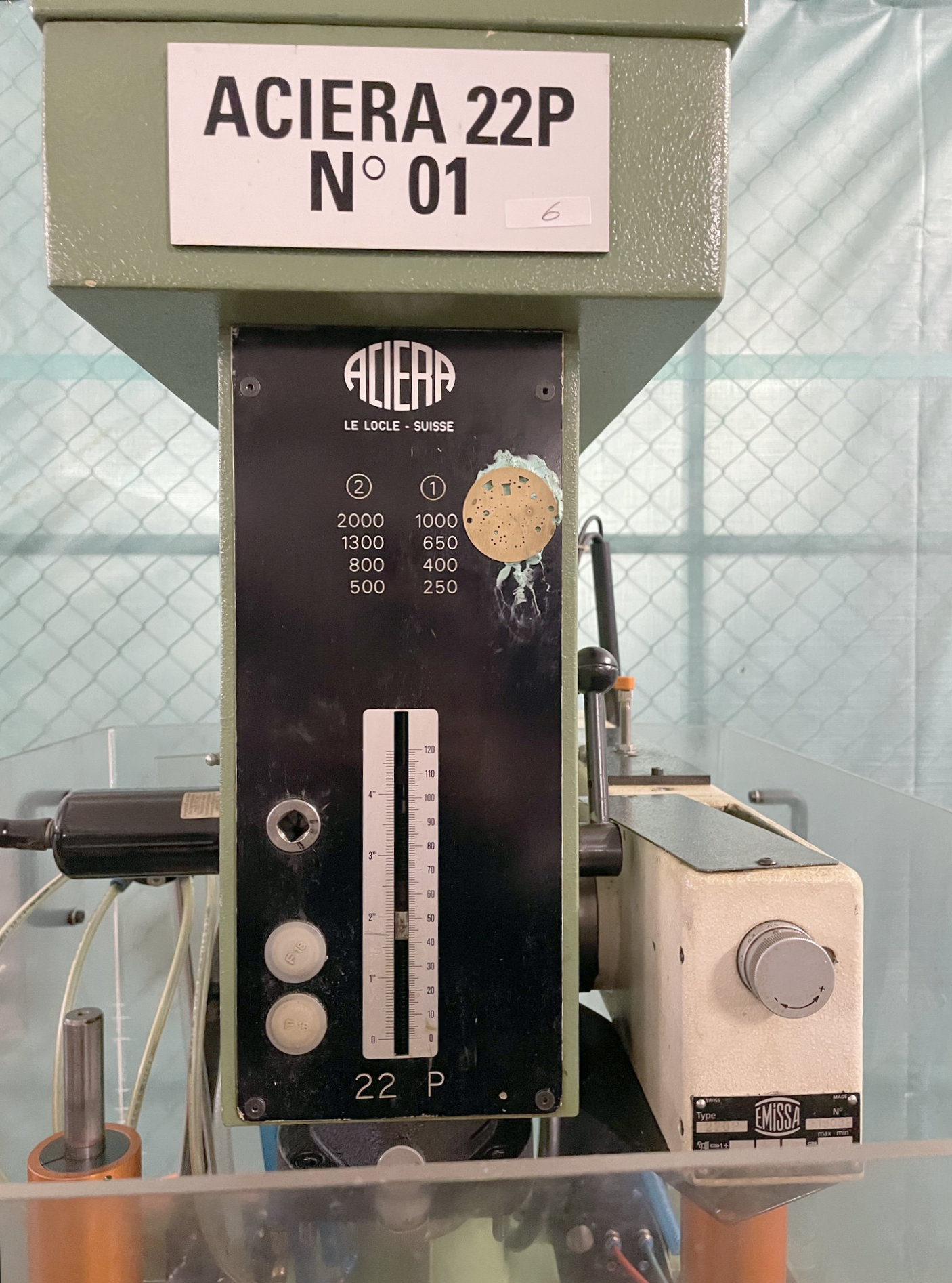

| Spindle speeds: | |
| stepless | |
| from | 250 t/min |
| up to | 2000 t/min |
| Feeds: | |
| Voltage 50 Hz 3x | 380 Volt |

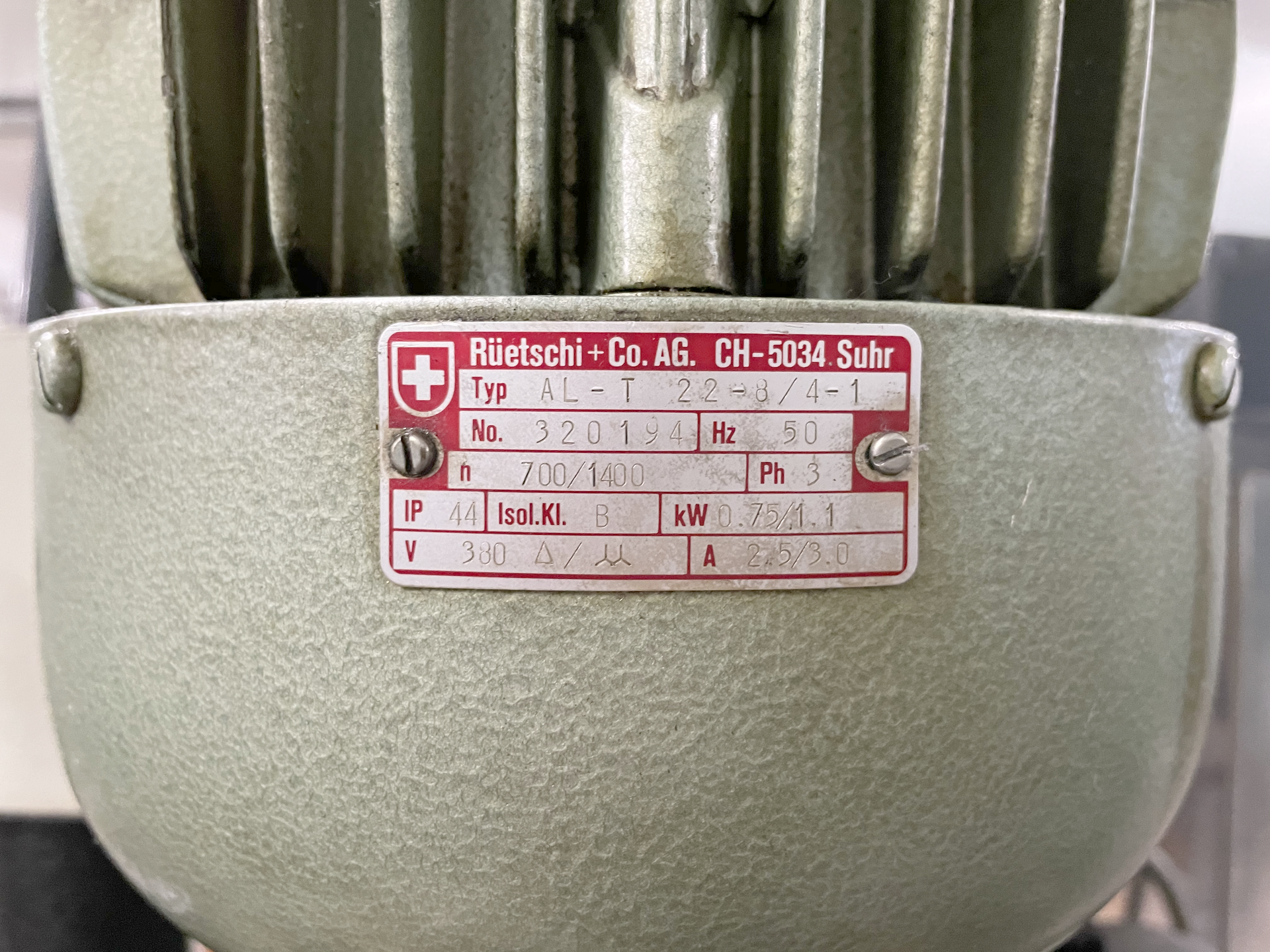

| Spindle motor | 2 CV |
| Machine's weight about | 990 kg |
| Overall dimensions machine: | |
| Length | 1200 mm |
| Width | 1000 mm |
| Height | 1900 mm |
| Various accessories: | |

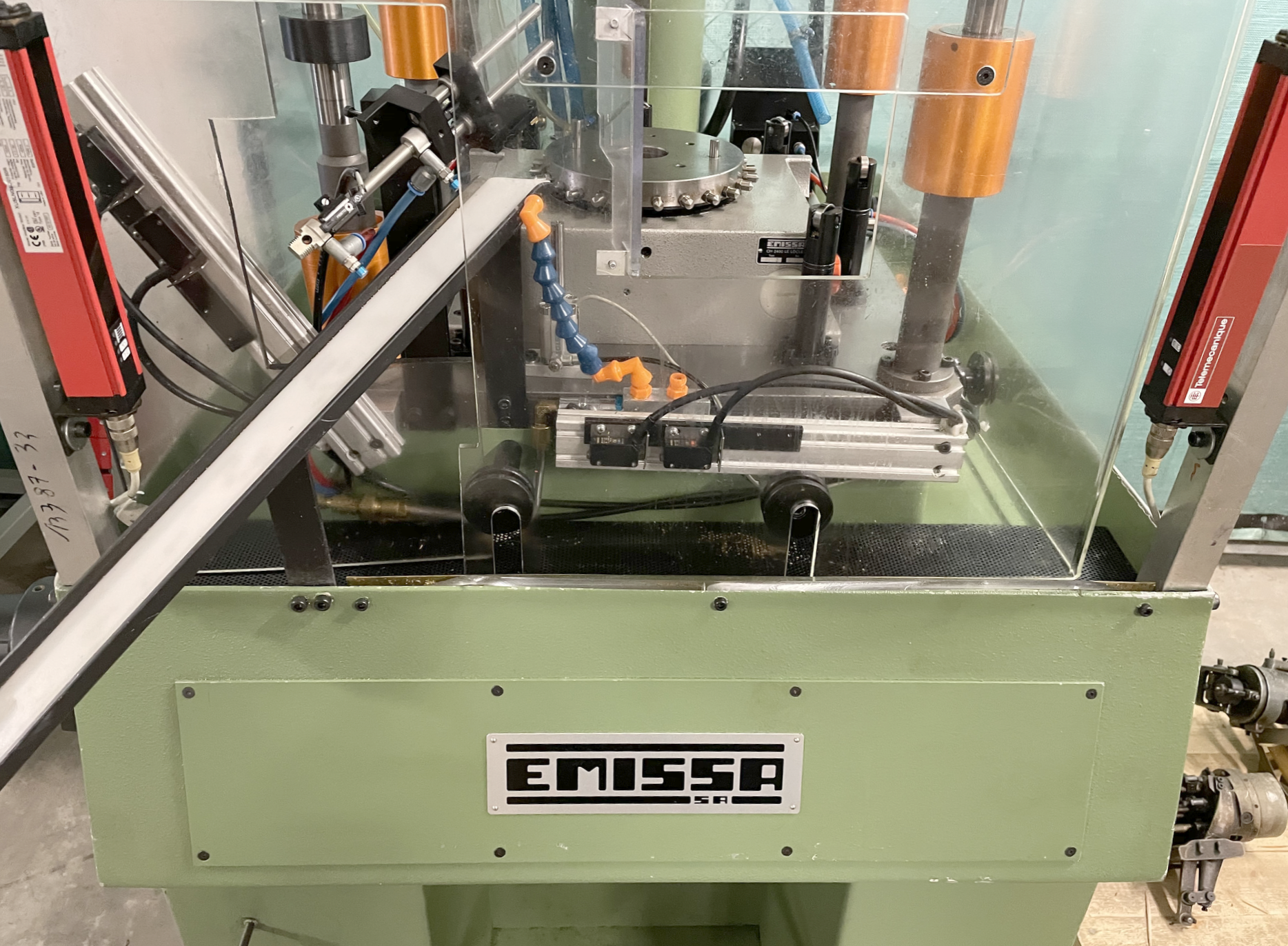

| Coolant system | |
| Lamp |
