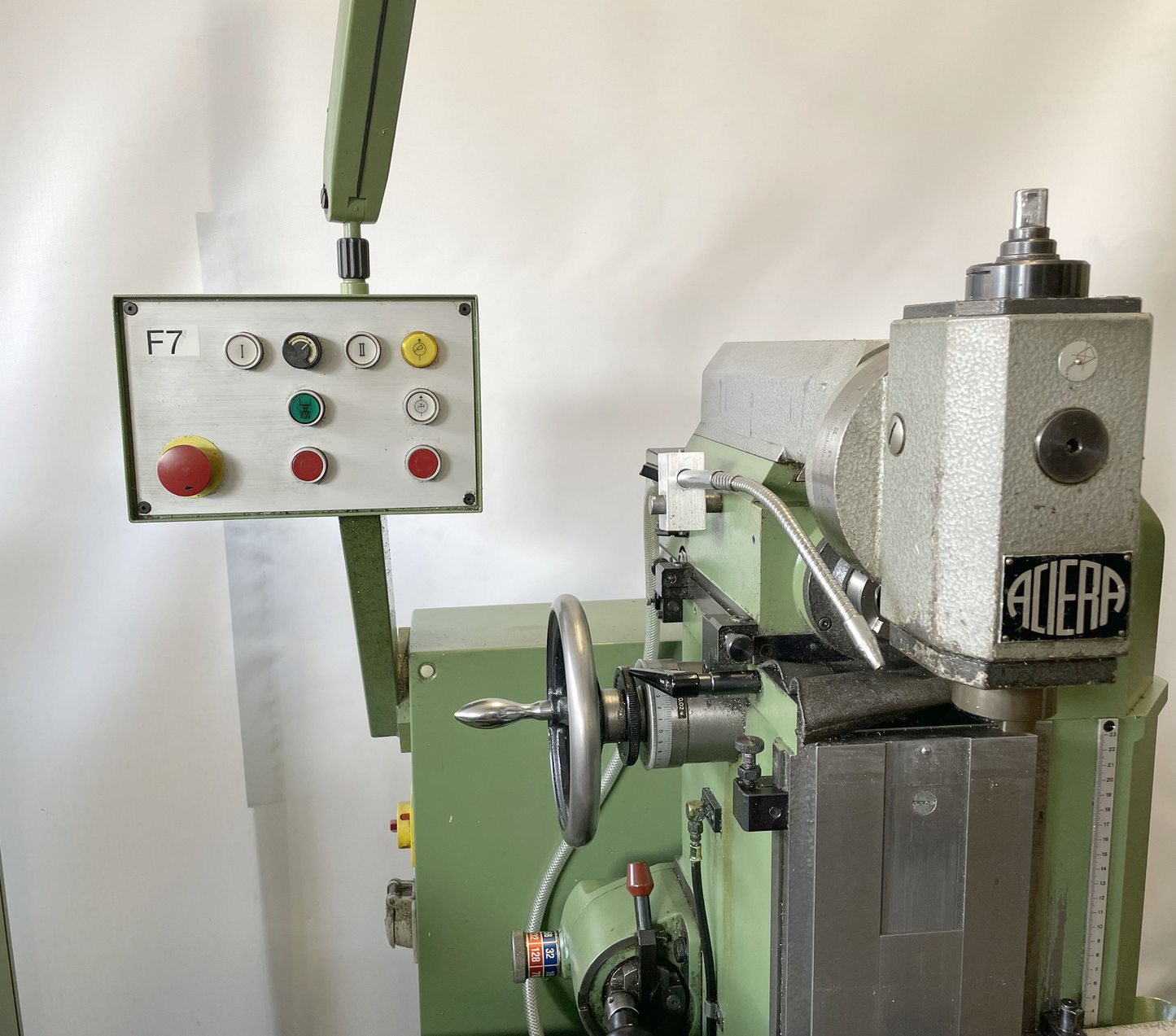

ACIERA F 3 is a universal milling machine designed for precision, high accuracy and reliability. Table 600×190 mm; travels X300 mm, Y135 mm, Z300 mm. Spindle 8 steps 125–2000 rpm, taper 30 ISO. Feeds 8 steps 12–232 mm/min. Power 50 Hz 3x380 V; motor 2.0 CV. Weight approx. 620 kg; dimensions 1100×900×1600 mm. Supplied with lamp. Suited for tight tolerances; typical applications: automotive, watchmaking, machine tools, aerospace, medical
| Table length | 600 mm |
| Table width | 190 mm |
| Longitudinal travel (X-axis) | 300 mm |
| Transversal travel (y axis) | 135 mm |
| Vertical travel (z axis) | 300 mm |
| Spindle speeds: | |
| number (steps) | 8 |
| from | 125 t/min |
| up to | 2000 t/min |
| Taper in spindle | 30 ISO |
| Feeds steps: | 8 |
| longitudinal from | 12 mm/min |
| up to | 232 mm/min |
| Voltage 50 Hz 3x | 380 Volt |
| Motor output | 2.0 CV |
| Machine's weight about | 620 kg |
| Overall dimensions machine: | |
| Length | 1100 mm |
| Width | 900 mm |
| Height | 1600 mm |
| Various accessories: | |
| Lamp |
