SCHAUBLIN 102 N is a Toolmakers lathe designed for precision, high accuracy and reliability. Centre height 102 mm, distance between centres 375 mm; swing over cross-slide 120 mm, over bed 200 mm. Spindle speeds stepless 45–3100 rpm, step-down gear 1:5. Voltage 3x380 V 50 Hz; spindle motor 0.5/0.9 kW; machine weight ≈300 kg; overall 2000×800×1400 mm. Workbench 2000×800×900 mm. Equipment: headstock with reduction, 3- and 4-jaw chucks Ø110 mm, magnetic chuck Ø100 mm, collet set, drilling tailstock, hand rest, CNC cross slide. Achieves tight tolerances for watchmaking, medical, aerospace, automotive and machine-tool workshops.
| Centre height | 102 mm |
| Distance between centres | 375 mm |
| Swing over cross-slide | 120 mm |
| Swing over bed | 200 mm |
| Spindle speeds: | |
| stepless | |
| from | 45 t/min |
| up to | 3100 t/min |
| Step-down gear | 1:5 |
| Voltage 50 Hz 3x | 380 Volt |
| Spindle motor | 0.5 / 0.9 kW |
| Machine's weight about | 300 kg |
| Overall dimensions machine: | |
| Length | 2000 mm |
| Width | 800 mm |
| Height | 1400 mm |
| Various accessories: | |
| Working bench: | |
| Length | 2000 mm |
| Width | 800 mm |
| Height | 900 mm |
| Rear drive | |

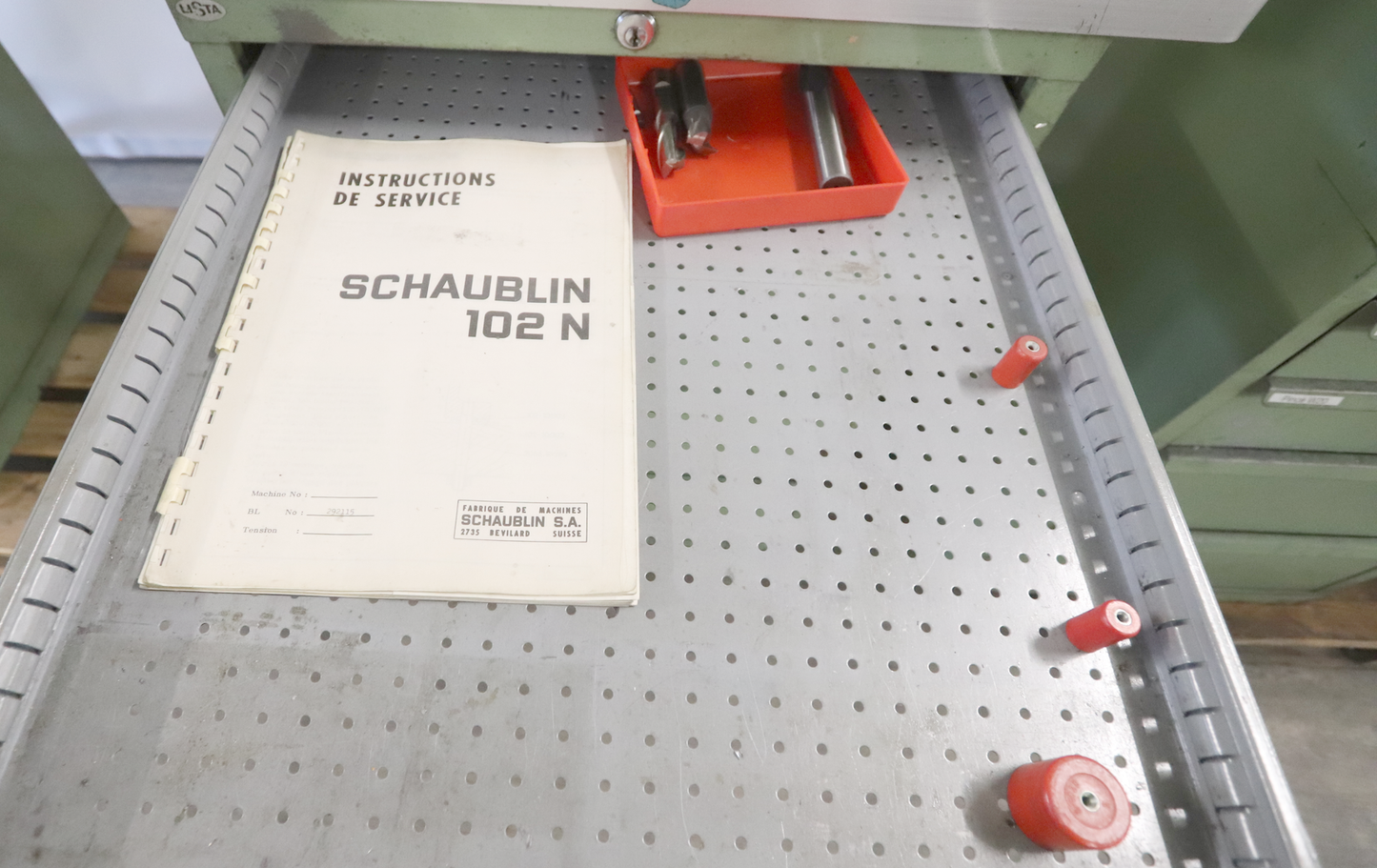

| Drawer(s) | |
| Headstock with reduction gear | |
| 3-jaw chuck diameter | 110 mm |
| 3-jaw chuck diameter | 110 mm |
| 4-jaw chuck diameter | 110 mm |
| Driving plate | |
| Macnetic chuck diameter | 100 mm |
| Set of collets | |
| Drilling tailstock | |
| Hand rest | |
| Cross slide CNC |
