ACIERA F 3 is a universal milling machine of high precision and reliability. Table 600×190 mm; travels X300 Y135 Z300 mm. Spindle taper ISO30 V/H; 8 speeds 100–2000 t/min; feeds 8 steps 12–232 mm/min. Supply 50Hz 3x380V; motor 2.0 CV; weight ~620 kg; size 1100×900×1600 mm. Accessories: steady, toolholder set, drill chuck, lamp. Suited for tight-tolerance work in machine tools, automotive, aerospace, watchmaking and medical sectors.
| Table length | 600 mm |
| Table width | 190 mm |
| Longitudinal travel (X-axis) | 300 mm |
| Transversal travel (y axis) | 135 mm |
| Vertical travel (z axis) | 300 mm |
| Spindle speeds: | |
| number (steps) | 8 |
| from | 100 t/min |
| up to | 2000 t/min |
| Taper in spindle: | |
| Vertical | ISO 30 |
| Horizontal | ISO 30 |
| Feeds steps: | 8 |
| longitudinal from | 12.0 mm/min |
| up to | 232 mm/min |
| Voltage 50 Hz 3x | 380 Volt |
| Motor output | 2.0 CV |
| Machine's weight about | 620 kg |
| Overall dimensions machine: | |
| Length | 1100 mm |
| Width | 900 mm |
| Height | 1600 mm |
| Various accessories: | |
| Steady | |

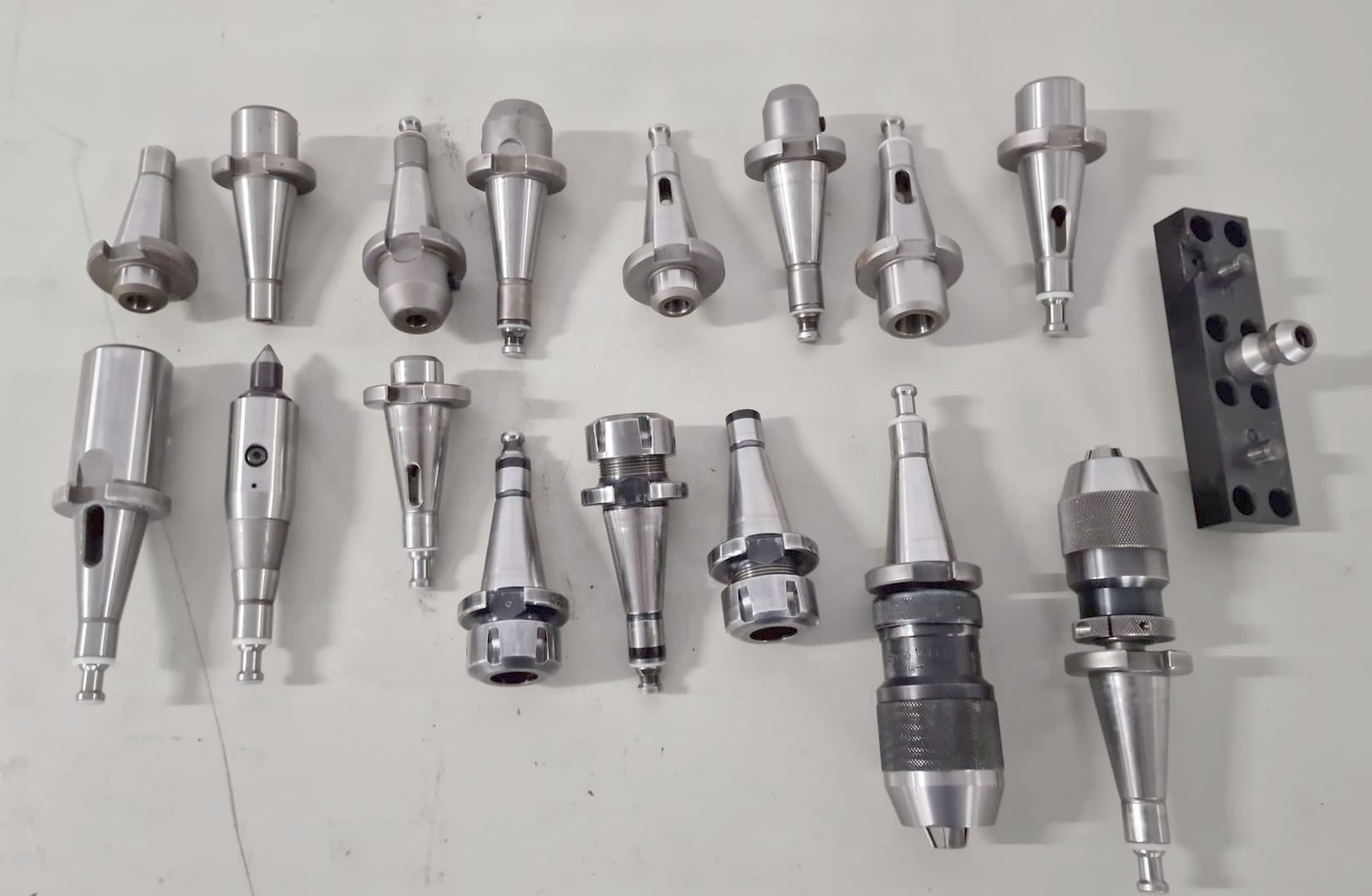

| Set of toolholders | |
| Drill chuck | |
| Lamp |
