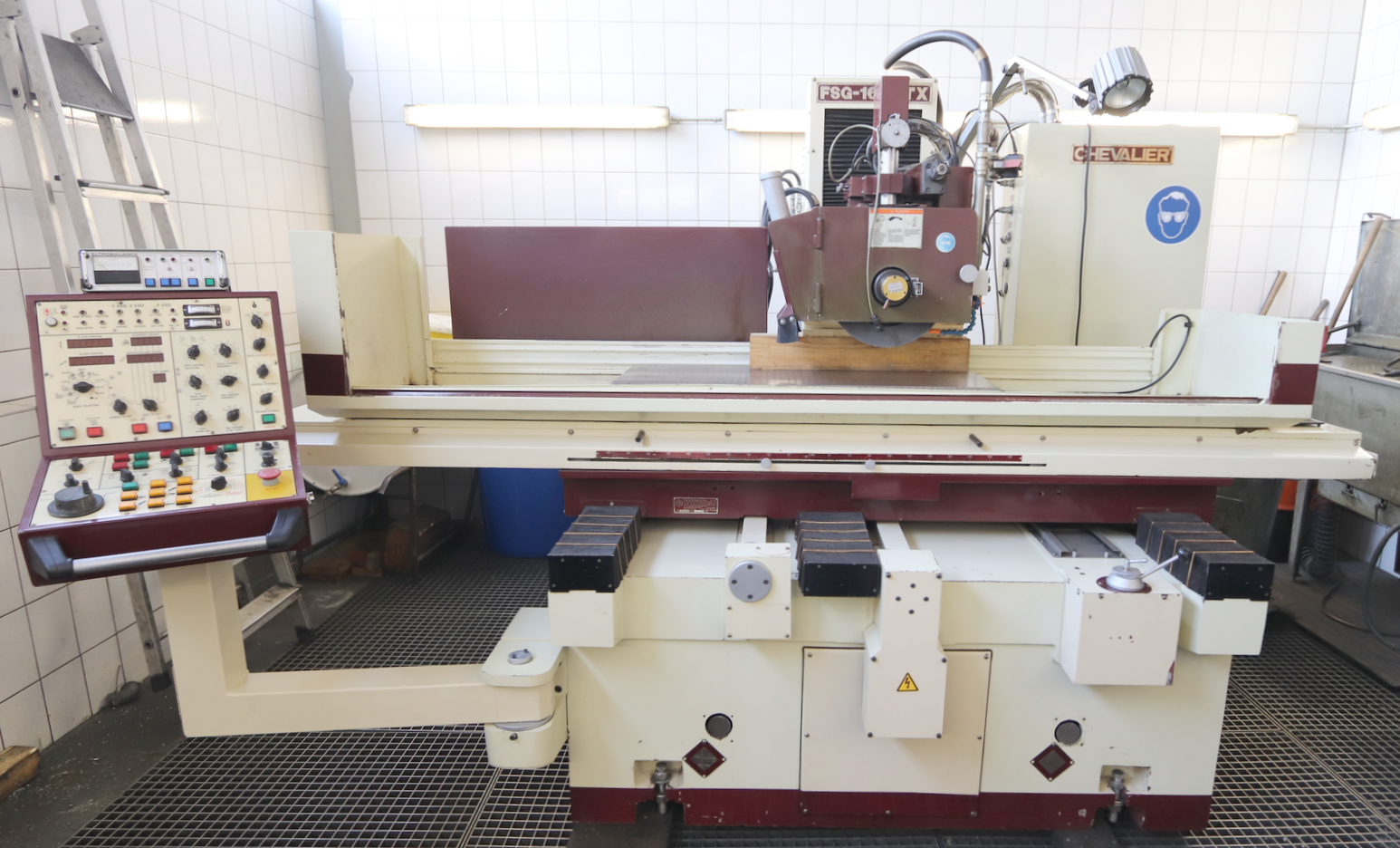

020929 - CHEVALIER FSG-1640TX
Download technical sheet (PDF)
Message us on WhatsApp
| Grinding length | 1015 mm |
| Grinding width | 405 mm |
| Grinding height | 350 mm |
| Table speeds: | |
| stepless | |
| from | 5 m/min |
| up to | 25 m/min |

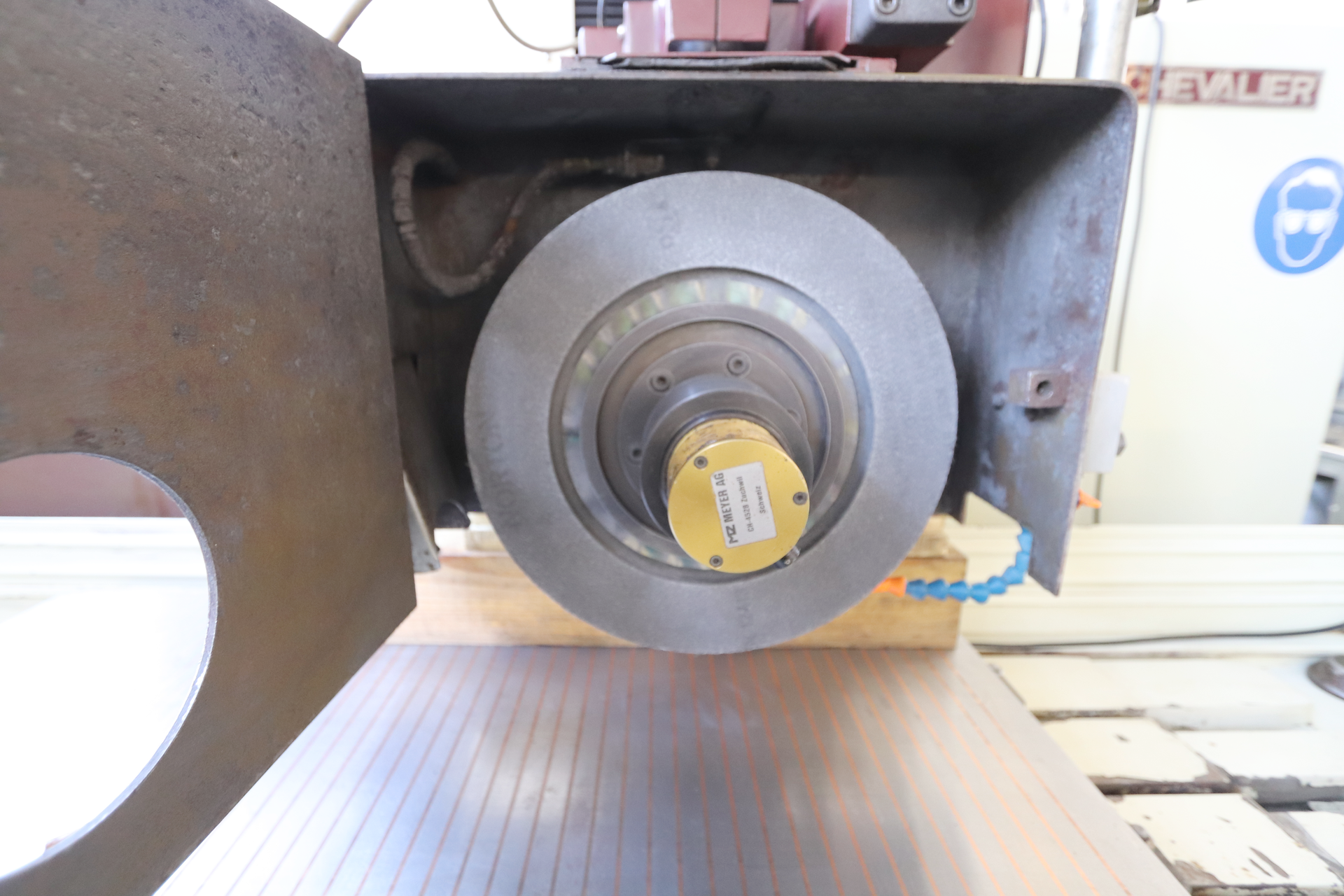

| Diameter of grinding wheel | 355 mm |
| Width of the grinding wheel | 50 mm |
| Wheel int. diameter | 127 mm |
| Total power required | 3.7 kW |
| Machine's weight about | 3600 kg |
| Overall dimensions machine: | |
| Length | 3500 mm |
| Width | 1700 mm |
| Height | 2000 mm |
| Various accessories: | |
| Coolant system | |

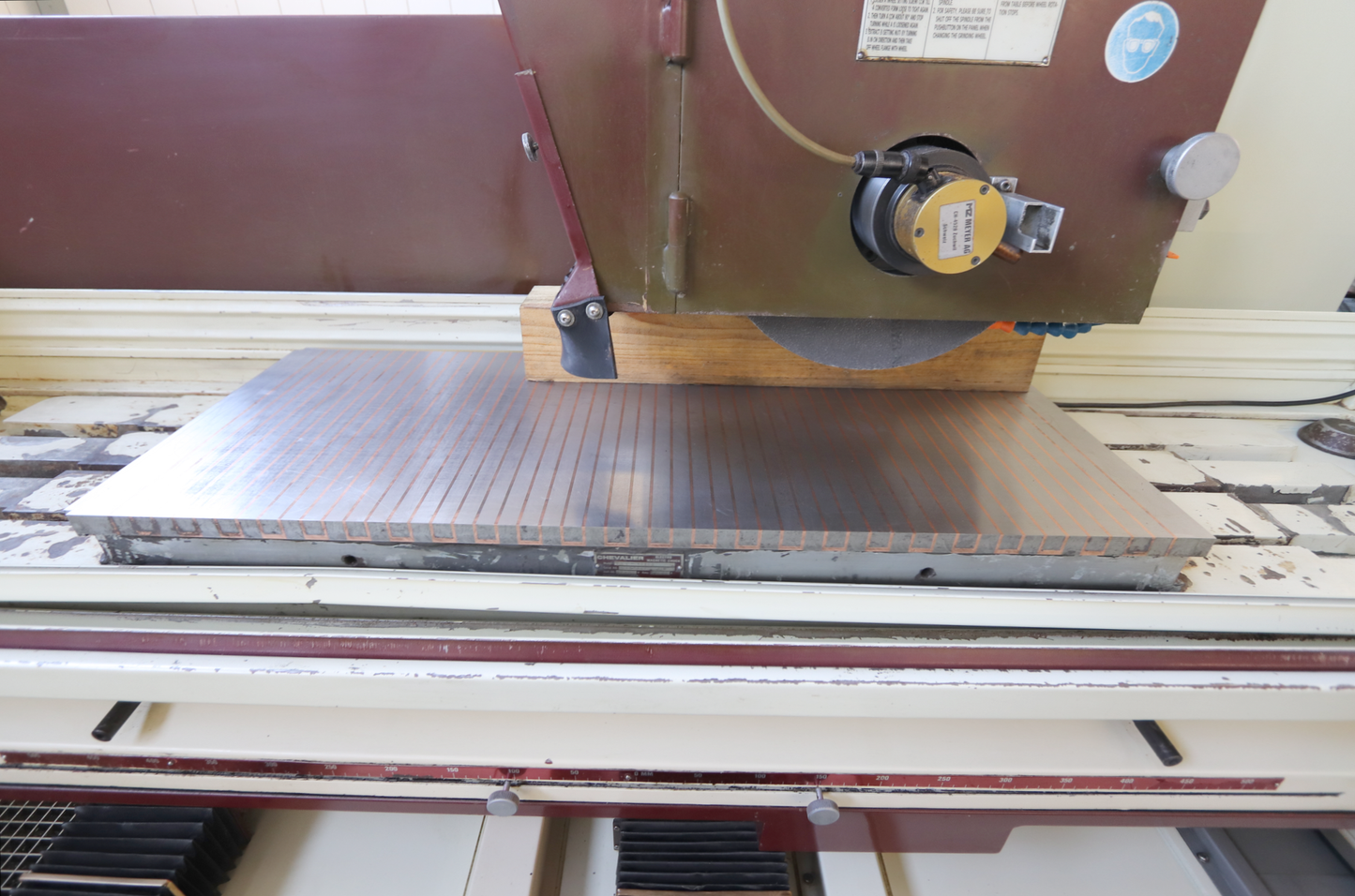

| Electrical magnetic chuck | |
| Length | 1000 mm |
| Width | 400 mm |

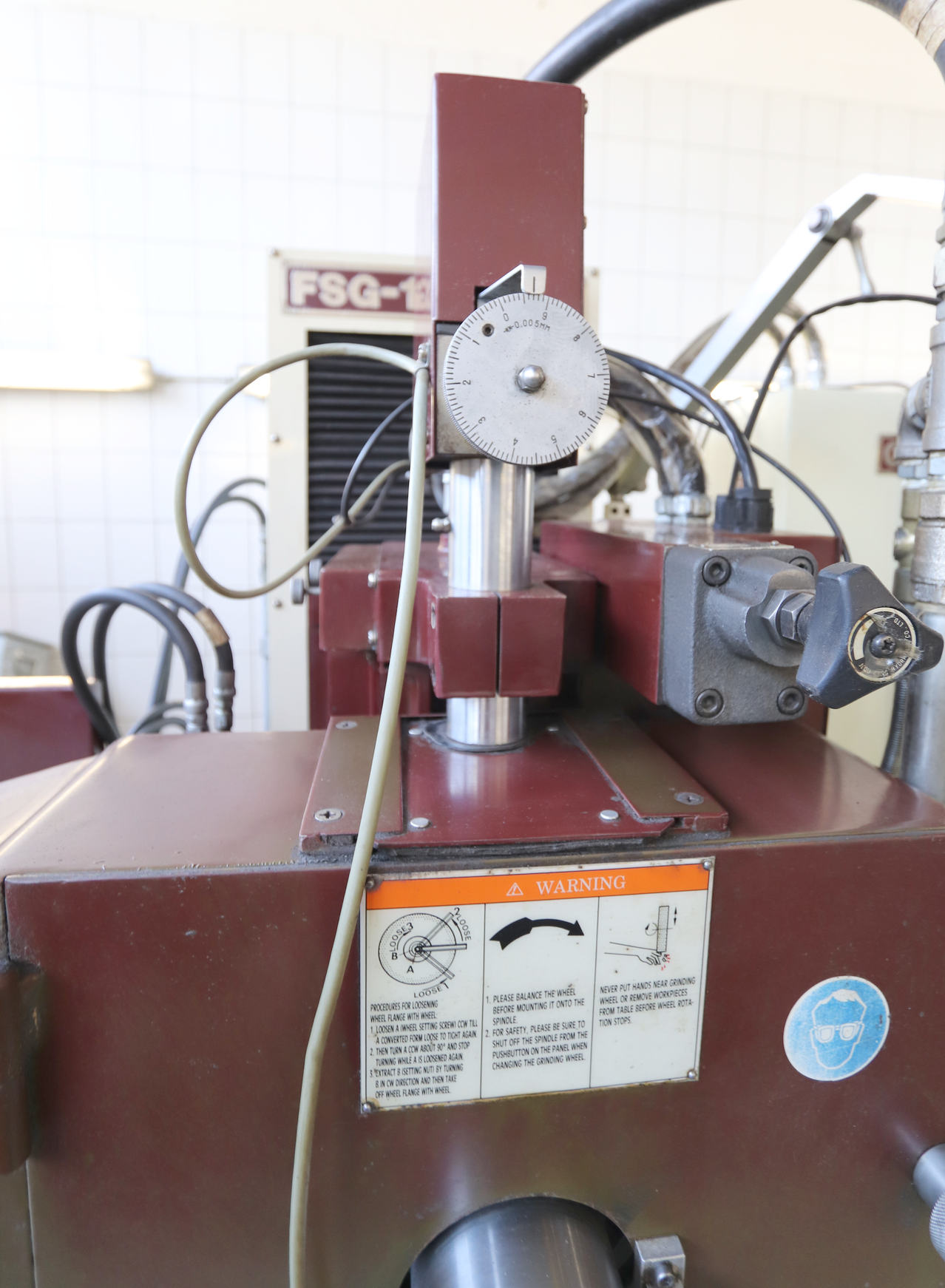

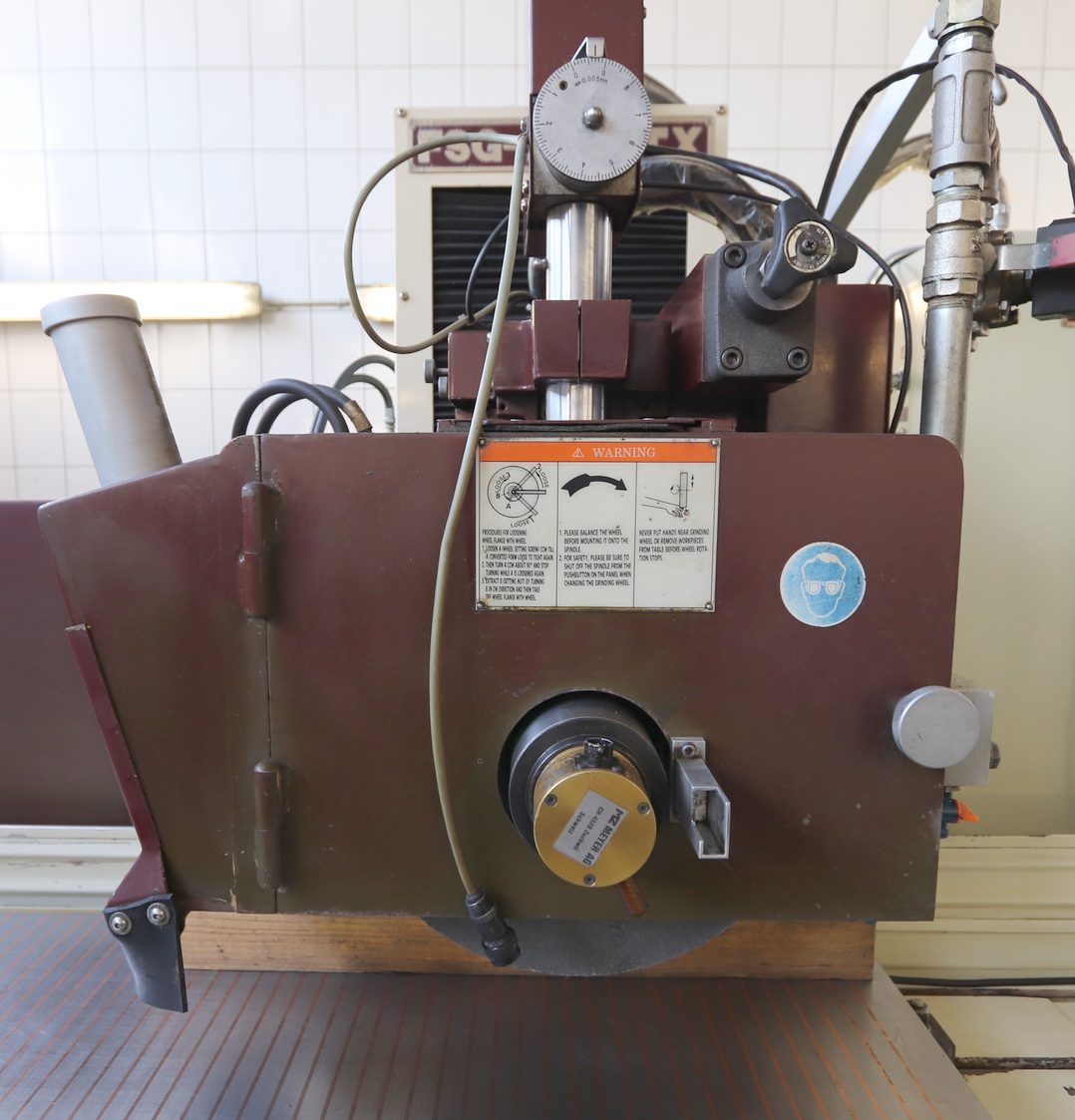

| Redressing device | |
| Lamp | |

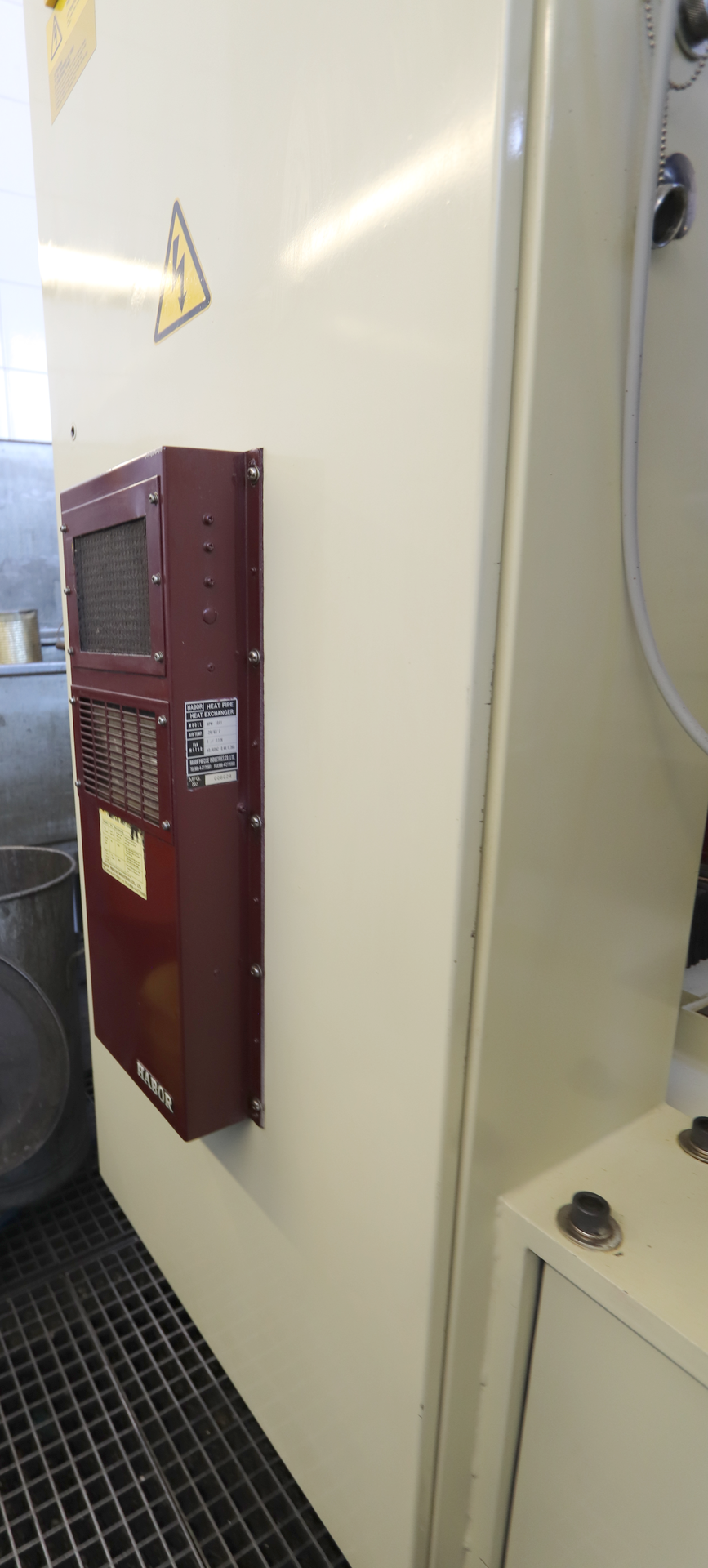

| Switch cabinet Air conditioner |
