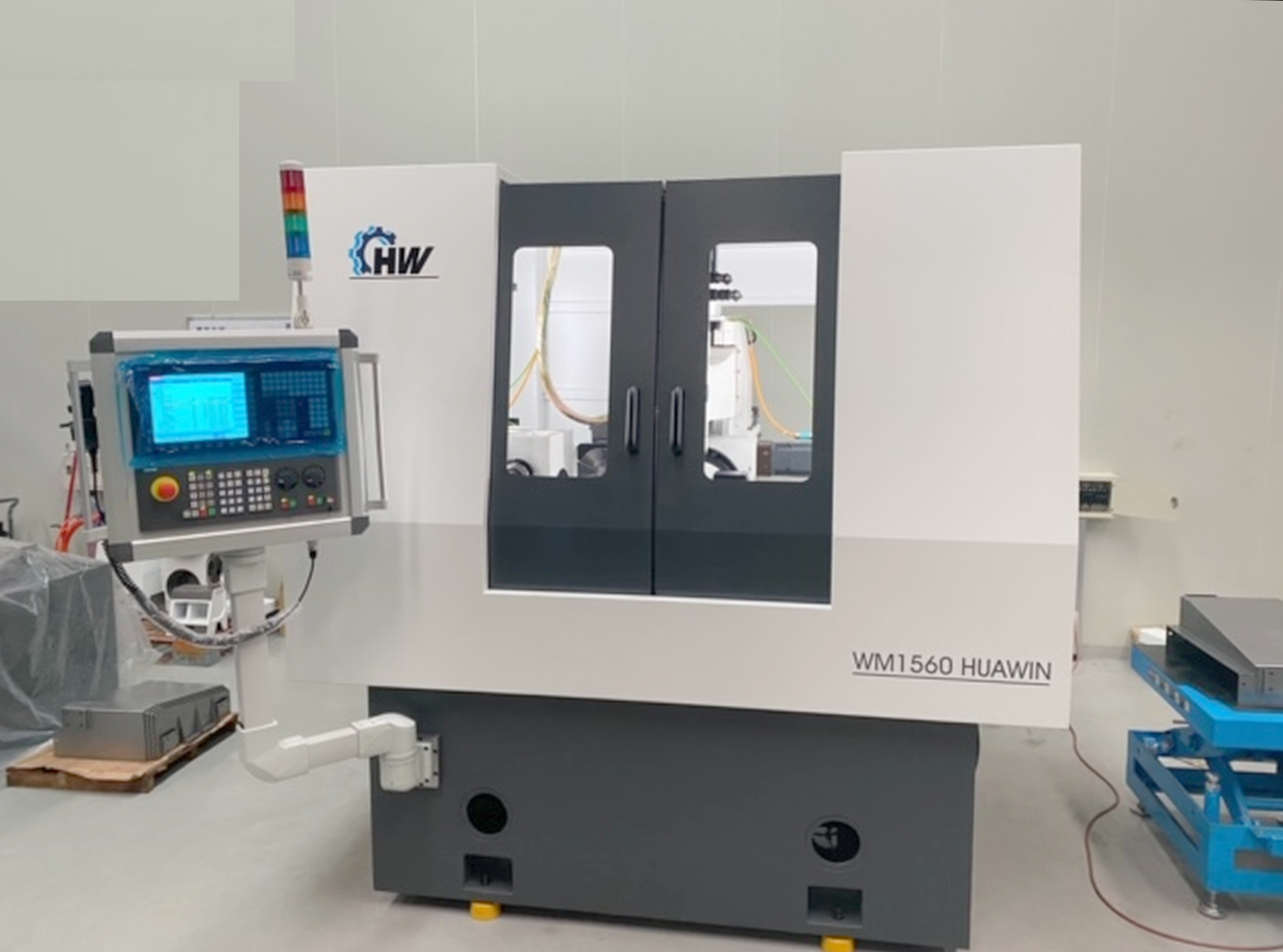

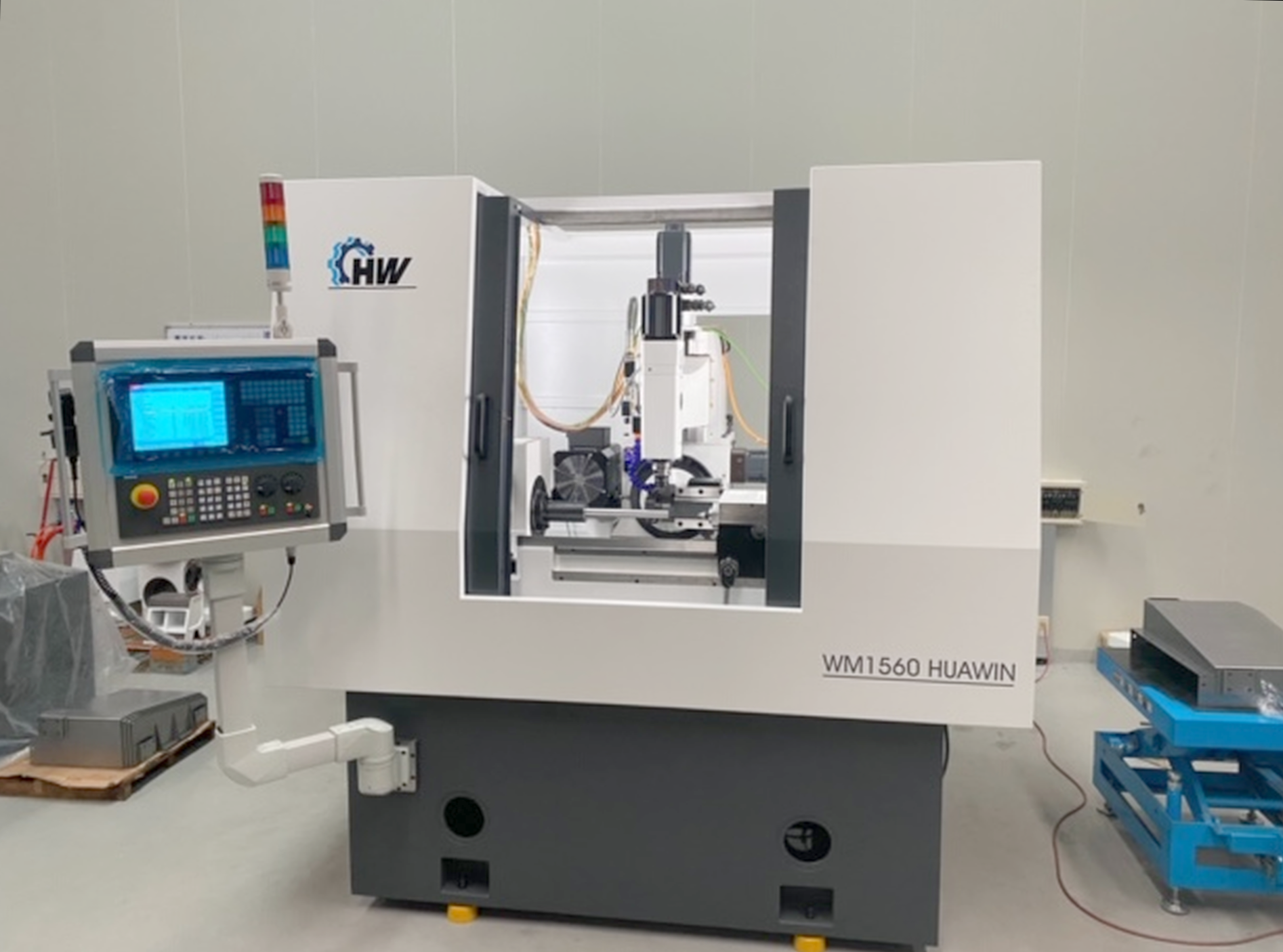

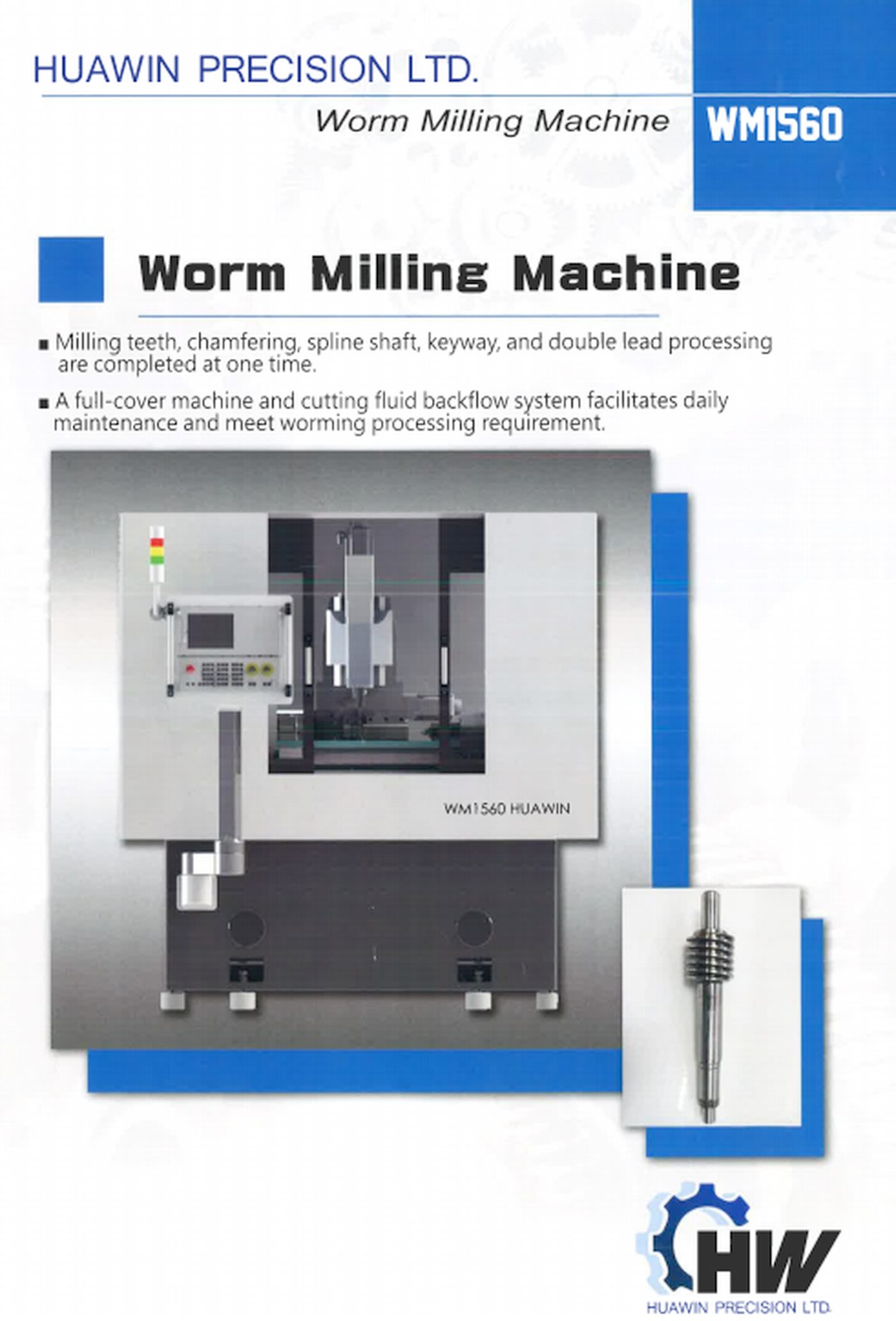

HUAWIN WM 1560 is a worm milling machine offering high precision, accuracy and reliability. Capacities: max Ø 150 mm, max workpiece length 600 mm, module max 5, cutter Ø100–135 mm, bore 25.4/31.75 mm, travels X150 Y100 Z600 A +90/-35. Specs: 360 t/min, milling spindle 4 kW, work spindle 10 t/min, torque 1200 Nm, air 5 bar, total power 20 kVA, weight ~5000 kg, size 2250×2280×1700 mm. Compressed air connection. Achieves tight tolerances; suited to automotive, watchmaking, machine tools, aerospace and medical.

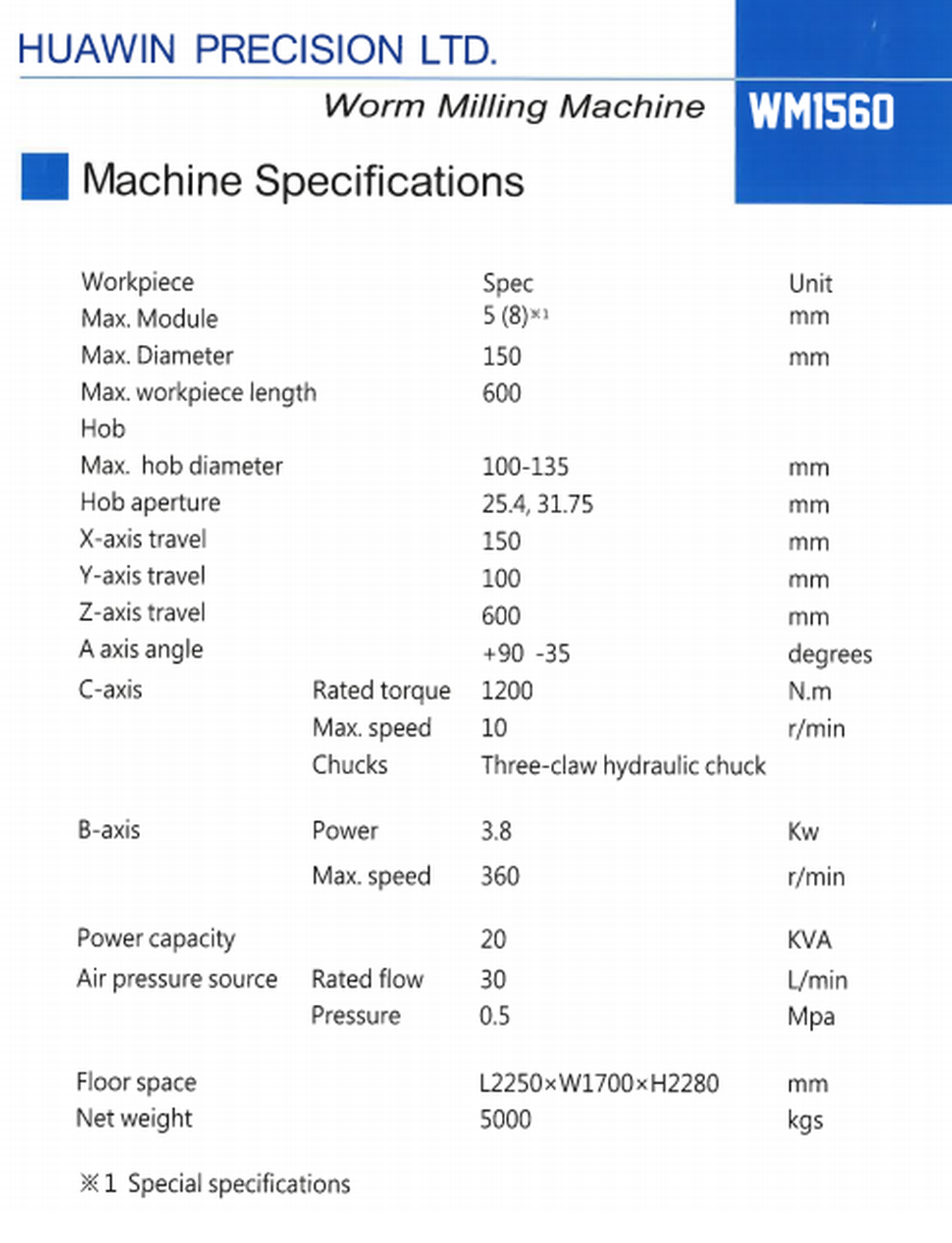

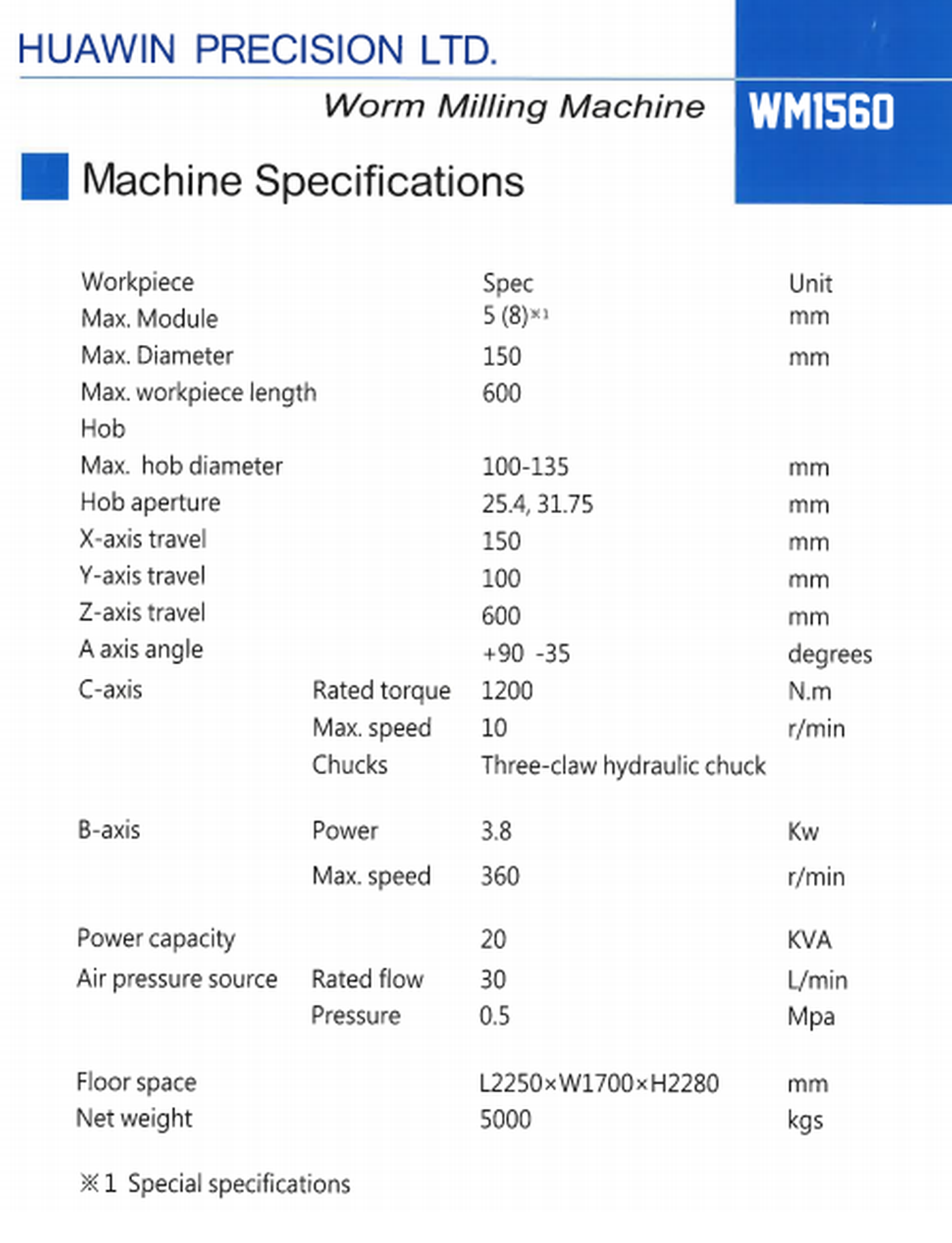

| max. diameter | 150 mm |
| Max. work piece length | 600 mm |
| Module max. | 5 mm |
| Cutter diameter | 100 - 135 mm |
| Bore | 25.4 / 31.75 mm |
| Milling cutter speeds | 360 t/min |
| Drive milling spindle | 4 kW |
| Travels: | |
| X axis | 150 mm |
| Y axis | 100 mm |
| Z axis | 600 mm |
| A axis | +90 / -35 ° |
| Work piece spindle speed | 10 t/min |
| Torque max. | 1200 Nm |
| Air connect | 5 bar |
| Total power required | 20 kVA |
| Machine's weight about | 5000 kg |
| Overall dimensions machine: | |
| Length | 2250 mm |
| Height | 1700 mm |
| Width | 2280 mm |
