TSCHUDIN ESO 400
Download technical sheet (PDF)
Need Assistance? Just WhatsApp Us!

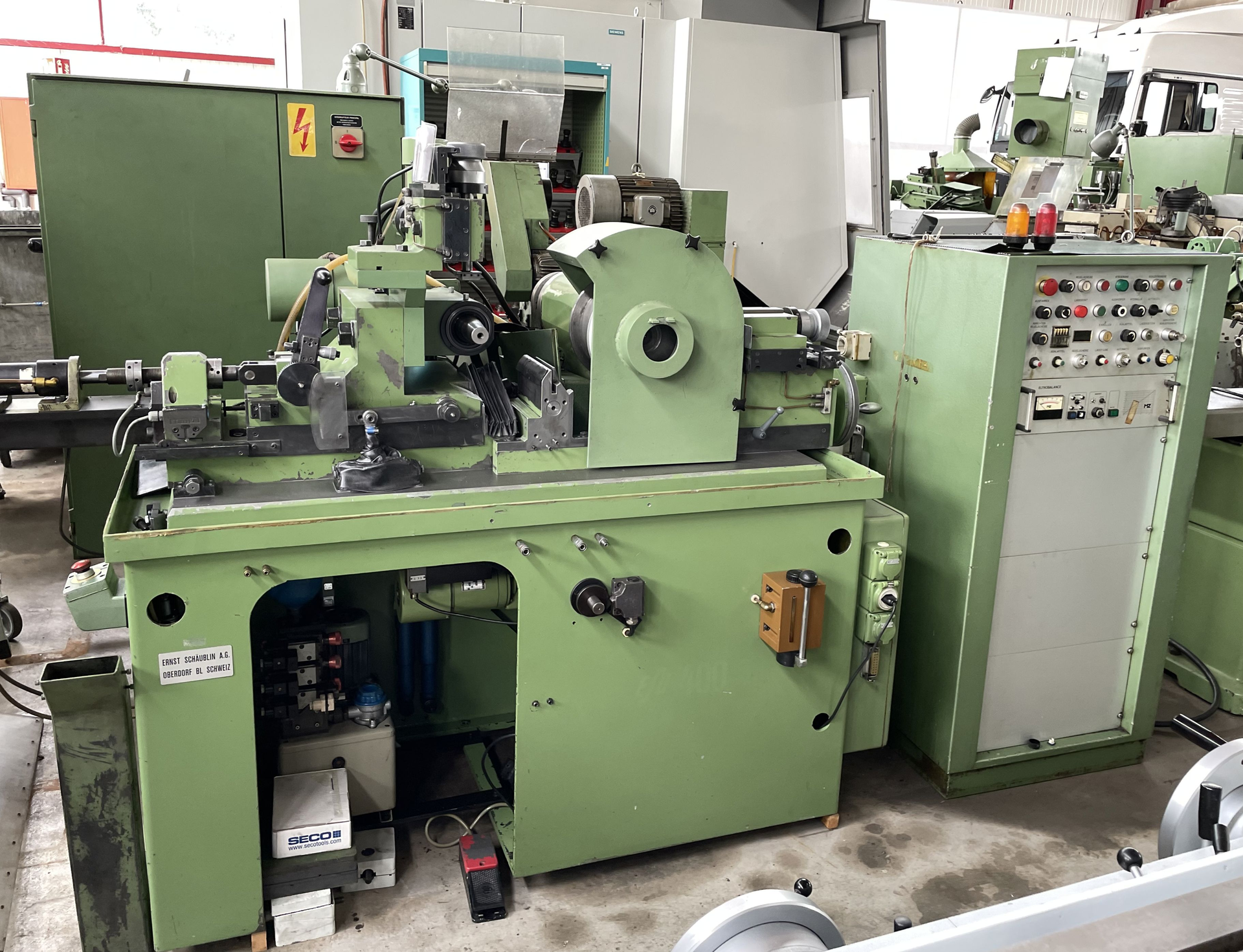

TSCHUDIN ESO 400 is a Centreless grinding machine with high precision, accuracy and proven reliability. Range: grinding diameter 1–30 mm; infeed 0.5–40 mm. Grinding wheel Ø400×125 mm (bore 203 mm); spindle 2-step 850–1700 rpm (16/32 m/s). Regulating wheel Ø225×125 mm (bore 80 mm), stepless 0–120 rpm. Power 3×380 V 50 Hz. Weight ≈2500 kg; dims L2500×W2000×H1800 mm. Engineered for tight tolerances; typical sectors: automotive, watchmaking, toolmaking, aerospace, medical.
| Min. grinding diameter | 1 mm |
| Max. grinding diameter | 30 mm |
| Max. workpiece length | |
| for infeed grinding | 0.5 - 40 mm |
| Grinding wheel: | |
| diameter new wheel | 400 mm |
| Width | 125 mm |
| Bore | 203 mm |
| Speeds: | |
| number (steps) | 2 |
| from | 850 t/min |
| up to | 1700 t/min |
| Peripheral speed | 16 / 32 m/s |
| Regulating spindle: | |
| diameter new wheel | 225 mm |
| Width | 125 mm |
| Bore | 80 mm |
| Speeds: | |
| stepless | |
| from | 0 t/min |
| up to | 120 t/min |
| Voltage 50 Hz 3x | 380 Volt |
| Machine's weight about | 2500 kg |
| Overall dimensions machine: | |
| Length | 2500 mm |
| Width | 2000 mm |
| Height | 1800 mm |
