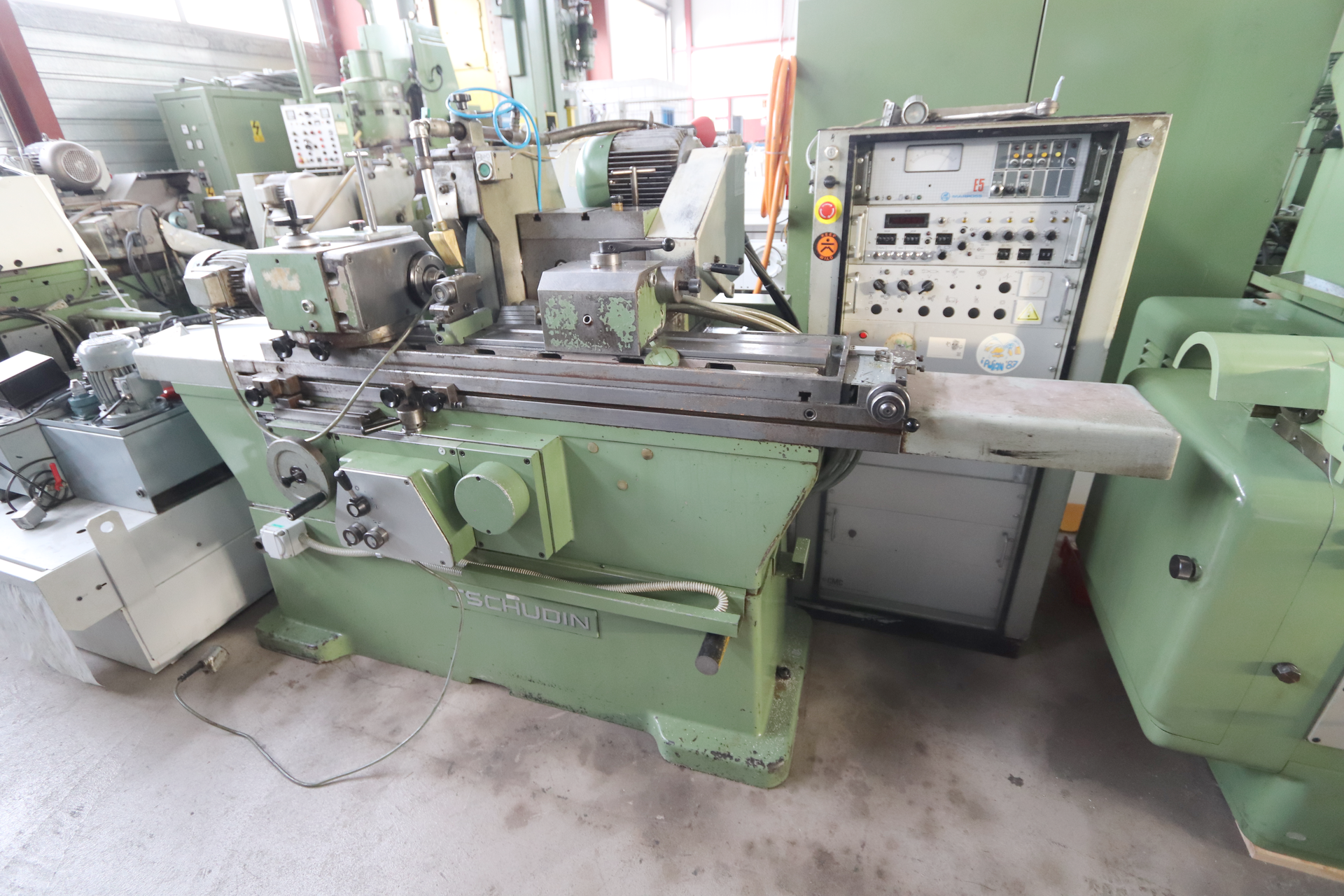

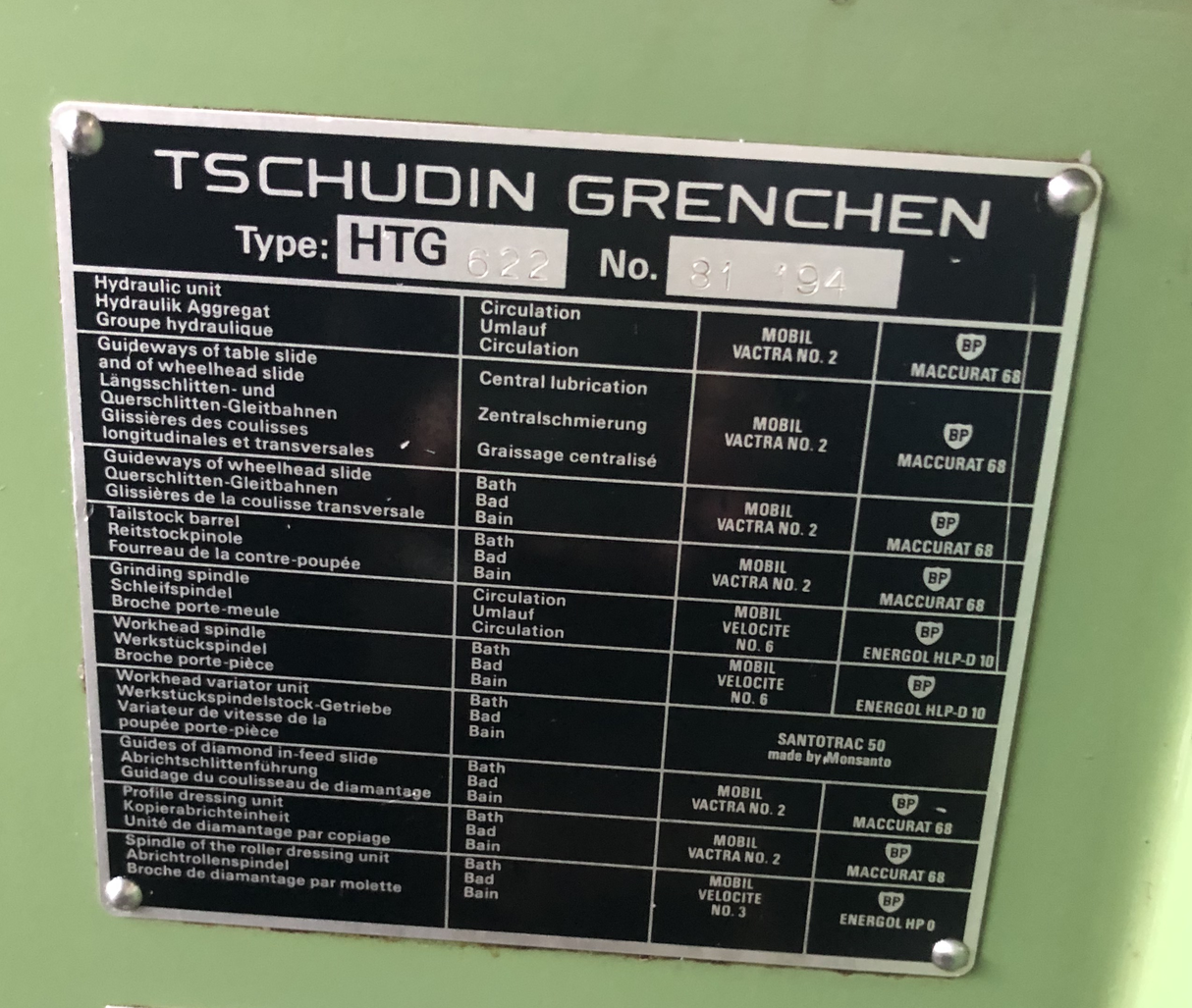

TSCHUDIN HTG 622
Type: HTG 622
Manufacturer: TSCHUDIN
Group: Cylindrical grinder
Subgroup: Cylindrical grinder
Stock: 020883
Special Price
CHF 5 000
Special offer machines are sold as-is, without any warranty or inspection from us.
TSCHUDIN HTG 622 is a cylindrical grinder of high precision, engineered for excellent accuracy and reliable performance. Working capacities: centre height 100 mm, distance between centres 680 mm, max. longitudinal travel 620 mm, max. transversal travel 45 mm; grinding wheel Ø500 mm × W80 mm, bore 203 mm. Key specs: wheel speeds 3 steps 1150–1550 t/min; workhead rotatable 360° with stepless drive 65–500 t/min; spindle taper 4 CM, tailstock taper 3 CM; spindle stroke 20 mm, pressure 4–15 kp; table angular displacement 9°, table speed stepless up to 5 m/min. Supply 50 Hz 3x: 380 Volt; wheel motor 5.5 kW; workhead motor 0.7 CV; total power 10 CV; weight ≈2900 kg; dimensions 2300×1800×1900 mm. Accessories: redressing device, coolant system, paper filtration, tailstock. Achieves tight tolerances; suitable for automotive, aerospace, watchmaking, machine tools and medical.

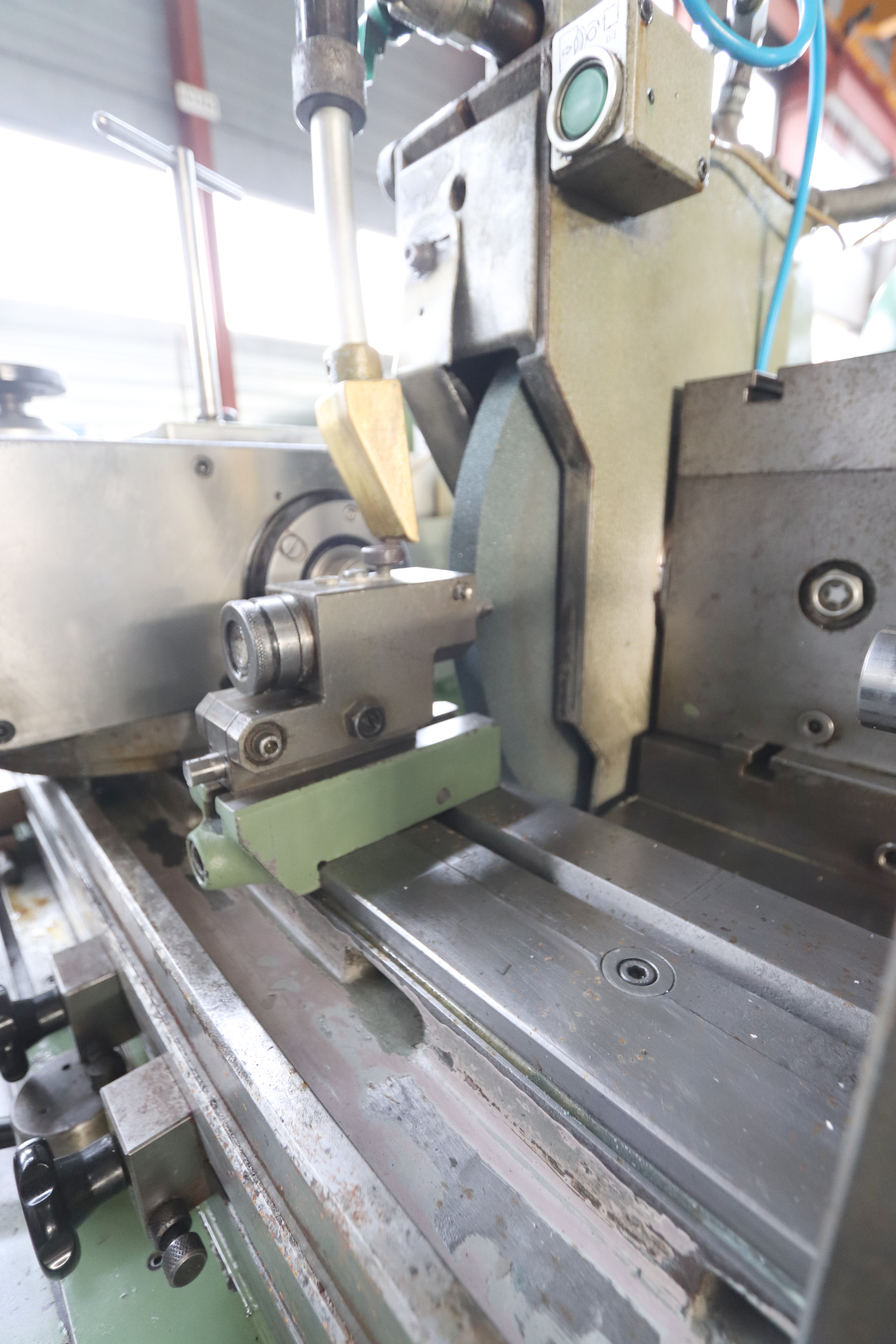

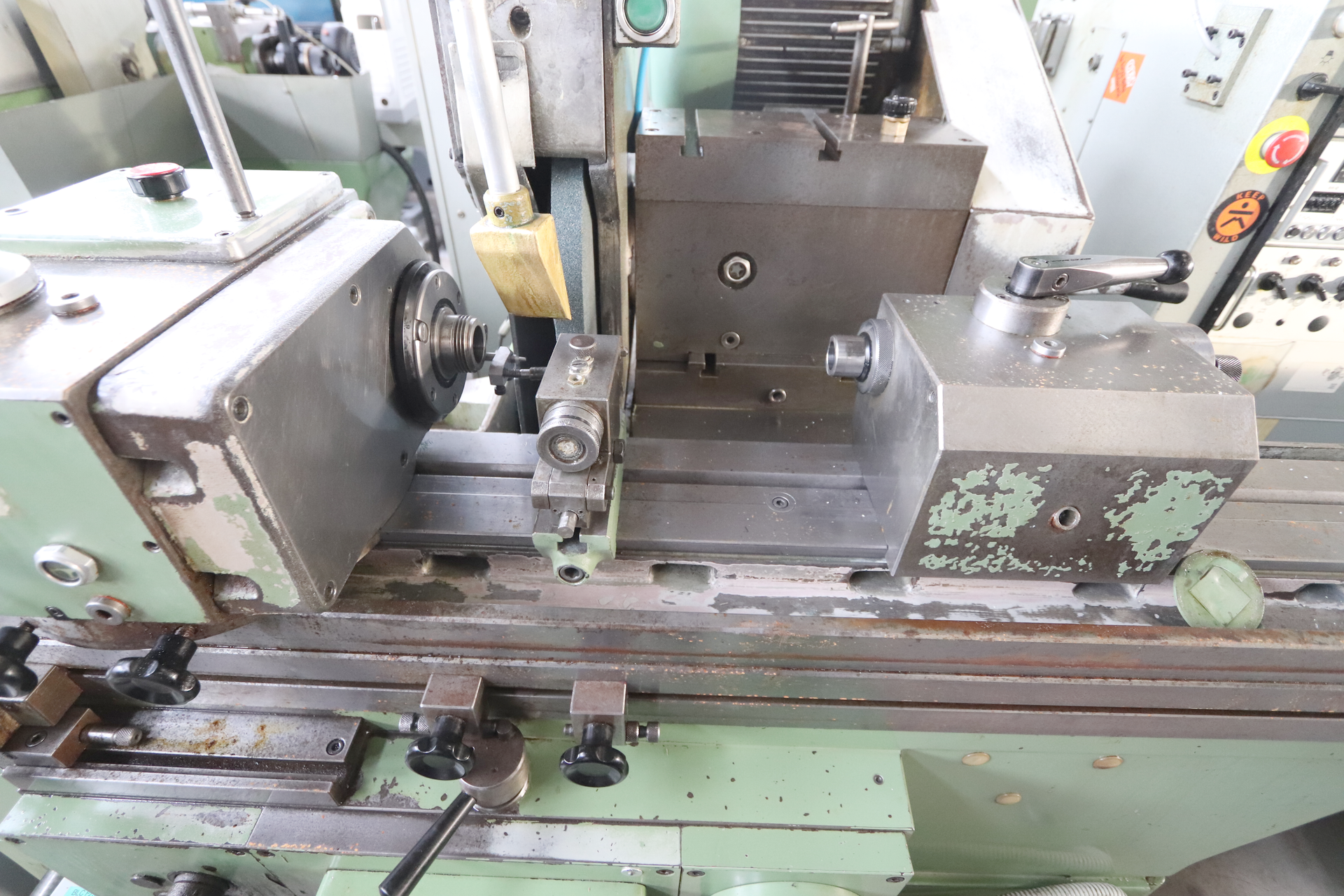

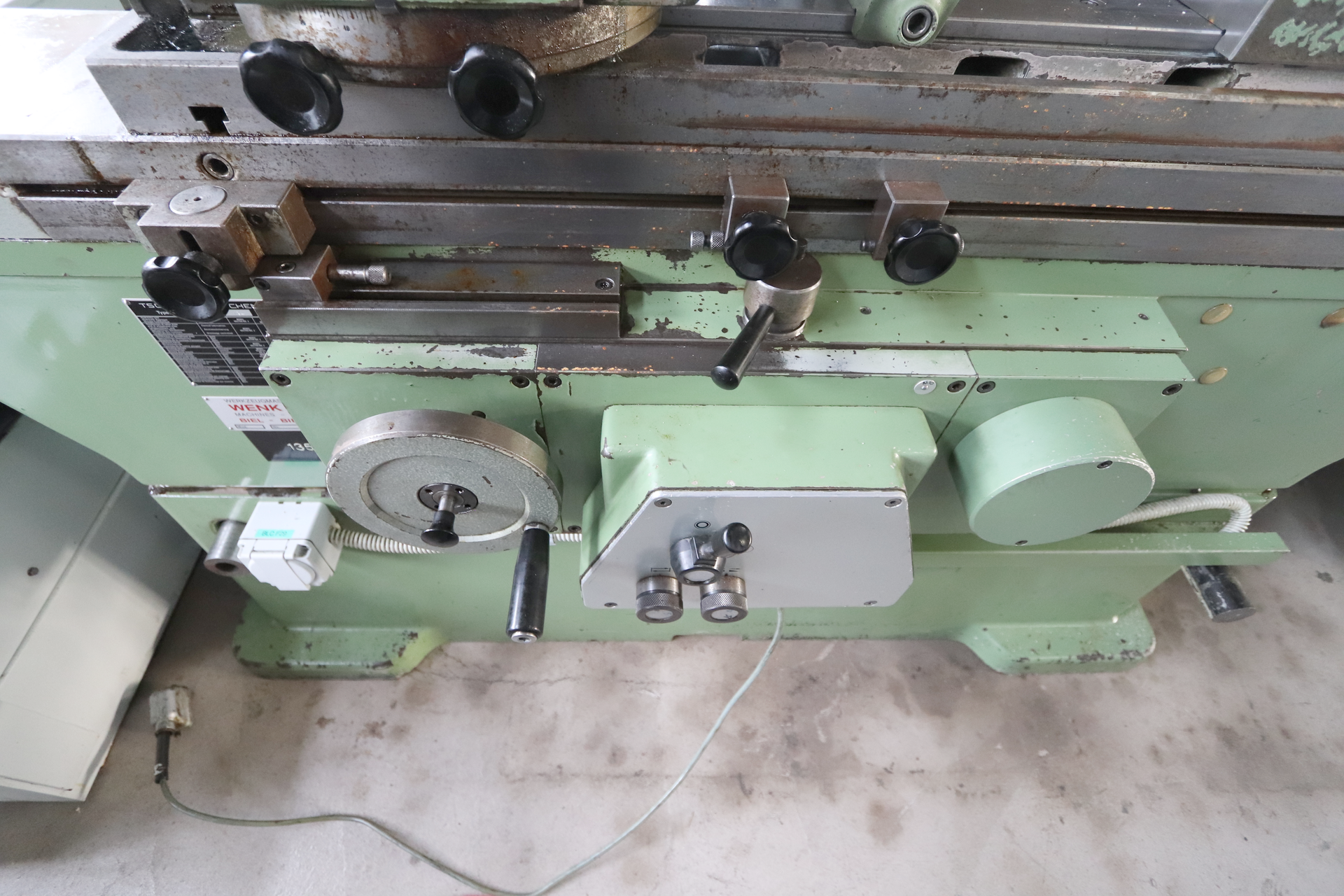

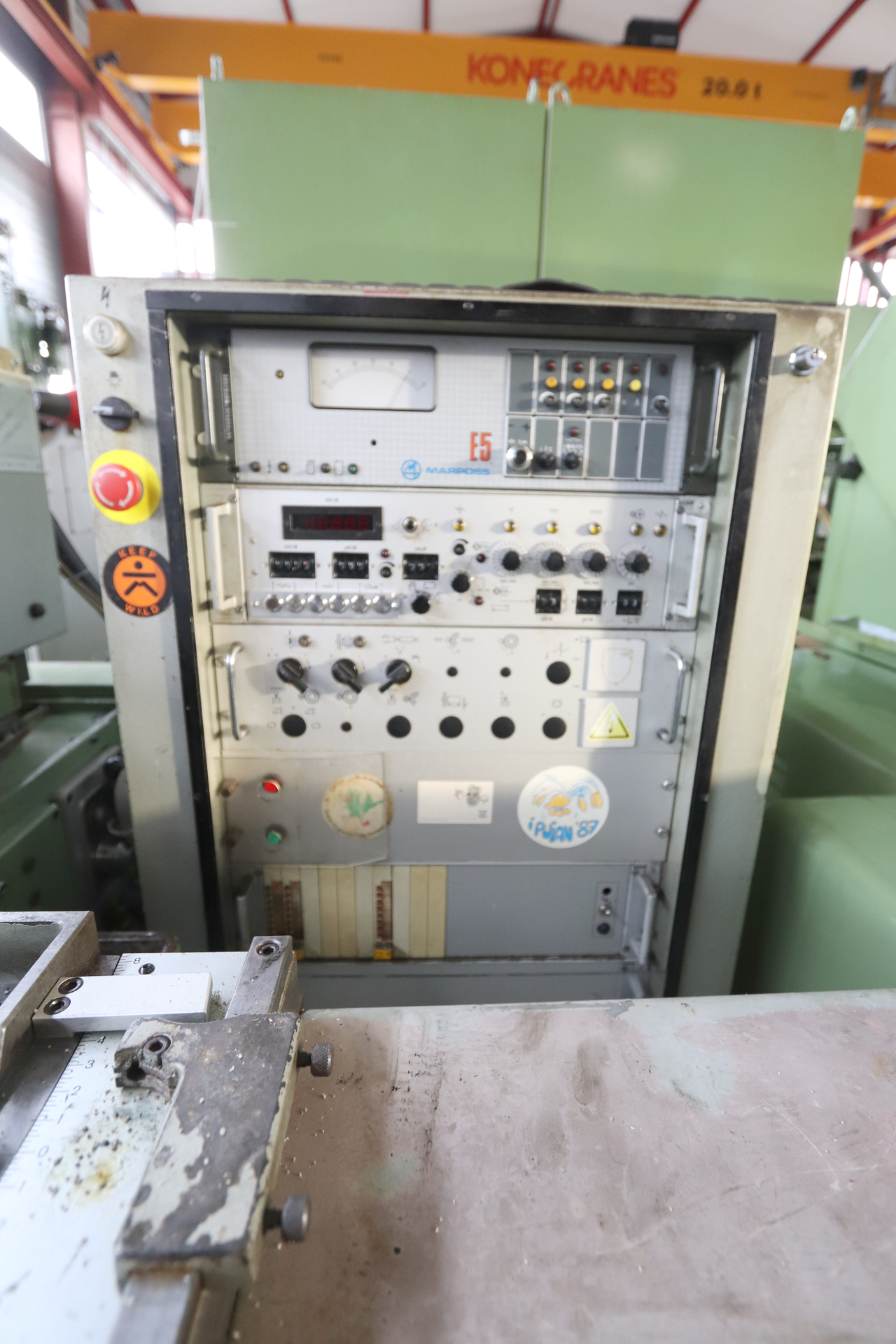

| Centre height | 100 mm |
| Distance between centres | 680 mm |
| Max. Longitudinal travel | 620 mm |
| Max. transversal travel | 45 mm |
| Grinding wheel: | |
| Diameter | 500 mm |
| Width | 80 mm |
| Bore | 203 mm |
| grinding wheel width | 80 mm |
| Grinding wheel speeds: | |
| number (steps) | 3 |
| from | 1150 t/min |
| up to | 1550 t/min |
| Angular displacement | 3 ° |
| Work piece spindle head: | |
| speeds: | |
| stepless | |
| from | 65 t/min |
| up to | 500 t/min |
| rotatable | 360 ° |
| Spindle taper | 4 CM |
| Taper in tailstock: | 3 CM |
| Spindle stroke | 20 mm |
| Shearing force | 4 - 15 kp |
| Table angular displacement | 9 ° |
| Table speed: | |
| stepless | |
| up to | 5 m/min |
| Voltage 50 Hz 3x | 380 Volt |
| External Grinding wheel motor | 5.5 kW |
| Workhead spindle motor | 0.7 CV |
| Total power required | 10 CV |
| Machine's weight about | 2900 kg |
| Overall dimensions machine: | |
| Length | 2300 mm |
| Width | 1800 mm |
| Height | 1900 mm |
| Various accessories: | |
| Redressing device | |
| Coolant system | |
| Paper filtration system | |
| Tailstock |
