TORNOS MULTIDECO 20/6 is a CNC multi-spindle turning lathe engineered for high-precision machining, superior accuracy and reliable continuous operation. Capacities: 18 axes, 6 cross slides, 5 longitudinal slides, longitudinal travel 160 mm, bar capacity 5–20 mm, max workpiece length 100 mm, output 45 pcs/min. Specs: spindle up to 6000 rpm, spindle power 15 kW, total installed power 43 kVA, supply 3x400V 50Hz, weight ≈8500 kg, footprint 3500×1600×1950 mm. Accessories: ROBOBAR bar loader MSF 522/6, ELBARON oil mist extractor, chip conveyor, pick-up spindle, spindle stop, lamp, status light, fire extinguishing system (without bottle). Achieves tight tolerances; ideal for automotive, watchmaking, aerospace, medical and machine-tool sectors
| Number of axis total | 18 |
| Number of cross slides | 6 |
| Plain turning slide number | 5 |
| Longitudinal carriage way | 160 mm |
| Number back spindle | 1 |
| Capacity round bar | 5-20 mm |
| Workpiece length max. | 100 mm |
| Spindle speeds: | |
| stepless | |
| up to | 6000 t/min |
| Production capacity | 45 pce/min |
| Voltage 50 Hz 3x | 400 Volt |
| Spindle power | 15 kW |
| Total power required | 43 kVA |
| Machine's weight about | 8500 kg |
| Overall dimensions machine: | |
| Length | 3500 mm |
| Width | 1600 mm |
| Height | 1950 mm |
| Various accessories: | |

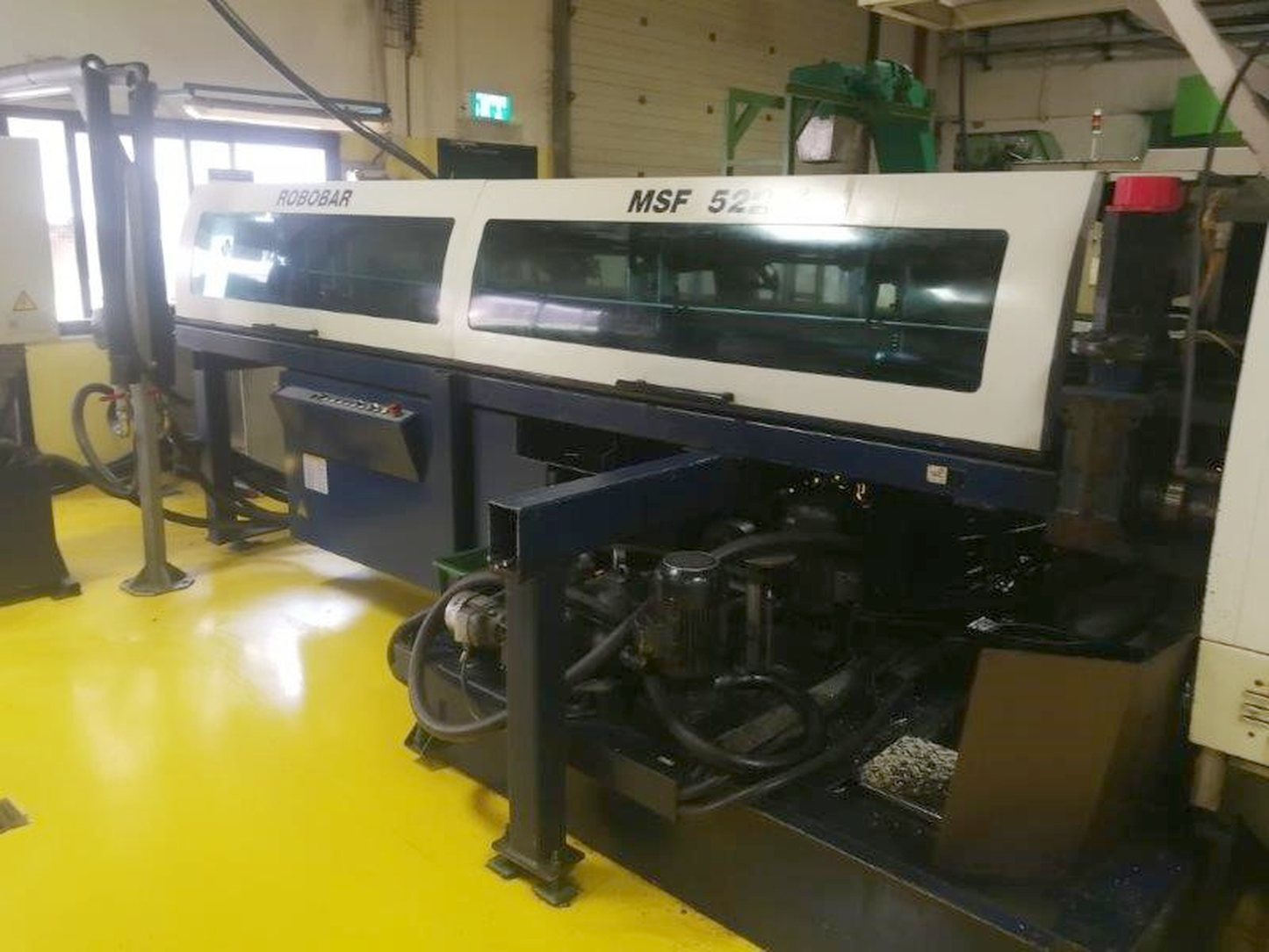

| Bar loader number of bars | ROBOBAR |
| Type | MSF 522/6 |
| Coolant system | |
| Oil mist extractor | ELBARON |
| Chip conveyor | |
| Pick-up spindle_x000D_ | |
| Spindle stop device | ° |
| Lamp | |
| Status light | |
| Fire extinguishing system (without bottle) |
