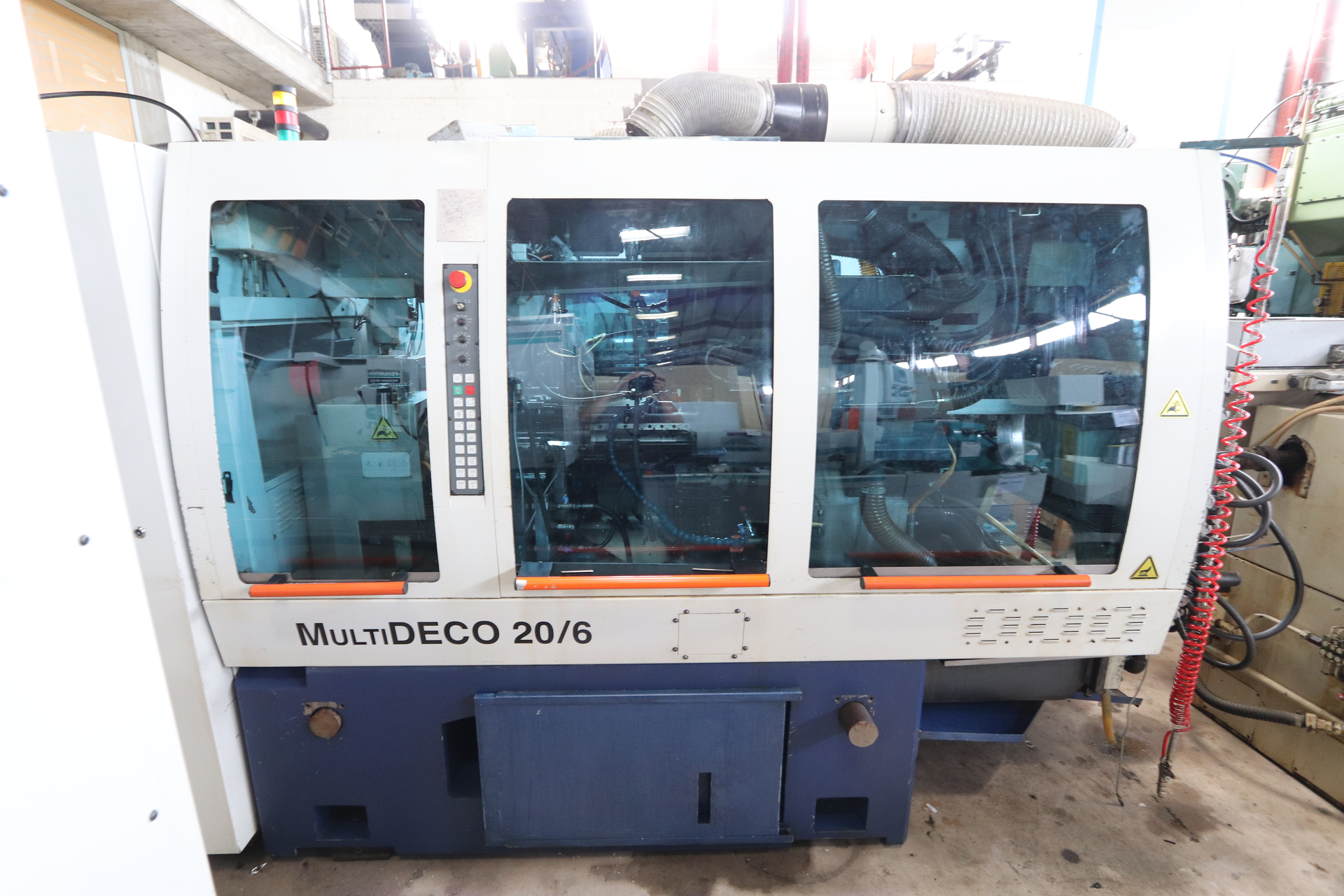

    TORNOS MULTIDECO 20/6


Type: MULTIDECO 20/6





        Manufacturer: TORNOS






        Group: Multi-spindle turning lathe







        Subgroup: CNC Multi-spindle turning lathe

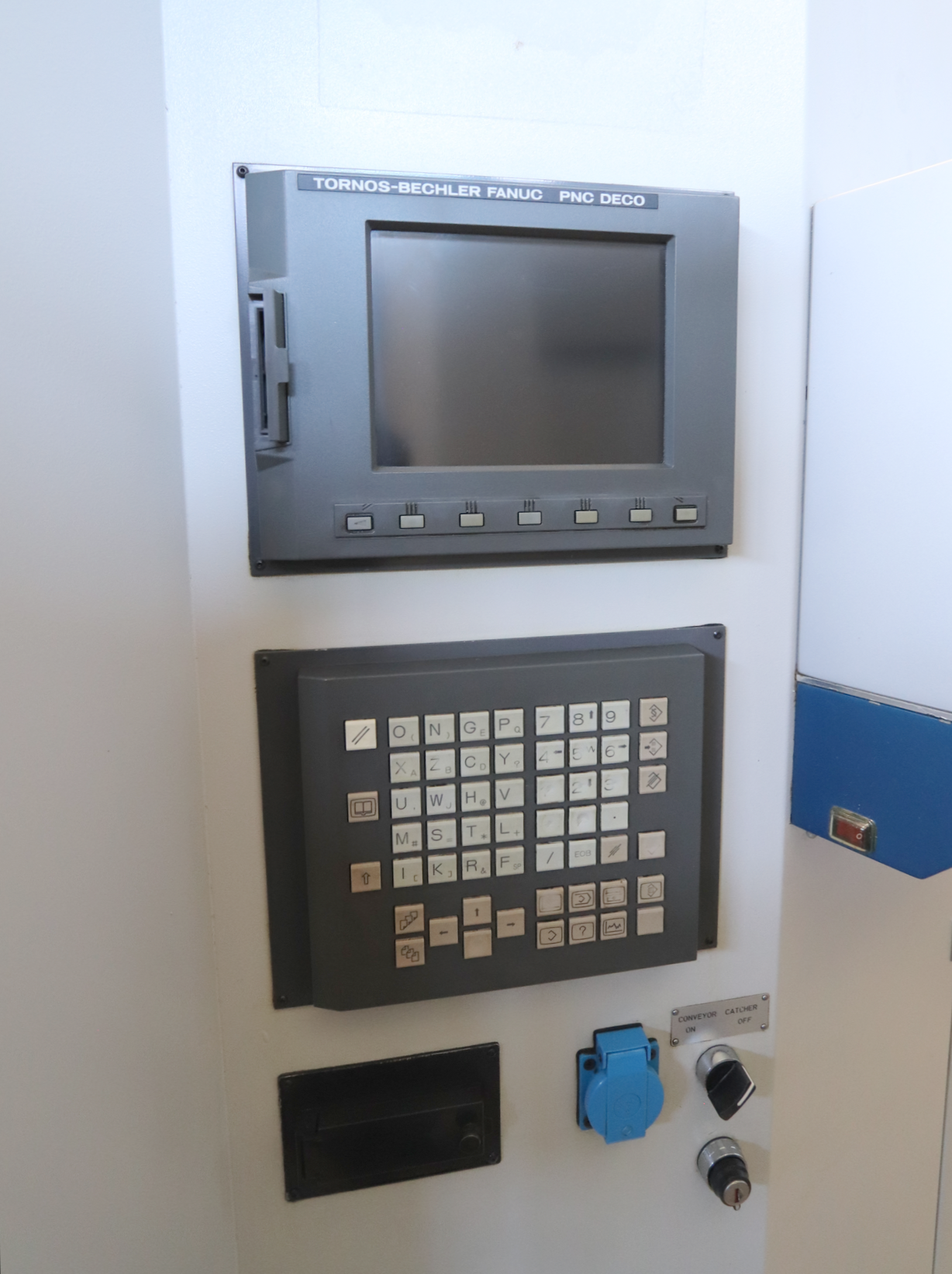

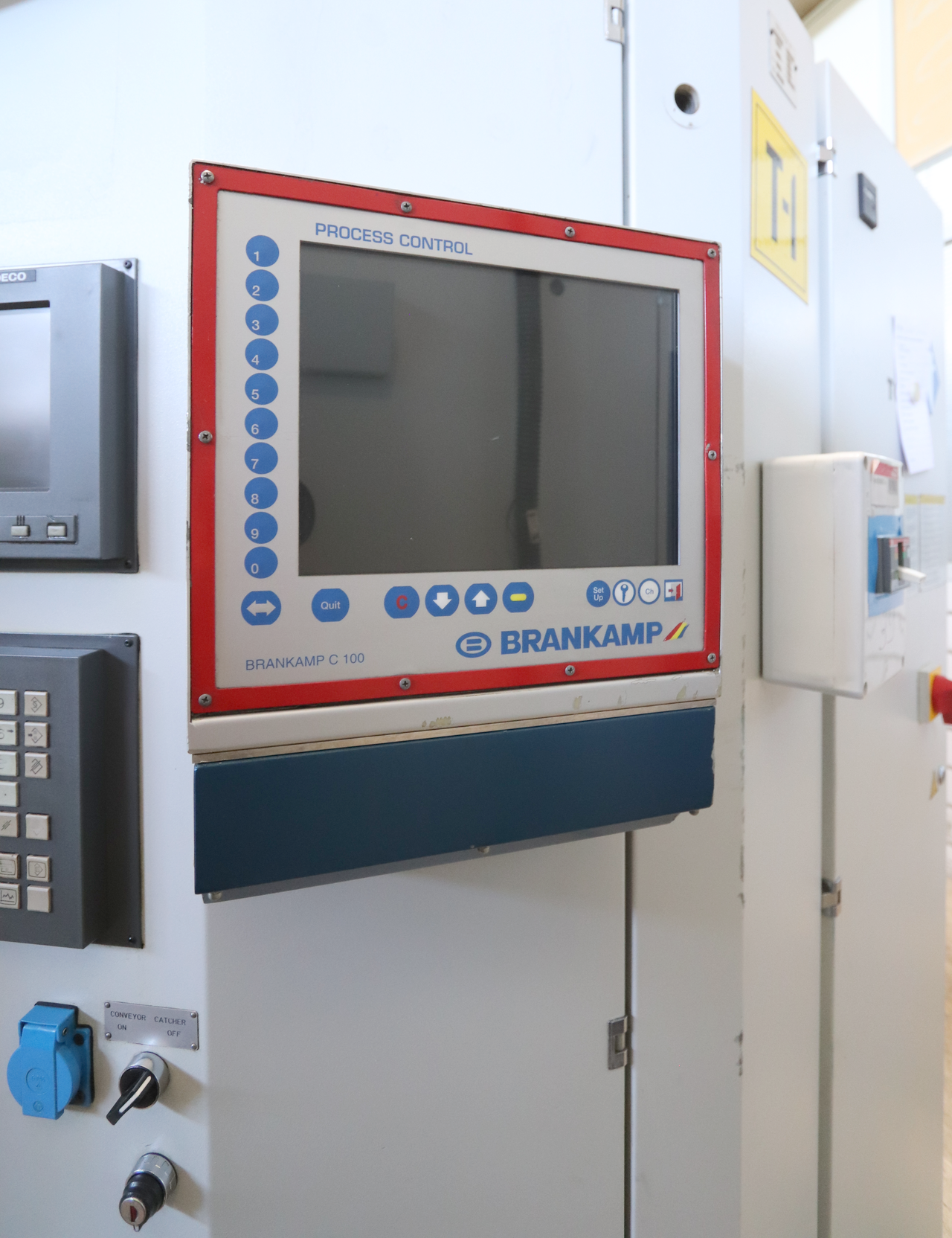

      Control: PNC-DECO FANUC








        Year: 2001





      Stock: 020878

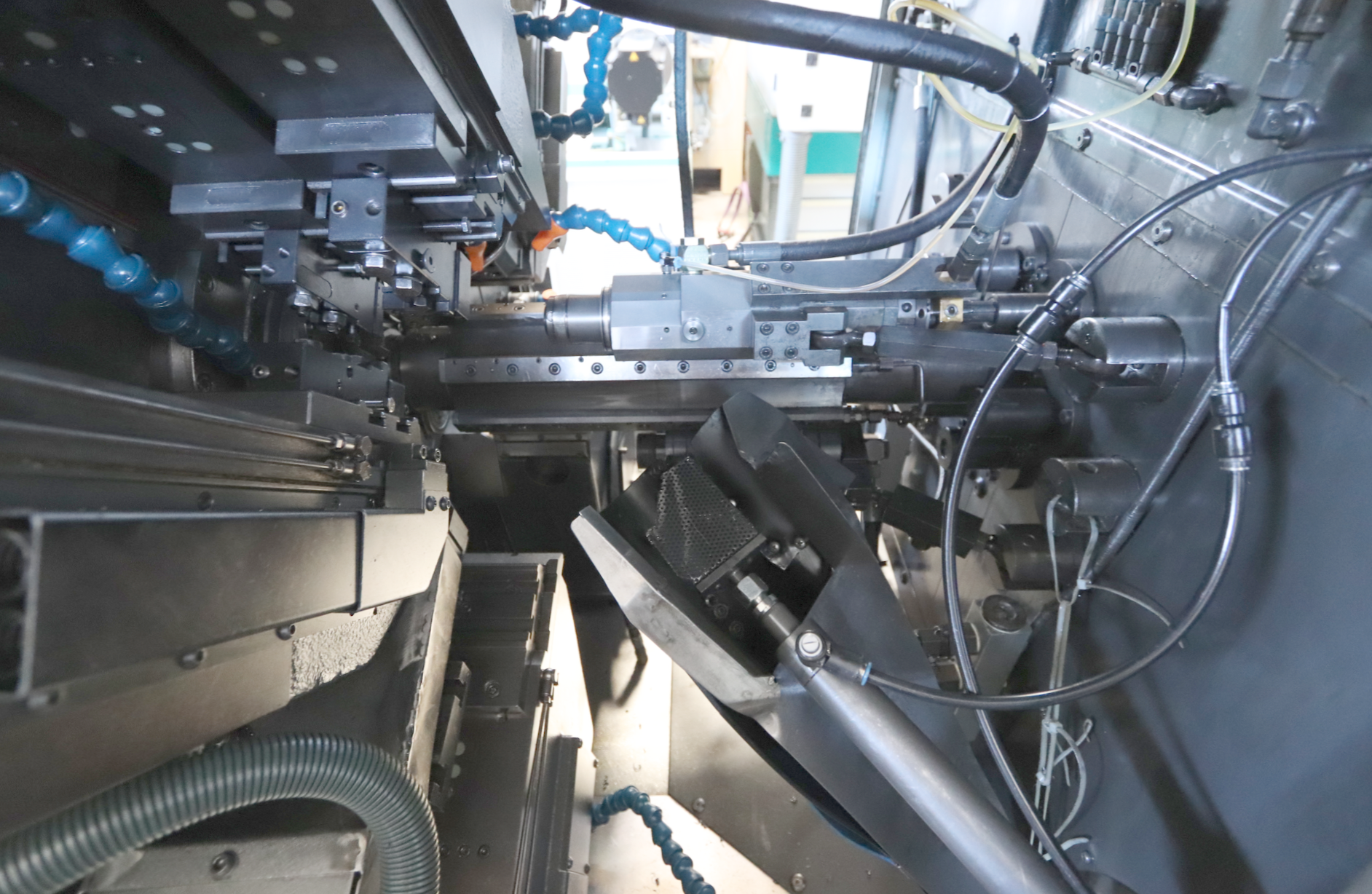

            TORNOS MULTIDECO 20/6 is a CNC multi-spindle turning lathe engineered for precision, high accuracy and reliable performance. It features 18 total axes, 6 cross slides and 5 plain turning slides; bar capacity 5–20 mm; max workpiece length 100 mm; longitudinal carriage way 160 mm. Spindle speeds stepless up to 6000 t/min, spindle power 15 kW; production capacity 45 pcs/min; supply 3x400 V 50 Hz; total power 43 kVA; machine weight about 8500 kg; dimensions L3500×W1600×H1950 mm. Accessories: bar loader ROBOBAR MSF 522/6, oil mist extractor ELBARON, chip conveyor, pick-up spindle, spindle stop device, lamp, status light, fire extinguishing system (without bottle). Achieves tight tolerances; typical applications: automotive, watchmaking, machine tools, aerospace, medical.


| Number of axis total | 18 |
| Number of cross slides | 6 |
| Plain turning slide number | 5 |
| Longitudinal carriage way | 160 mm |
| Number back spindle | 1 |
| Capacity round bar | 5-20 mm |
| Workpiece length max. | 100 mm |
| Spindle speeds: | |
| stepless | |
| up to | 6000 t/min |
| Production capacity | 45 pce/min |
| Voltage 50 Hz 3x | 400 Volt |
| Spindle power | 15 kW |
| Total power required | 43 kVA |
| Machine's weight about | 8500 kg |
| Overall dimensions machine: | |
| Length | 3500 mm |
| Width | 1600 mm |
| Height | 1950 mm |
| Various accessories: | |

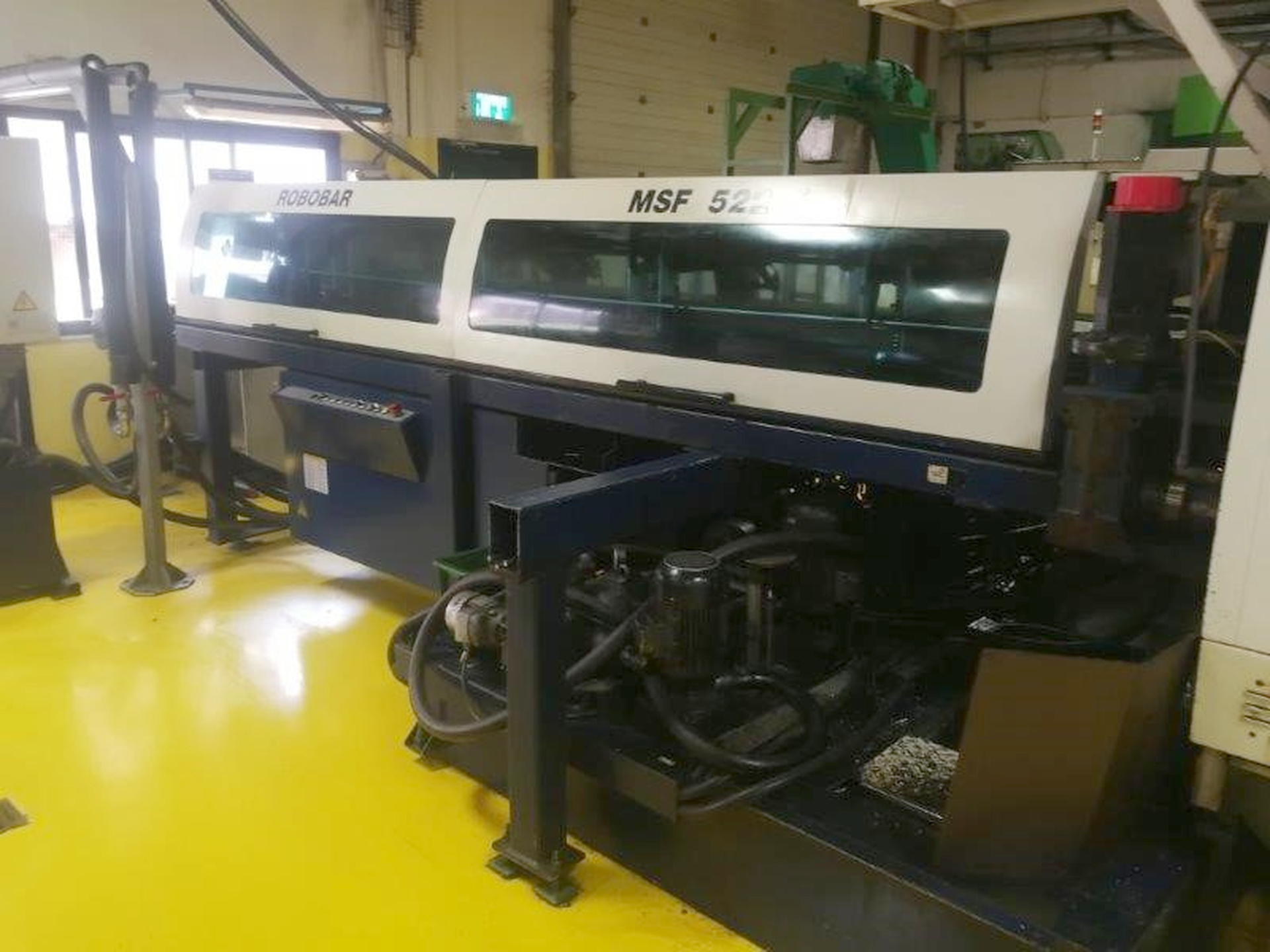

| Bar loader number of bars | ROBOBAR |
| Type | MSF 522/6 |
| Coolant system | |

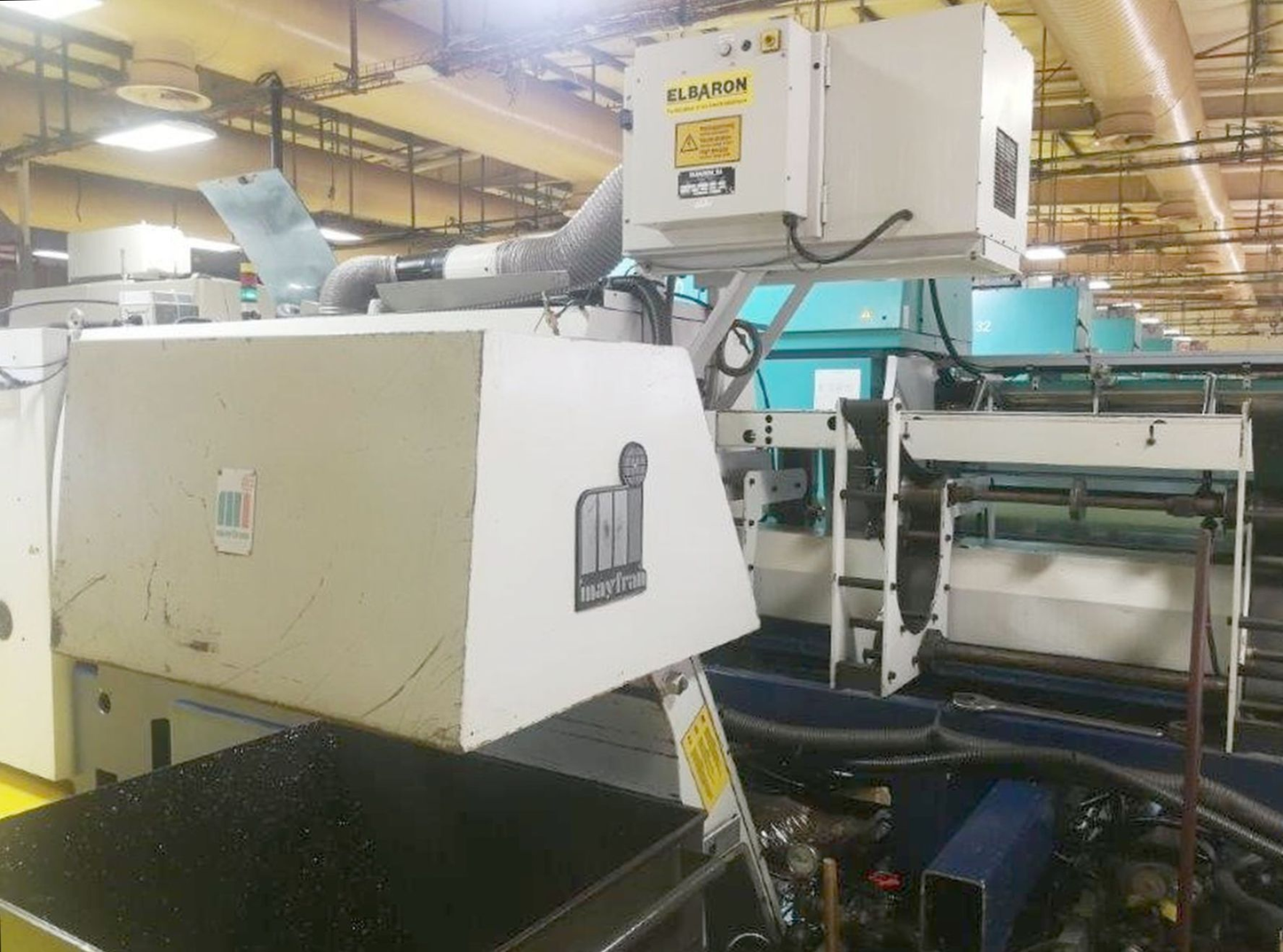

| Oil mist extractor | ELBARON |
| Chip conveyor | |
| Pick-up spindle_x000D_ | |
| Spindle stop device | ° |
| Lamp | |
| Status light | |
| Fire extinguishing system (without bottle) |
