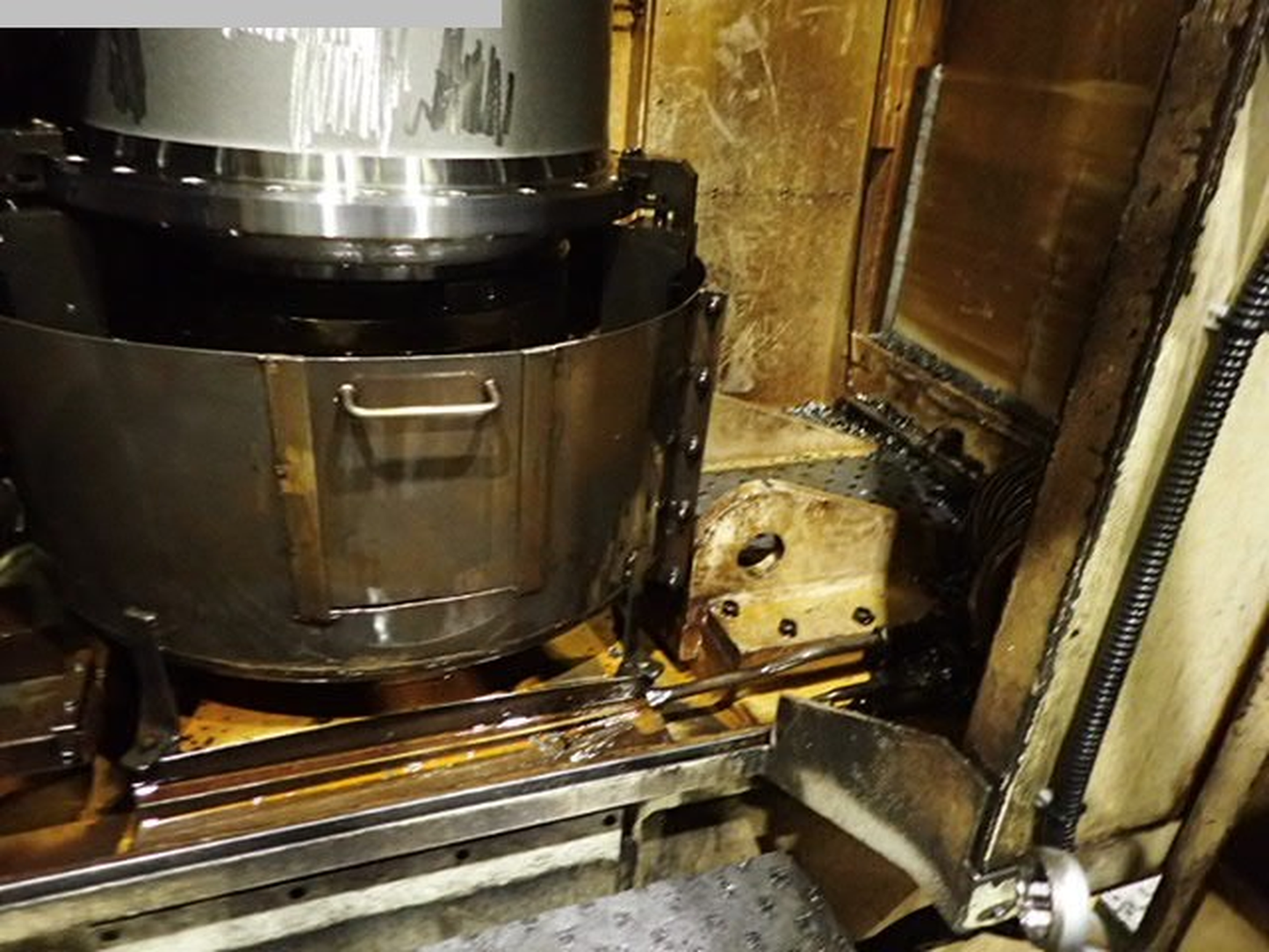

GLEASON PFAUTER PSA 500 is a CNC gear shaping machine engineered for high precision, high accuracy and reliable operation. Capacities: module up to 8; helix angle +/-45°; max. wheel diameter 500 mm; wheel width 200 mm; table load max. 1000 kg. Main specs: holding taper HSK B80; max. ram stroke 225 mm; stepless ram speeds 90–900 c/min; voltage 50 Hz 3x210 V; total power 55 kVA; machine weight ~13000 kg; overall dims L4460×W5490×H3260 mm. Achieves tight tolerances; typical applications: automotive, aerospace, toolmaking, medical, watchmaking.

Technical specifications are subject to change without notice
