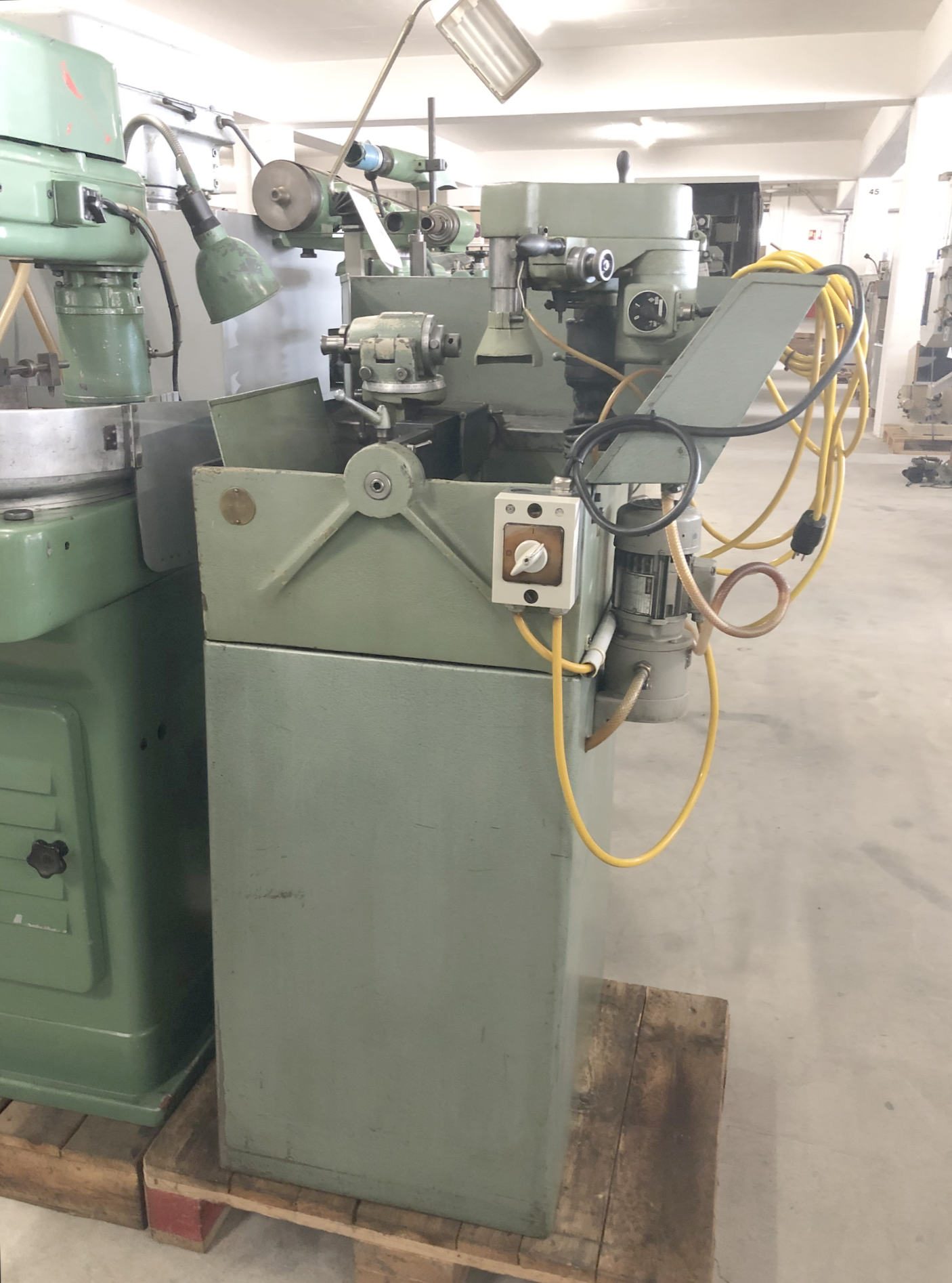

    STRAMA 75


            STRAMA 75 is a Tool and cutter grinder of high precision, engineered for superior accuracy and reliable performance. Capacities: grinding-wheel Ø75 mm, bore 20 mm; longitudinal table travel 55 mm; vertical grinding-head adjustment 160 mm; head slewing horizontal 360°. Technical specs: grinding spindle 2 steps 2800–5100 t/min; supply 50 Hz 3×380 V; spindle motor 0.50 CV; weight ~150 kg; overall L1000×W950×H1550 mm. Achieves tight tolerances; typical sectors: automotive, watchmaking, machine tools, aerospace, medical.


| Grinding-wheel diameter | 75 mm |
| Drilling cap. of grind.wheel | 20 mm |
| Longitudinal way of table | 55 mm |
| Vertical adjustment of grinding head | 160 mm |
| Slewing range of grinding head: | |
| horizontal | 360 ° |
| Grinding spindle speeds: | |
| number (steps) | 2 |
| from | 2800 t/min |
| up to | 5100 t/min |
| Voltage 50 Hz 3x | 380 Volt |
| Grinding spindle motor | 0.50 CV |
| Machine's weight about | 150 kg |
| Overall dimensions machine: | |
| Length | 1000 mm |
| Width | 950 mm |
| Height | 1550 mm |
