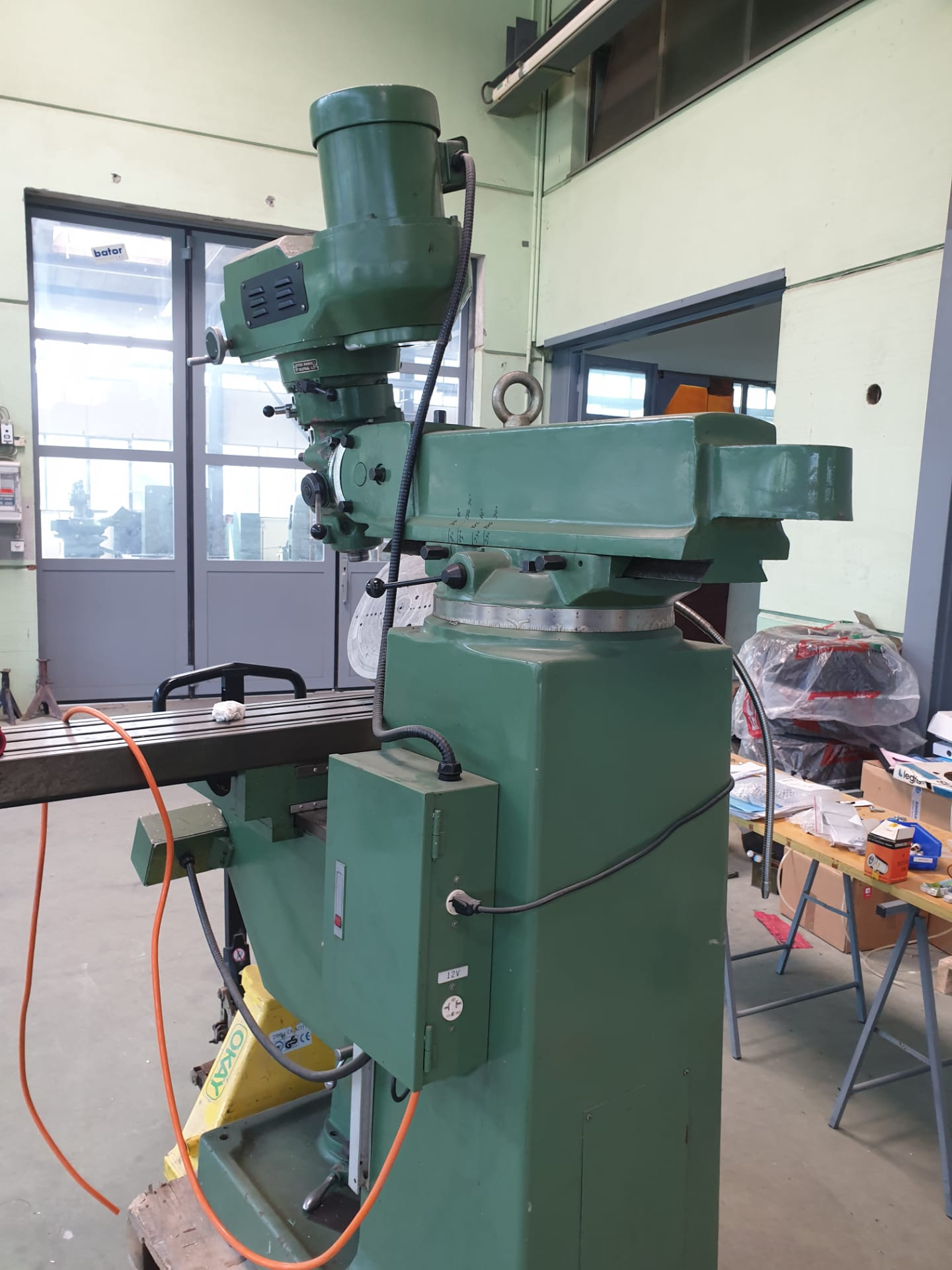

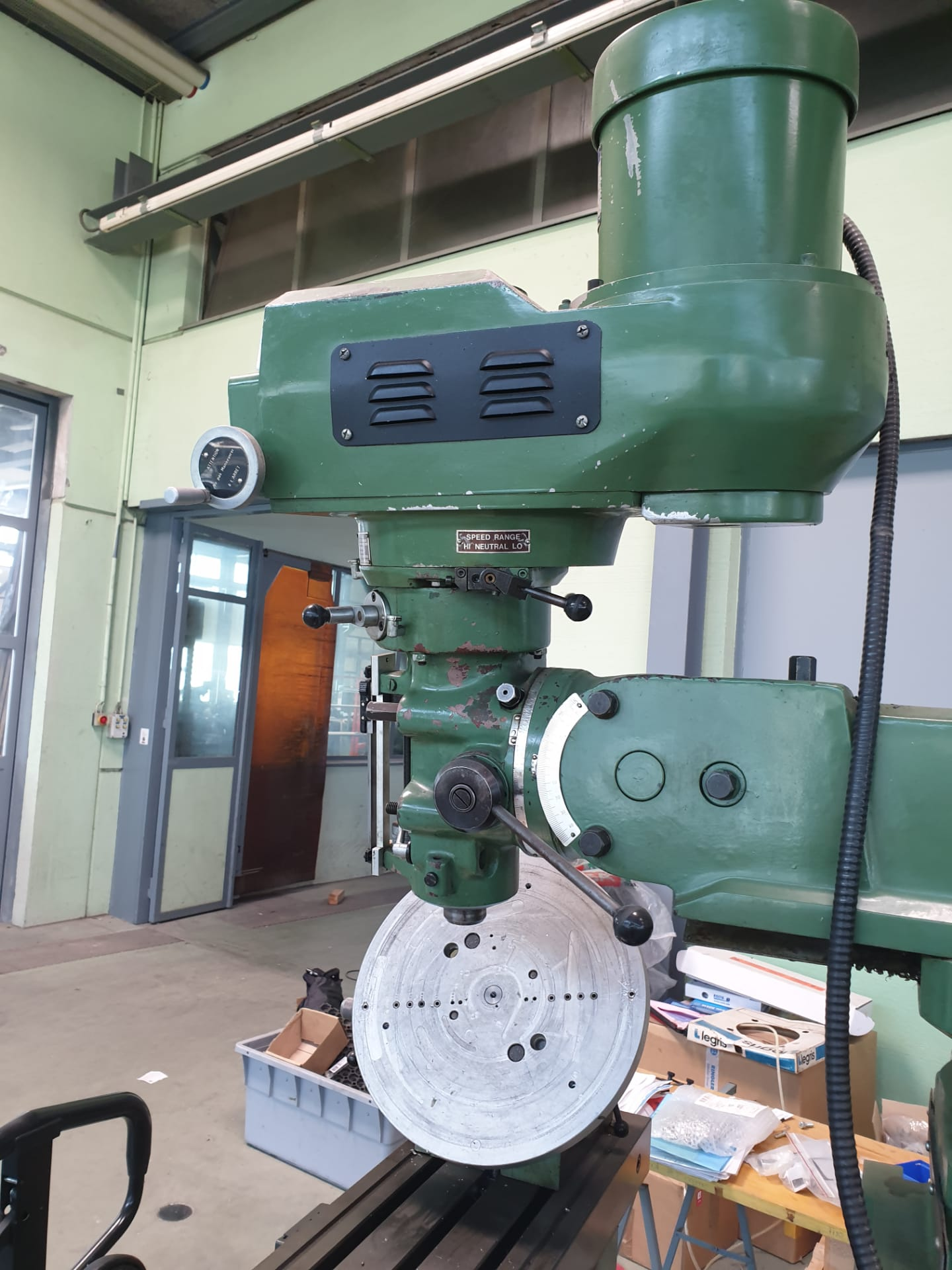

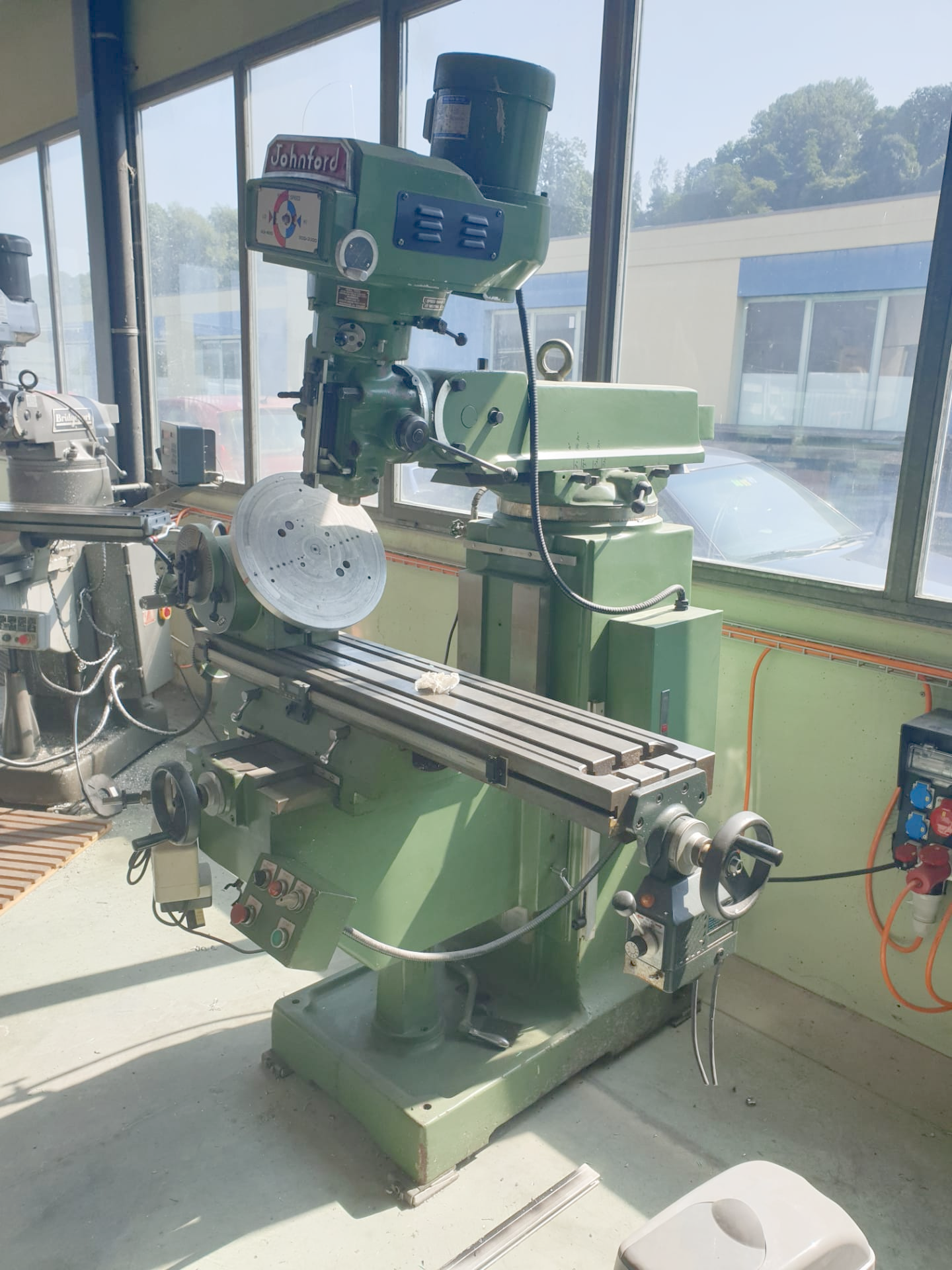

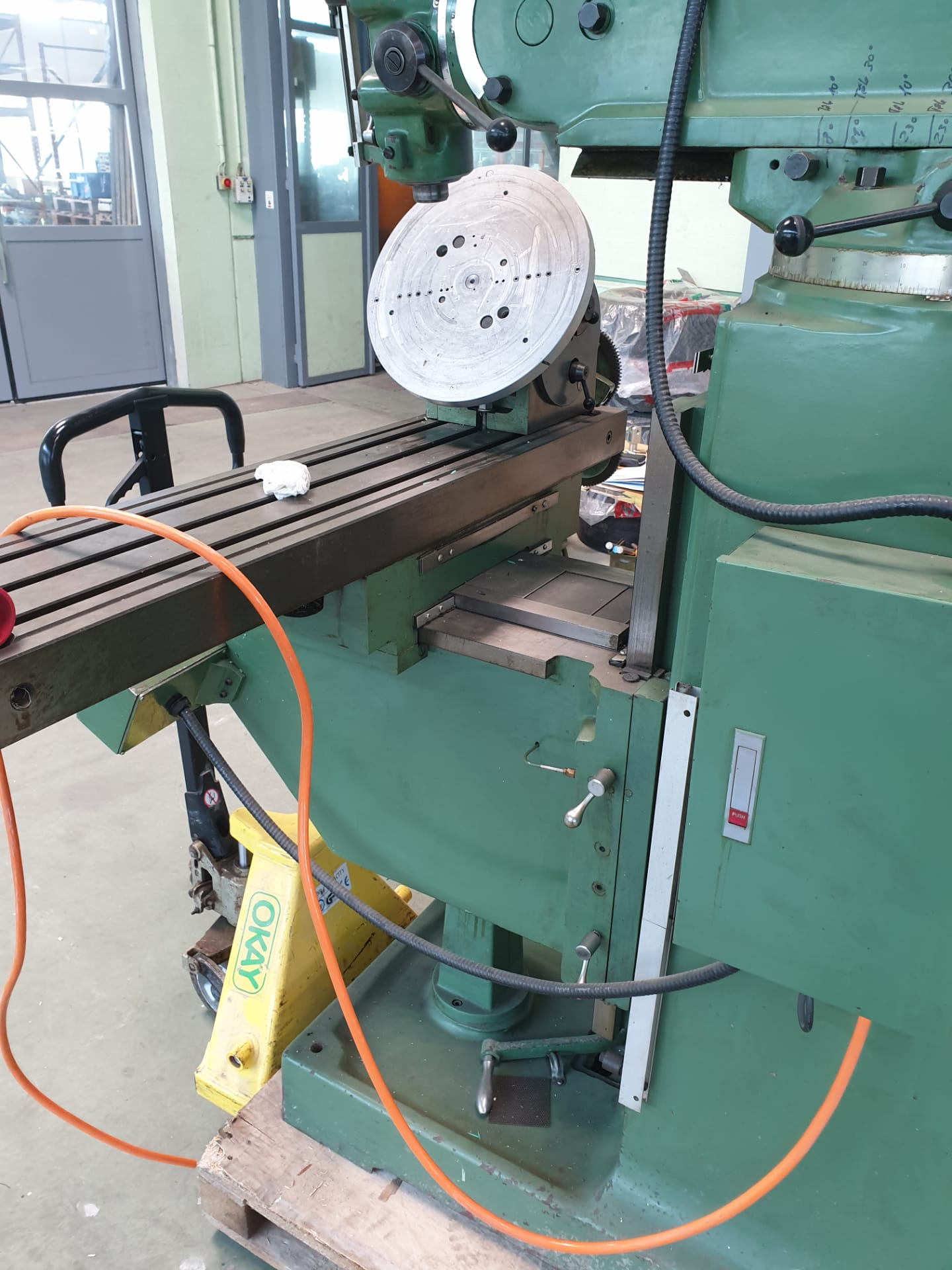

JOHNFORD 3 VS is a universal milling machine delivering precision, high accuracy and reliable performance. Table 1230x250 mm; travels X 800 mm, Y 350 mm, Z 400 mm; centre height 130 mm. Spindle taper R-8, 2-step speeds (from 60/500 up to 400/3300 t/min); vertical head ±90°, head inclining ±45°. Voltage 3x380 V 50 Hz; weight ~1000 kg; overall 1500x1500x2200 mm. Accessory: dividing attachment available. Suited for tight tolerances; typical applications: automotive, aerospace, machine tools and medical.
| Table length | 1230 mm |
| Table width | 250 mm |
| Longitudinal travel (X-axis) | 800 mm |
| Transversal travel (y axis) | 350 mm |
| Vertical travel (z axis) | 400 mm |
| Spindle speeds: | |
| number (steps) | 2 |
| stepless | |

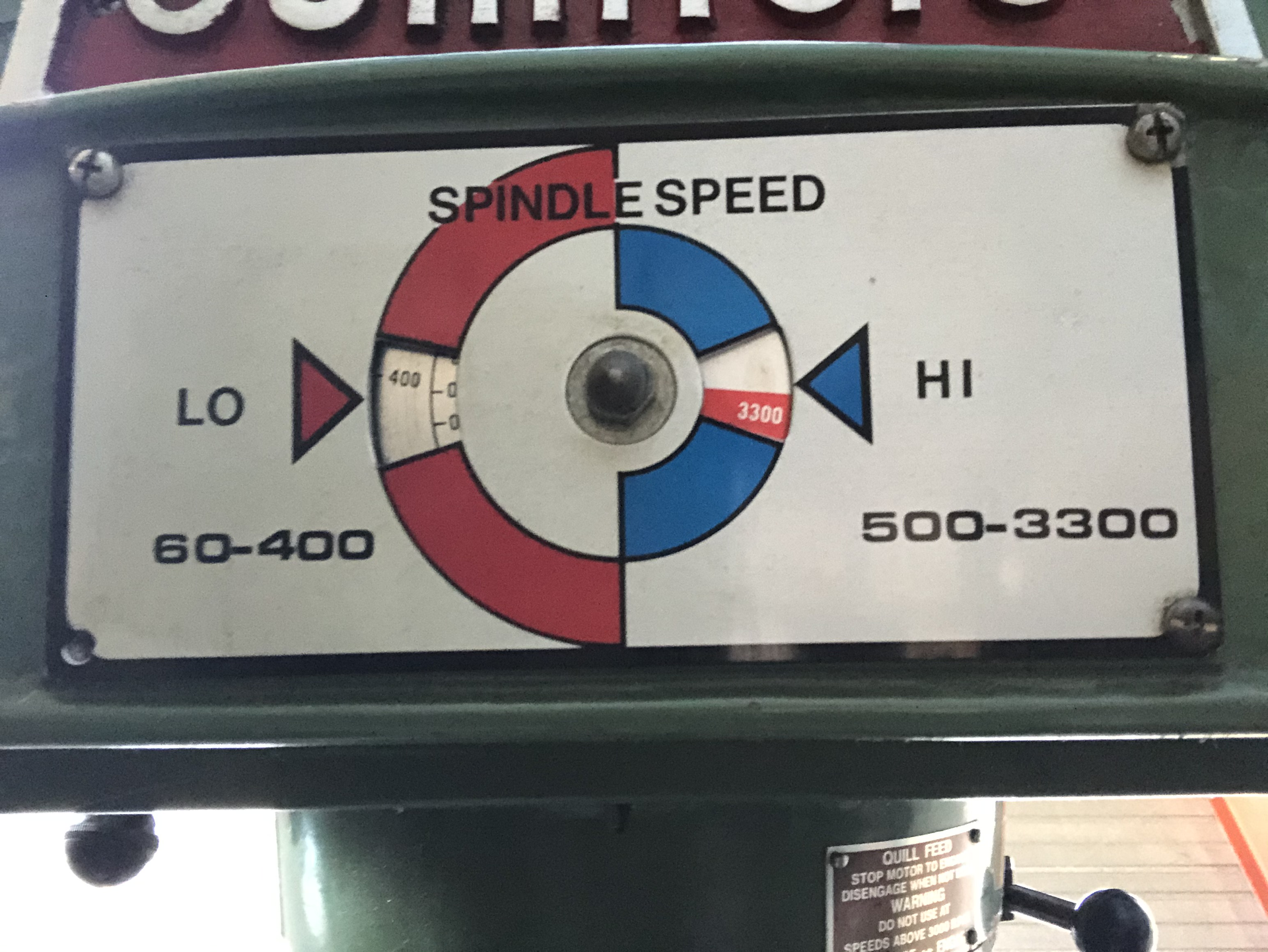

| from | 60 / 500 t/min |
| up to | 400 / 3300 t/min |
| Taper in spindle | R-8 |

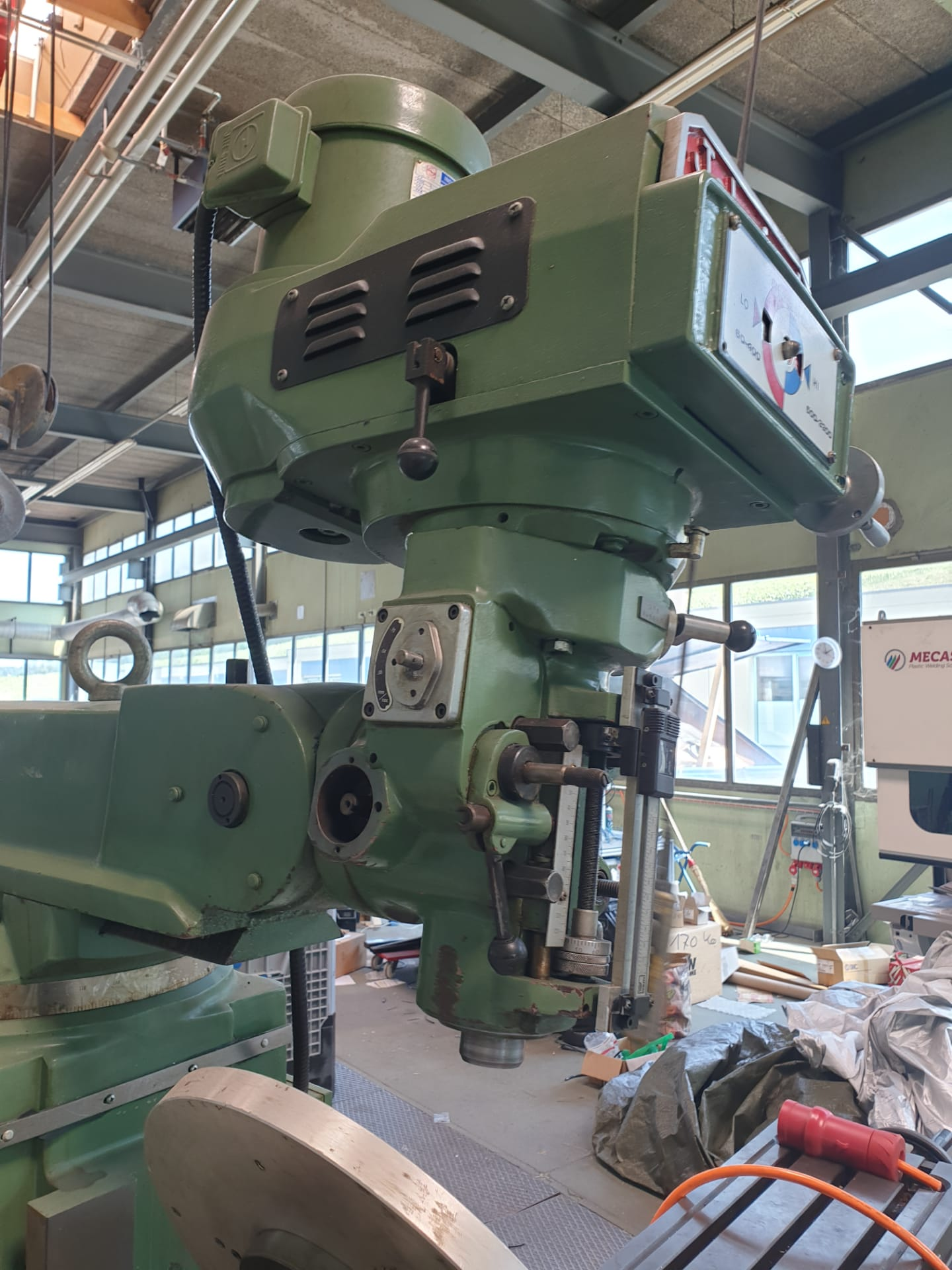

| Swivel range Vertical milling head | + / - 90 ° |

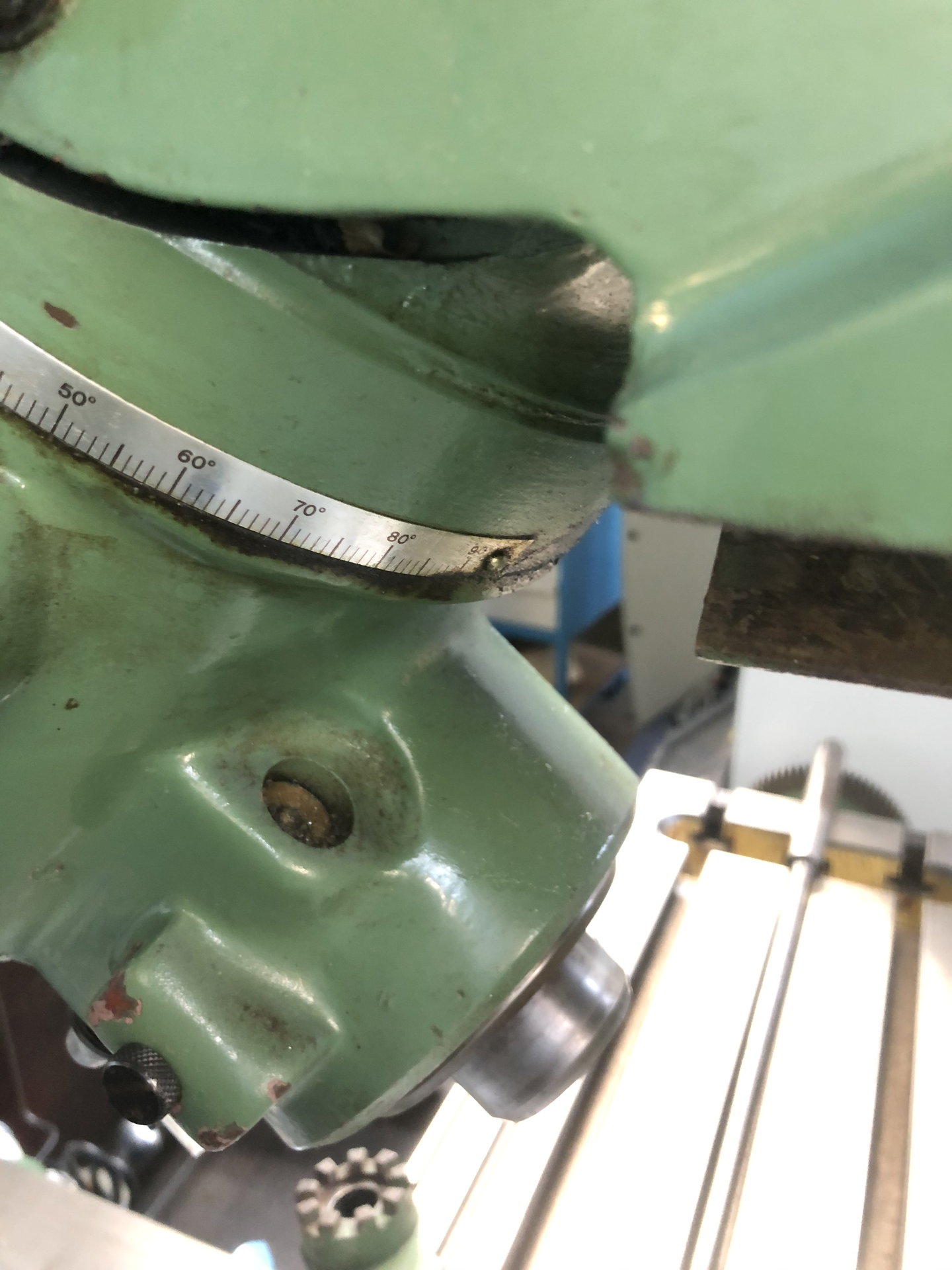

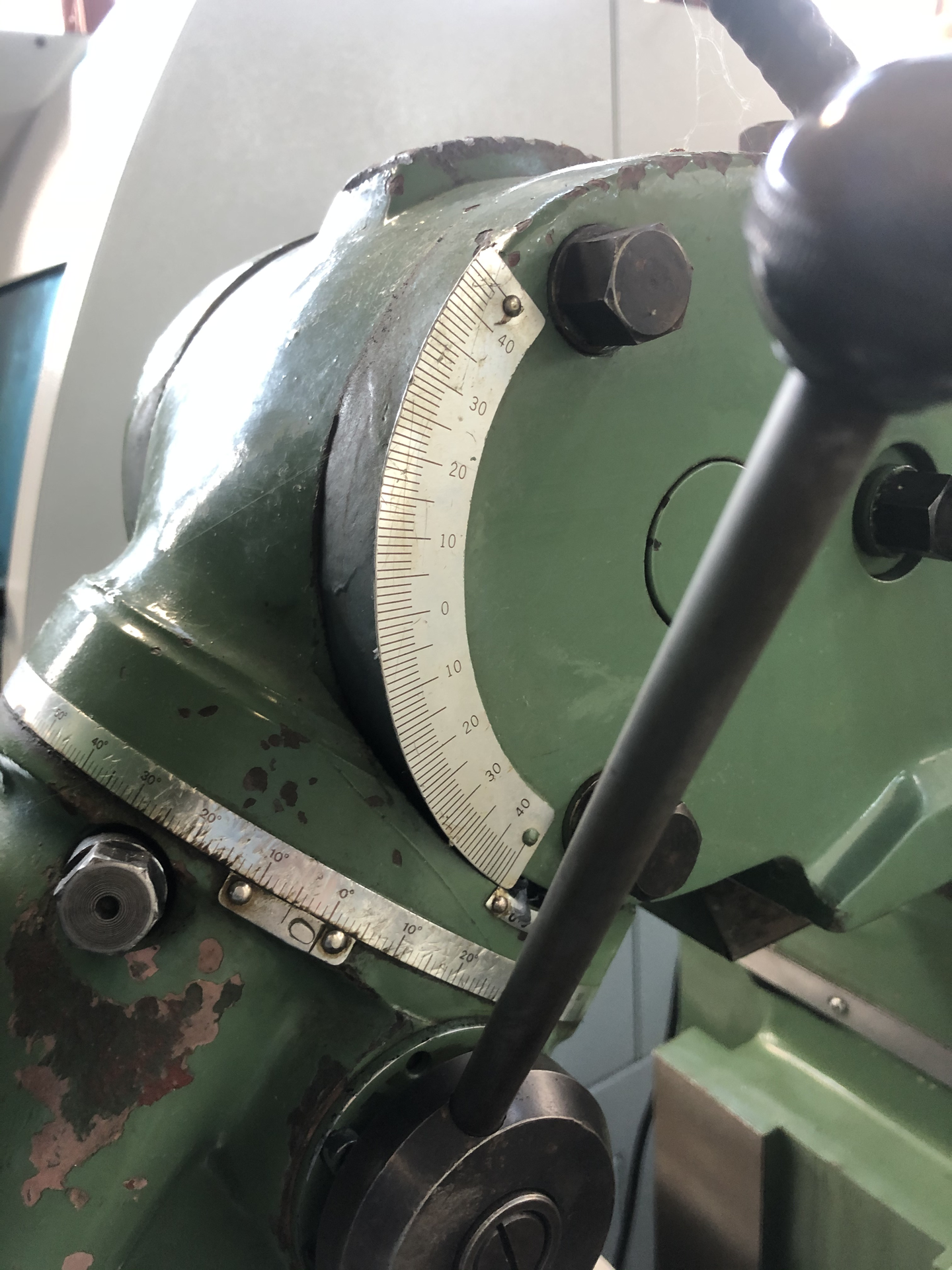

| Head inclining + - | 45 ° |
| Voltage 50 Hz 3x | 380 Volt |
| Machine's weight about | 1000 kg |
| Overall dimensions machine: | |
| Length | 1500 mm |
| Width | 1500 mm |
| Height | 2200 mm |
| Various accessories: | |

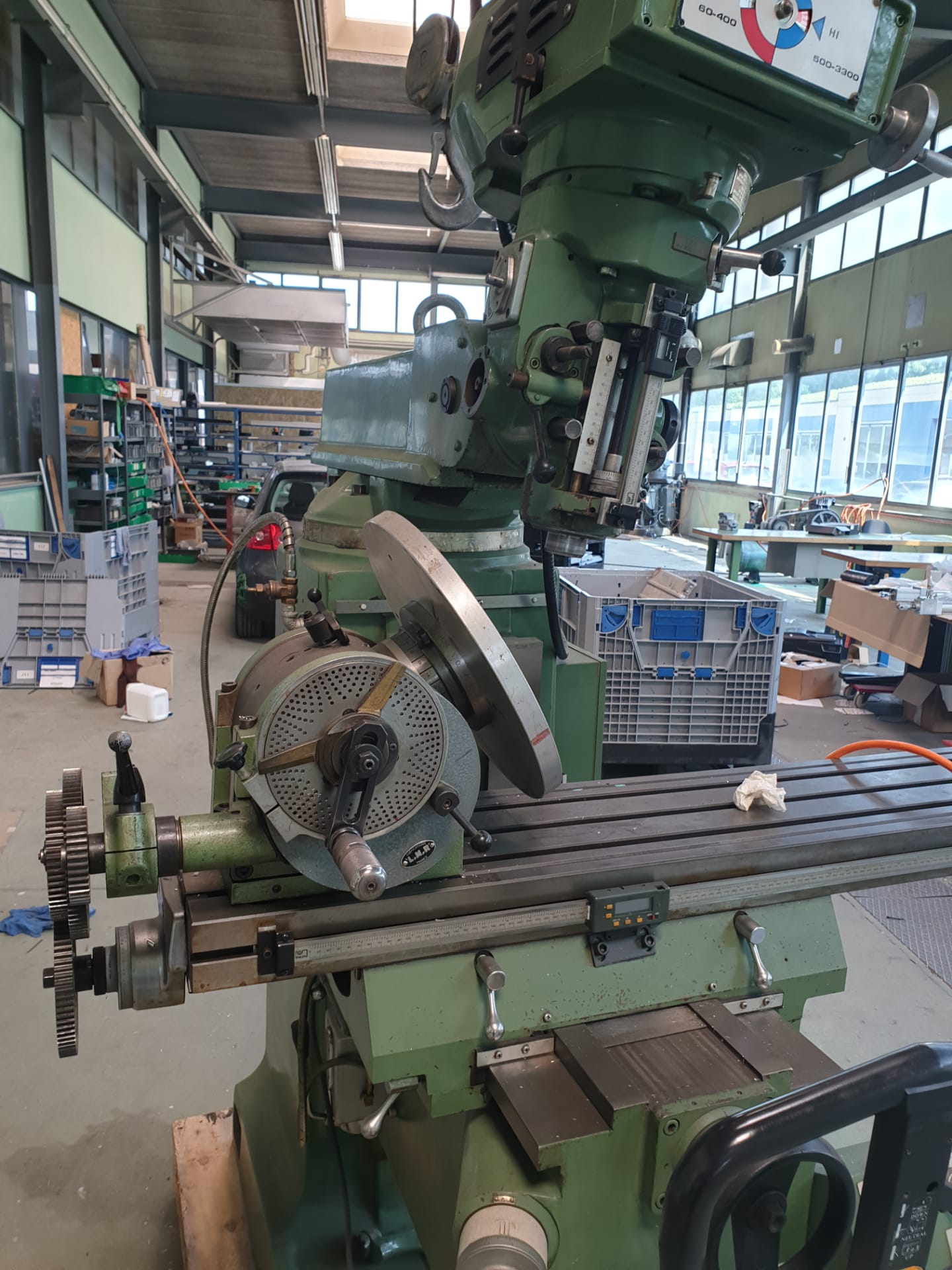

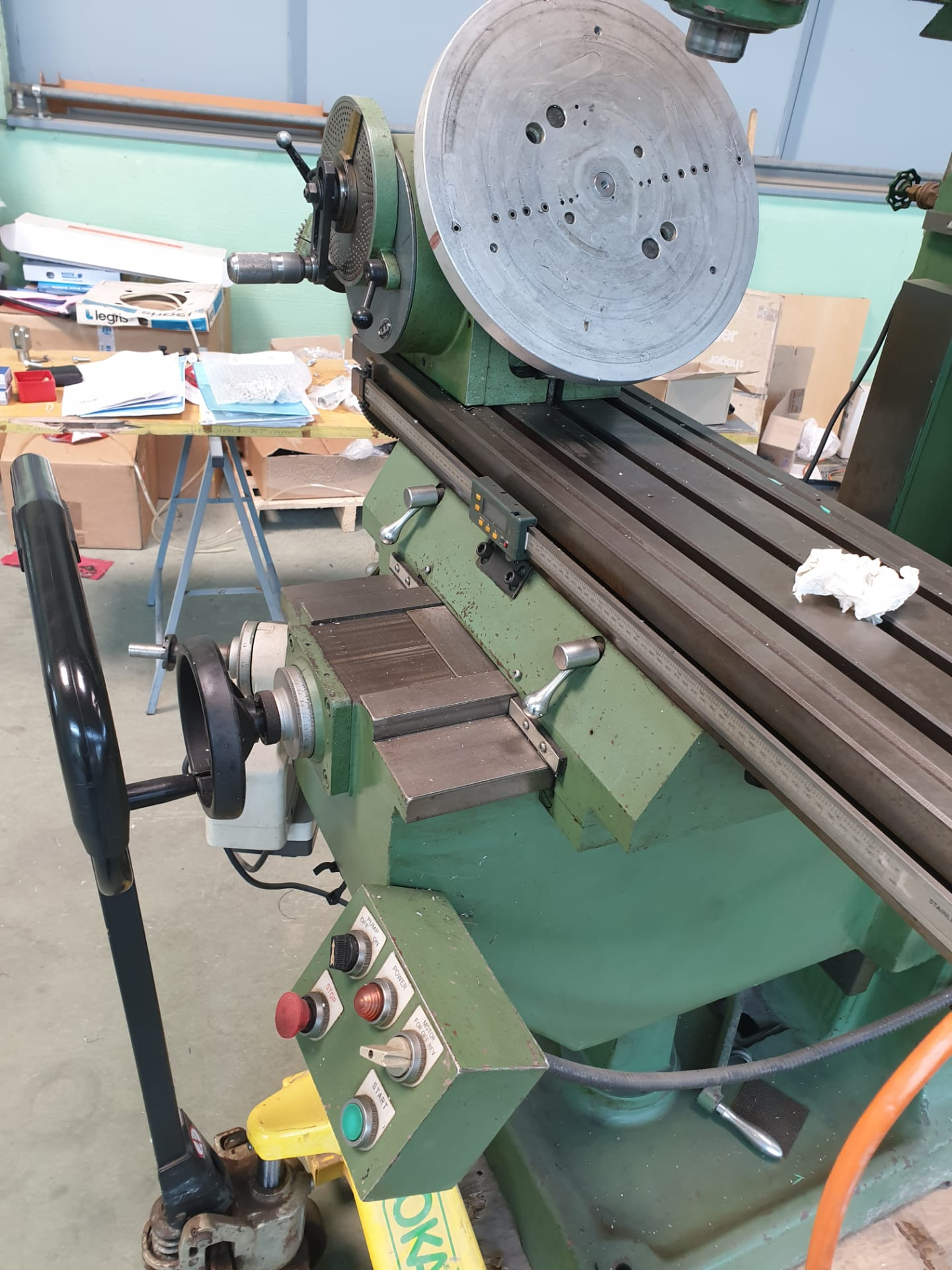

| Dividing attachment | |
| Centre height | 130 mm |
