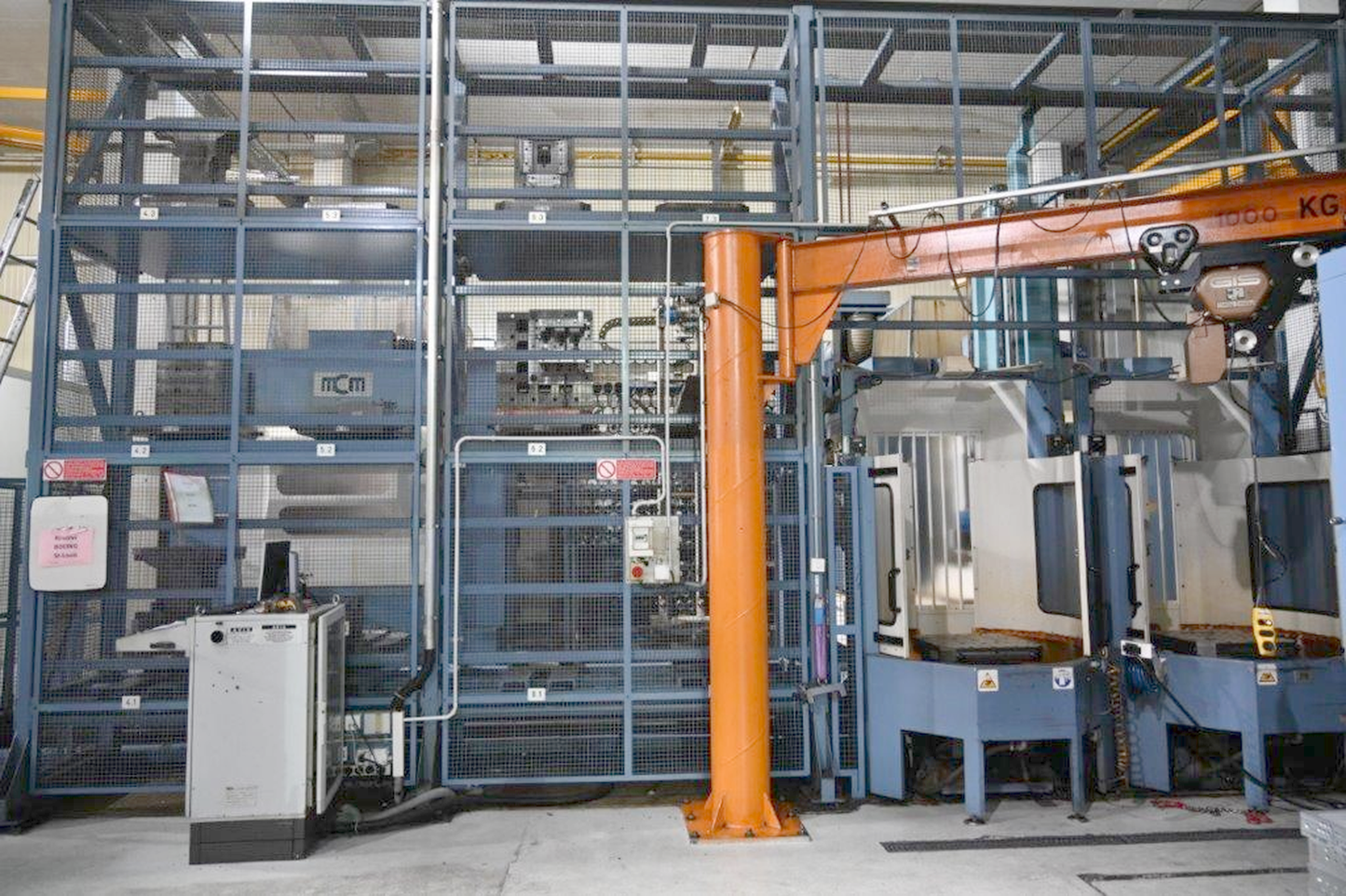

020743 - MCM Clock FMC
Manufacturer: MCM
Group: Machining center
Subgroup: 5-axis machining center
Type: Clock FMC
Control: SIEMENS SINUMERIK 840 D
Stock: 020743
Year: 2001
Number of machines | 2 |
Number of axis total | 5 |
Longitudinal travel (X-axis) | 750 mm |
Transversal travel (y-axis) | 860 mm |
Vertical travel (z axis) | 850 mm |
Table divisions (B) | 0.001 ° |
Pallets: | |
numbers | 12 |
Length | 630 mm |
Width | 630 mm |
Tool changer: | |
Tool magazine number of tool places | 334 |
Spindle nose: HSK-A | 100 |
Spindle speeds: | |
stepless | |
up to | 11000 t/min |
Feeds: | |
X axis | 32 m/min |
Y axis | 32 m/min |
Z axis | 32 m/min |
Spindle motor | 25 kW |
Various accessories: | |
FMS system (flexible manufacturing system) | |
Coolant system | |
Chip conveyor |
