020695 - BAHMÜLLER IPES 10
Download technical sheet (PDF)
Message us on WhatsApp
| Min. internal grinding diameter | 5 mm |
| Max. internal grinding diameter | 250 mm |
| Grinding depth | 200 mm |
| Workpiece spindle speeds: | |
| stepless | |
| from | 15 t/min |
| up to | 1500 t/min |
| Max. angle | +/-15 ° |
| Spindle hole | 50 mm |
| Max. distance from workpiece | |
| spindle to grinding | |
| spindle holder | 770 mm |
| Table speeds: | |
| stepless | |
| from | m/min |
| up to | 10 m/min |
| Workpiece spindle motor | 0.5 kW |
| Drive for internal grinding spindle | 3 kW |
| Machine's weight about | 2250 kg |
| Various accessories: | |
| Redressing device | |
| 3-jaw chuck diameter | 200 mm |
| 3-jaw chuck diameter | 250 mm |
| 4-jaw chuck diameter | 250 mm |

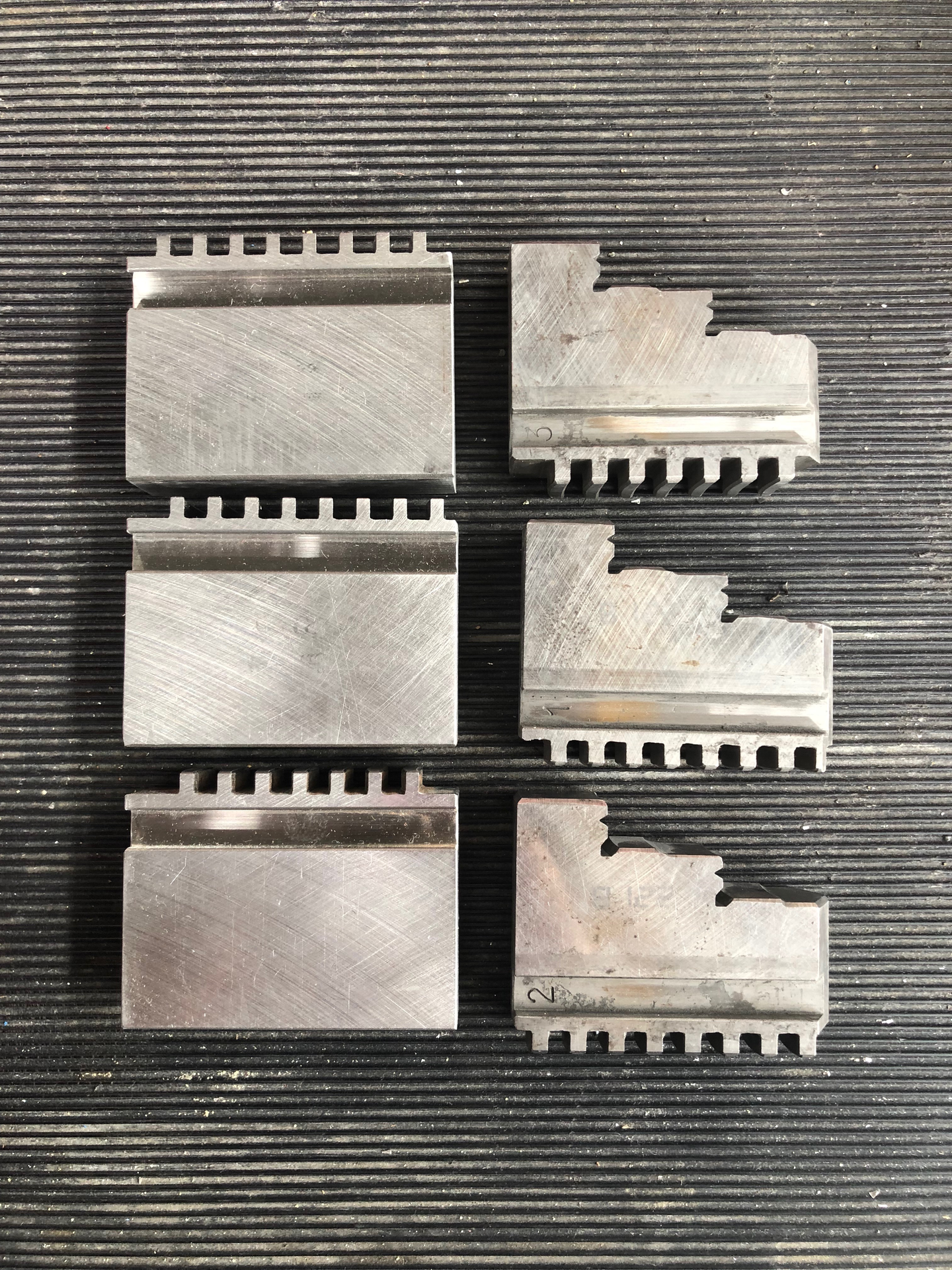

| Set of hard jaws | |
| Set of soft jaws | |
| Macnetic chuck diameter | 200 mm |
| Steady | |
| Set of collets | |
| Set of grinding arbors |
