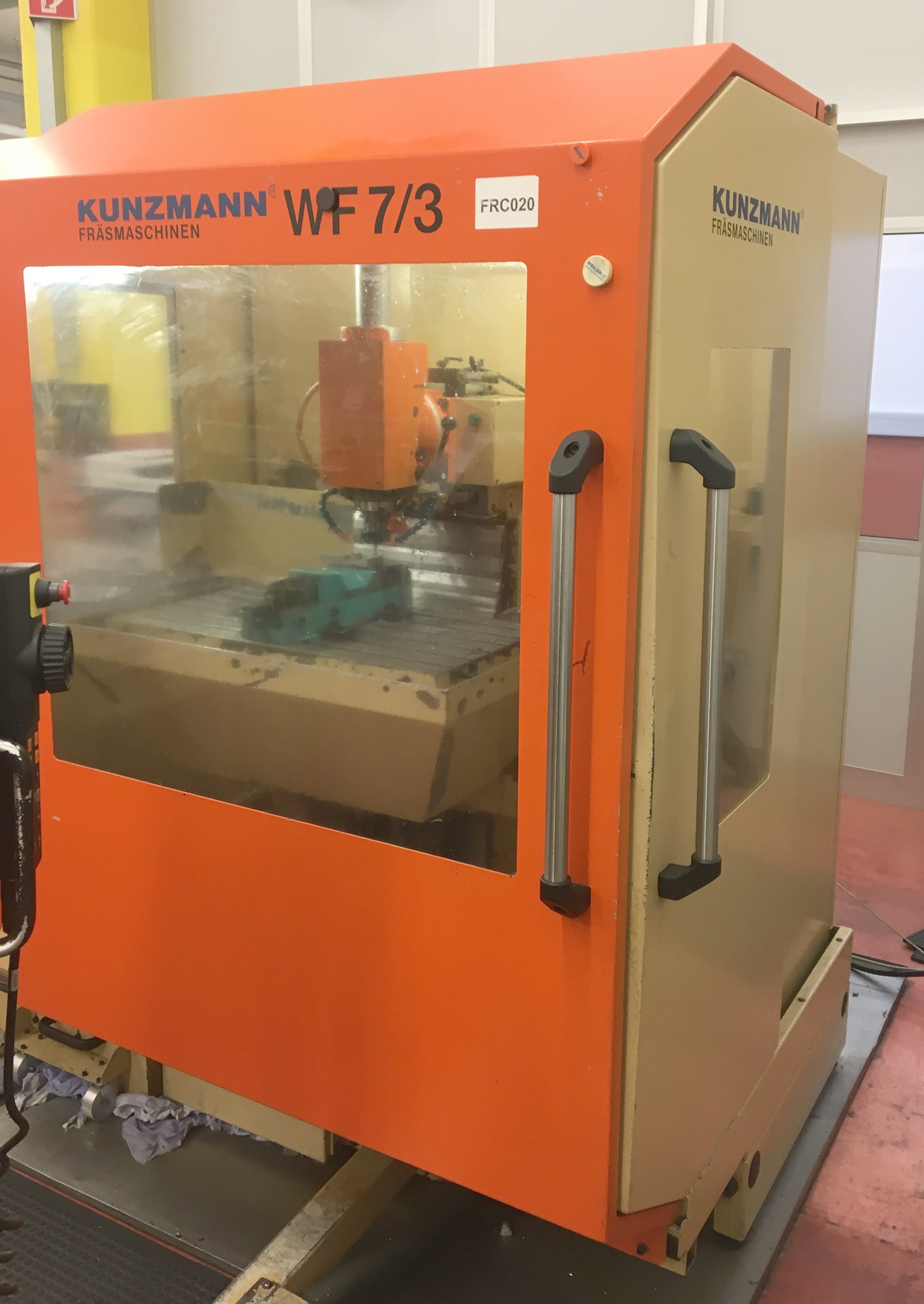

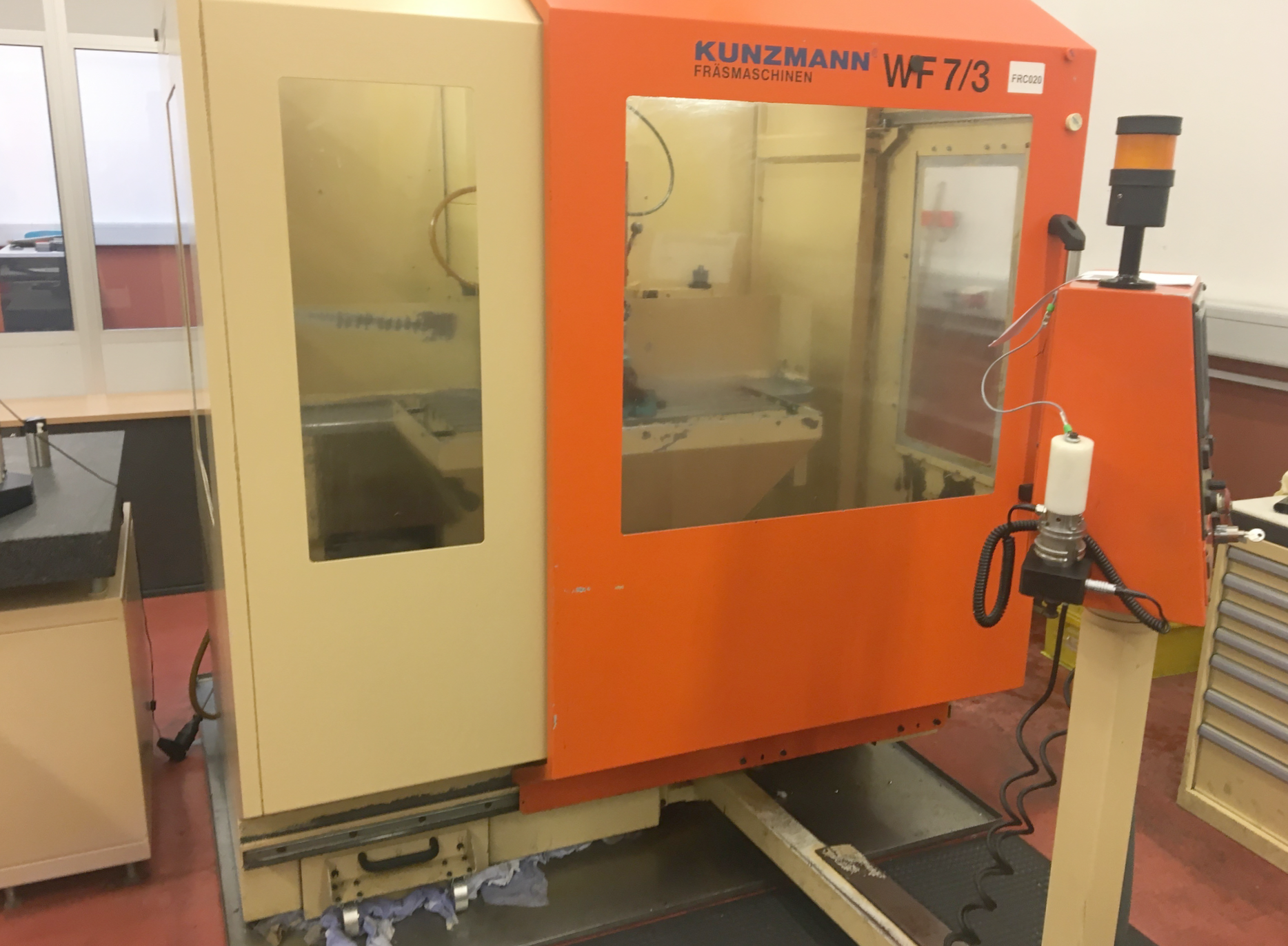

KUNZMANN WF 7/3
Type: WF 7/3
Manufacturer: KUNZMANN
Group: CNC milling machine
Subgroup: CNC milling machine

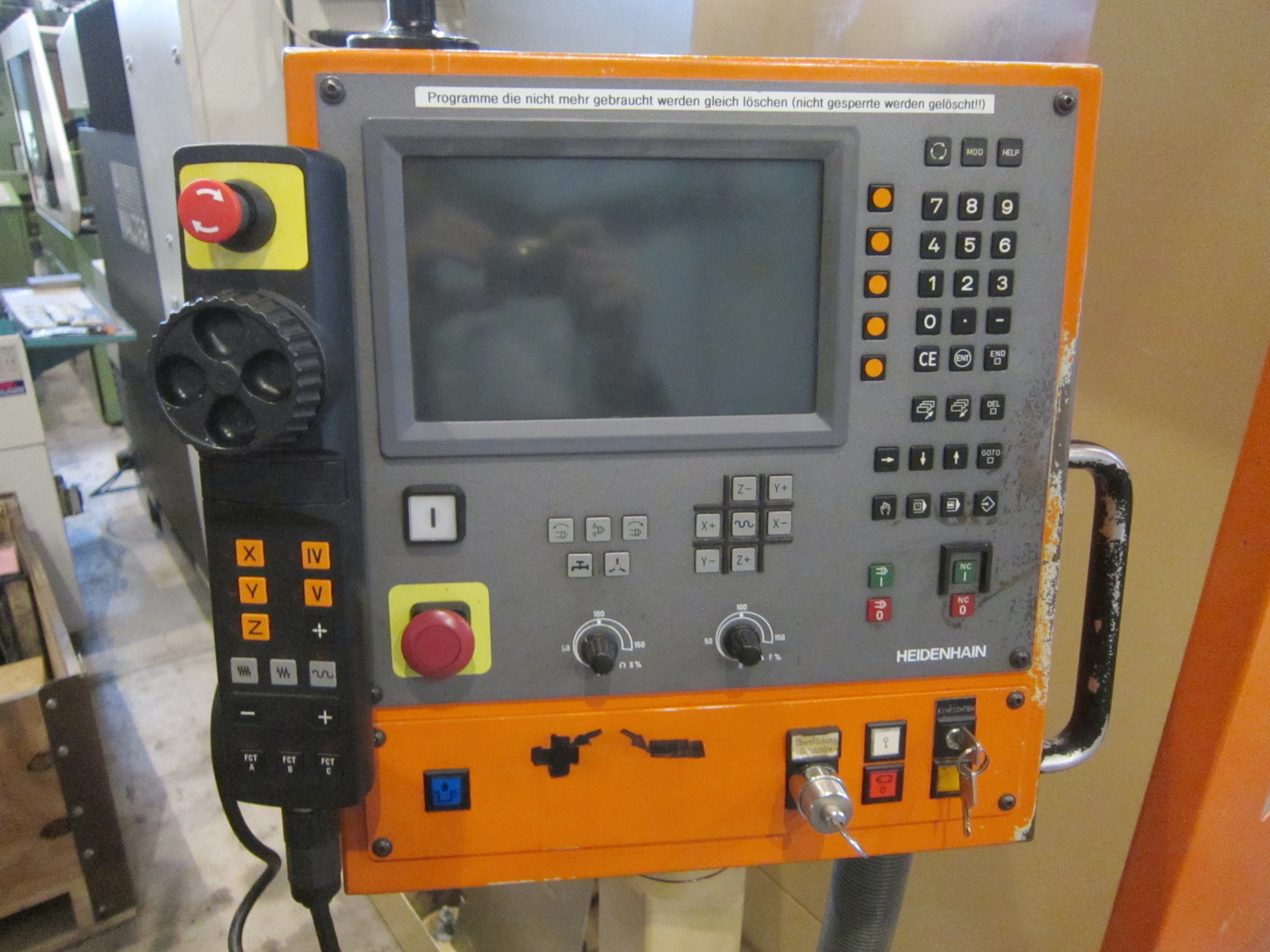

Control: HEIDENHAIN TNC 124
Year: 2003
Stock: 020606
Special Price
CHF 6 000
Special offer machines are sold as-is, without any warranty or inspection from us.

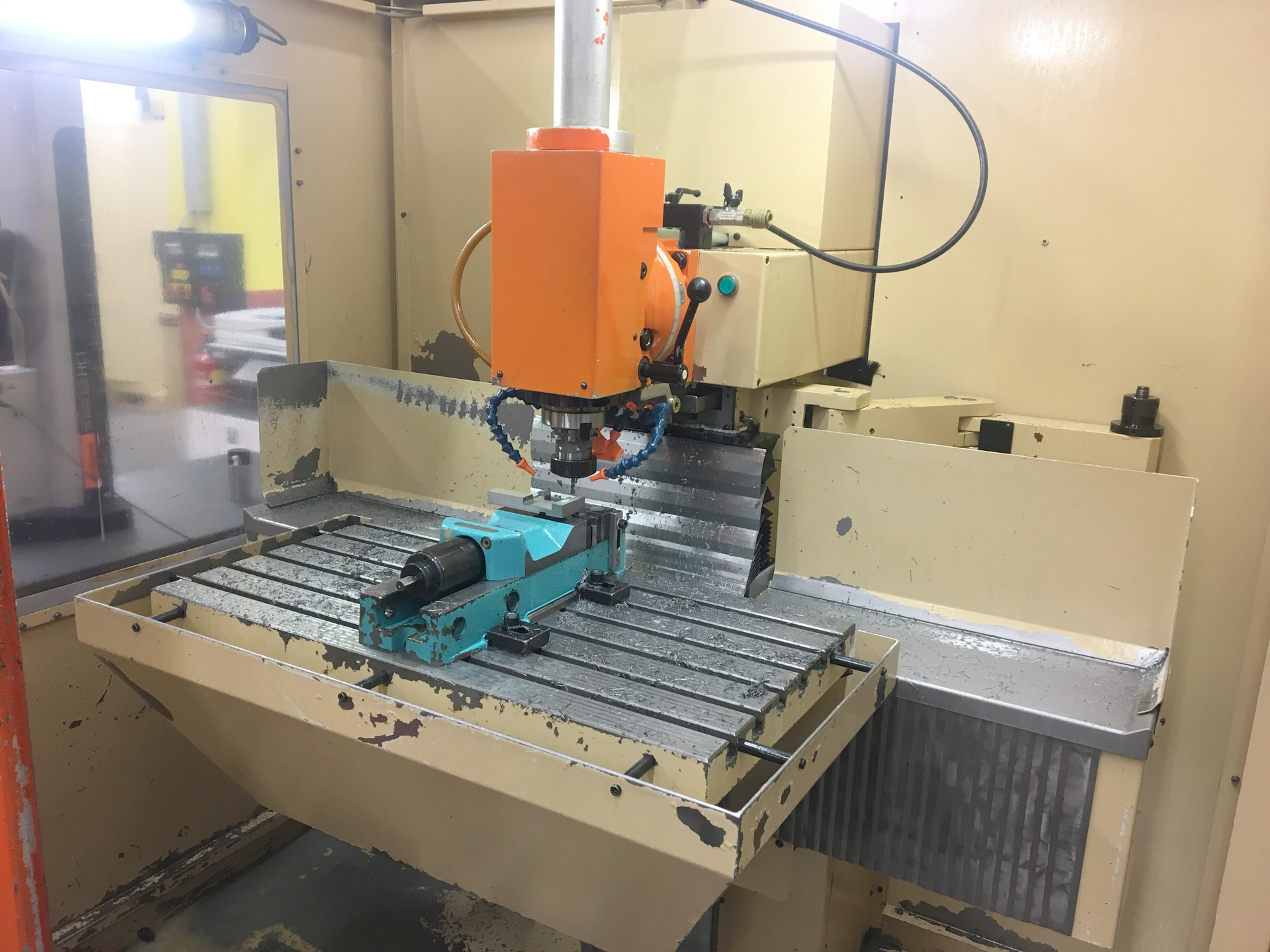

KUNZMANN WF 7/3 is a CNC milling machine built for precision, high accuracy and dependable performance. Working capacities: table 800×425 mm, travels X600×Y400×Z400 mm, table load 250 kg, spindle‑to‑table 560 mm, spindle taper SK40. Main specs: stepless spindle 5–5000 rpm, spindle motor 5.5/7 kW, total power 15 kVA, supply 3x400 V 50 Hz, feeds up to 2000 mm/min, rapid X/Y 10 m/min Z 8 m/min, quill travel 60 mm, swivel head ±90°, weight ~1800 kg, size 2100×1800×2050 mm. Equipment: rigid table, electronic handwheel, Heidenhain probe, vertical milling head, full splash cabin, coolant system, machine lamp. Suited for tight tolerances in automotive, aerospace, tooling, medical and watchmaking.
| Number of axis total | 3 |
| Table length | 800 mm |
| Table width | 425 mm |
| Longitudinal travel (X-axis) | 600 mm |
| Transversal travel (y axis) | 400 mm |
| Vertical travel (z axis) | 400 mm |
| Table load max. | 250 kg |
| Distance from vertical | |
| spindle to table | 560 mm |
| Taper in spindle: | 40 SK |
| Spindle speeds: | |
| stepless | |
| horizontal from | 5 t/min |
| up to | 5000 t/min |
| vertical from | t/min |
| from | 5 t/min |
| up to | 5000 t/min |
| Swivel range Vertical milling head | +/- 90 ° |
| Feeds: | |
| stepless | |
| longitudinal from | mm/min |
| up to | 2000 mm/min |
| transversal from | mm/min |
| up to | 2000 mm/min |
| vertical from | mm/min |
| up to | 2000 mm/min |
| Rapid traverse: long. | 10 m/min |
| Rapid traverse: transversal | 10 m/min |
| Rapid traverse: vertical | 8 m/min |
| Vertical quill travel | 60 mm |
| Voltage 50 Hz 3x | 400 Volt |
| Milling spindle motor | 5.5 / 7 kW |
| Total power required | 15 kVA |
| Machine's weight about | 1800 kg |
| Overall dimensions machine: | |
| Length | 2100 mm |
| Width | 1800 mm |
| Height | 2050 mm |
| Various accessories: | |
| Rigide table | |
| Handwheel electroinic | |

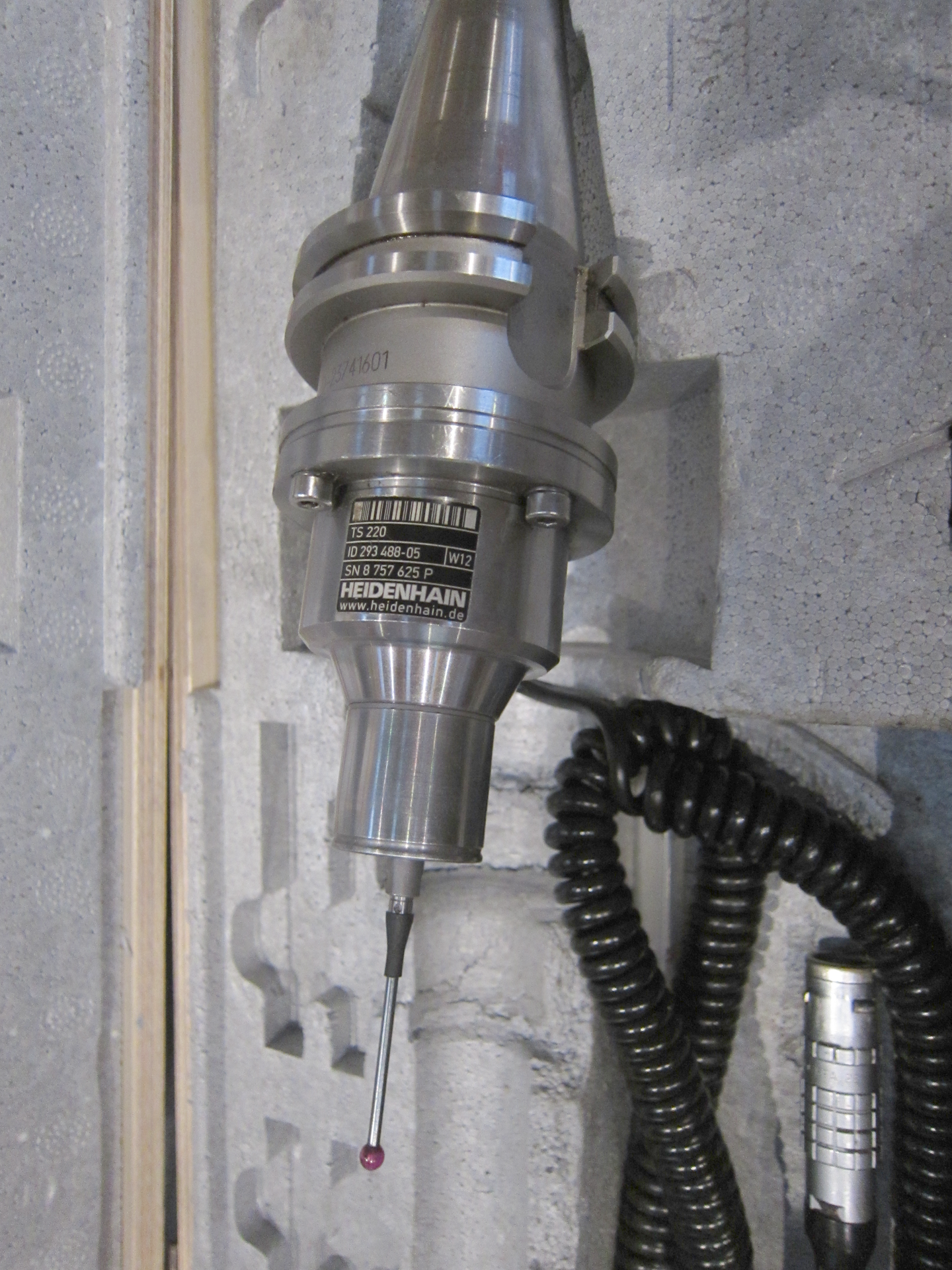

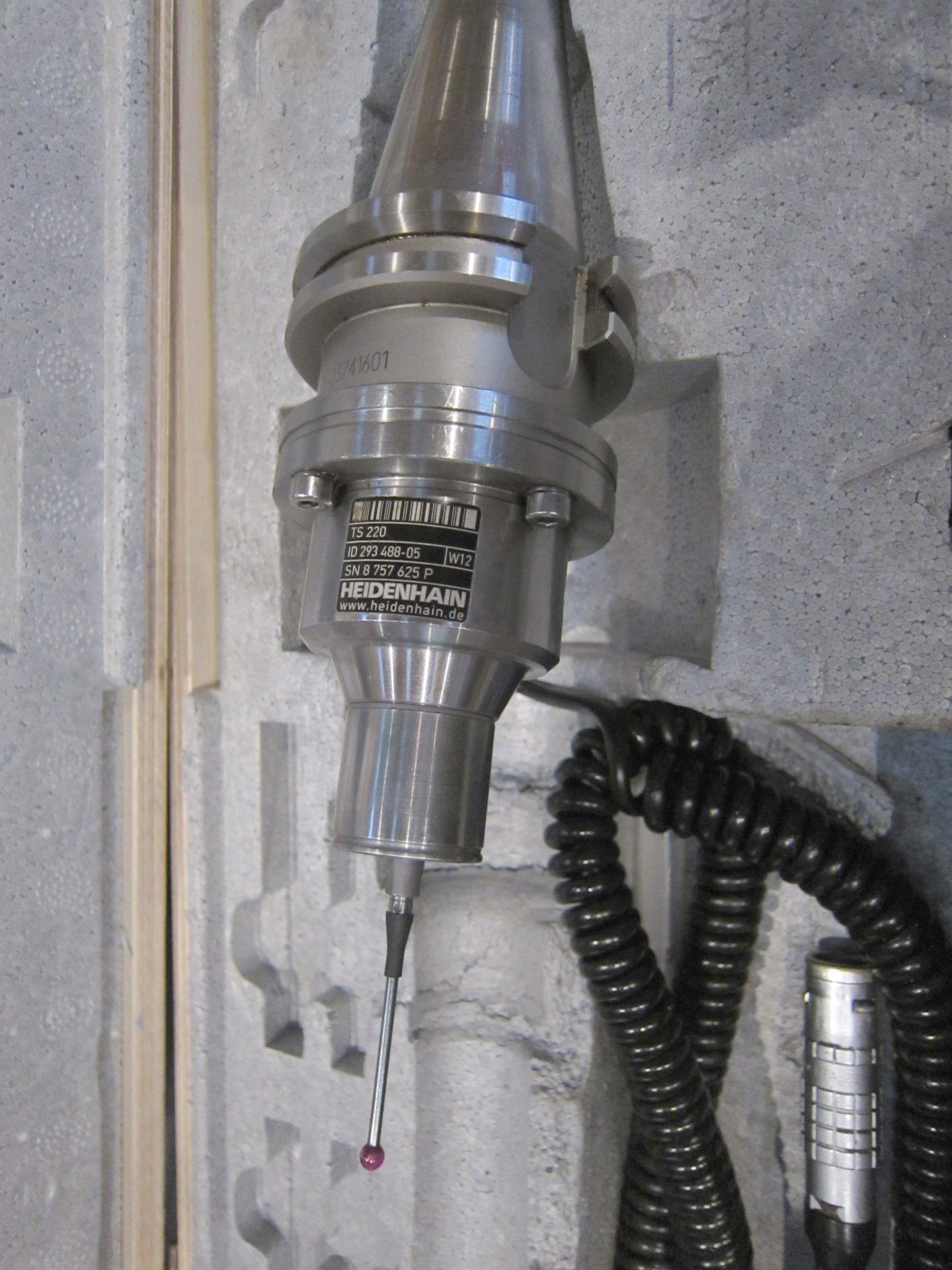

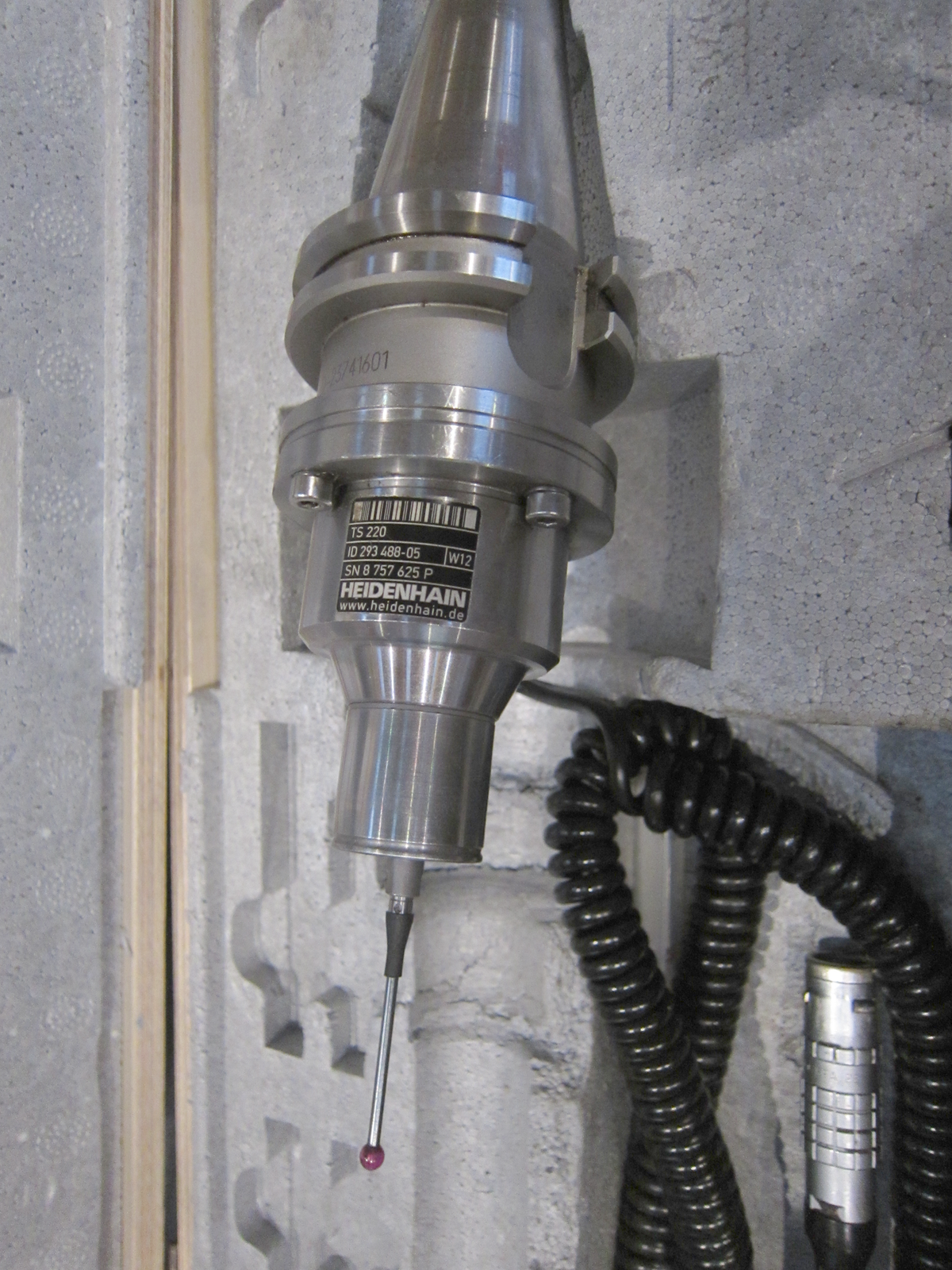

| Measuring feeler gauge | Heidenhain |
| Vertical milling head | |
| Full splash cabin | |
| Coolant system | |
| Machine lamp |
