TSCHUDIN HTG 400
Download technical sheet (PDF)
Need Assistance? Just WhatsApp Us!

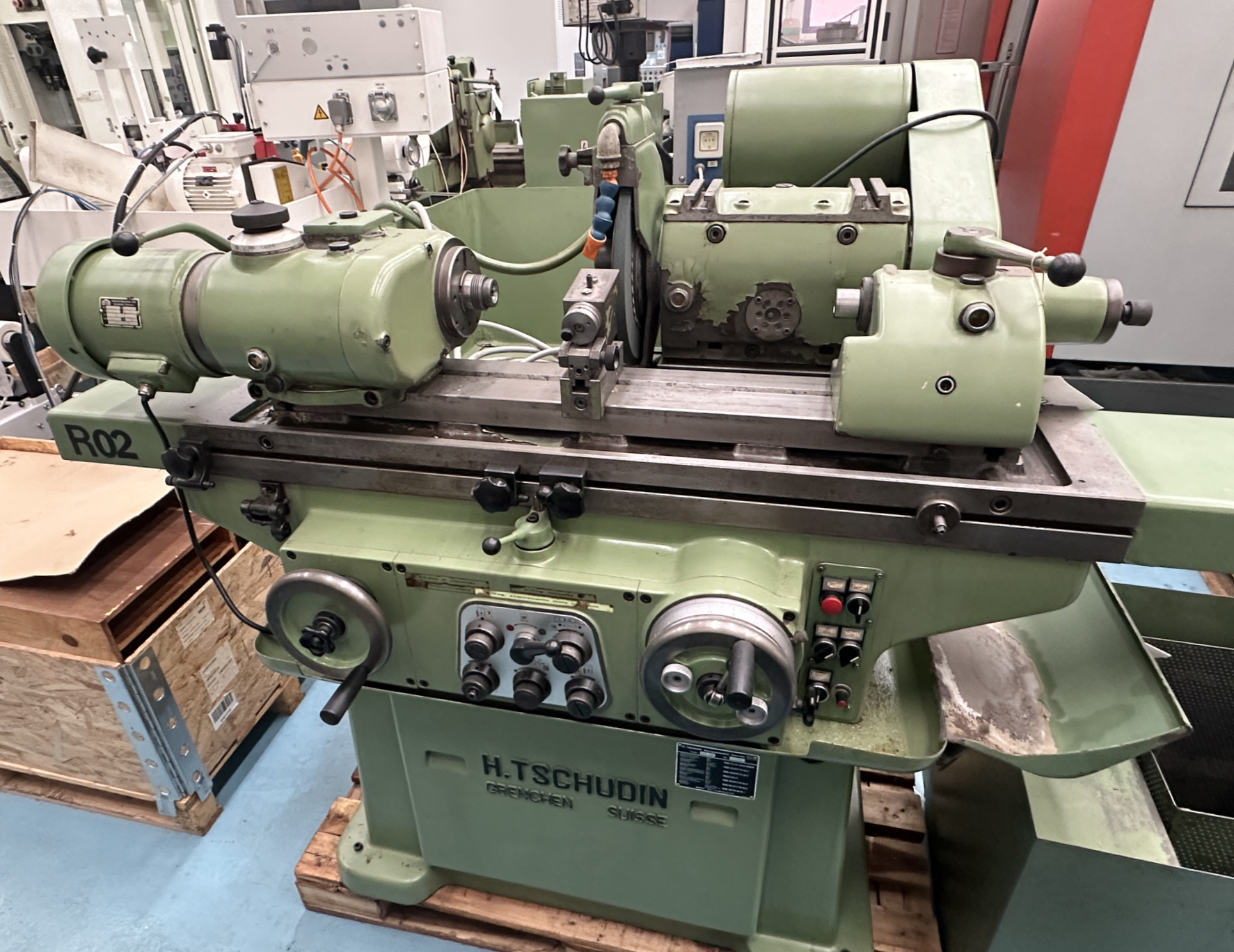

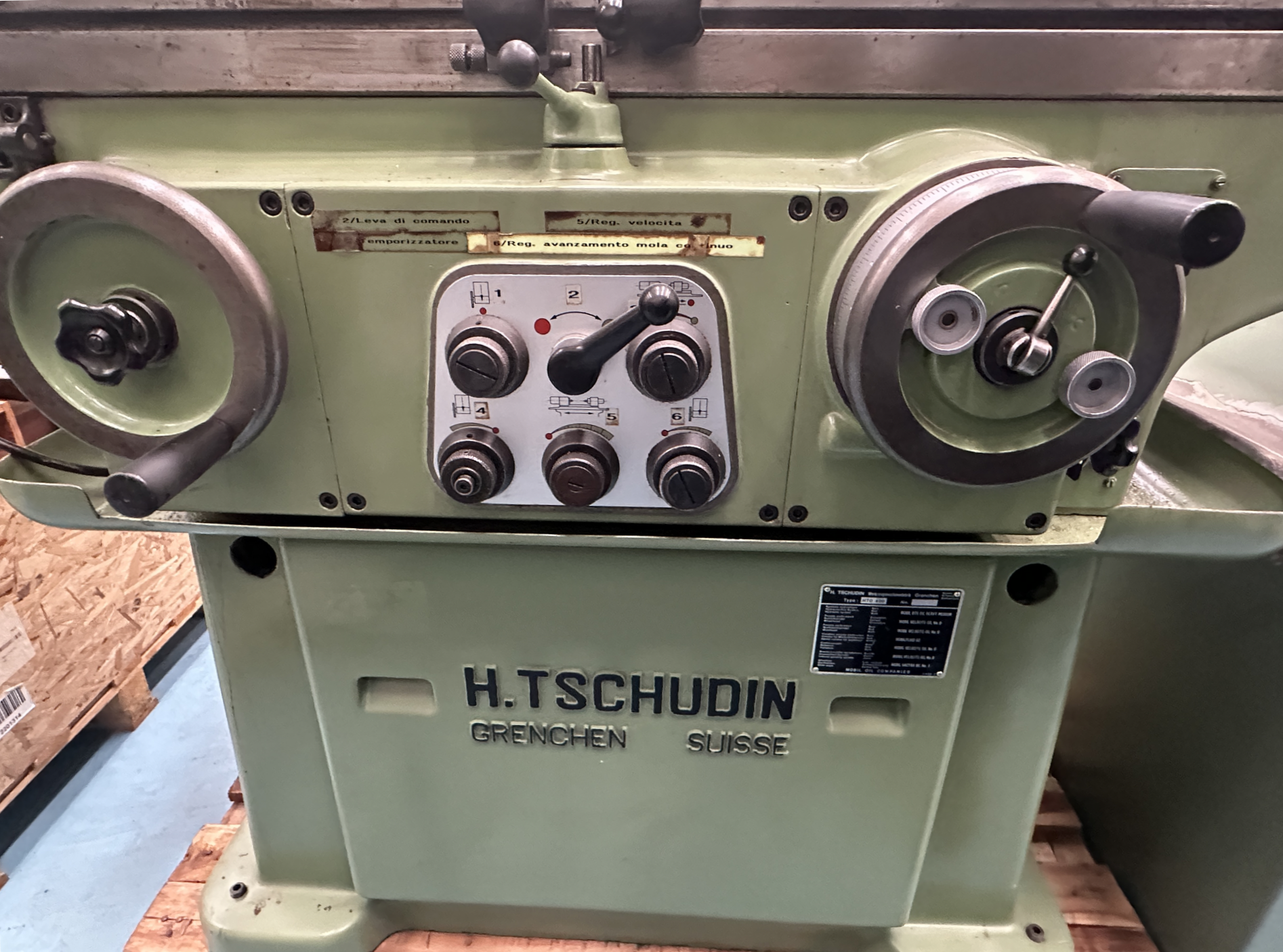

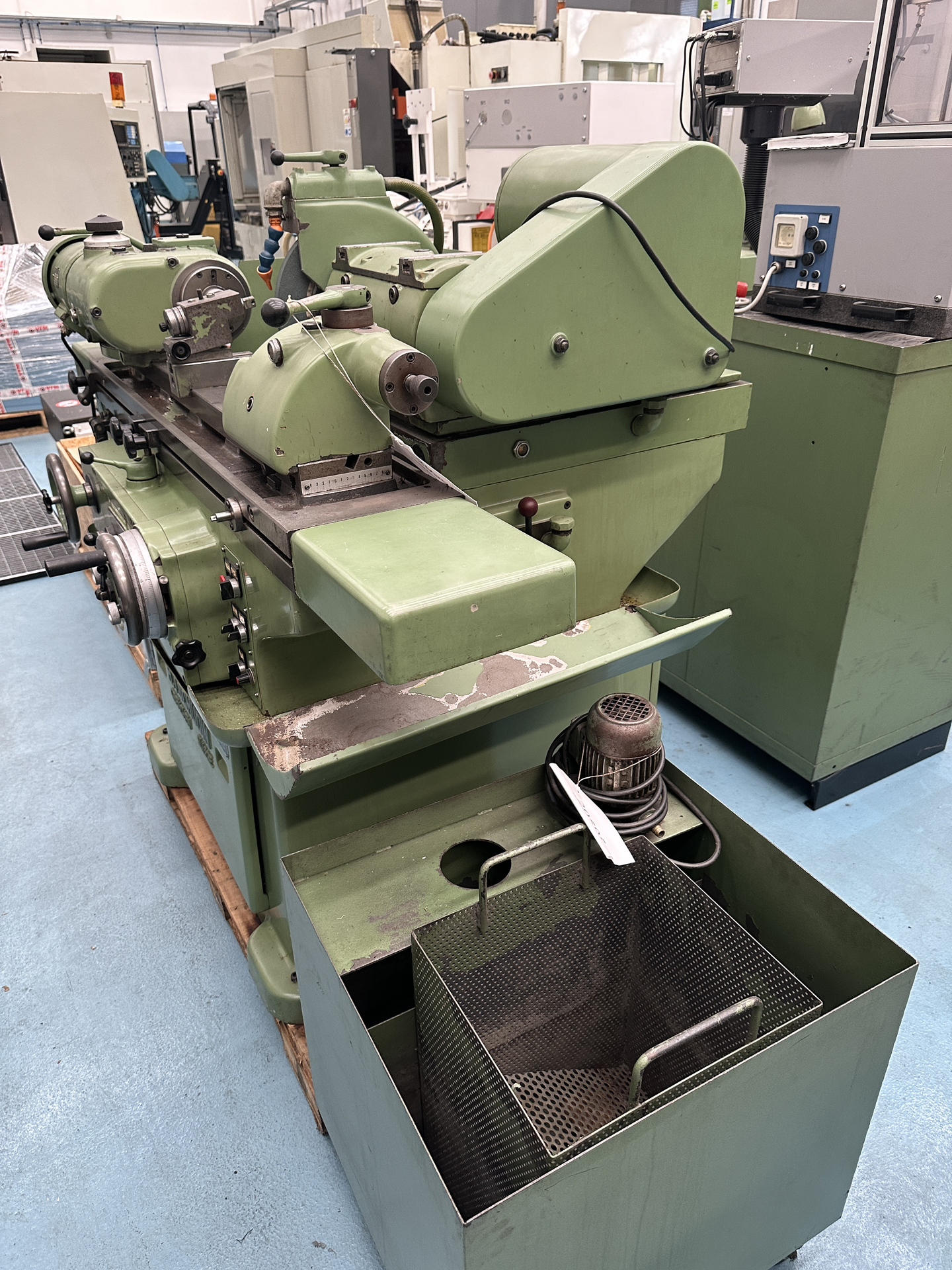

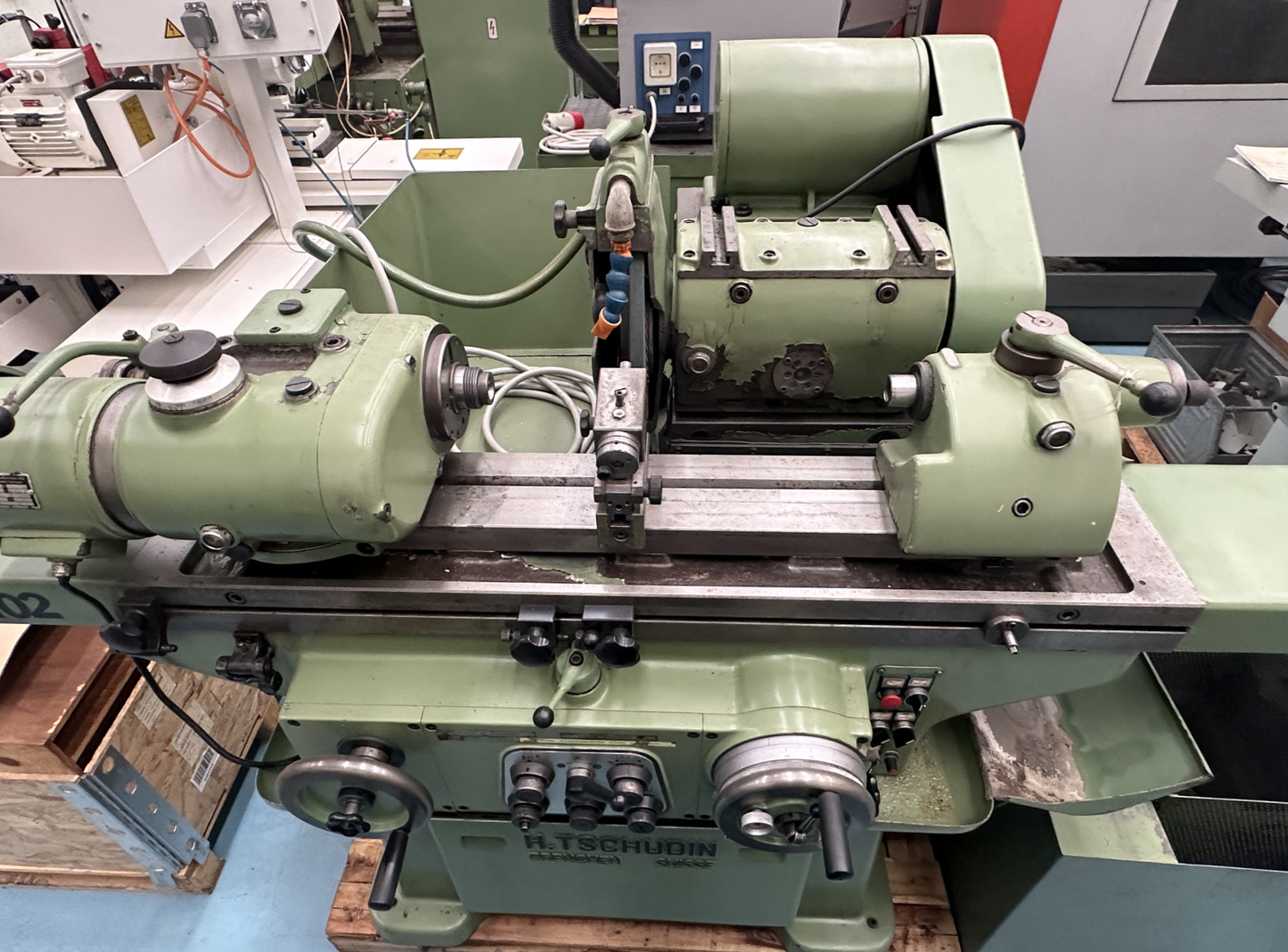

TSCHUDIN HTG 400 is a cylindrical grinder designed for precision, high accuracy and reliability. Capacities: centre height 100 mm, distance between centres 400 mm; wheel Ø300×50 mm; bore 127 mm; table tilt 9°. Specs: wheel speeds 3 steps 1500–1900 t/min; work spindle stepless 65–500 t/min, rotatable 360°; spindle hole 23 mm; table speed up to 5 m/min; supply 3x380V 50Hz; external wheel motor 2.5 CV; total power 4 CV; weight ~1600 kg; dims 1600×1200×1550 mm. Accessories: tailstock, swivellable redressing device, coolant system. Enables tight tolerances; suitable for automotive, aerospace, machine tools and medical.
Technical specifications are subject to change without notice
| Centre height | 100 mm |
| Distance between centres | 400 mm |
| Grinding wheel right and left hand | |
| Grinding wheel: | |
| Diameter | 300 mm |
| Width | 50 mm |
| Bore | 127 mm |
| Grinding wheel speeds: | |
| number (steps) | 3 |
| from | 1500 t/min |
| up to | 1900 t/min |
| Work piece spindle head: | |
| speeds: | |
| stepless | |
| from | 65 t/min |
| up to | 500 t/min |
| rotatable | 360 ° |
| Spindle hole | 23 mm |
| Spindle taper | 4 CM |
| Taper in tailstock: | 3 CM |
| Table angular displacement | 9 ° |
| Table speed: | |
| stepless | |
| up to | 5 m/min |
| Voltage 50 Hz 3x | 380 Volt |
| External Grinding wheel motor | 2.5 CV |
| Total power required | 4 CV |
| Machine's weight about | 1600 kg |
| Overall dimensions machine: | |
| Length | 1600 mm |
| Width | 1200 mm |
| Height | 1550 mm |
| Various accessories: | |
| Tailstock | |
| Swivellable redressing device | |
| Coolant system |
