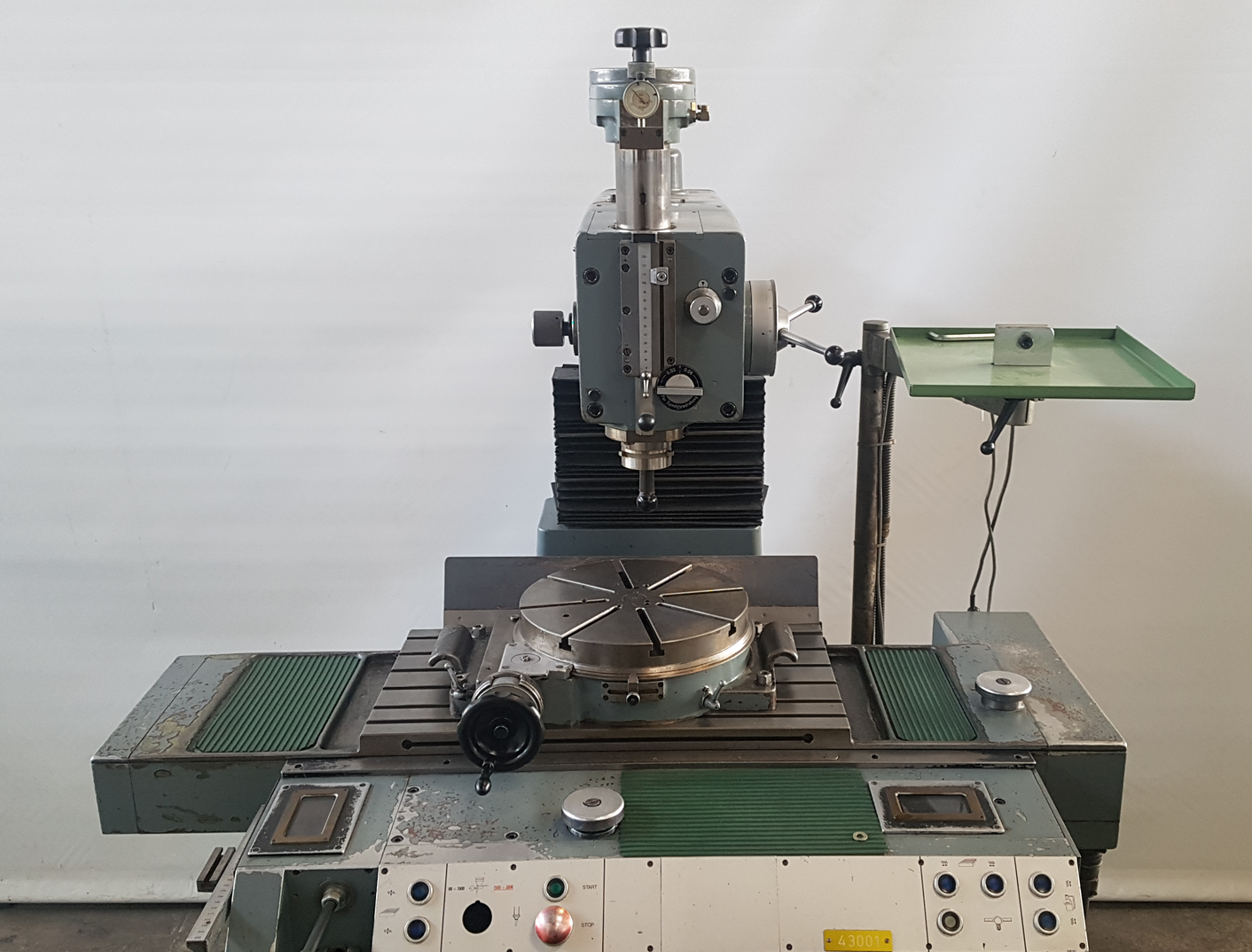

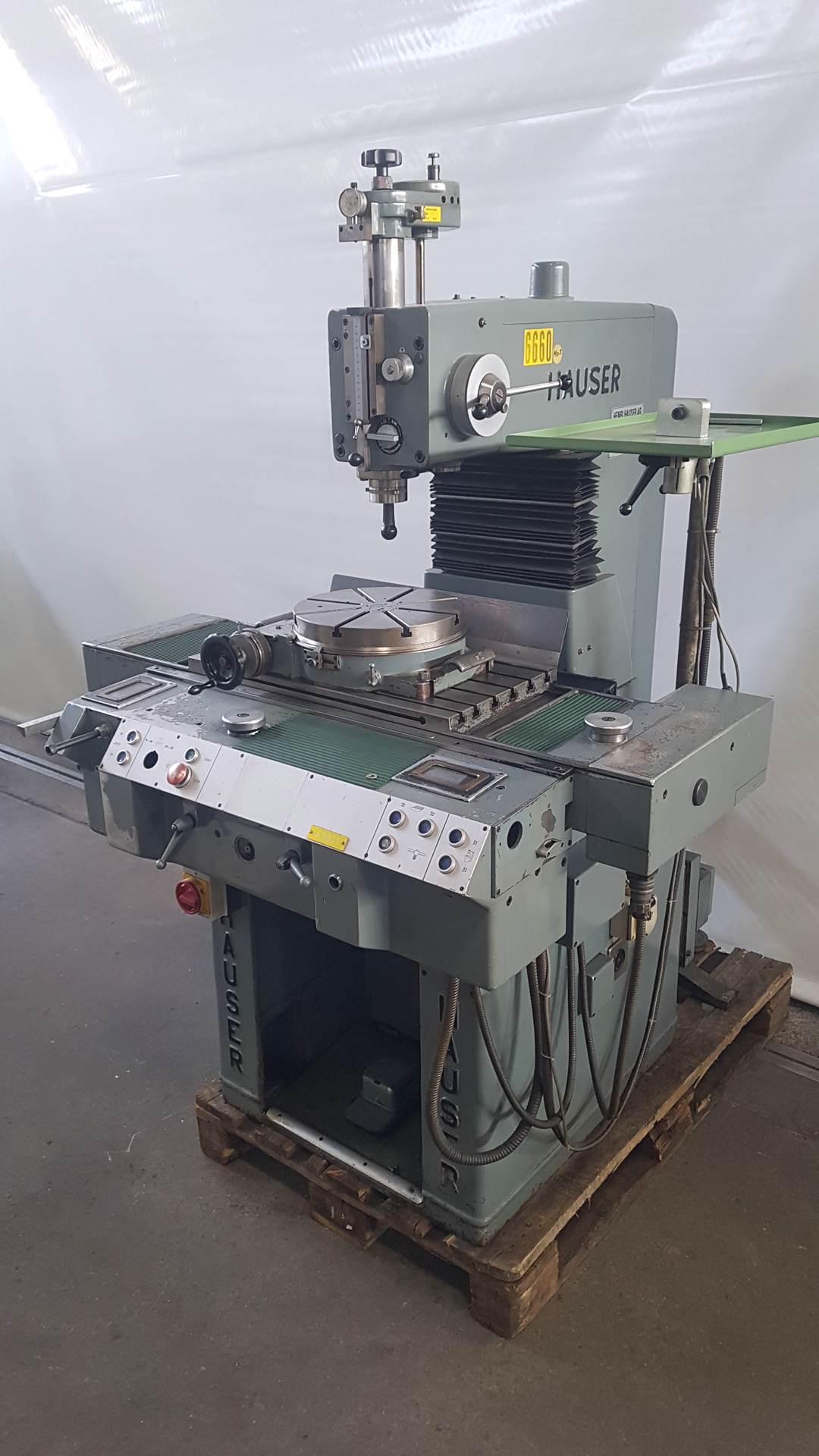

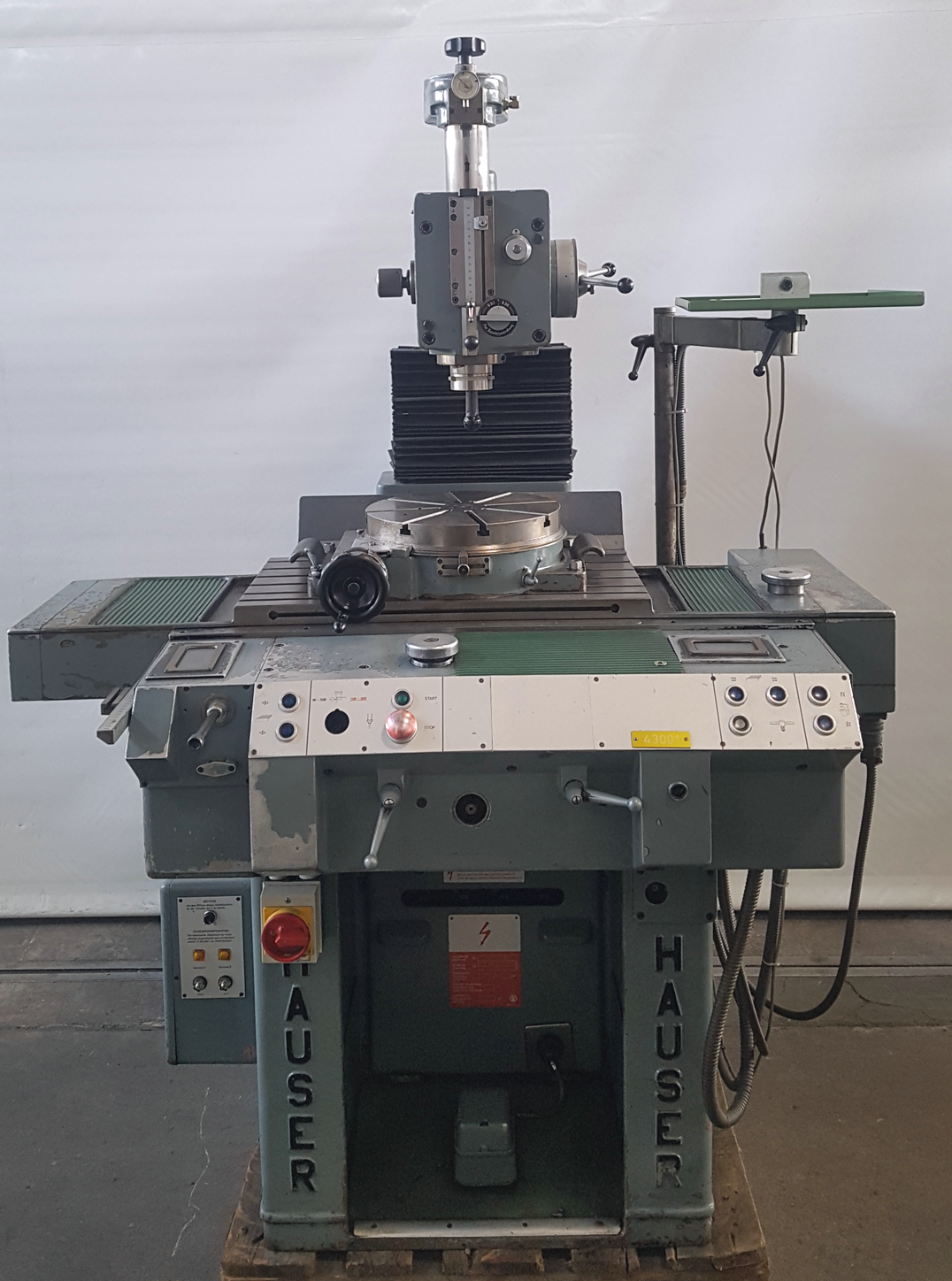

HAUSER OP 3 is a jig boring machine designed for precision, high accuracy and reliable operation. Working capacities: table 550×320 mm; travels X 400, Y 250, Z 400 mm; drill capacity in steel 20 mm; max boring Ø75 mm; distance table–spindle 600 mm; spindle taper MT2; spindle stroke 130 mm; stepless spindle speeds 120–3000 rpm. Technical specs: 3×380 V 50 Hz; spindle motor 1 CV; weight ≈1500 kg; overall dims L1400×W1500×H2100 mm; feeds 2 steps (values not specified). Accessories: tool cabinet, drill chuck, set of drills, set of milling cutters. Enables tight tolerances; typical sectors: automotive, watchmaking, machine tools, aerospace, medical.
| Table length | 550 mm |
| Table width | 320 mm |
| Longitudinal travel (X-axis) | 400 mm |
| Transversal travel (y-axis) | 250 mm |
| Vertical travel (z axis) | 400 mm |
| Drill capacity in steel | 20 mm |
| Taper in spindle: MT | 2 |
| Stroke of drilling spindle (Z-axis) | 130 mm |
| Bore diameter max. | 75 mm |
| Distance table to spindle | 600 mm |
| Spindle speeds: | |
| stepless | |
| from | 120 t/min |
| up to | 3000 t/min |
| Feeds: | |
| Drill spindle slide: | |
| number (steps) | 2 |
| from | mm/t |
| up to | mm/t |
| Voltage 50 Hz 3x | 380 Volt |
| Spindle motor | 1 CV |
| Machine's weight about | 1500 kg |
| Overall dimensions machine: | |
| Length | 1400 mm |
| Width | 1500 mm |
| Height | 2100 mm |

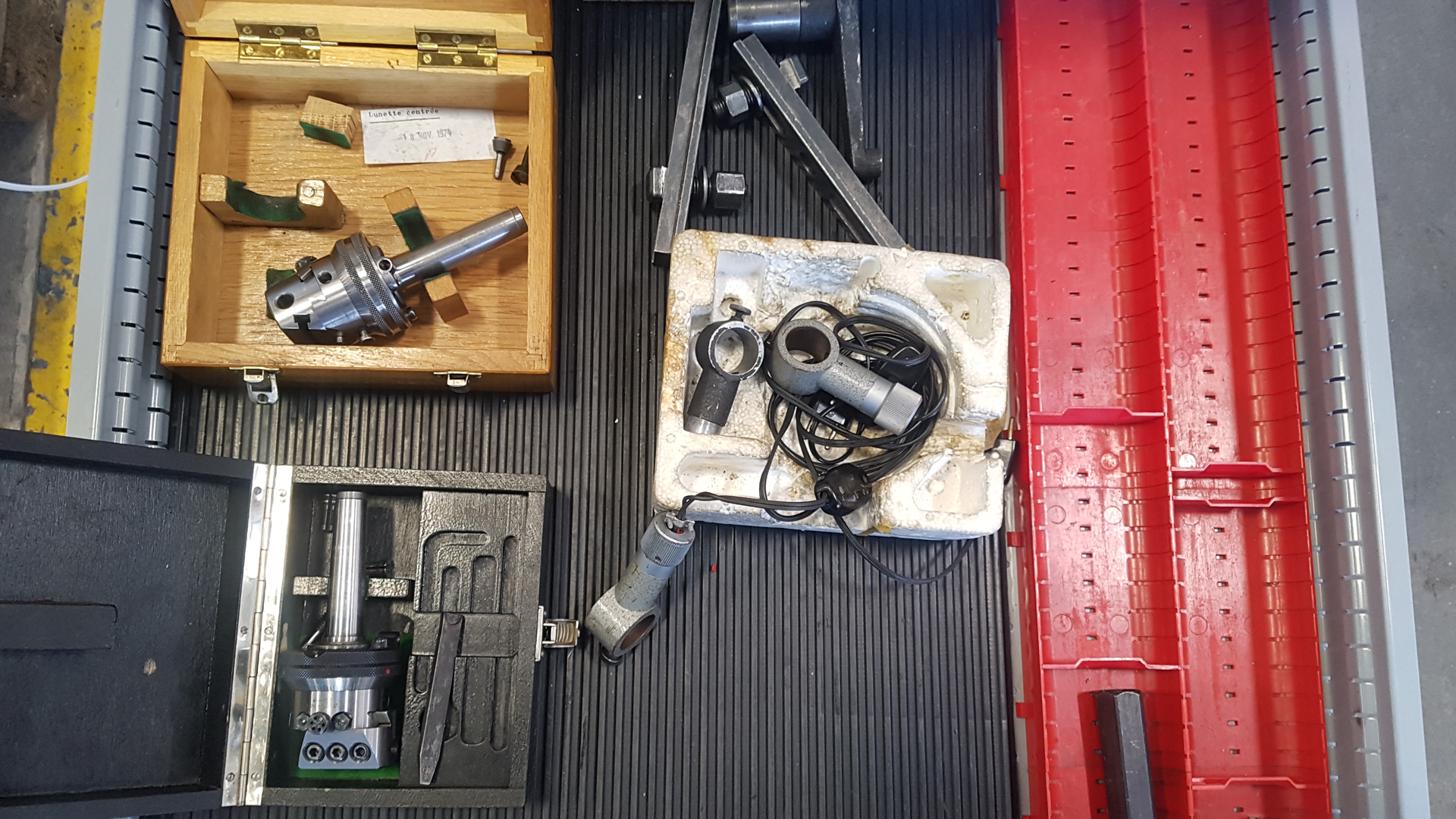

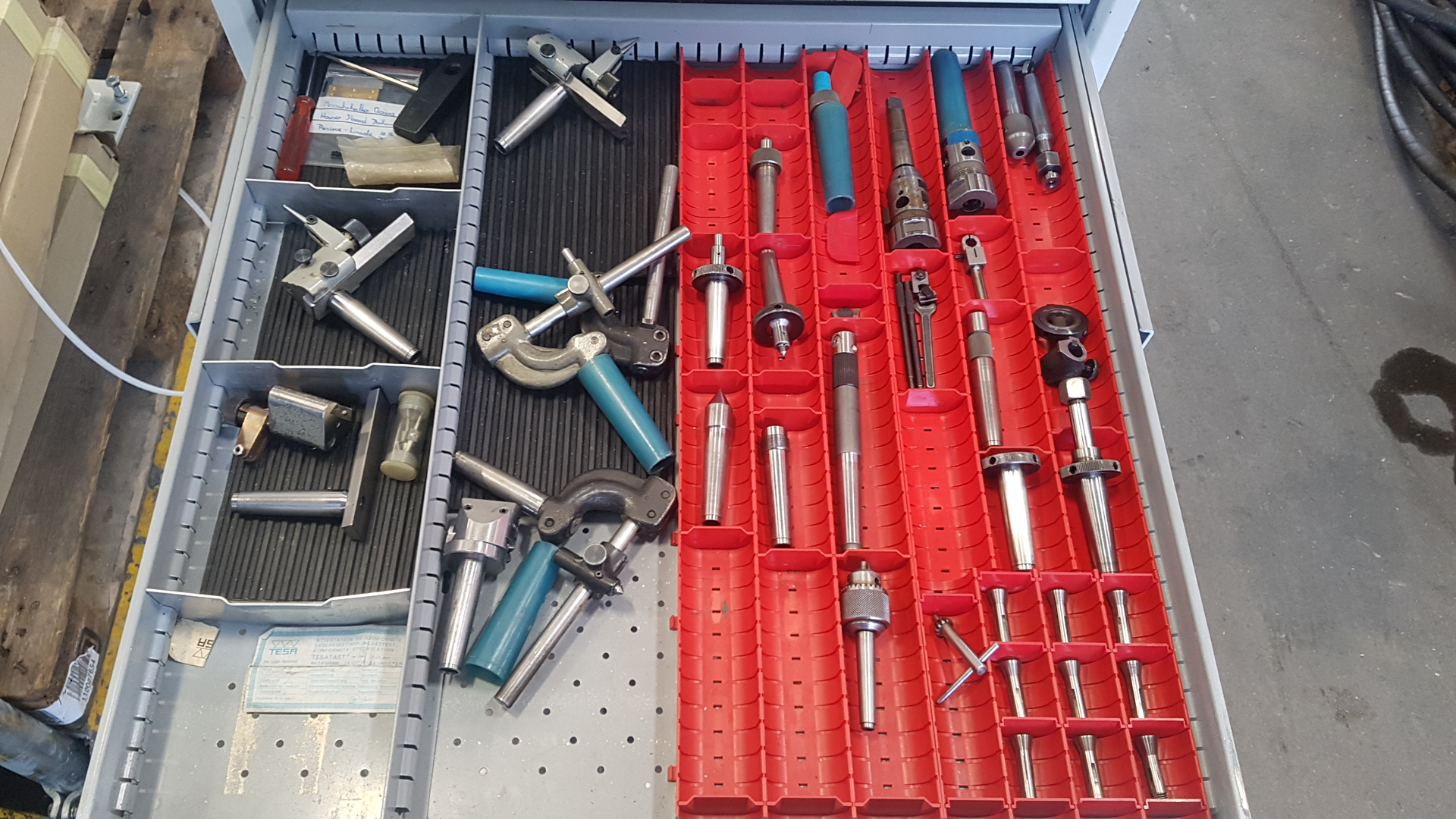

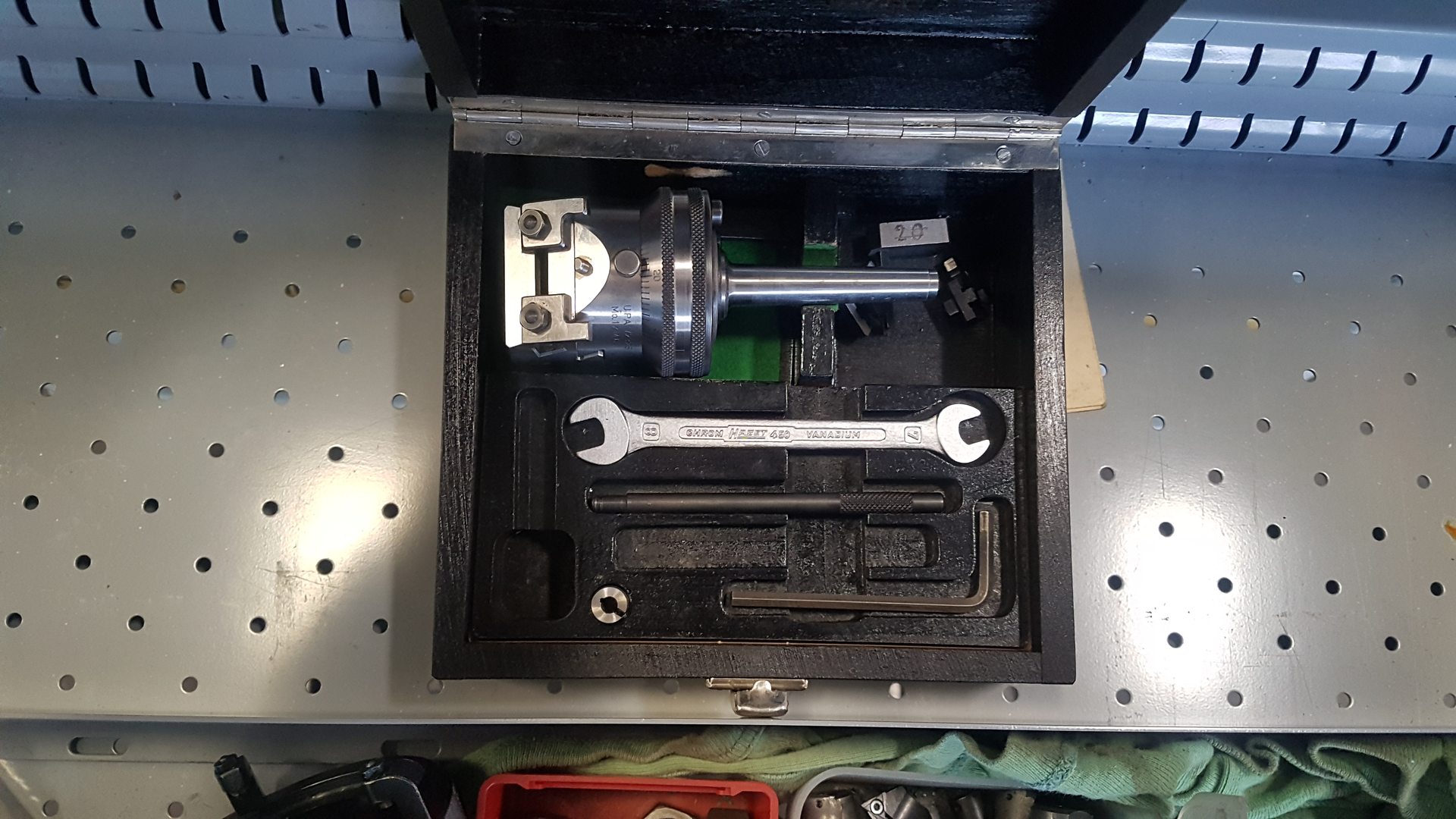

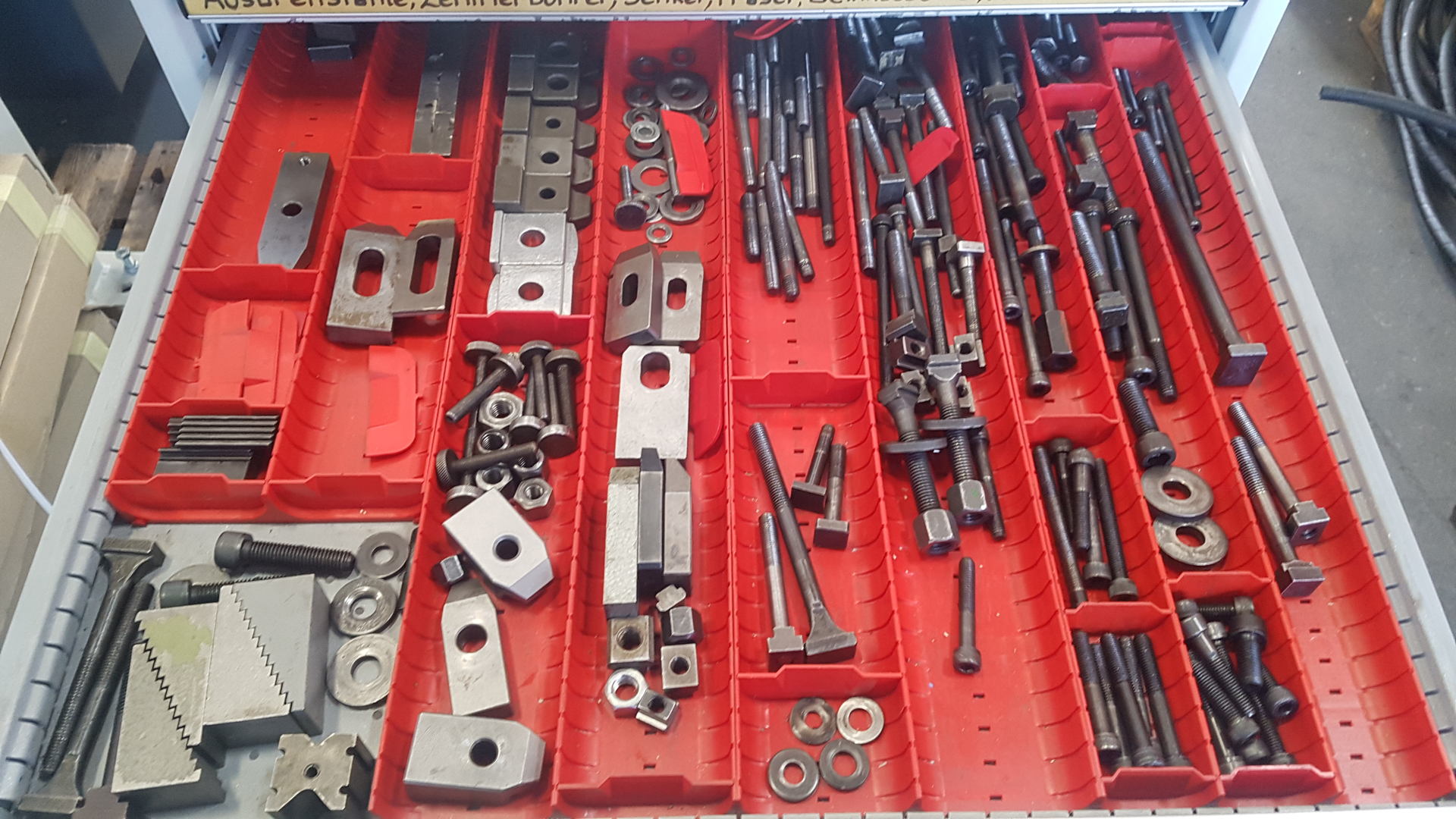

| Various accessories: | |

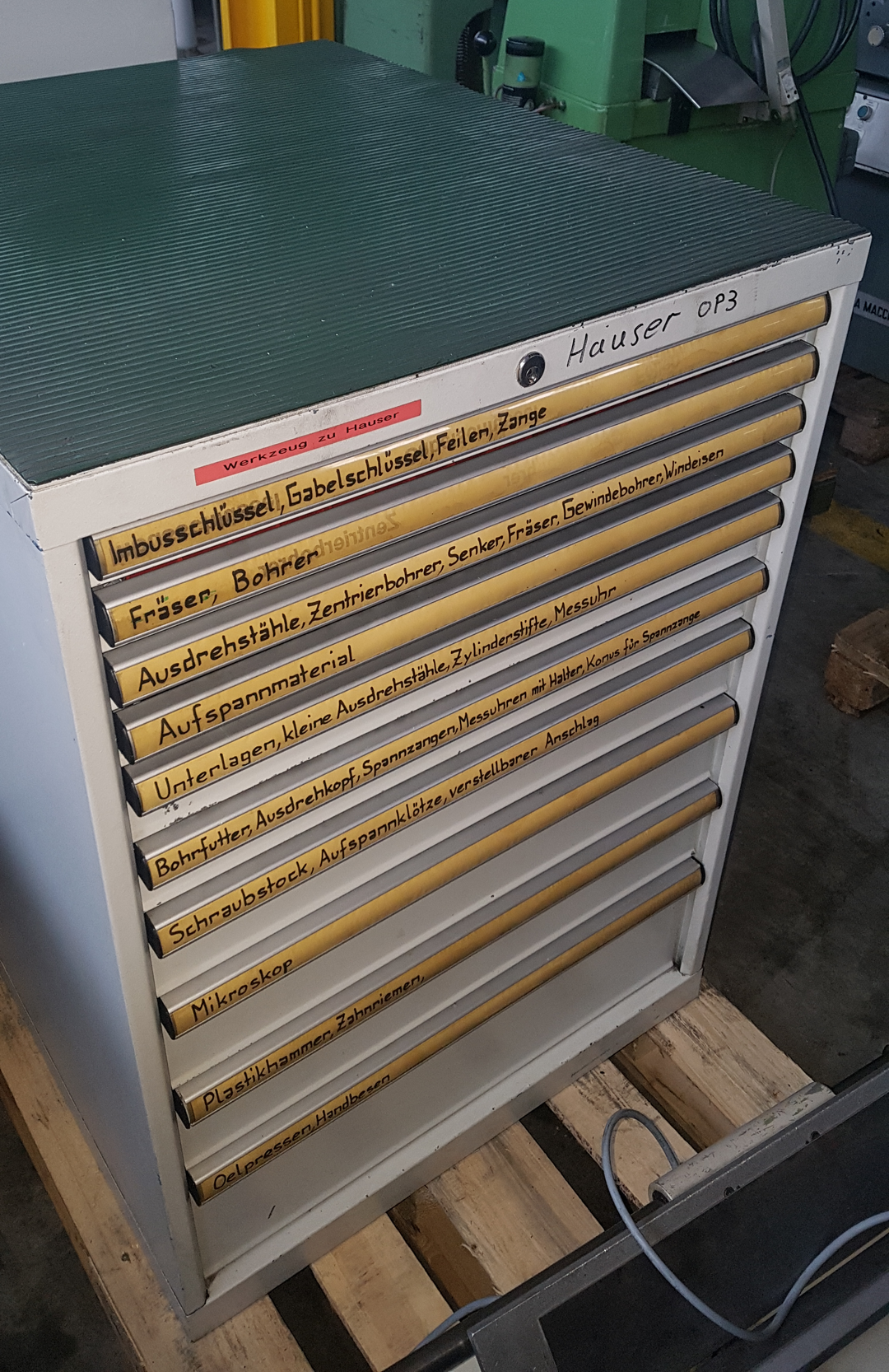

| Tool cabinet | |

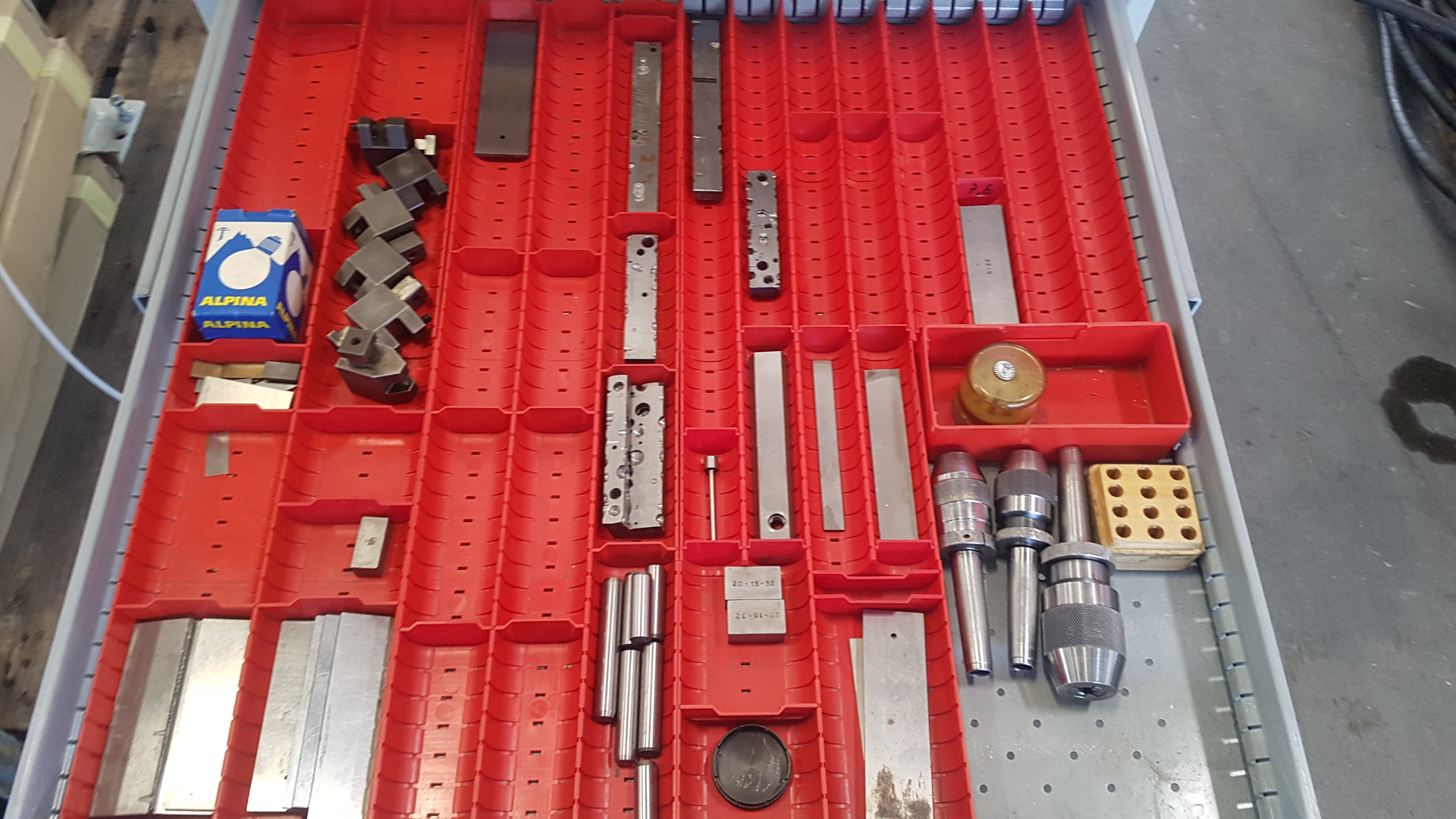

| Drill chuck | |

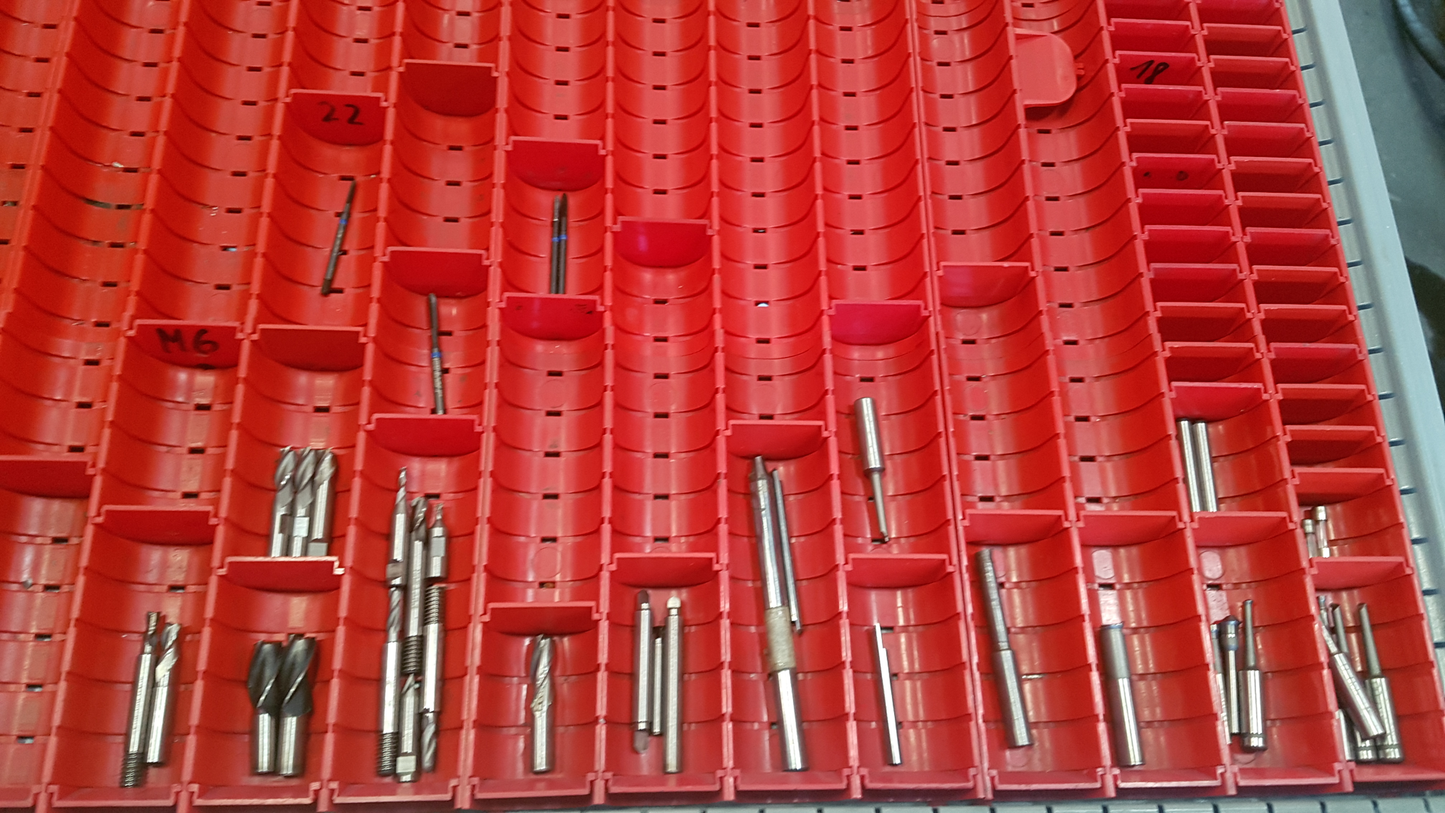

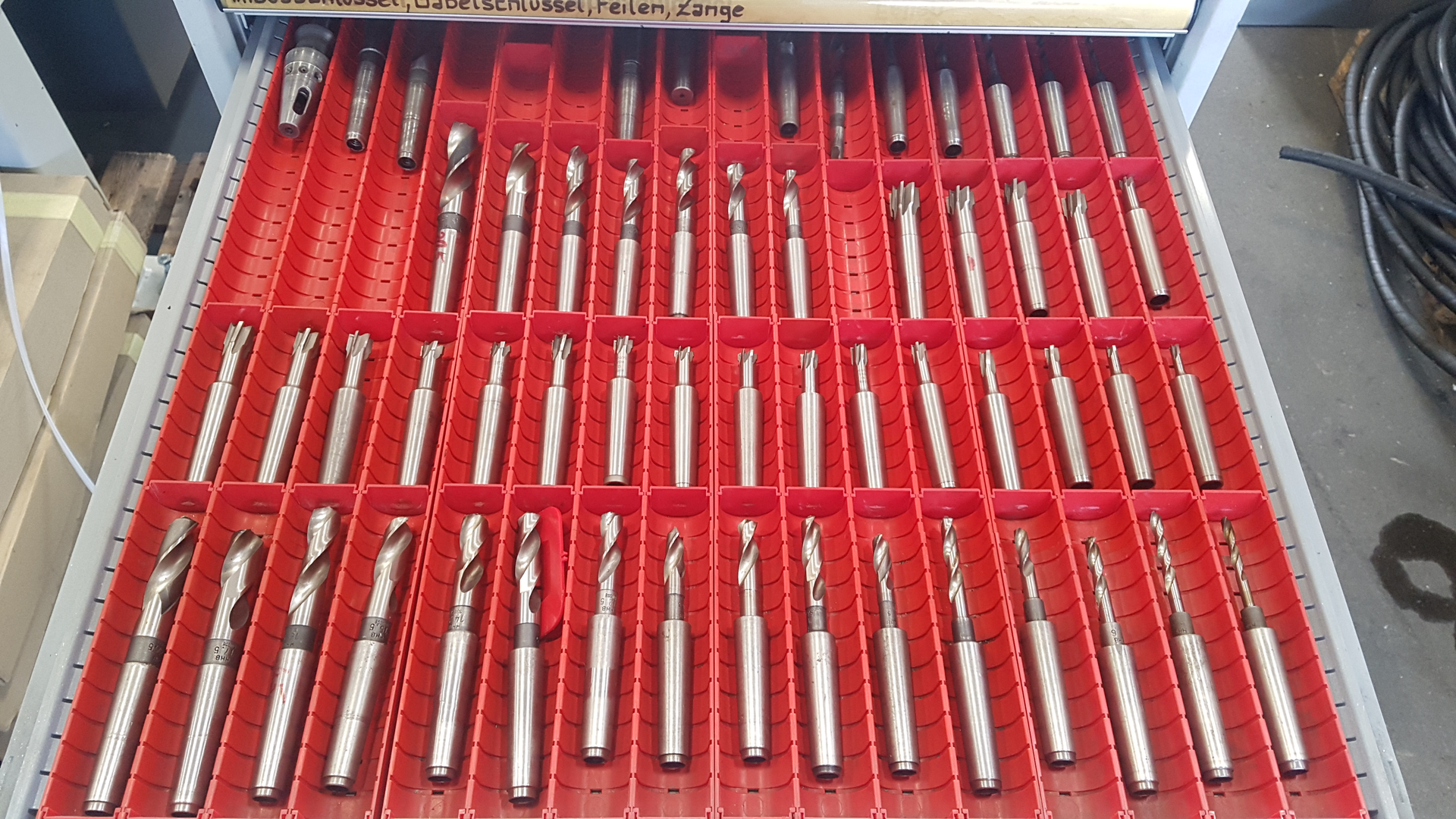

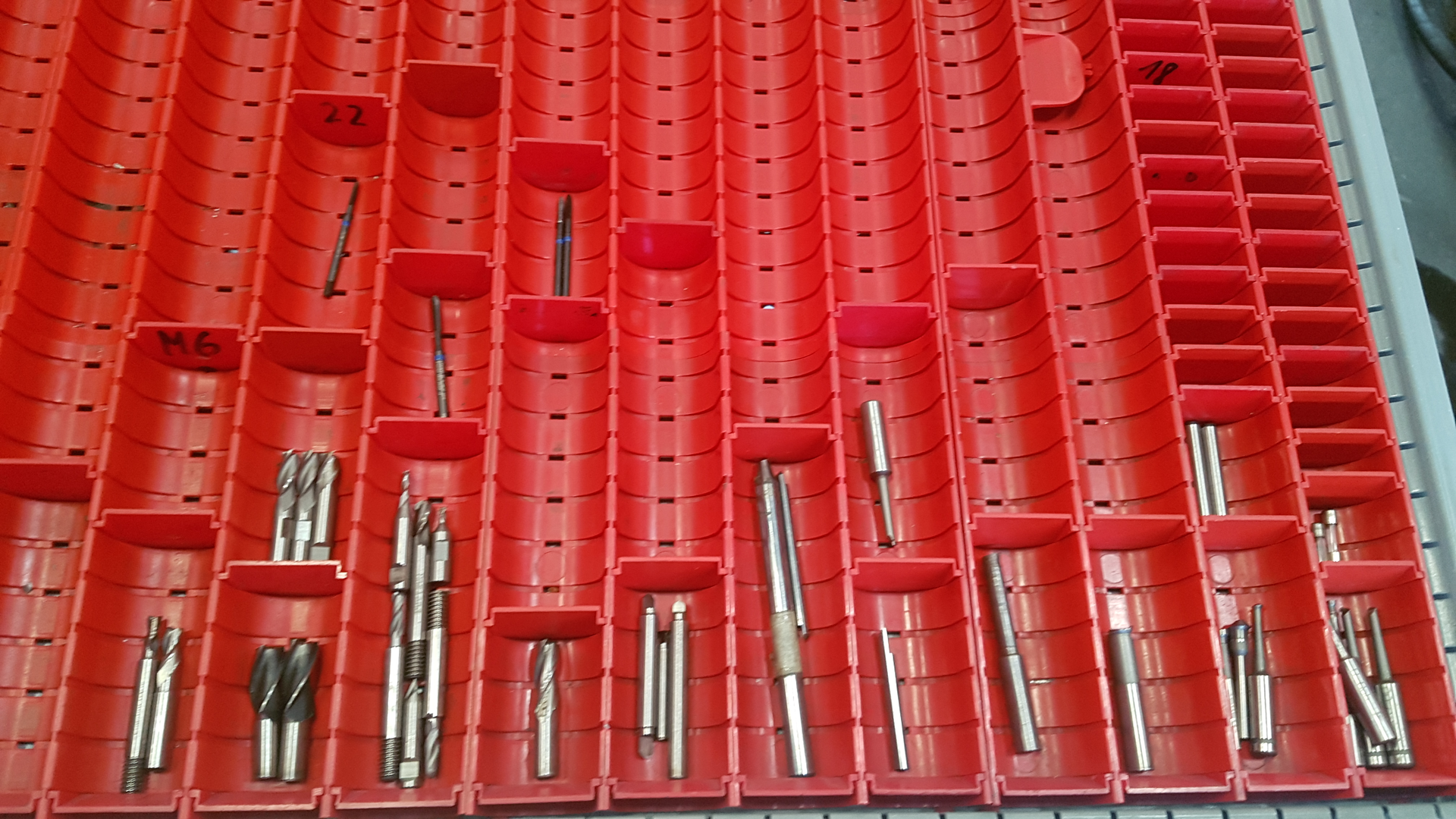

| Set of drills | |
| Set of milling cutters |
