DÖRRIES SCHARMANN Solon 3 HV/DTV
Download technical sheet (PDF)
Need Assistance? Just WhatsApp Us!
DÖRRIES SCHARMANN Solon 3 HV/DTV is a 5-axis machining center engineered for high precision, accuracy and reliability. Travels X1500 Y1200 Z1250 mm; table 1000×1000 mm, B 360x0.0001°, load 2000 kg, 4 pallets. Spindle HSK‑A100 10–4000 t/min, 40 kW; tool changer 161 pos., Ø≤300 mm, max tool weight 25 kg. Supply 3×400V 50Hz, total power 180 kW, weight ≈6000 kg. Equipment: full splash cabin, coolant, process control, chip conveyor. Enables tight tolerances; sectors: automotive, aerospace, tooling, medical, watchmaking.

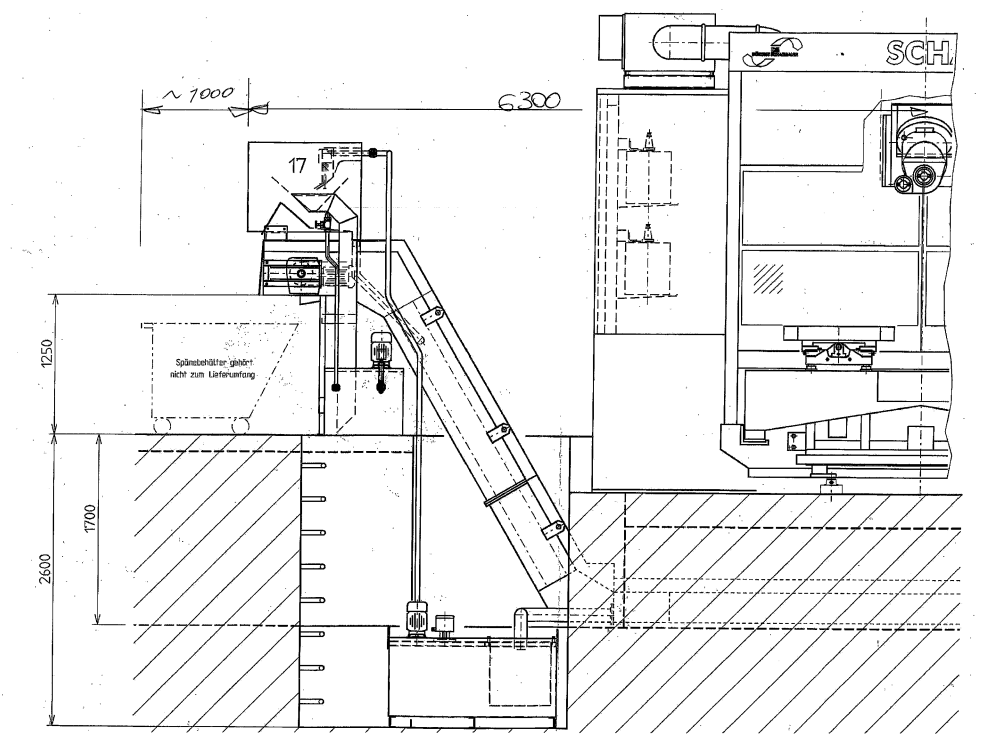

| Number of axis total | 5 |
| Longitudinal travel (X-axis) | 1500 mm |
| Transversal travel (y-axis) | 1200 mm |
| Vertical travel (z axis) | 1250 mm |
| Table divisions (B) | 360x0.0001 ° |
| A axis | |
| Table speeds: | |
| up to | 1 - 500 t/min |
| numbers | 2 |
| Length | 1000 mm |
| Width | 1000 mm |
| Transport weight | 2000 kg |
| Tool changer: | |
| Number of tools | 161 |
| Tool diameter | 300 mm |
| Max. tool-weight | 25 kg |
| Spindle nose: | HSK-A 100 |
| Spindle speeds: | |
| stepless | |
| from | 10 t/min |
| up to | 4000 t/min |
| Voltage 50 Hz 3x | 400 Volt |
| Spindle motor | 40 kW |
| Total power required | 180 kW |
| Machine's weight about | 6000 kg |
| Overall dimensions machine: | |
| Length | 8500 mm |
| Width | 4800 mm |
| Height | 4800 mm |
| Various accessories: | |
| Full splash cabin | |
| Coolant system | |
| Process controling device | |
| Chip conveyor | |
| Pallets: number | 4 |
| Set of toolholders |
