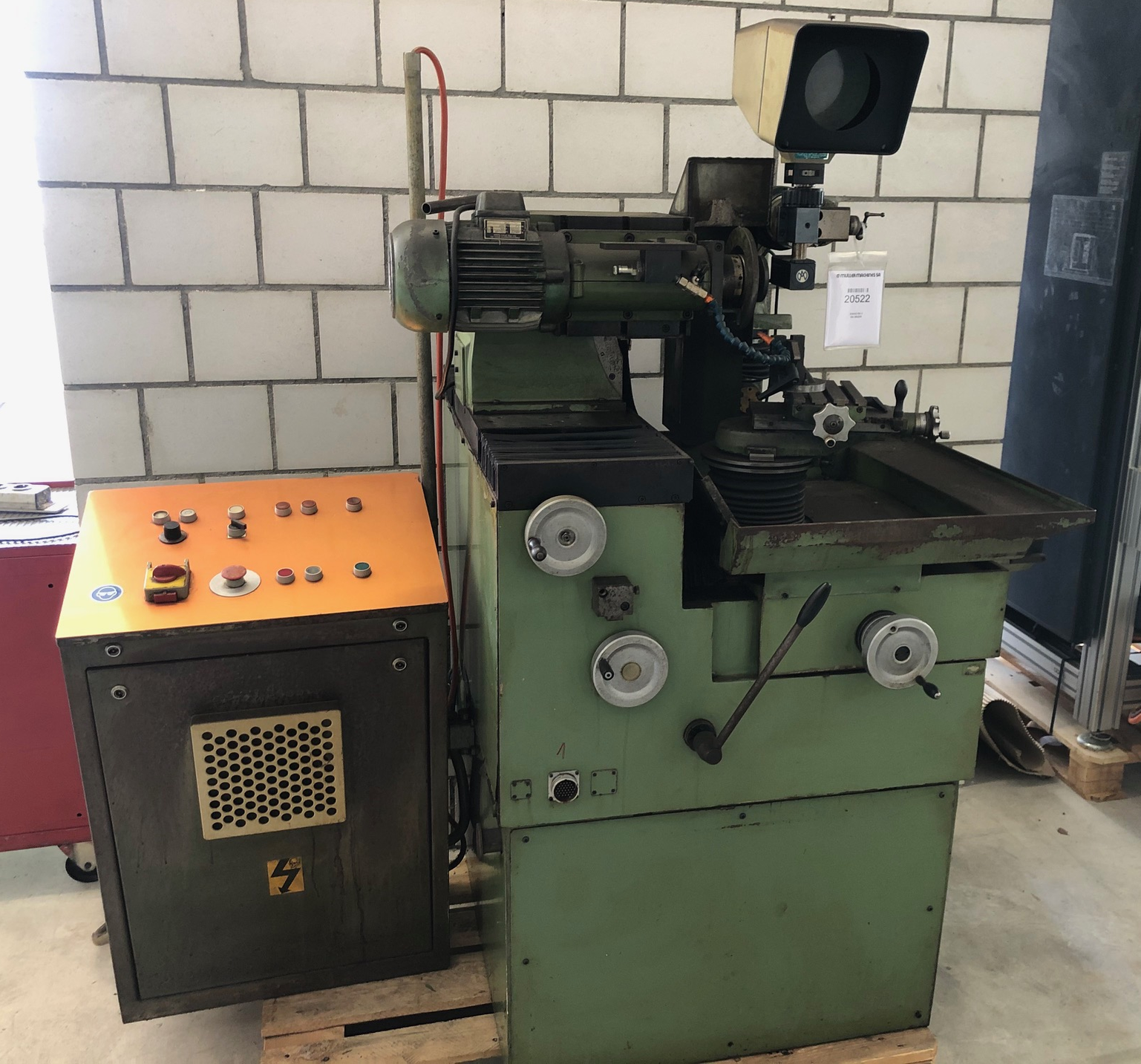

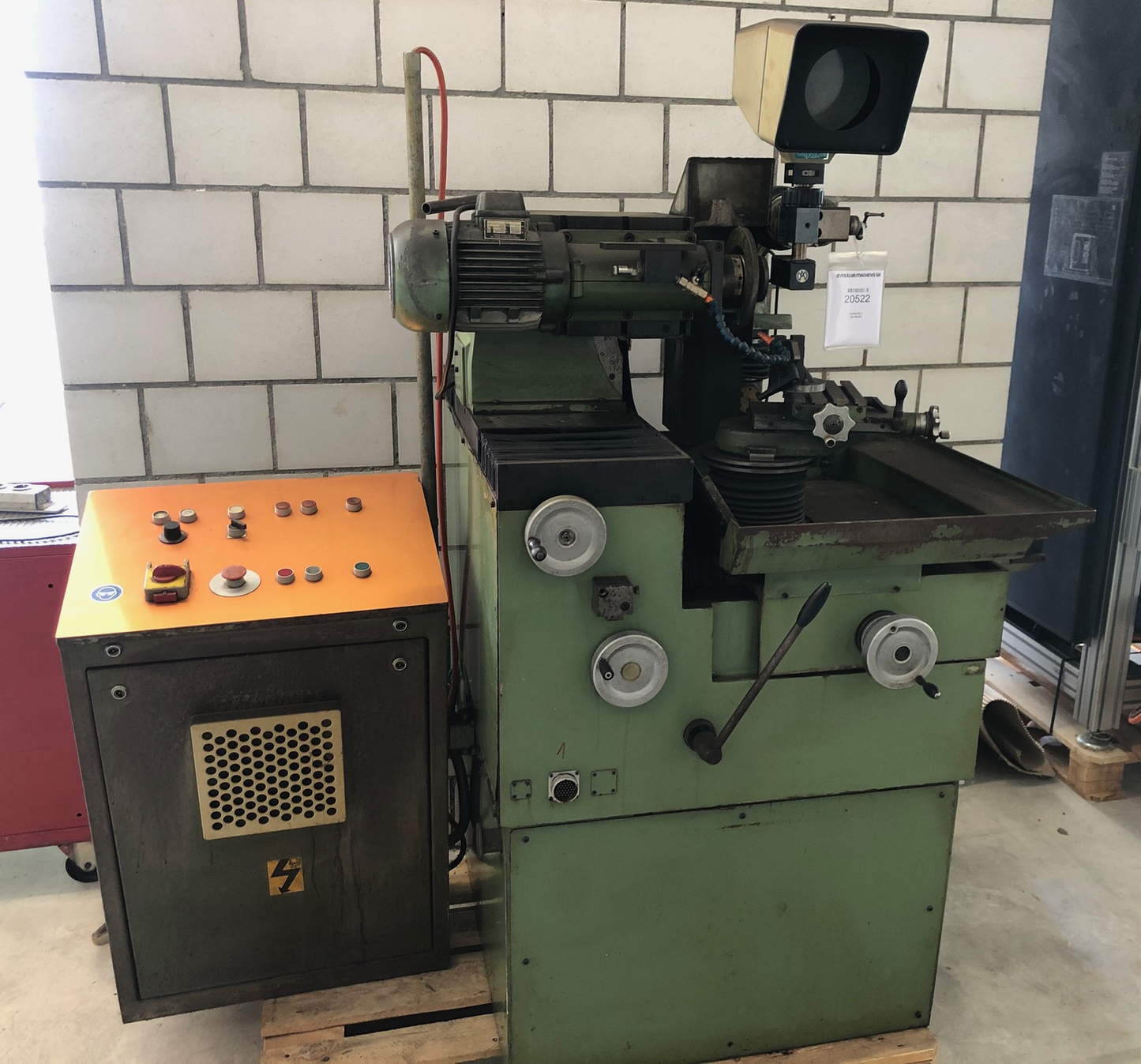

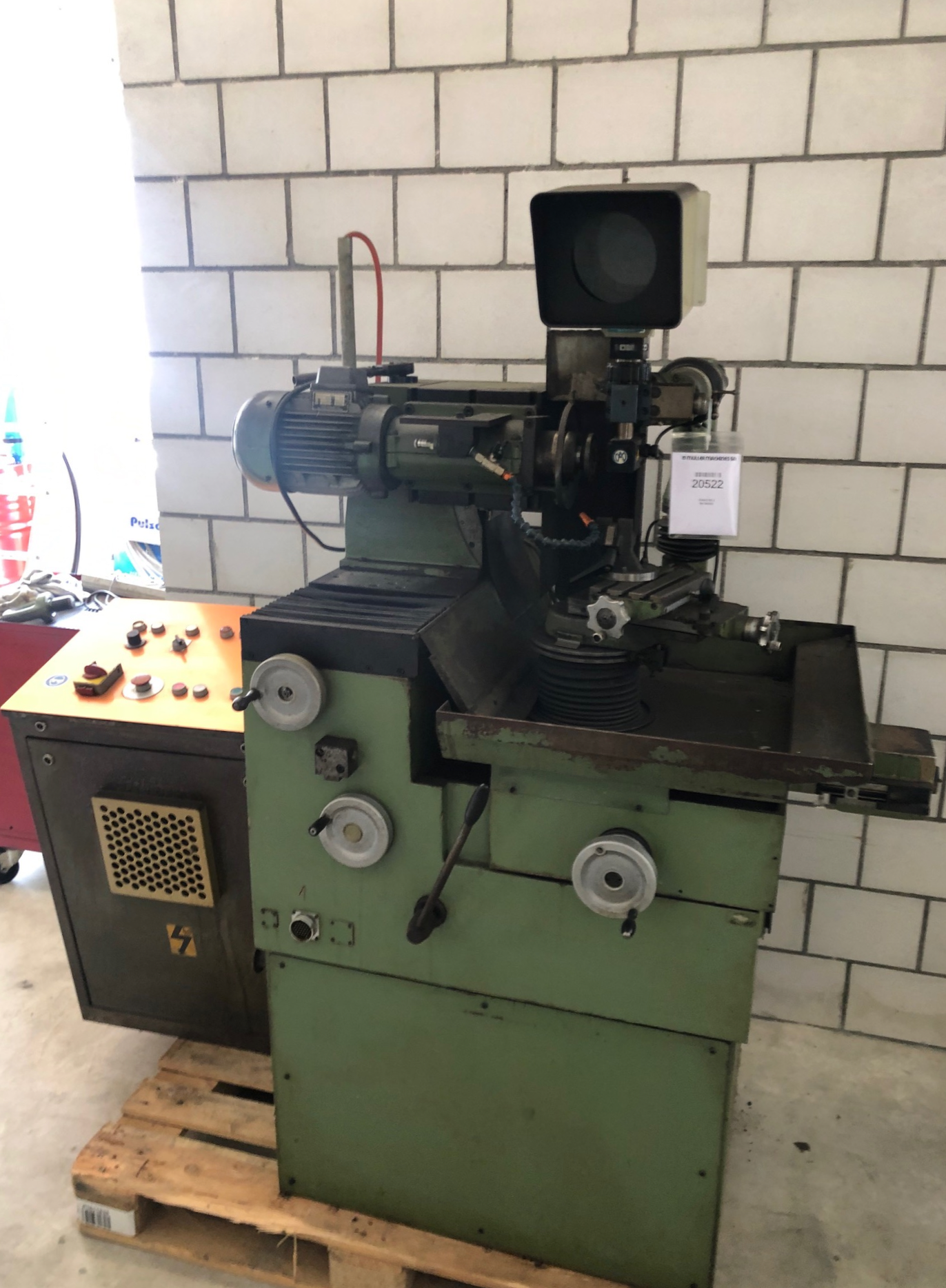

EWAG RS 3 is a Radius and Tangent grinding machine engineered for precision, high accuracy and reliable operation. Key capacities: table length 200 mm, width 120 mm; grinding-wheel diameter 75–150 mm; height adjustment (Y) 150 mm; spindle inclination (A) -15–25°; Hublage (X) 90 mm; radius adjustment (Z) 80 mm; support travel 120 mm; Max. swivel (B) 355°. Specs: grinding spindle 4 steps 1000–4500 t/min, spindle motor 1 CV, voltage 3x 380 V 50 Hz; machine weight ≈800 kg; dimensions L1180×W1080×H1520 mm. Accessories: lamp, profile projector. Delivers tight tolerances for industries such as automotive, watchmaking, toolmaking, aerospace and medical.
Technical specifications are subject to change without notice
| Table length | 200 mm |
| Table width | 120 mm |
| Grinding-wheel diameter | 75 - 150 mm |
| Grinding head: | |
| Height adjustment (Y-axis) | 150 mm |
| Spindle inclination (A-axis) | -15 - 25 ° |
| Hublage adjustment (X-axis) | 90 mm |
| Grinding spindle speeds: | |
| number (steps) | 4 |
| from | 1000 t/min |
| up to | 4500 t/min |
| Workpiece carriage: | |
| Radius adjustment (Z-axis) | 80 mm |
| Adjustment accuracy of the Z axis | mm |
| Courses support | 120 mm |
| Max. Swivel angle (B-axis) | 355 ° |
| Voltage 50 Hz 3x | 380 Volt |
| Grinding spindle motor | 1 CV |
| Machine's weight about | 800 kg |
| Overall dimensions machine: | |
| Length | 1180 mm |
| Width | 1080 mm |
| Height | 1520 mm |
| Various accessories: | |
| Lamp | |

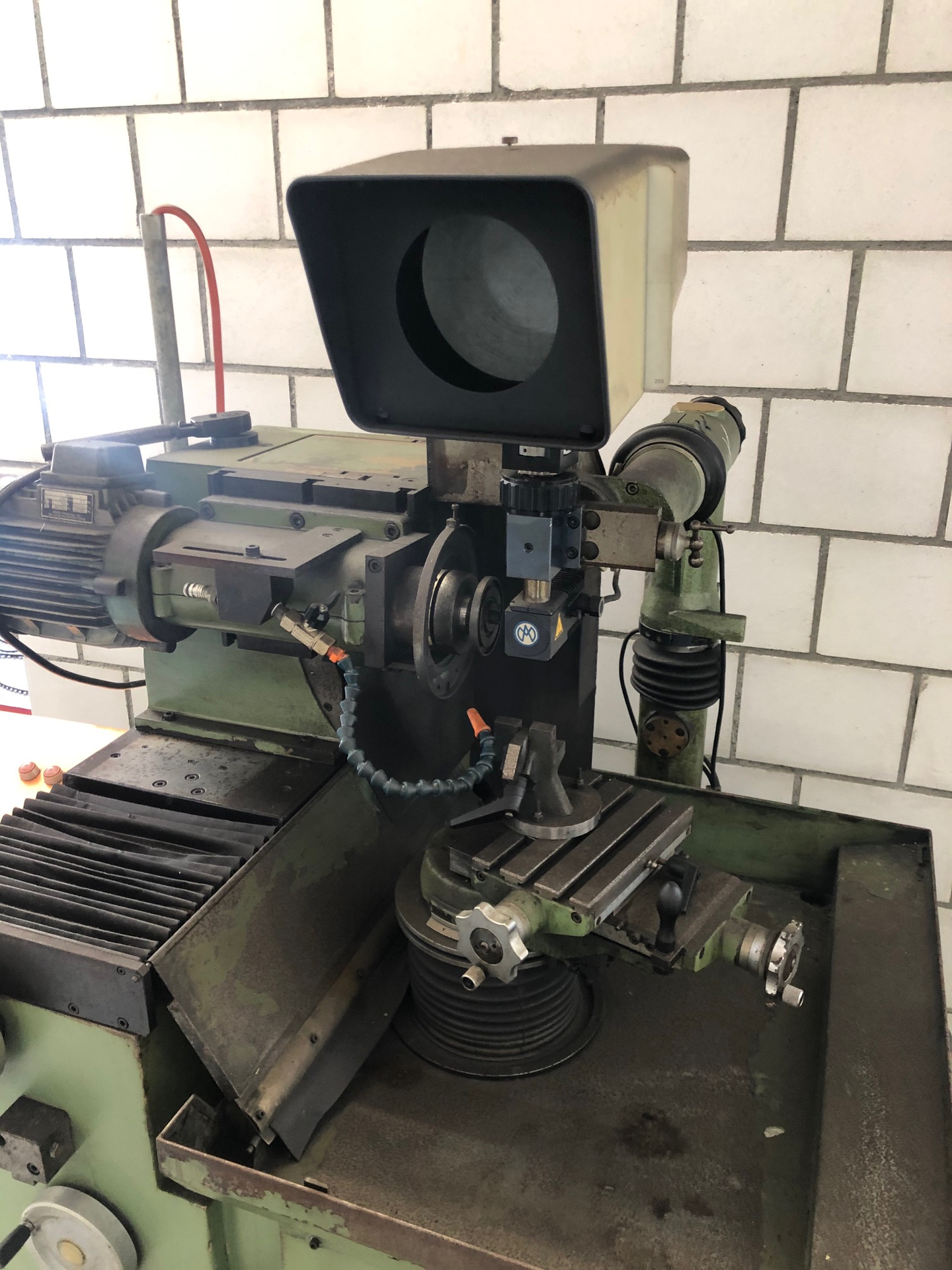

| Profil projector |
