TRANEMO DPA-H-400-16
Download technical sheet (PDF)
Need Assistance? Just WhatsApp Us!

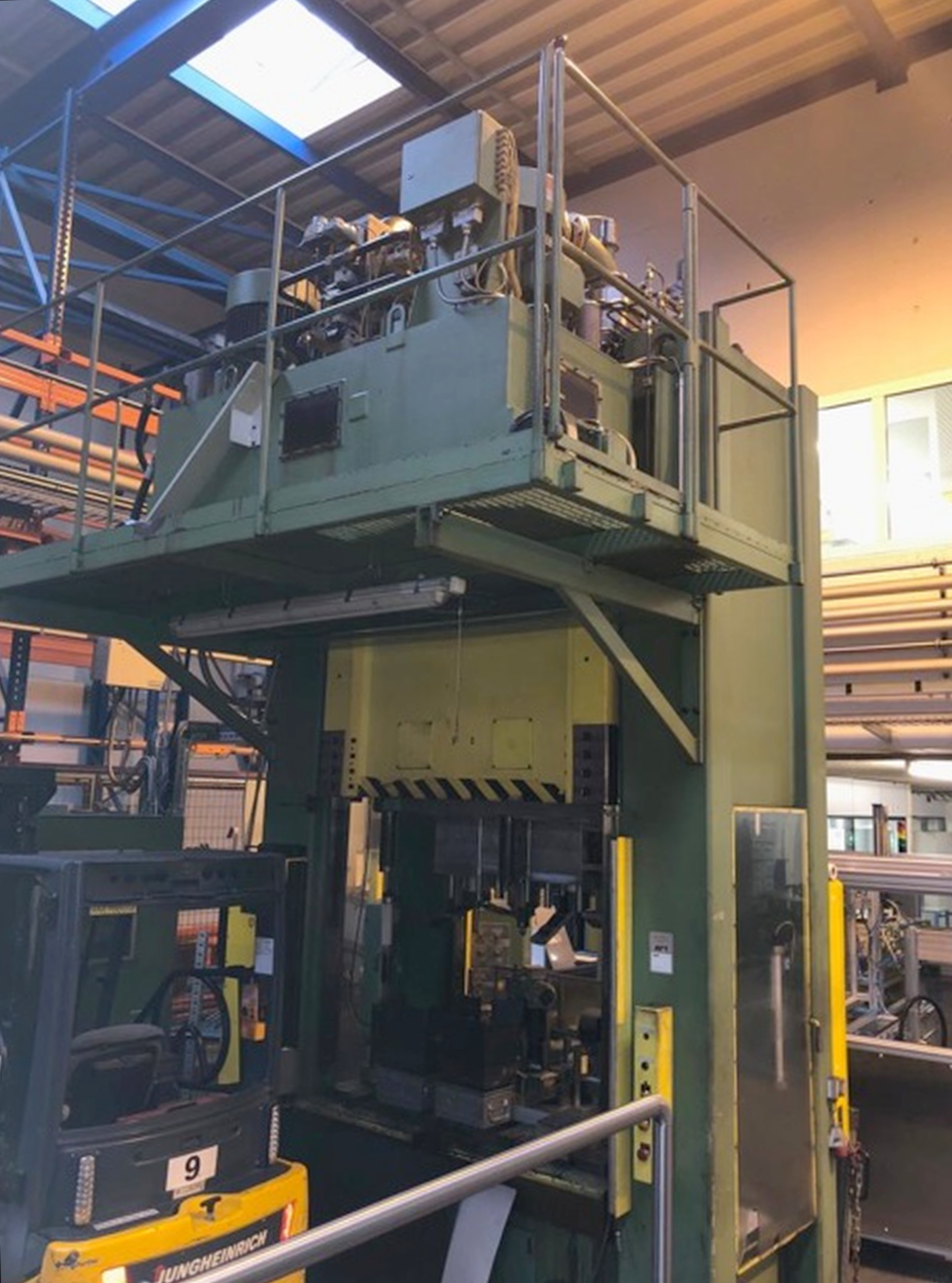

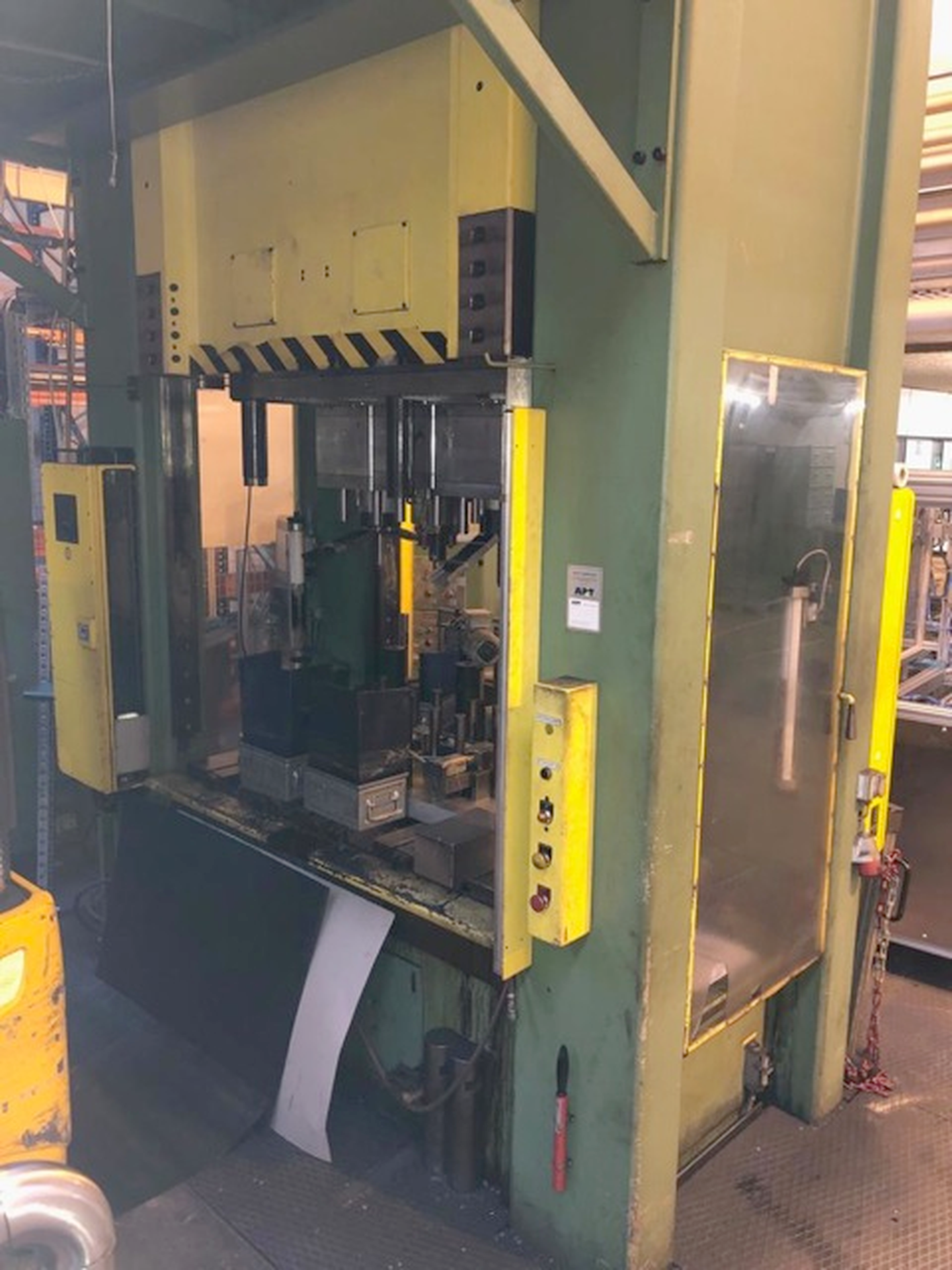

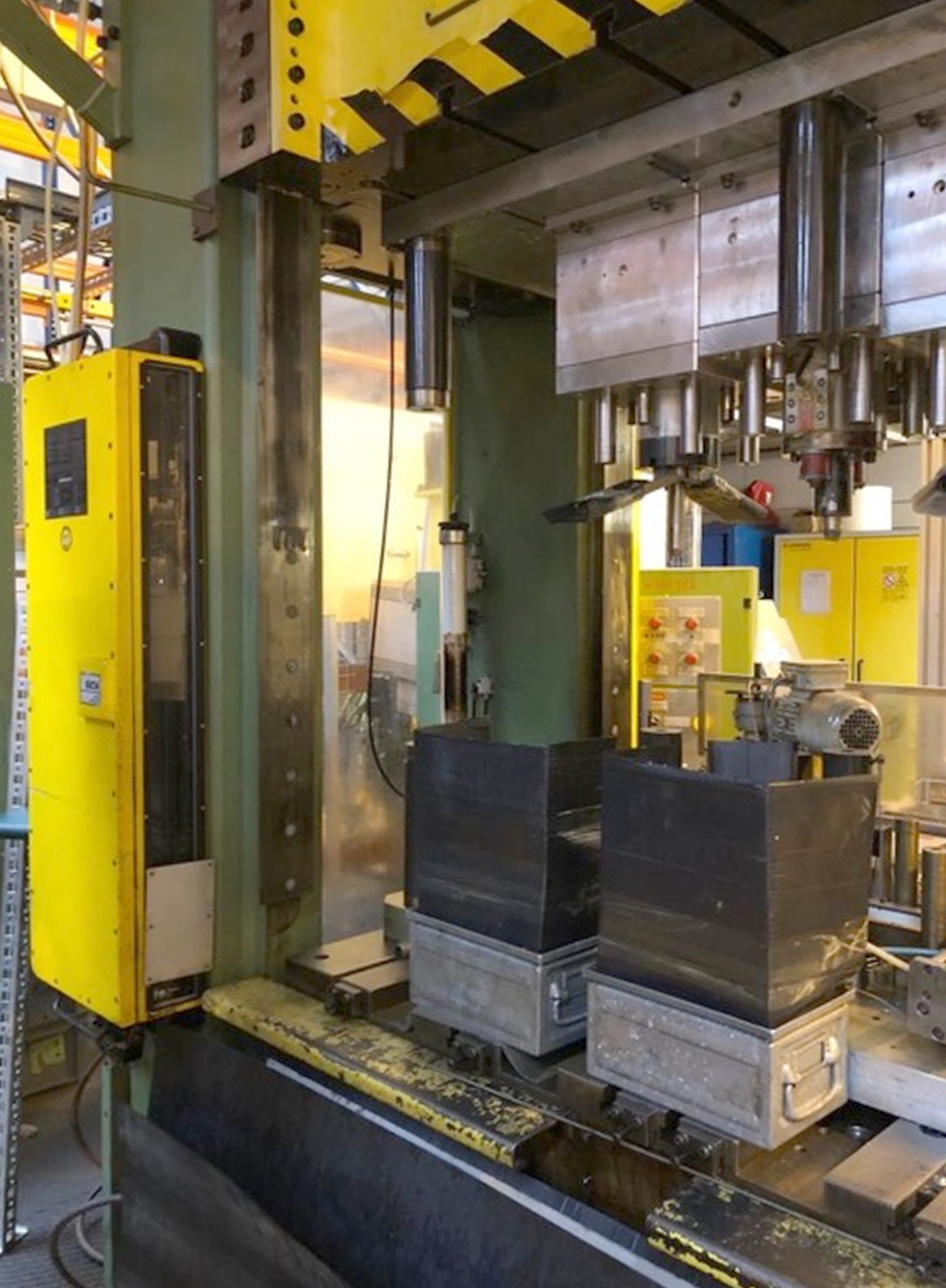

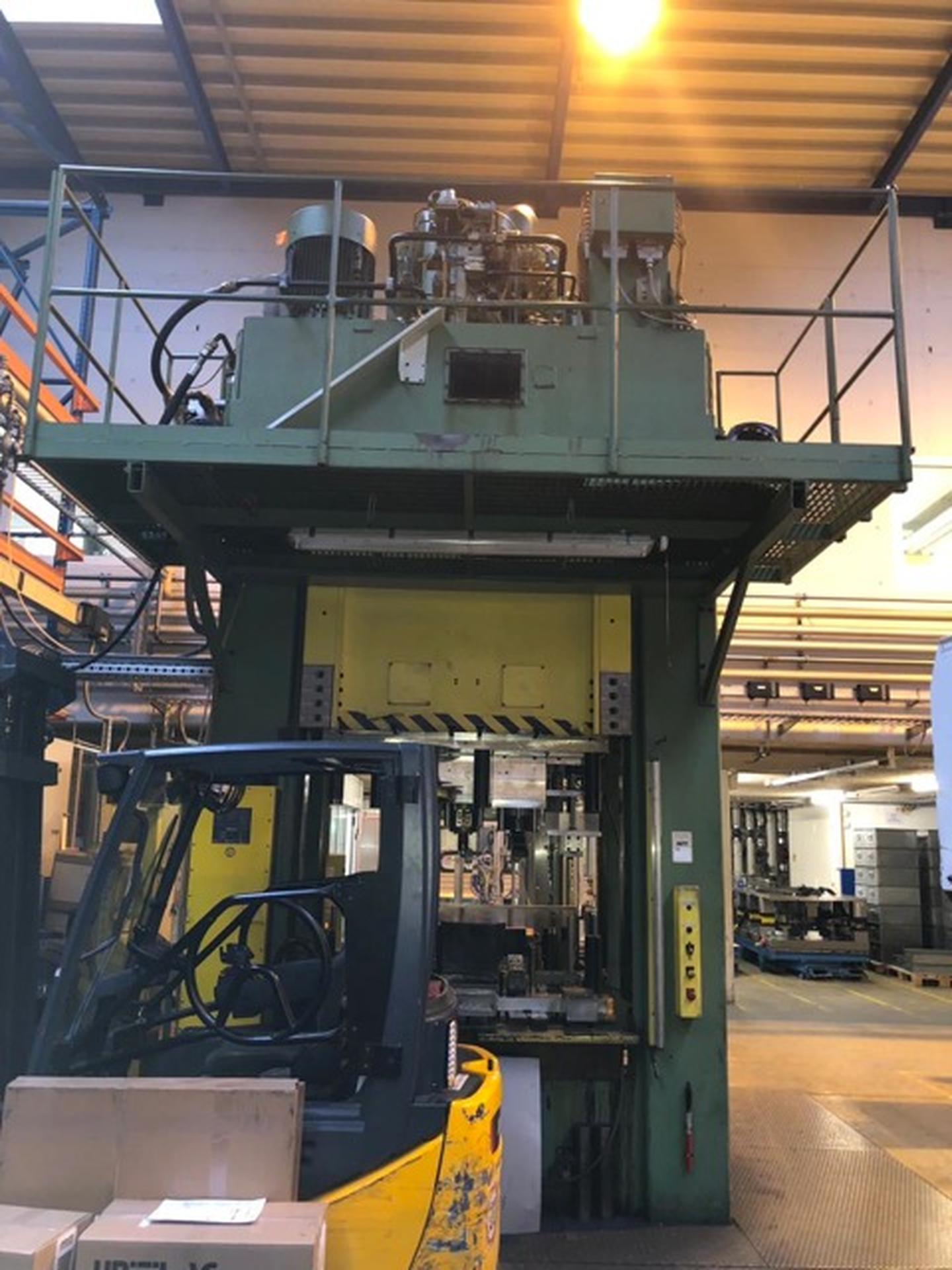

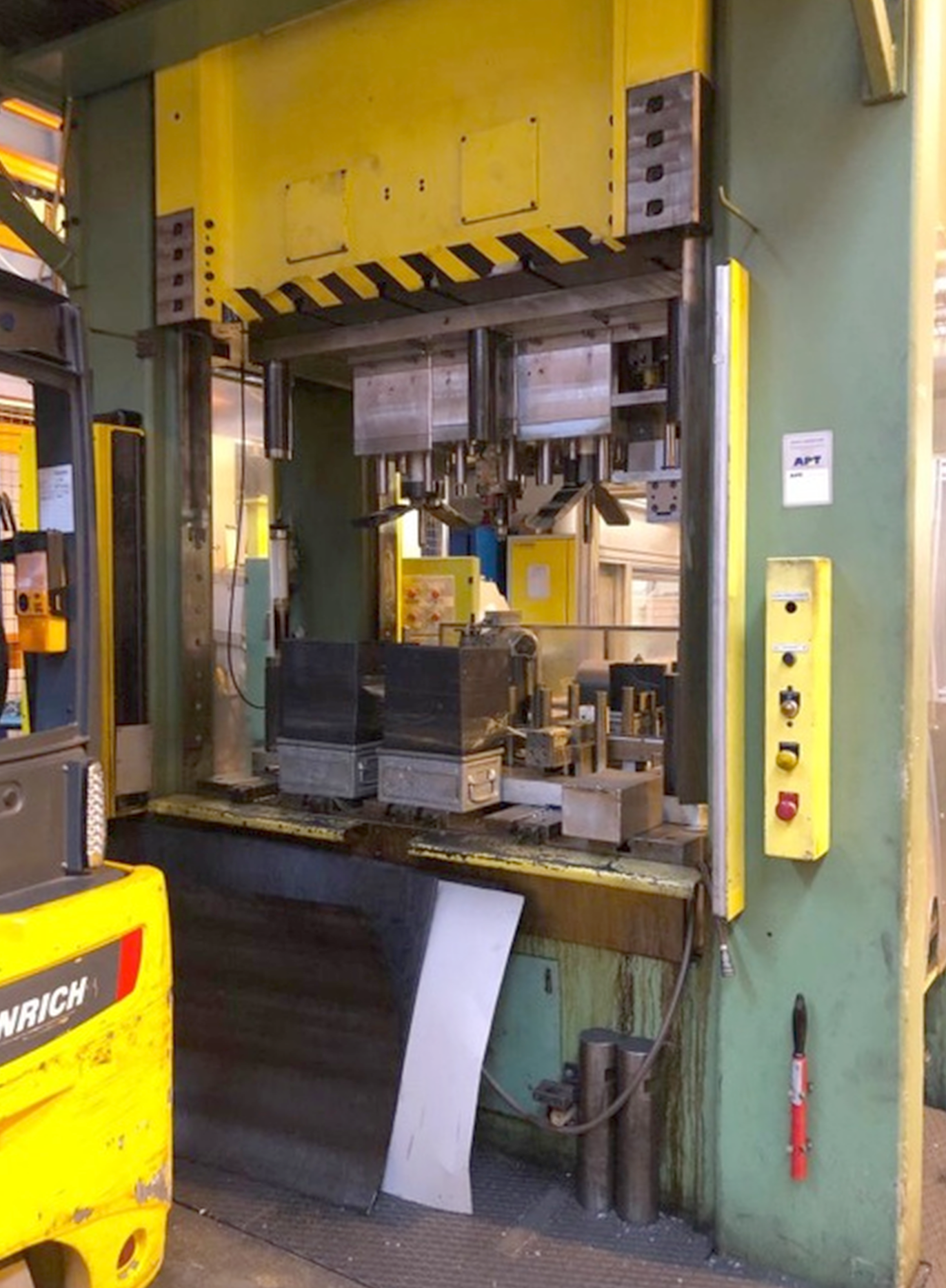

TRANEMO DPA-H-400-16 is a Hydraulic press engineered for precision, high accuracy and reliable operation. Capacities: press force 4000 kN, total stroke 1250 mm, table 1600×1000 mm; ejector force 300 kN, stroke 250 mm. Specs: rapid traverse 382 mm/s, press stroke 18 mm/s, return 365 mm/s, motor 45 kW, supply 3×380 V 50 Hz, weight ≈33000 kg, overall L3600×W2600×H6400 mm. Equipment: die cushion (hydraulic) with cylinder force 2000 kN and stroke 315 mm. Designed to achieve tight tolerances; typical sectors: automotive, aerospace, machine tools, medical, watchmaking.
| Shearing force | 4000 kN |
| Total stroke | 1250 mm |
| Table surface: | |
| Length | 1600 mm |
| Width | 1000 mm |
| Close traverse speeds: | |
| Rapid traverse | 382 mm/s |
| Press stroke | 18 mm/s |
| Return traverse speeds | 365 mm/s |
| Force max s'opposant à la descente | 300 kN |
| Stroke length ejector | 250 mm |
| Voltage 50 Hz 3x | 380 Volt |
| Motor power | 45 kW |
| Machine's weight about | 33000 kg |
| Overall dimensions machine: | |
| Length | 3600 mm |
| Width | 2600 mm |
| Height | 6400 mm |
| Various accessories: | |
| Die cushion hydraulic: | |
| Force du cylindre | 2000 kN |
| Total stroke | 315 mm |
