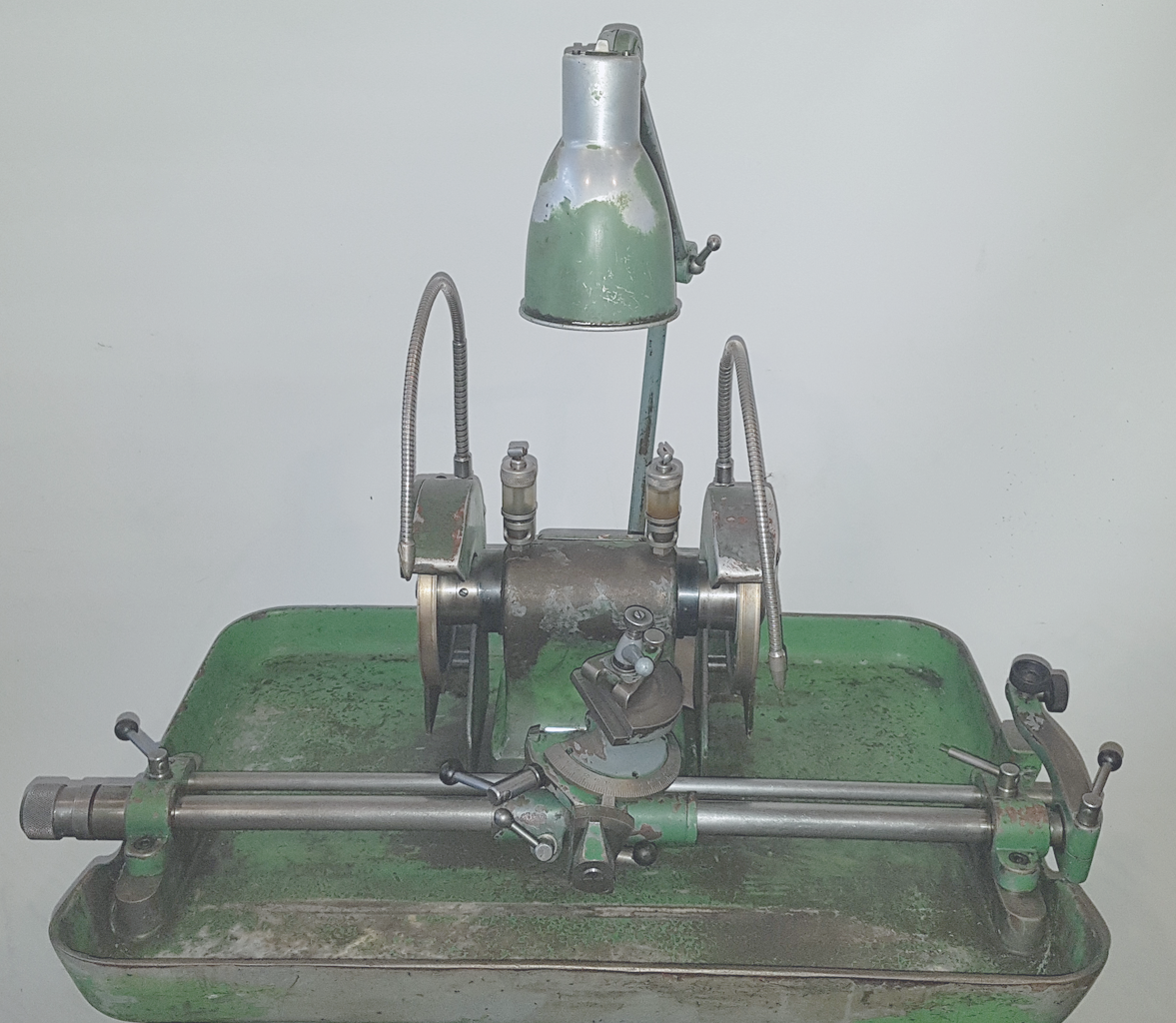

AGATHON 150 A is a Tool grinding machine designed for precision, high accuracy and reliability. Capacities: grinding wheel Ø150×20 mm, bore 20 mm; tool clamping up to 32 mm width × 32 mm height; clearance angle max 26°; spindle up to 2500 t/min. Technical specs: 3x 380 V 50 Hz supply, 0.7 CV power, machine weight ~225 kg, overall L850×W620×H1200 mm. Accessories: coolant system and lamp. Enables tight tolerances; suitable for automotive, toolmaking, aerospace and medical sectors.
| Grinding wheels: | |
| Diameter | 150 mm |
| Width | 20 mm |
| Bore | 20 mm |
| Spindle speeds: | |
| number (steps) | |
| up to | 2500 t/min |
| Tool orthogonal clearance | |
| max. | 26 ° |
| Clamping range of the tools: | |
| Width | 32 mm |
| Height | 32 mm |
| Voltage 50 Hz 3x | 380 Volt |
| Power | 0.7 CV |
| Machine's weight about | 225 kg |
| Overall dimensions machine: | |
| Length | 850 mm |
| Width | 620 mm |
| Height | 1200 mm |
| Various accessories: | |
| Coolant system | |
| Lamp |
