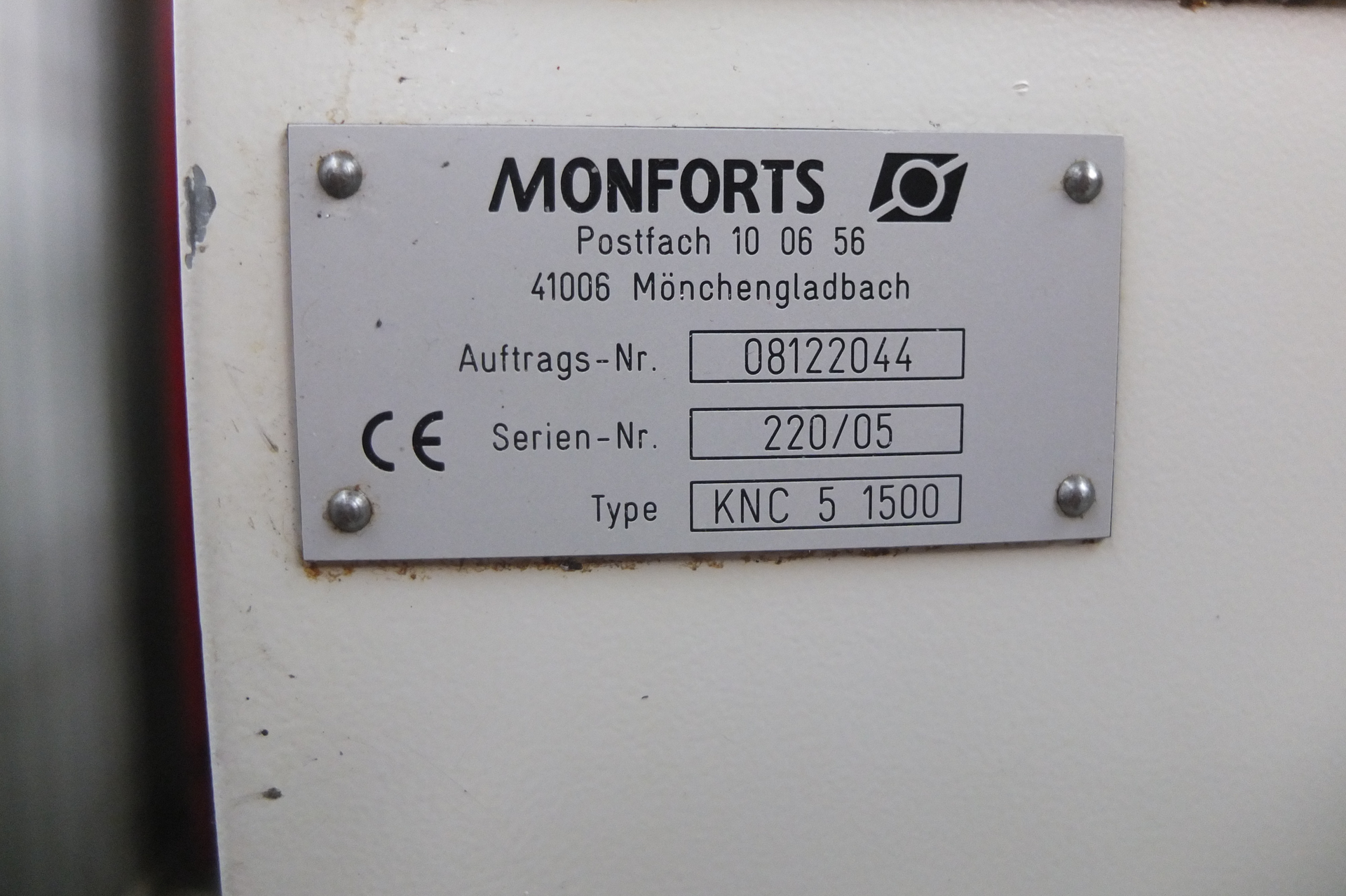

MONFORTS KNC 5 1500
Type: KNC 5 1500
Manufacturer: MONFORTS
Group: CNC turning lathe

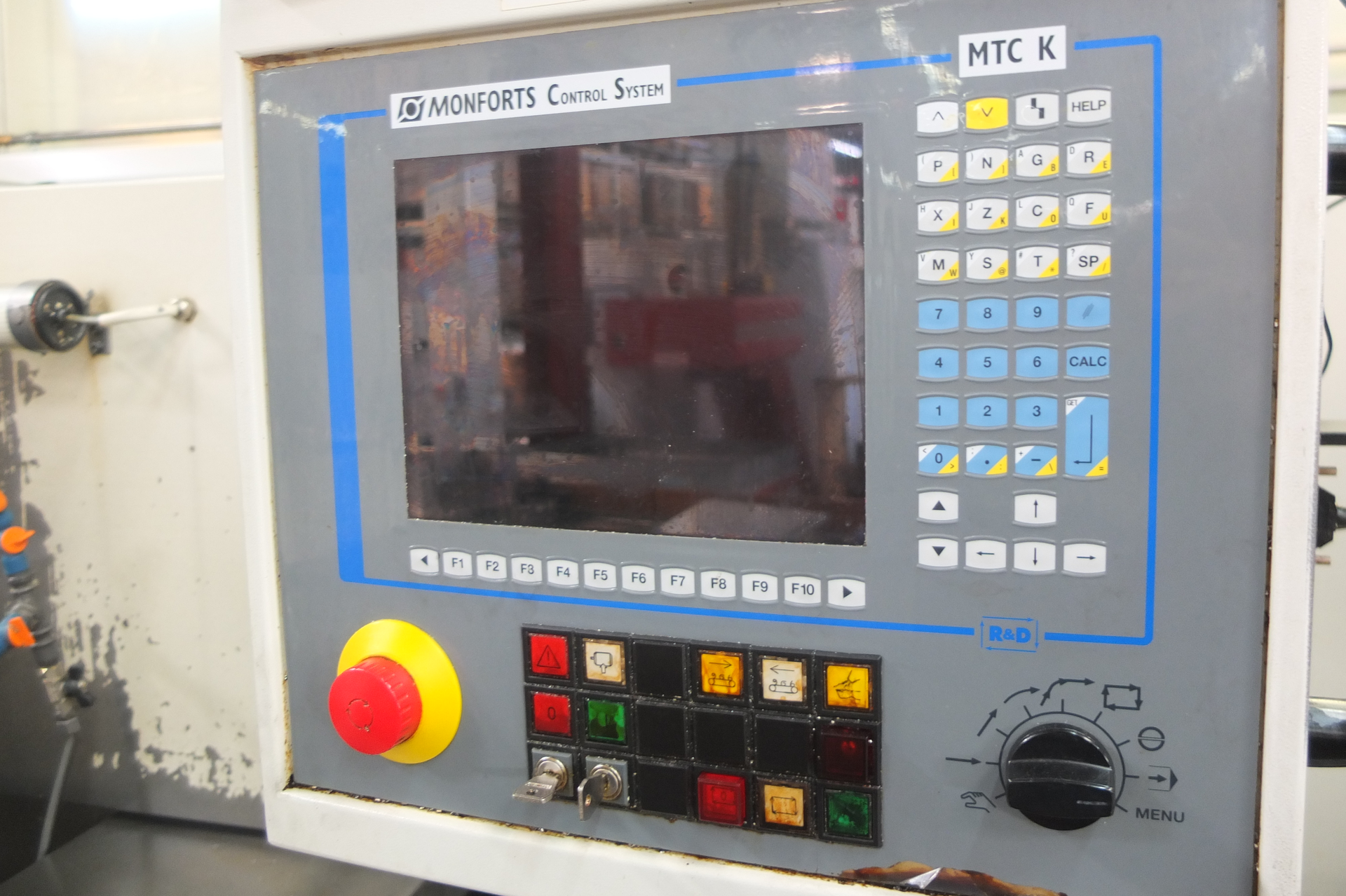

Control: MONFORTS CONTROL SYSTEM MTC
Stock: 020432
Special Price
CHF 16 000
Special offer machines are sold as-is, without any warranty or inspection from us.

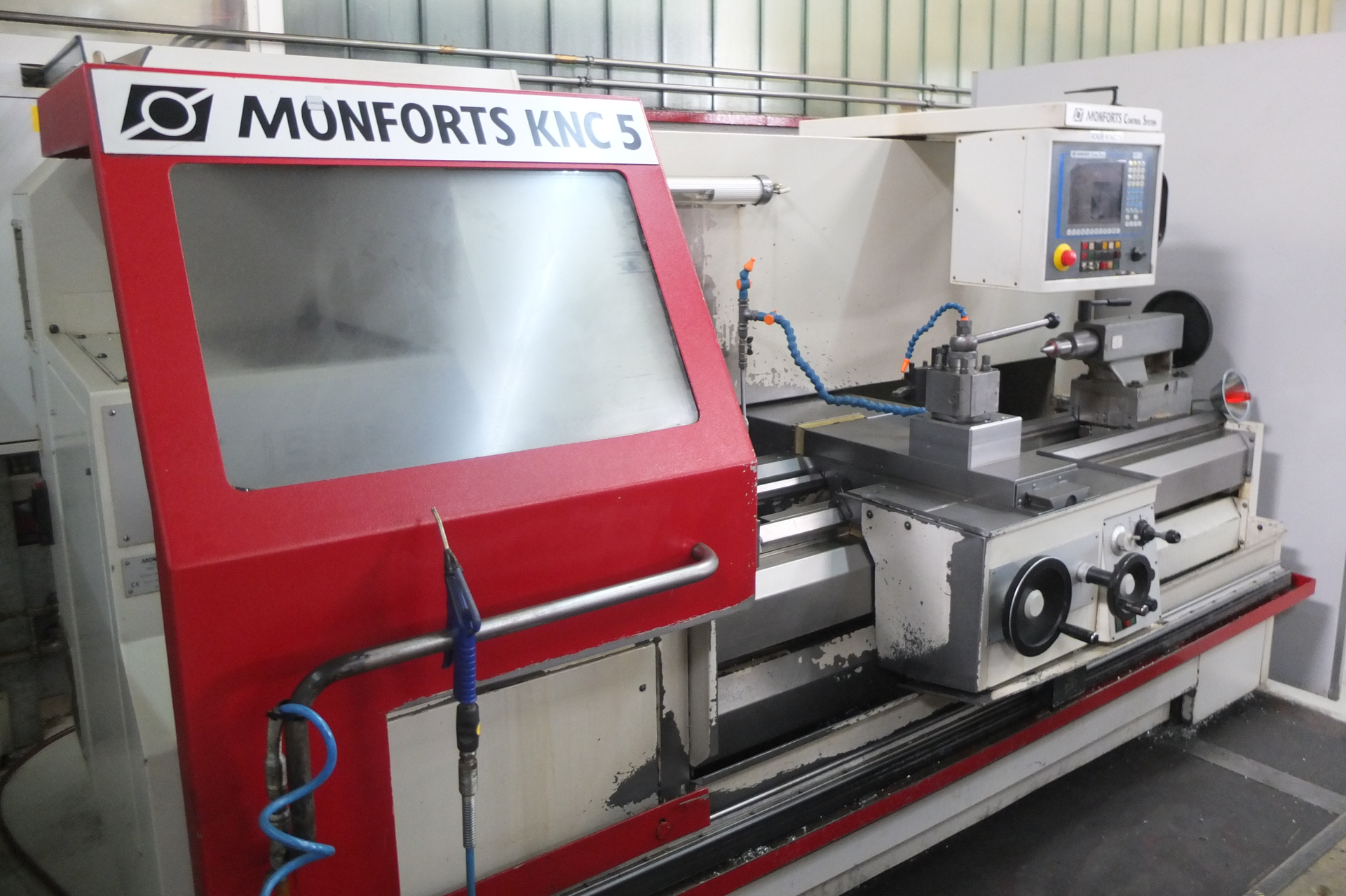

MONFORTS KNC 5 1500 is a CNC turning lathe (Cycle controlled lathe) engineered for precision, high accuracy and reliability. Capacities: centre height 250 mm, distance between centres 1500 mm, swing over cross‑slide 290 mm, swing over bed 500 mm, X travel 265 mm, spindle stroke 160 mm (Ø 80 mm). Specs: spindle 3 steps 3–2800 t/min, rapid traverse X 5 m/min Z 10 m/min, spindle motor 16.5 kW, supply 3x 400 V 50 Hz, total power 16 kVA, weight approx. 3000 kg. Accessories: 3‑jaw ROTA‑S Ø 250 mm, 4‑jaw Ø 250 mm, soft/hard jaw sets, travelling steady, tailstock, coolant system, RS232 interface, chip conveyor, toolholders. Delivers tight tolerances; suited for automotive, aerospace, medical, watchmaking and machine‑tool sectors.
| Centre height | 250 mm |
| Distance between centres | 1500 mm |
| Swing over cross-slide | 290 mm |
| Swing over bed | 500 mm |
| Taper in spindle | DIN 55027 |
| Carriage: | |
| Transversal strocke (X axis) | 265 mm |
| Spindle speeds: | |
| number (steps) | 3 |
| from | 3 t/min |
| up to | 2800 t/min |
| Taper in tailstock: | |
| Morse taper | 5 CM |
| Spindle stroke | 160 mm |
| Spindle diameter | 80 mm |
| Rapid traverse X | 5 m/min |
| Rapid traverse Z | 10 m/min |
| Spindle motor | 16.5 kW |

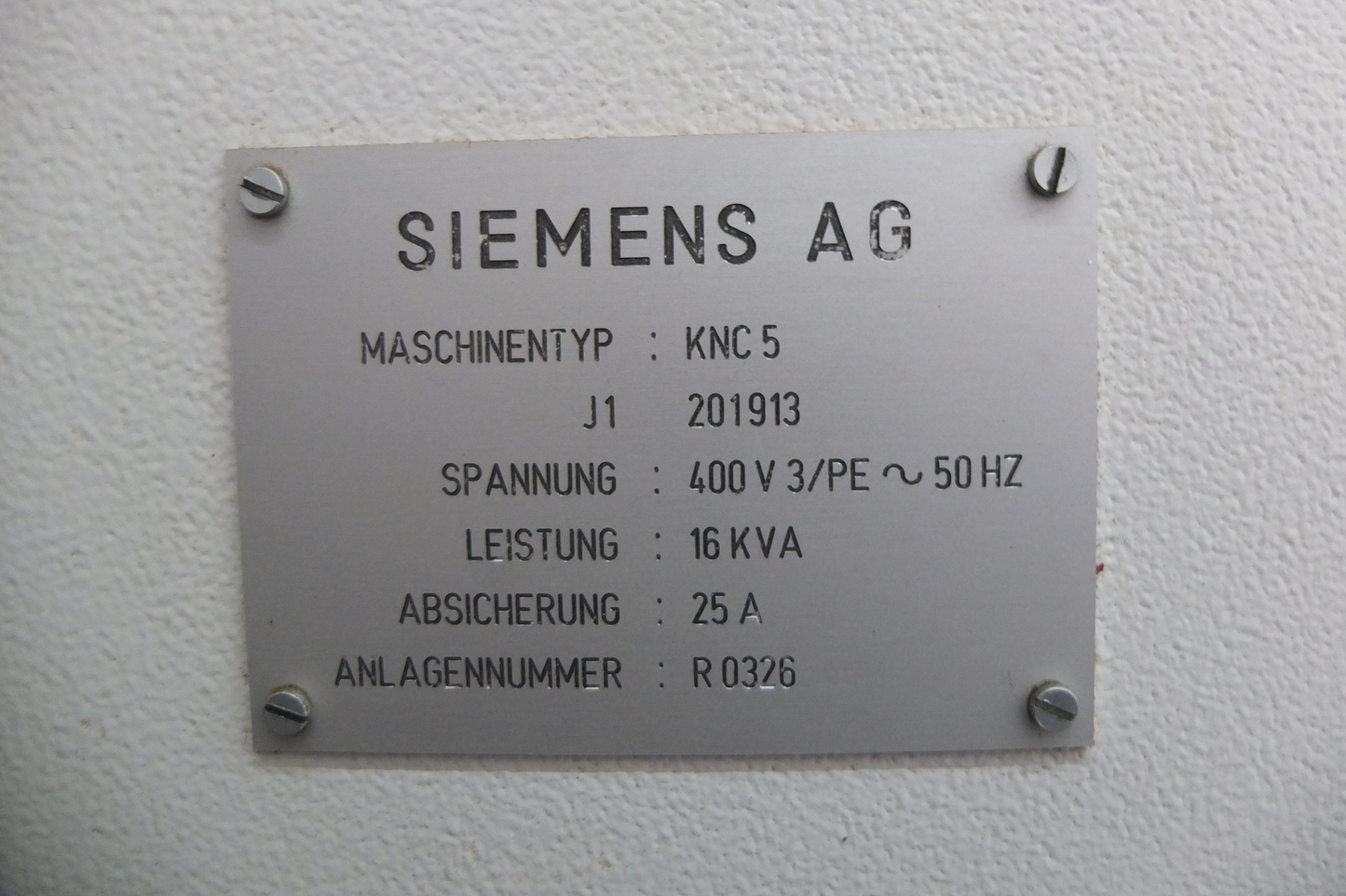

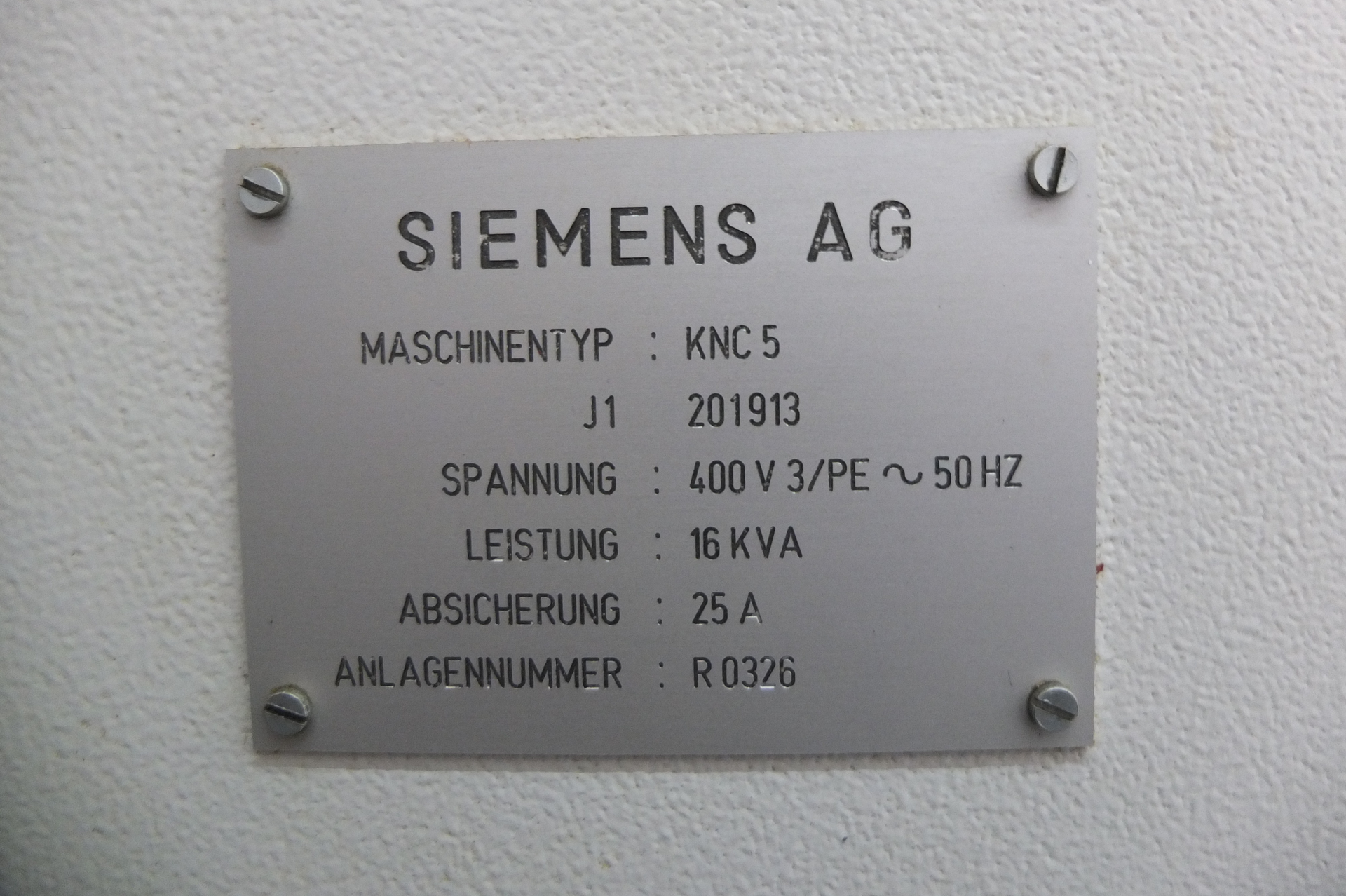

| Voltage 50 Hz 3x | 400 Volt |
| Total power required | 16 kVA |
| Machine's weight about | 3000 kg |
| Various accessories: | |

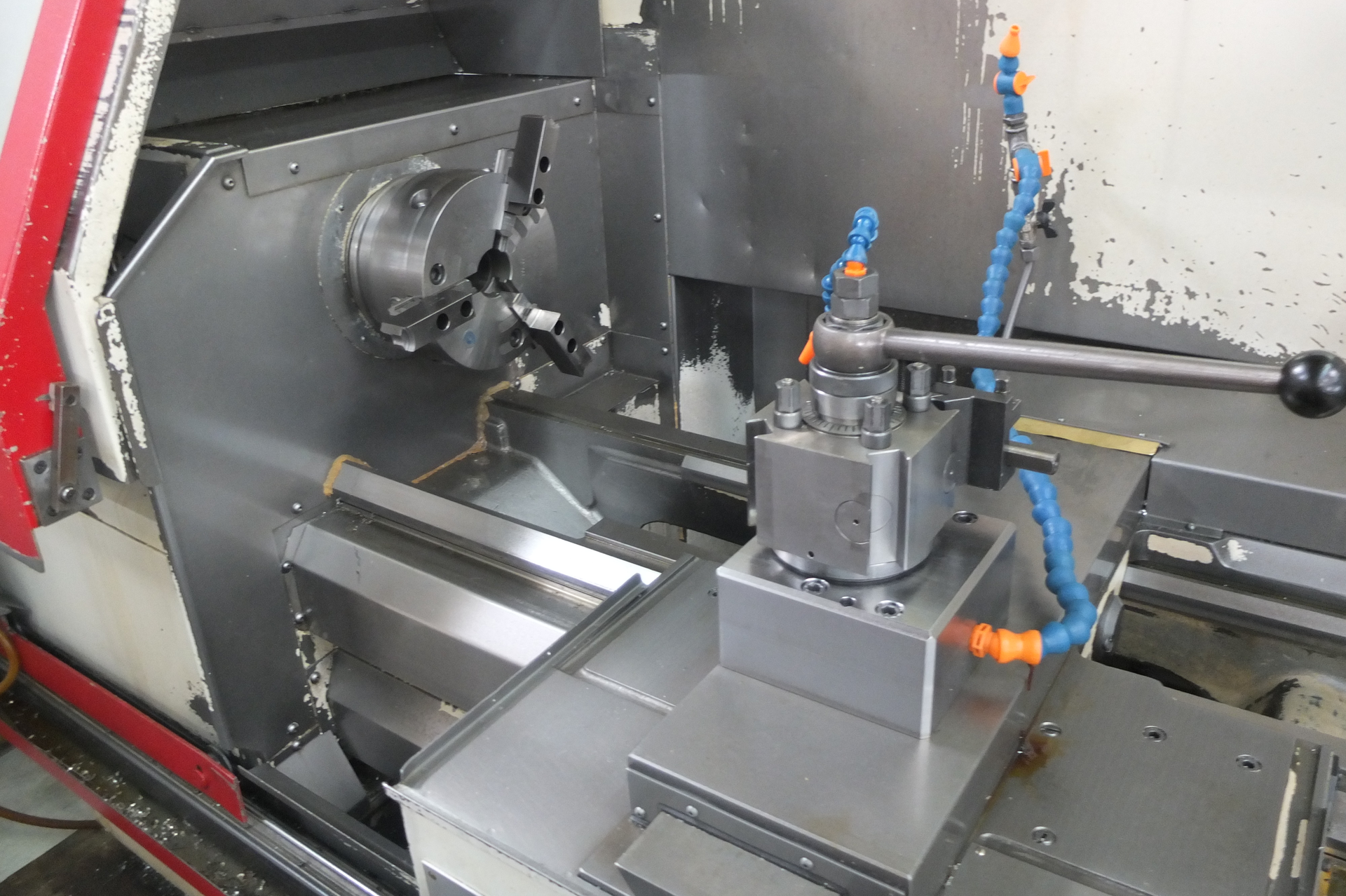

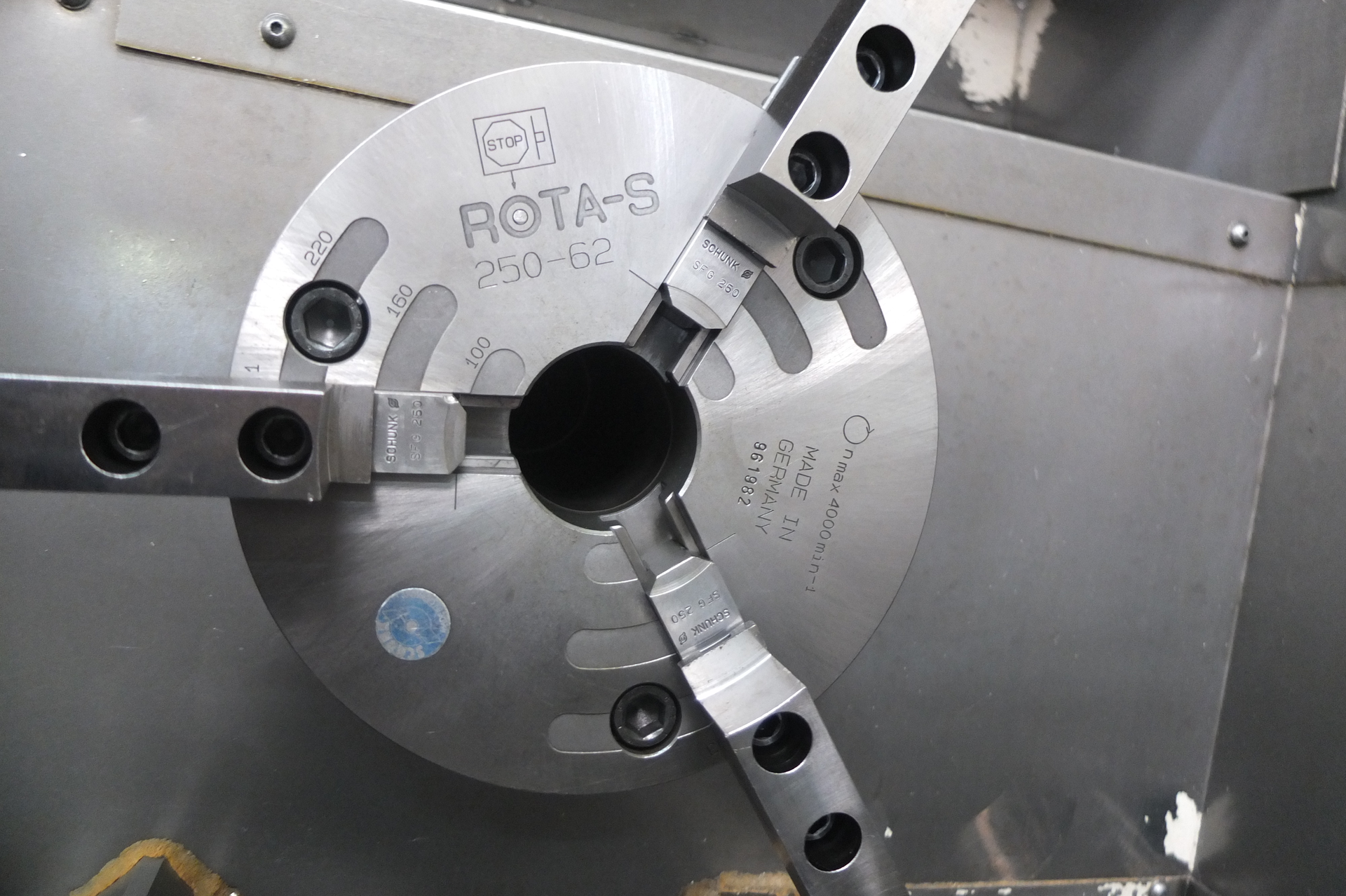

| 3-jaw chuck diameter | ROTA-S 250 mm |

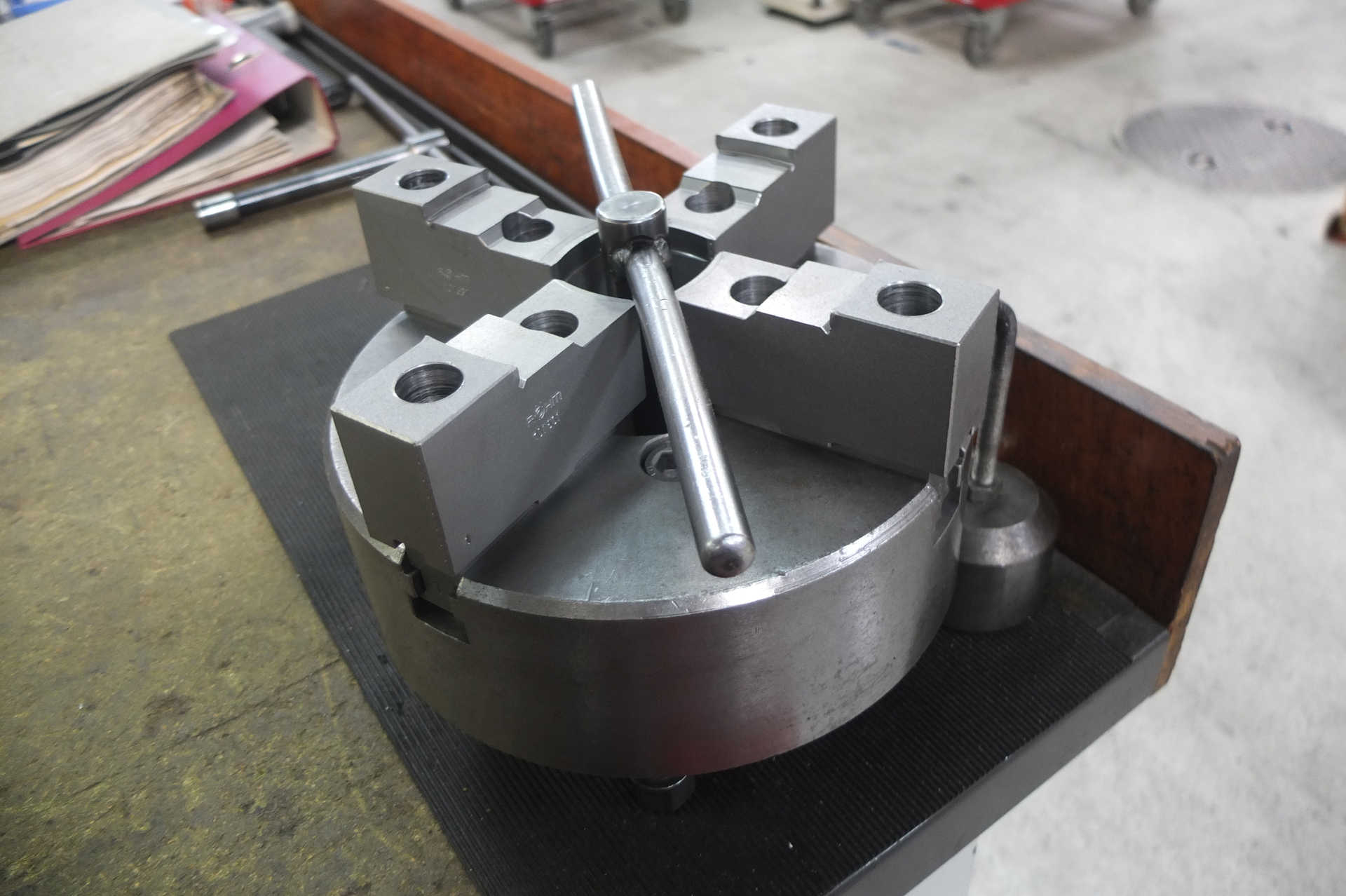

| 4-jaw chuck diameter | 250 mm |
| Set of soft jaws | |
| Set of hard jaws | |
| Travelling steady | |
| Lamp | |
| Tailstock | |
| Coolant system | |

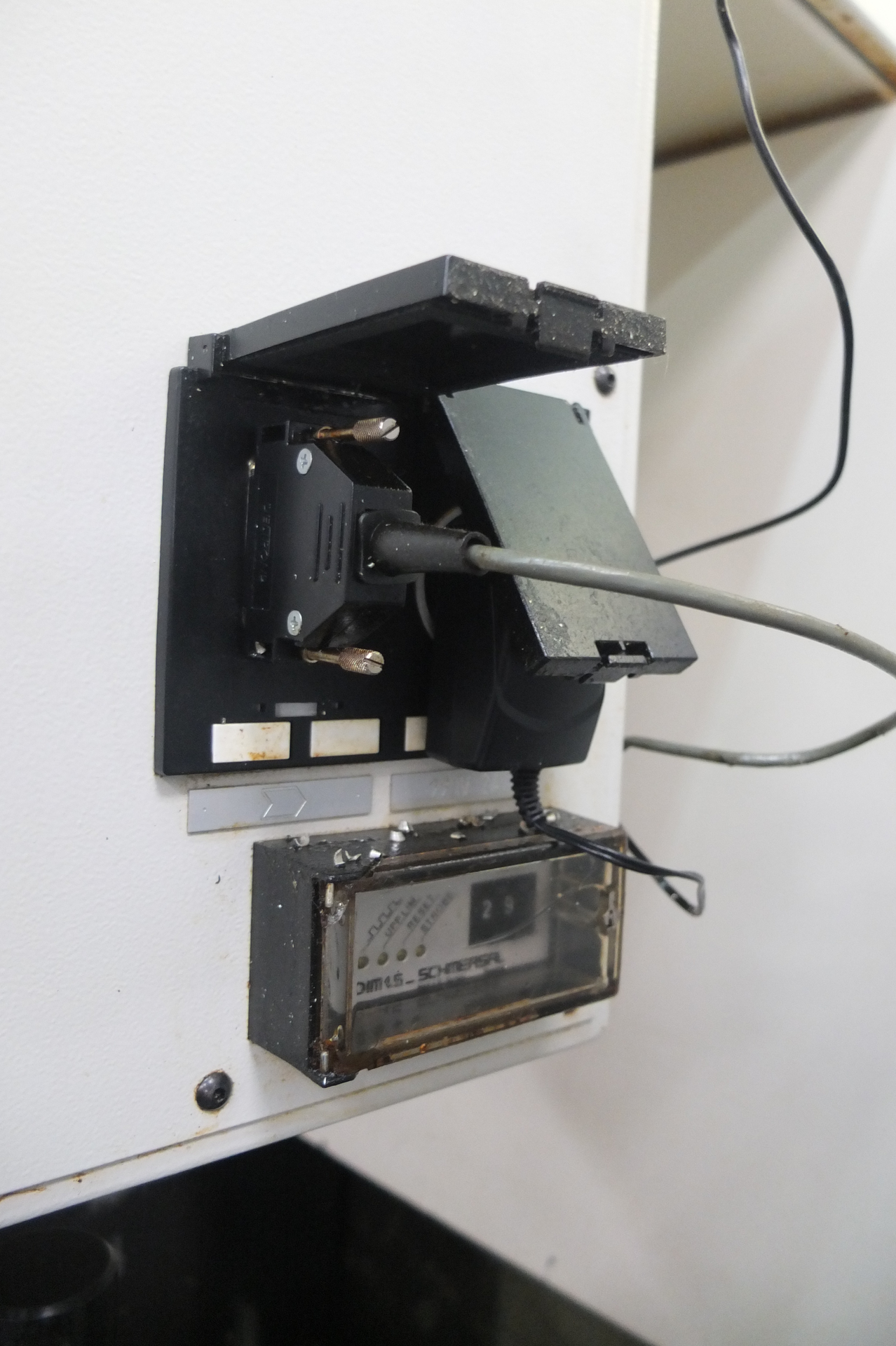

| Interface serial port RS 232 | |
| Chip conveyor | |
| Set of steel holders | |
| Toolholders |
