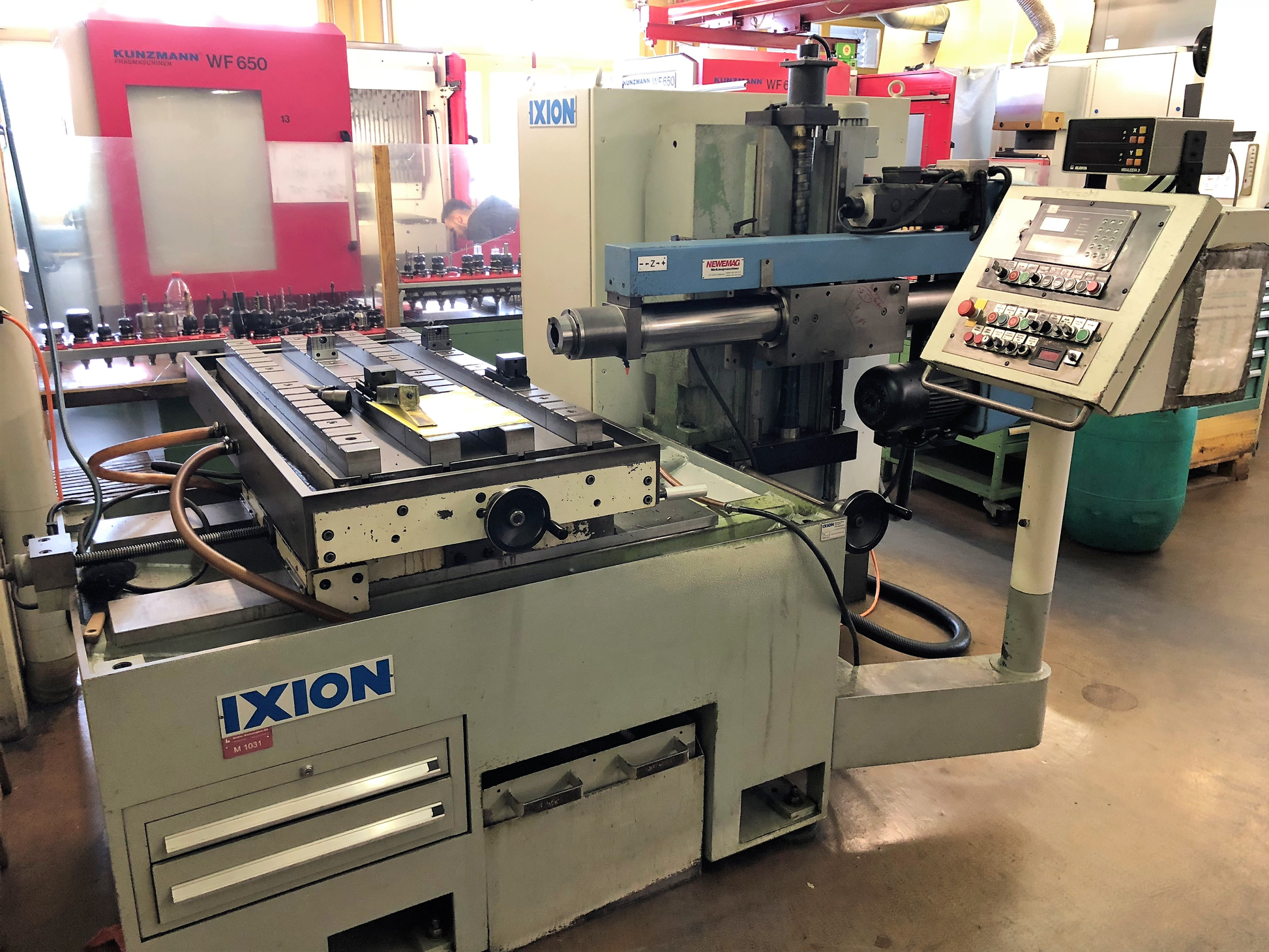

020395 - IXION TL 600 NC 1

Manufacturer: IXION

Group: Deep-hole drilling machine

Subgroup: Deep-hole drilling machine

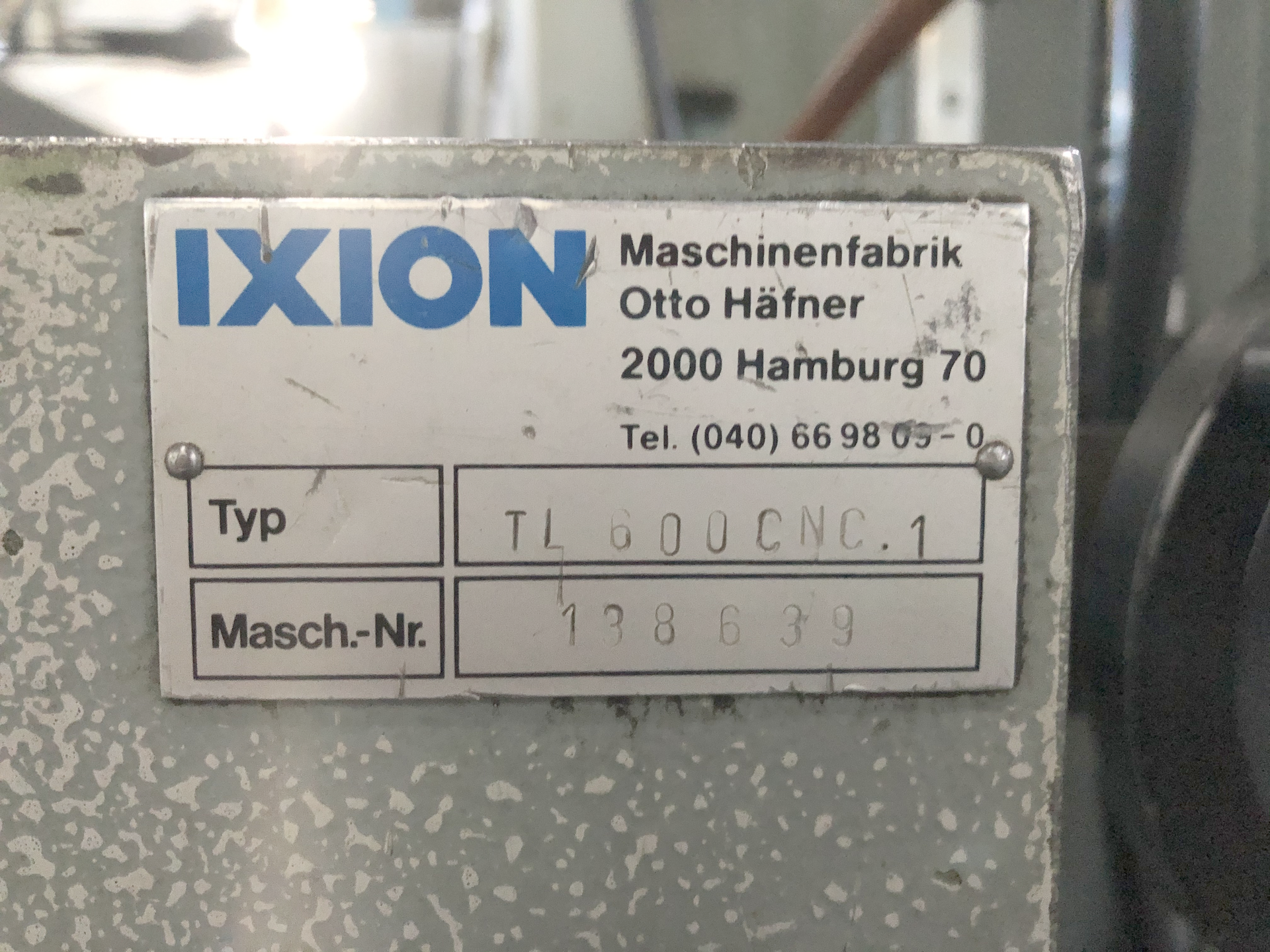

Type: TL 600 NC 1

Control: ELAU PT1

Stock: 020395

Download technical sheet (PDF)

Request Information

Max. drill depth	600 mm
Drill capacity in steel:
up to diameter	18 mm

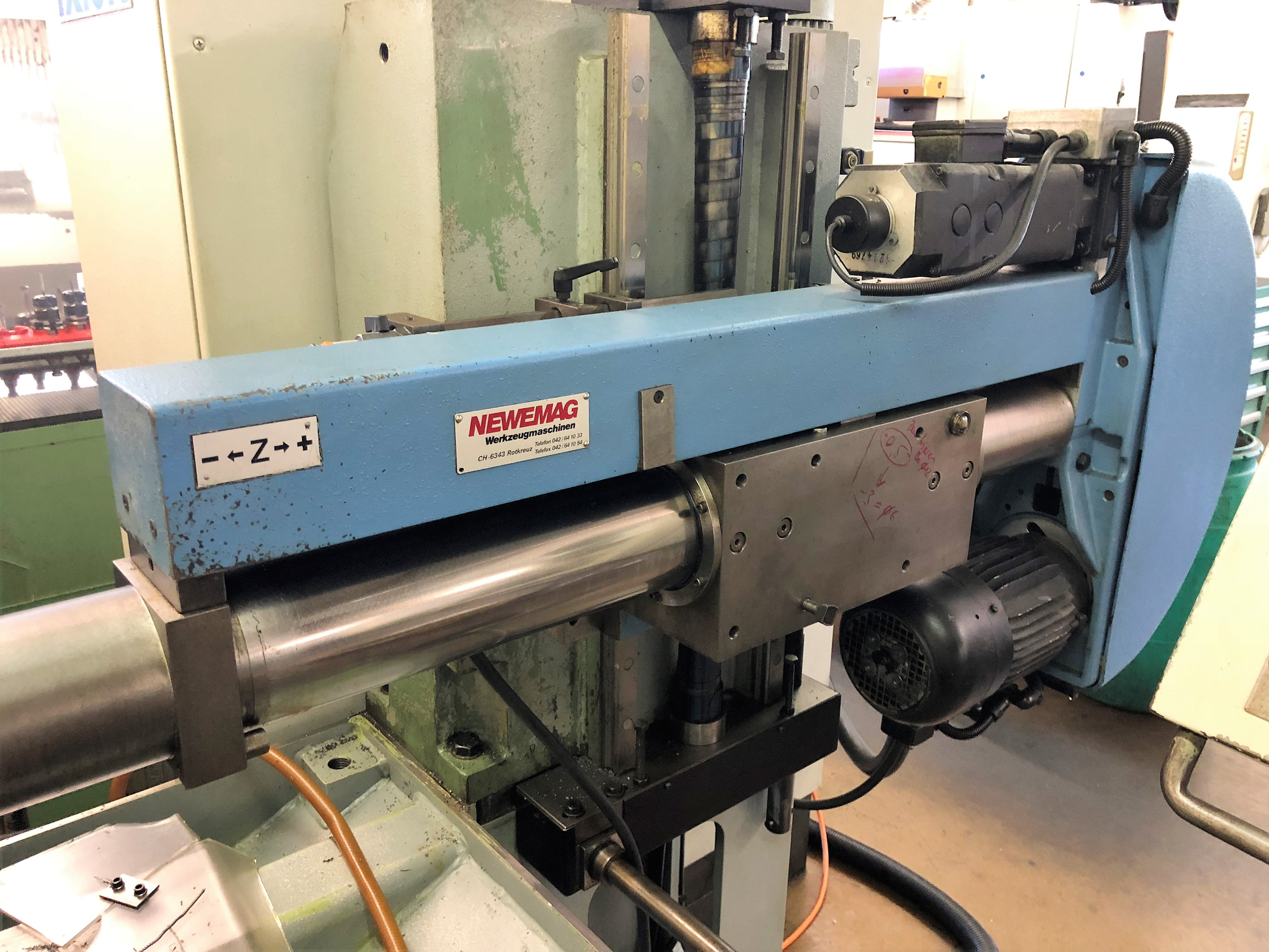

Spindle stroke	600 mm

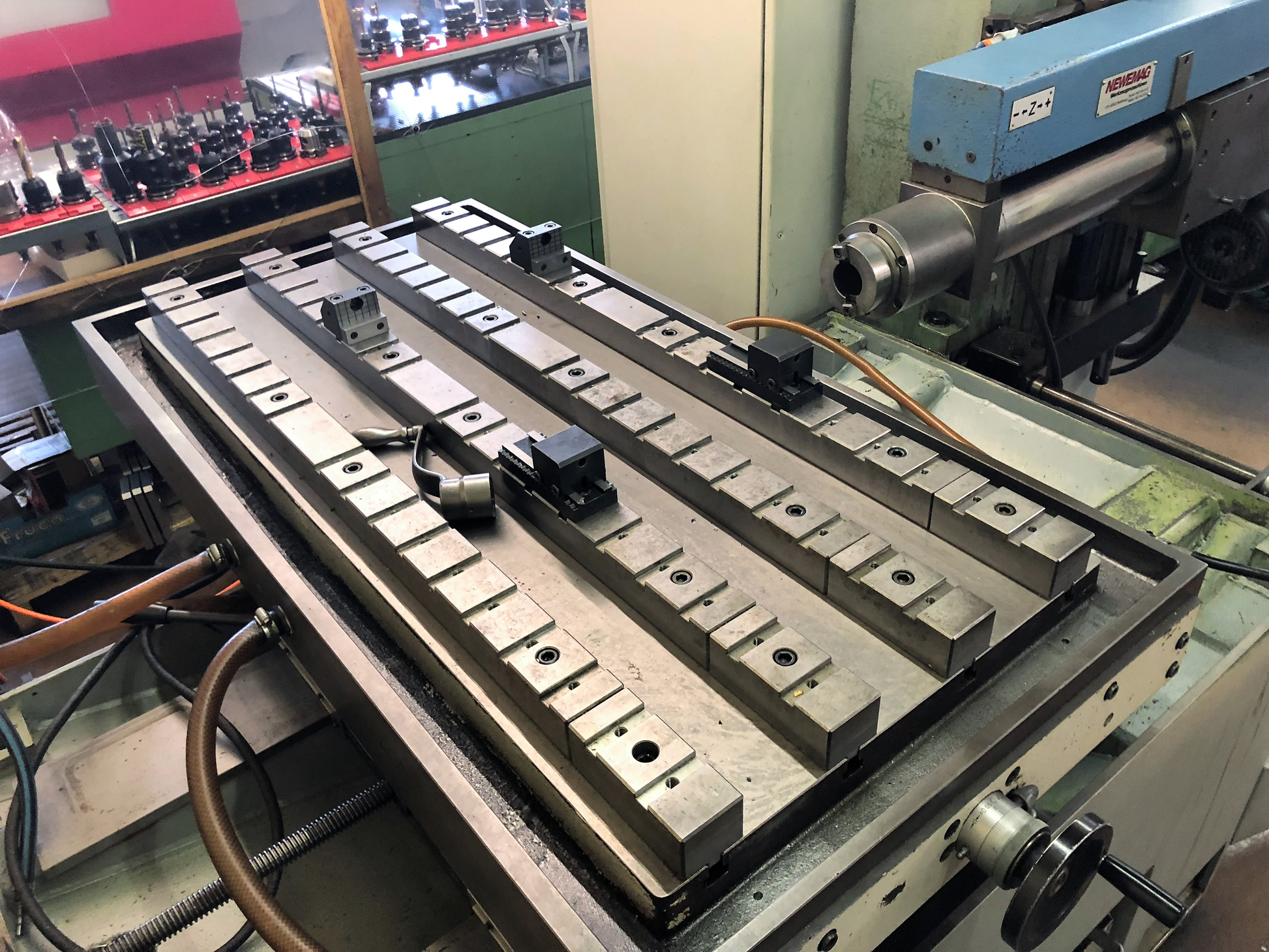

Table length	1375 mm
Table width	700 mm
rotatable	360 °
Max. loading	2000 kg
Longitudinal travel (X-axis)	700 mm
Transversal travel (y-axis)	500 mm
Spindle speeds:
up to	4000 t/min
Spindle nose SK	40
Voltage 50 Hz 3x	380 Volt
Spindle motor	2.3 kW
Machine's weight about	2800 kg
Overall dimensions machine:
Length	4500 mm
Width	1800 mm
Height	2700 mm
Various accessories:

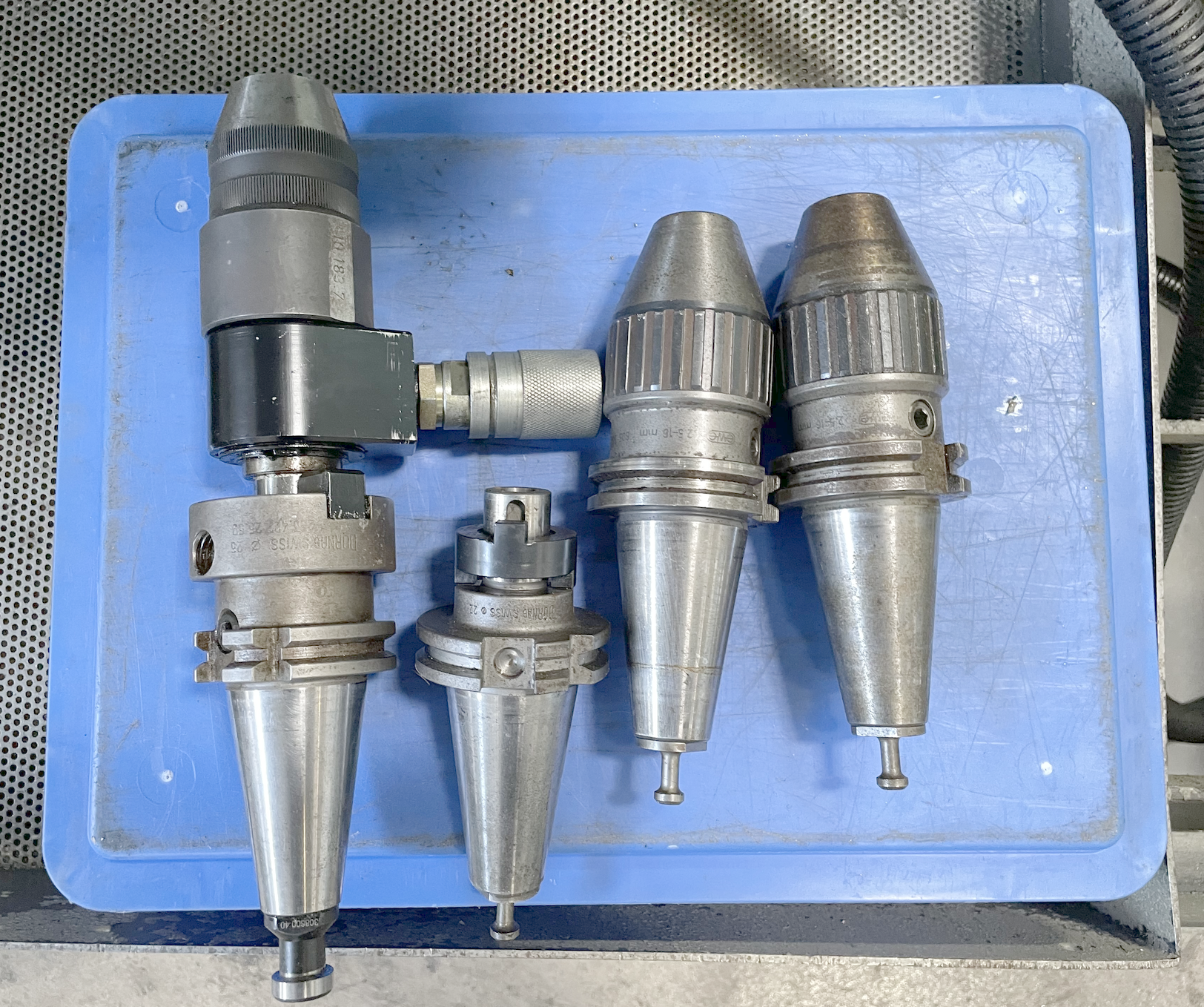

Drill chuck
Drill chuck with internal cooling

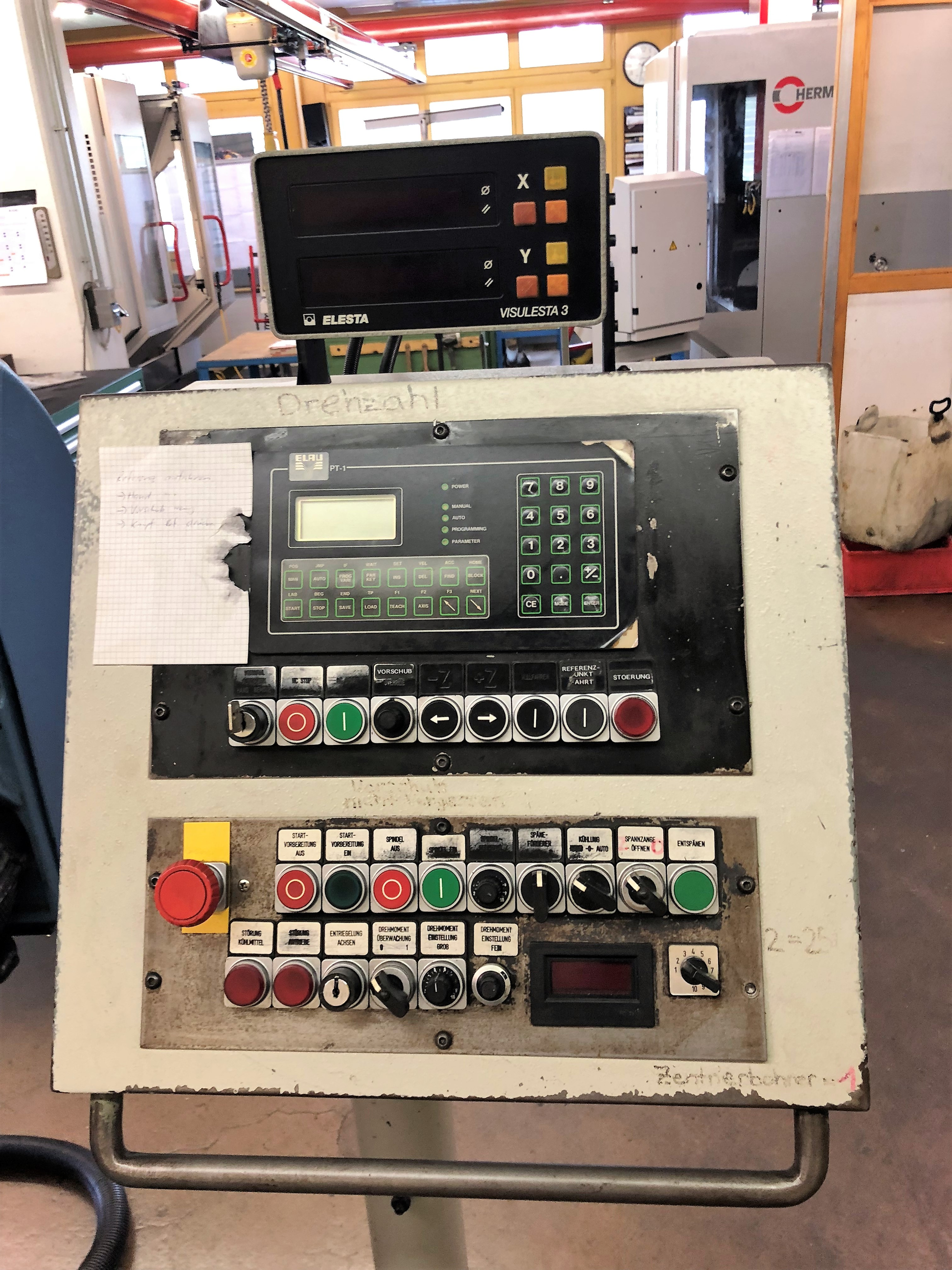

Digital readout number of axis:	2

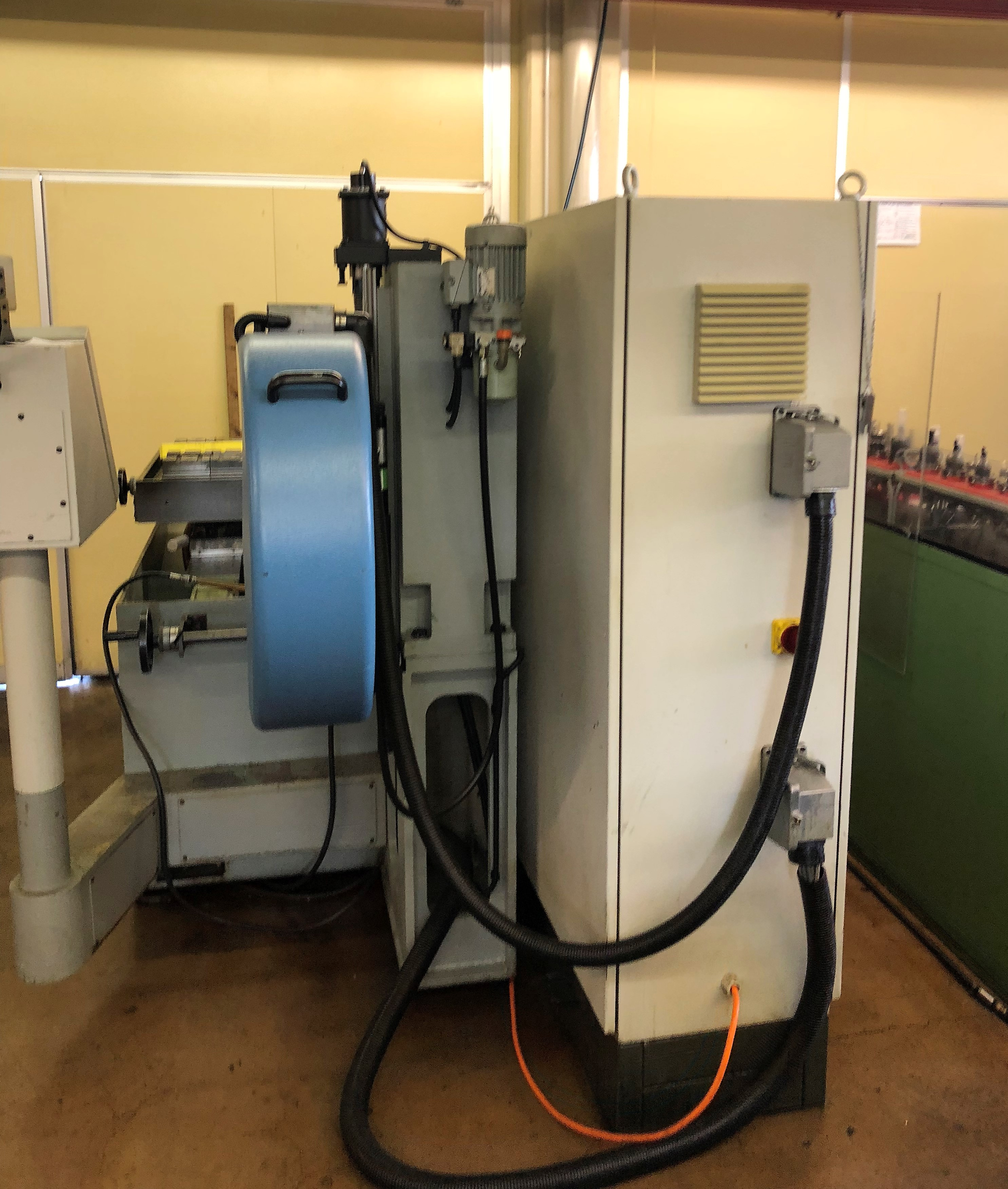

Coolant system
