ELB SMART BD10 STC is a CNC surface/profile grinder engineered for high precision, accuracy and reliability. Capacities: table 1360×590 mm, X1100 Z670 Y400 mm, grinding 1000×600 mm, table load 1000 kg. Specs: wheel Ø400×100 mm (bore127), 1450 rpm, spindle 10 kW, table 2–30 m/min stepless, feeds up to 2000/1500 mm/min, vertical rapid 1 m/min, 3×400V 50Hz, total 30 kW; machine ~6900 kg; dims 3550×2410×2660 mm. Accessories: coolant, paper filtration, oil‑mist extractor, magnetic plate 800×600, redressing/profile roll devices, wheel/flange sets, electronic handwheel. Achieves tight tolerances; suited to automotive, aerospace, toolmaking, medical, watchmaking.
| Table length | 1360 mm |
| Table width | 590 mm |
| Axial motion: | |
| Longitudinal travel (X-axis) | 1100 mm |
| Cross travel (z-axis) | 670 mm |
| vertical travel (Y-axis) | 400 mm |
| Table load max. | 1000 kg |
| Grinding length | 1000 mm |
| Grinding width | 600 mm |
| Grinding height over table | 640 mm |
| Grinding wheel: | |
| Diameter | 400 mm |
| Width | 100 mm |
| Bore | 127 mm |
| Grinding wheel speeds: | 1450 |
| Table speeds: | |
| stepless | |
| from | 2 m/min |
| up to | 30 m/min |
| Automatic cross feed: | |
| from | mm/min |
| up to | 2000 mm/min |
| Automatic vertical feed: | |
| from | mm/min |
| up to | 1500 mm/min |
| Vertical rapid traverse | 1 m/min |
| Noise level | 75 dB (A) |
| Voltage 50 Hz 3x | 400 Volt |
| Grinding spindle motor | 10 kW |
| Total power required | 30 kW |
| Machine's weight about | 6900 kg |
| Overall dimensions machine: | |
| Length | 3550 mm |
| Width | 2410 mm |
| Height | 2660 mm |
| Various accessories: | |
| Coolant system | |
| Paper filtration system | |

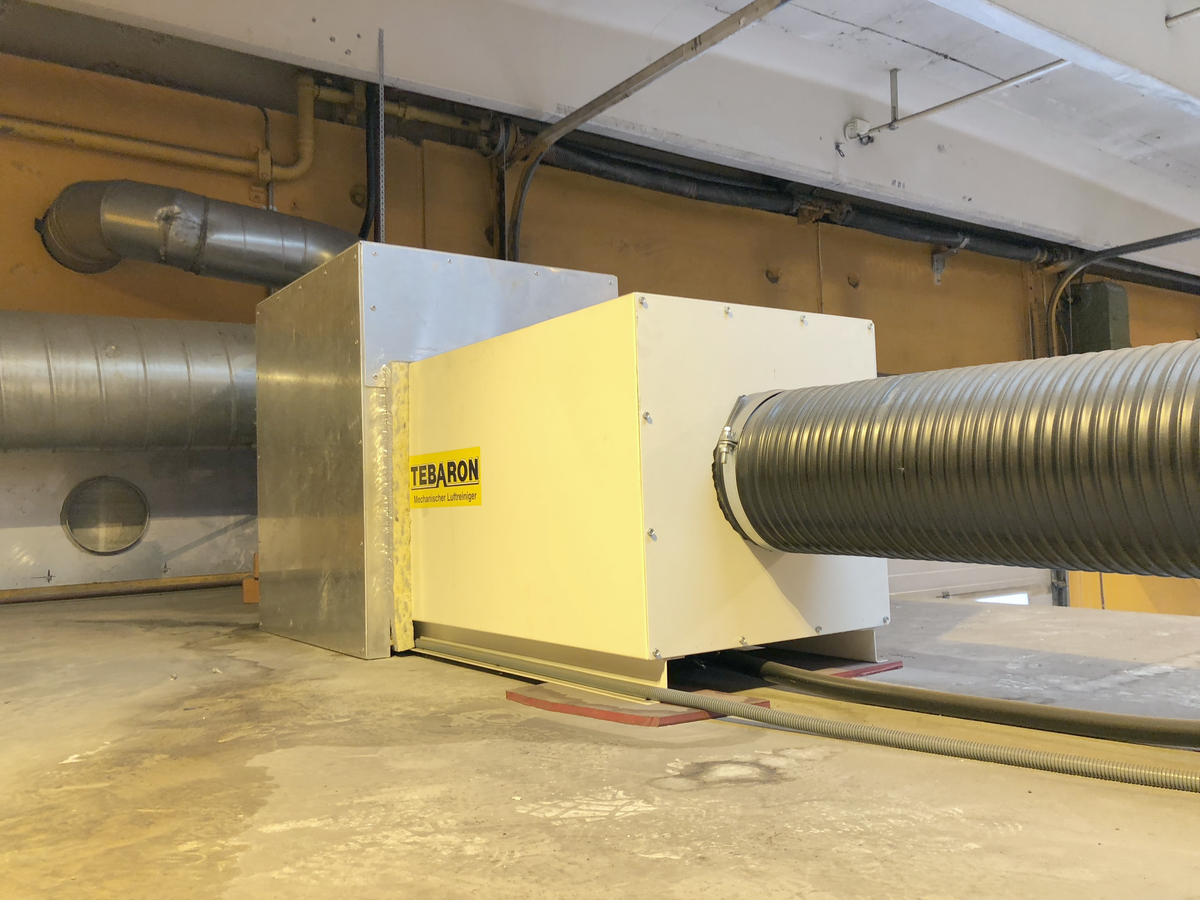

| Oil mist extractor | |
| Magnetic plate: | |
| Length | 800 mm |
| Width | 600 mm |
| Redressing device | |
| Profile roll dressing device | |
| Set of grinding wheels | |
| Set of flanges | |
| Handwheel electroinic |
