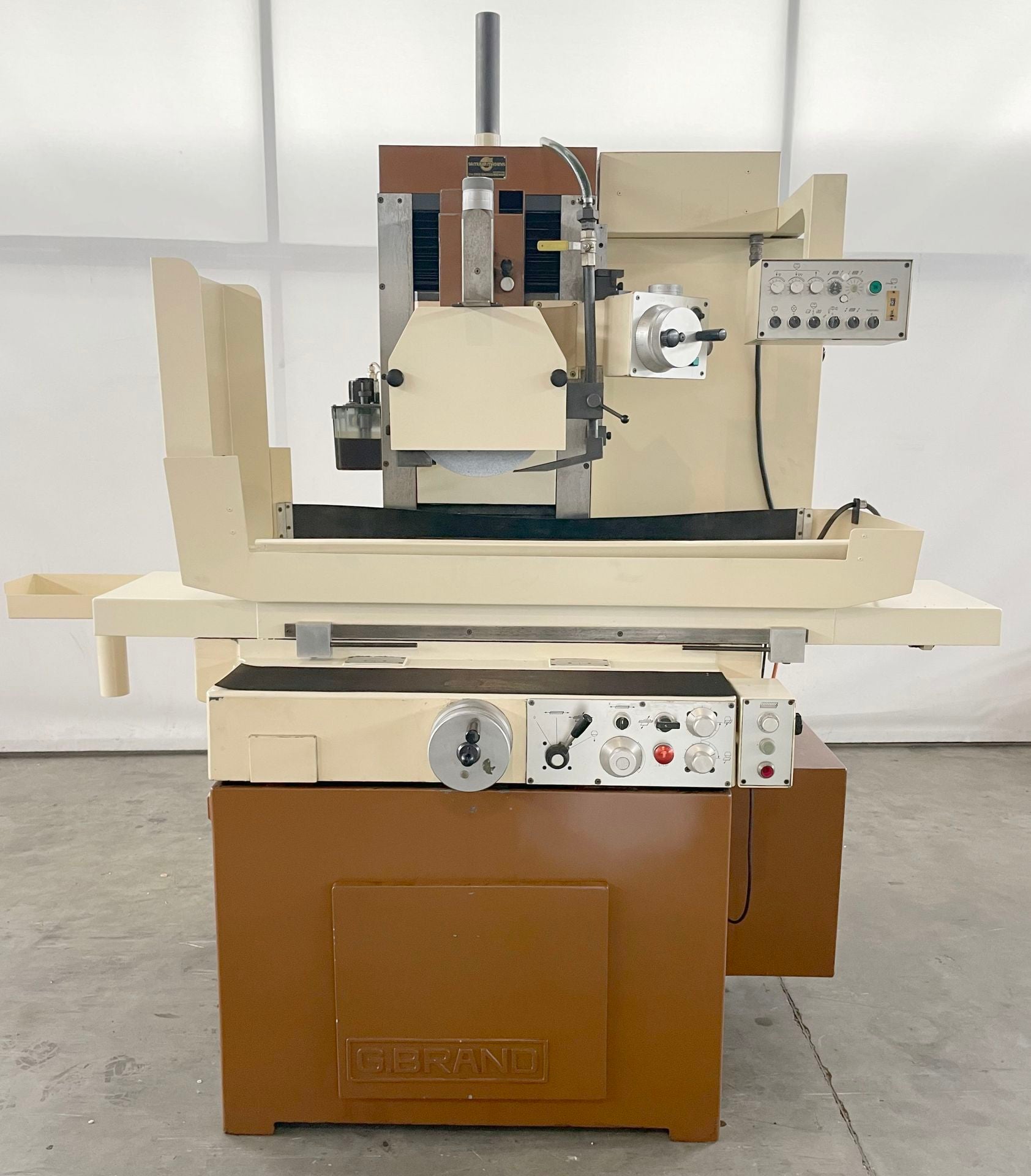

020244 - BRAND Compact 600
Download technical sheet (PDF)
Message us on WhatsApp
| Table length | 840 mm |
| Table width | 250 mm |
| Grinding length | 600 mm |
| Grinding width | 320 mm |
| hydraulic | |
| with automatic cycle | |
| to spindle-centreline | 500 mm |
| Longitudinal travel (X-axis) | 680 mm |
| Transversal travel (y axis) | 270 mm |
| Automatic cross-feed: | |
| stepless | |
| from | m/min |
| up to | 3 m/min |
| Table speeds: | |
| stepless | |
| from | 0 m/min |
| up to | 30 m/min |

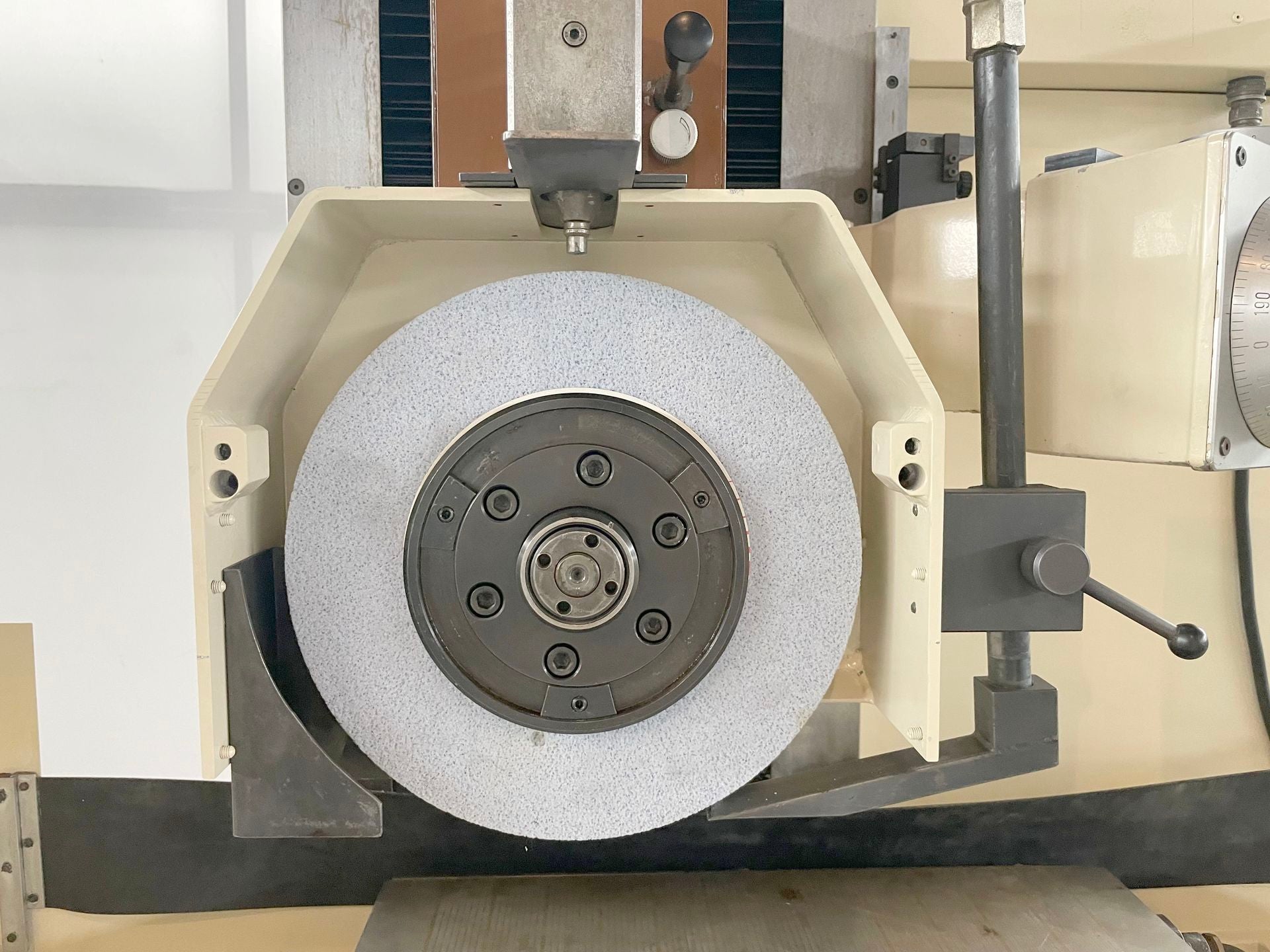

| Diameter of grinding wheel | 300 mm |
| Width of the grinding wheel | 50 mm |
| Wheel int. diameter | 127 mm |
| Grinding wheel speeds: | |
| stepless | |
| from | 665 t/min |
| up to | 2388 t/min |
| Voltage 50 Hz 3x | 400 Volt |
| Grinding spindle motor | 7.8 CV |
| Machine's weight about | 2600 kg |
| Overall dimensions machine: | |
| Length | 1880 mm |
| Width | 1430 mm |
| Height | 2300 mm |
| Various accessories: | |
| Coolant system | |
| Paper filtration system | |

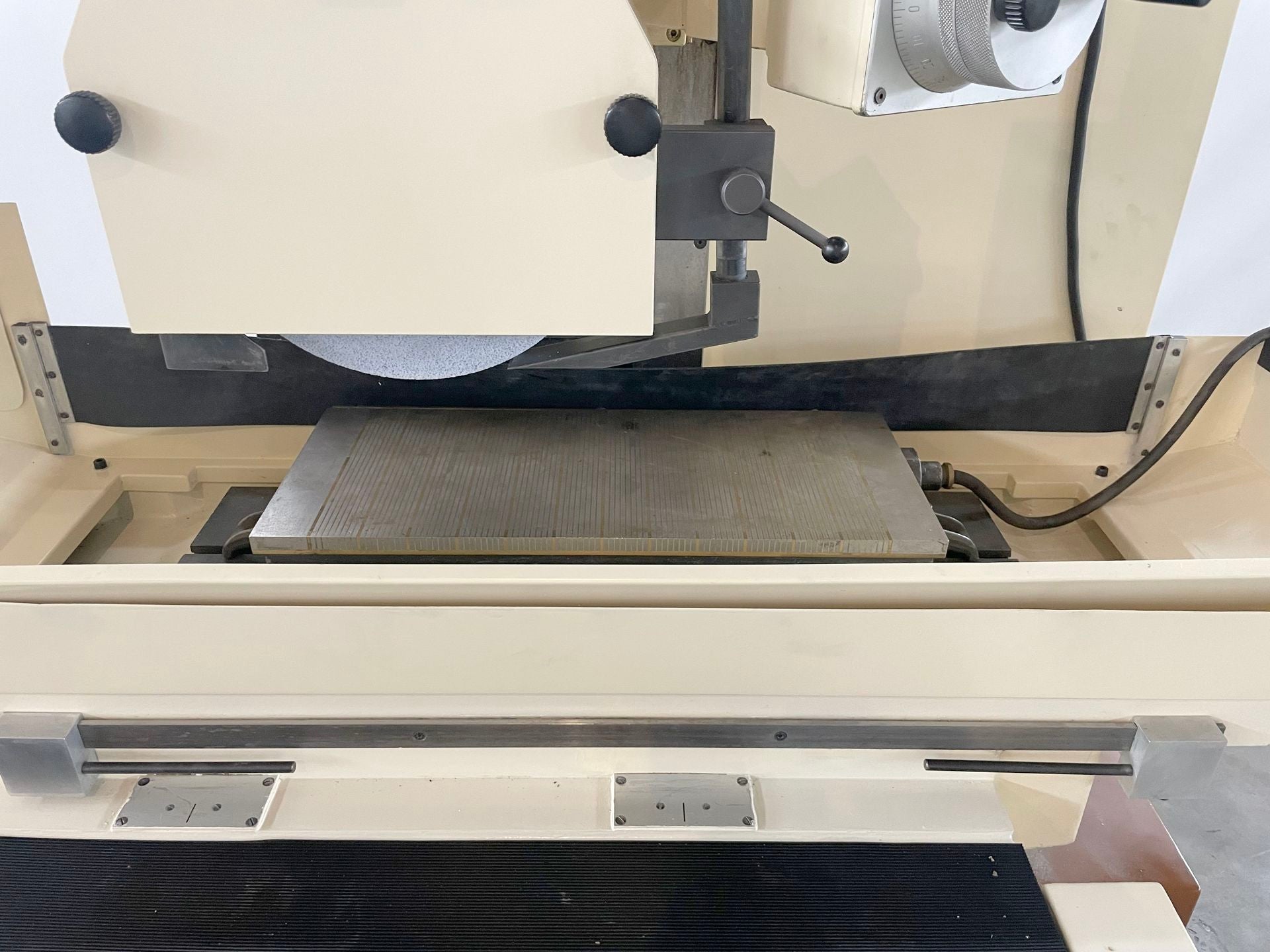

| Electrical magnetic chuck | |
| Length | 600 mm |
| Width | 250 mm |
| Central lubrification |
