AMADA ITS2 2
Type: ITS2 2
Manufacturer: AMADA
Group: Press brake
Subgroup: Press brake

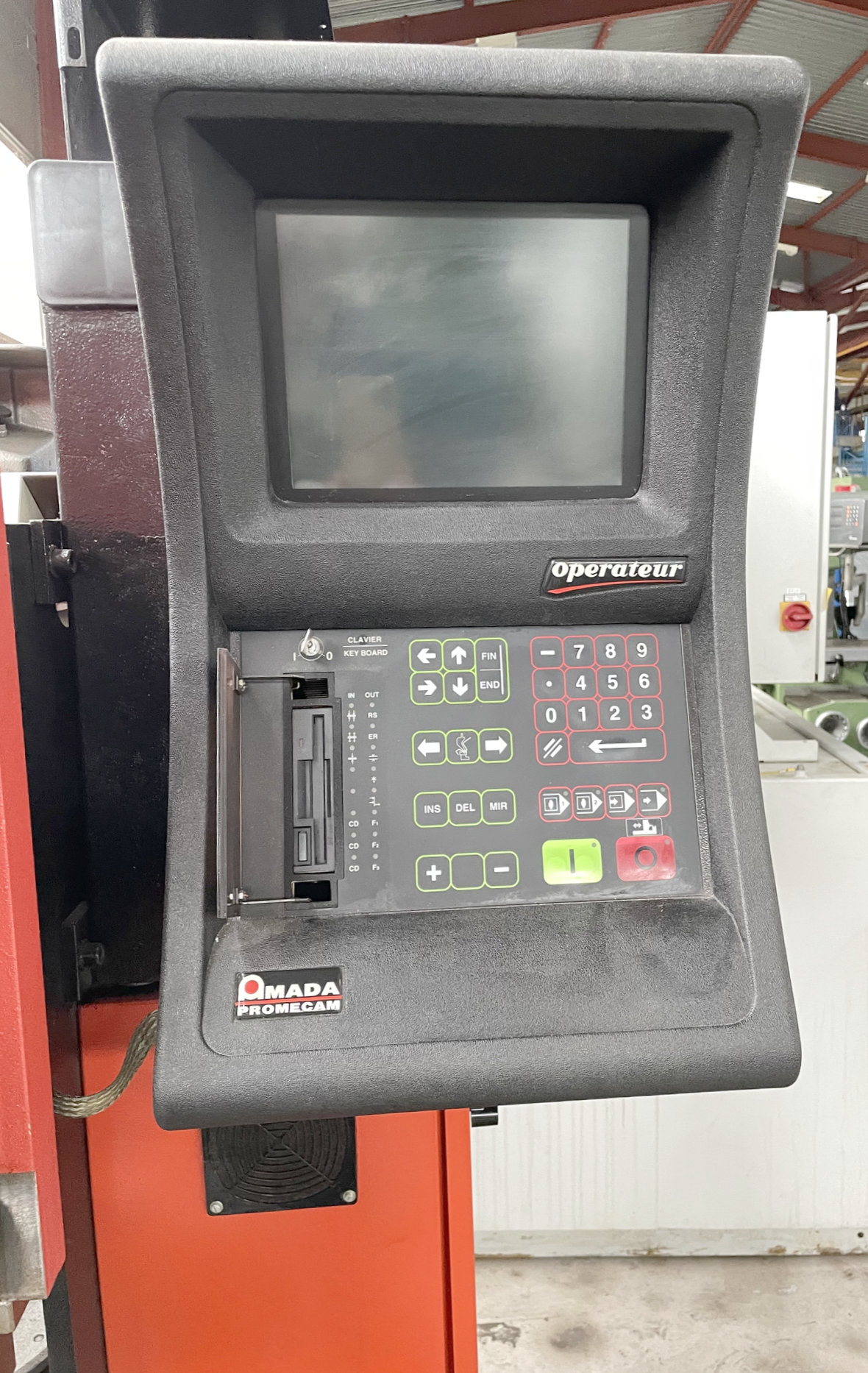

Control: PROMECAM
Stock: 020228

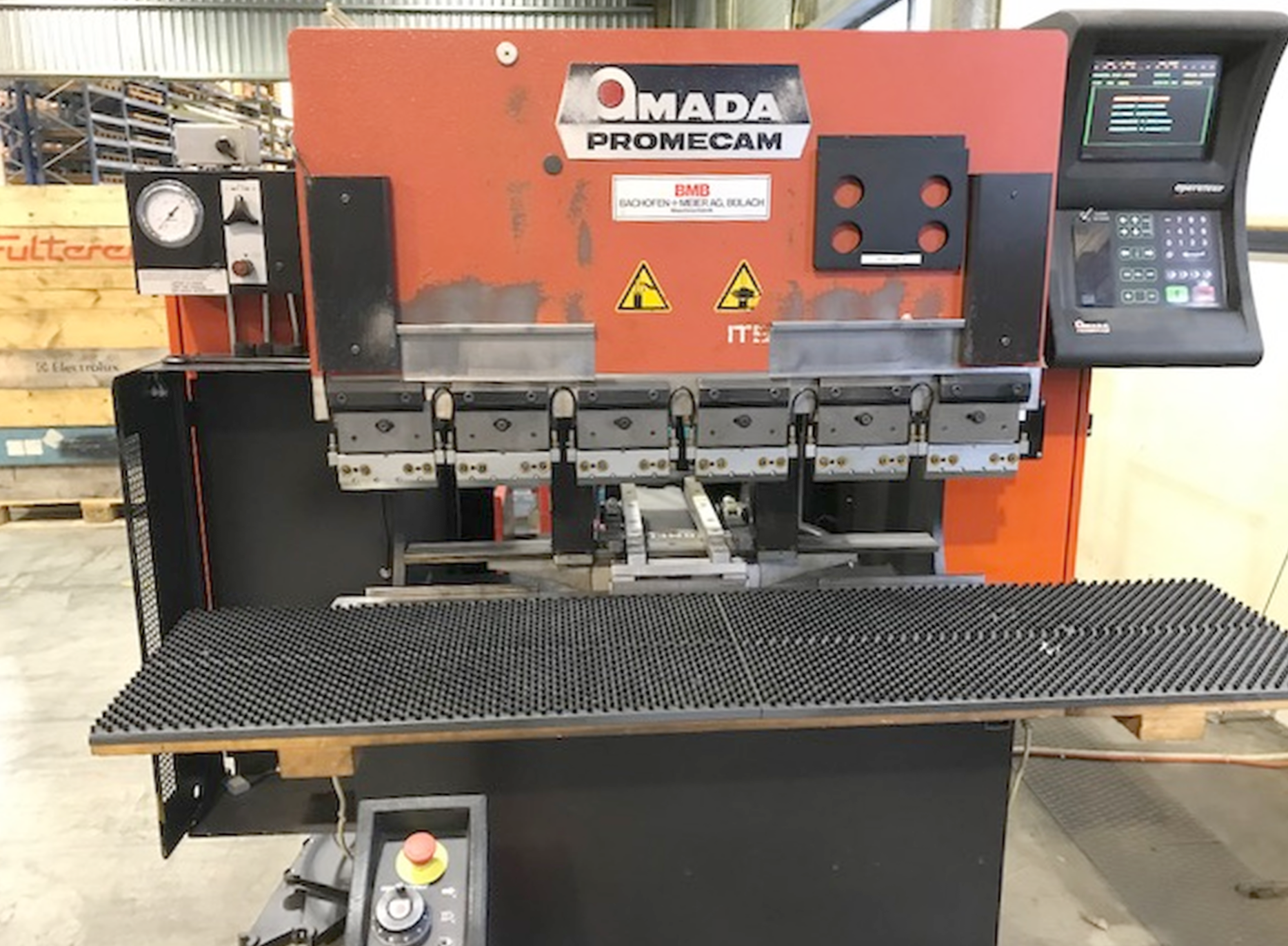

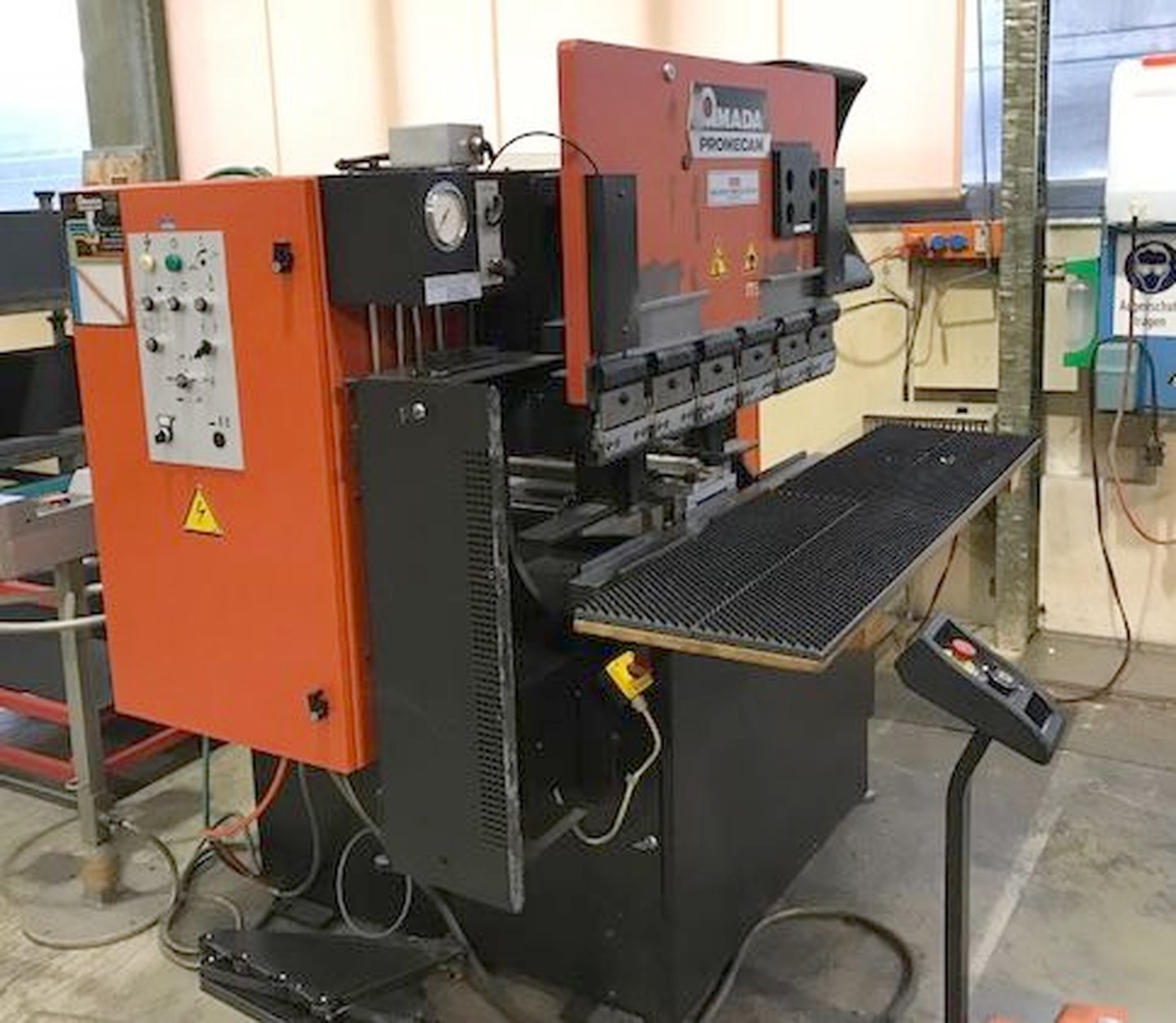

AMADA ITS2 2 is a Press brake with high precision, engineered for strong accuracy and reliability. Capacities: total 4 axes, pressure 25 t, max bending length 1250 mm, passage between press bars 320 mm, distance between uprights 1020 mm, max stroke 100 mm, throat depth 200 mm. Specs: feed rate 75 mm/s, working speed 10 mm/s, return 80 m/min, table 1200×60 mm h 865 mm, oil capacity 30 l, voltage 3x400 V 50 Hz, motor 4 kW, weight ≈1600 kg, overall dimensions L1800×W1200×H2000 mm. Achieves tight tolerances; typical sectors: automotive, aerospace, machine tools, medical, watchmaking.
| Number of axis total | 4 |
| Pressure | 25 to |
| Max. Bending length | 1250 mm |
| Passage between press bars | 320 mm |
| Distance between the | 1020 |
| Max. stroke | 100 mm |
| Depth of throat | 200 mm |
| Feed rate | 75 mm/s |
| Working speed | 10 mm/s |
| Return stroke speed | 80 m/min |
| Table length | 1200 mm |
| Table width | 60 mm |
| Table height | 865 mm |
| Number of spacers | 6 pce |
| Height of the spacers | 120 mm |
| Number of cylinder | 1 pce |
| Oil capacity | 30 l |
| Voltage 50 Hz 3x | 400 Volt |
| Motor power | 4 kW |
| Machine's weight about | 1600 kg |
| Overall dimensions machine: | |
| Length | 1800 mm |
| Width | 1200 mm |
| Height | 2000 mm |
