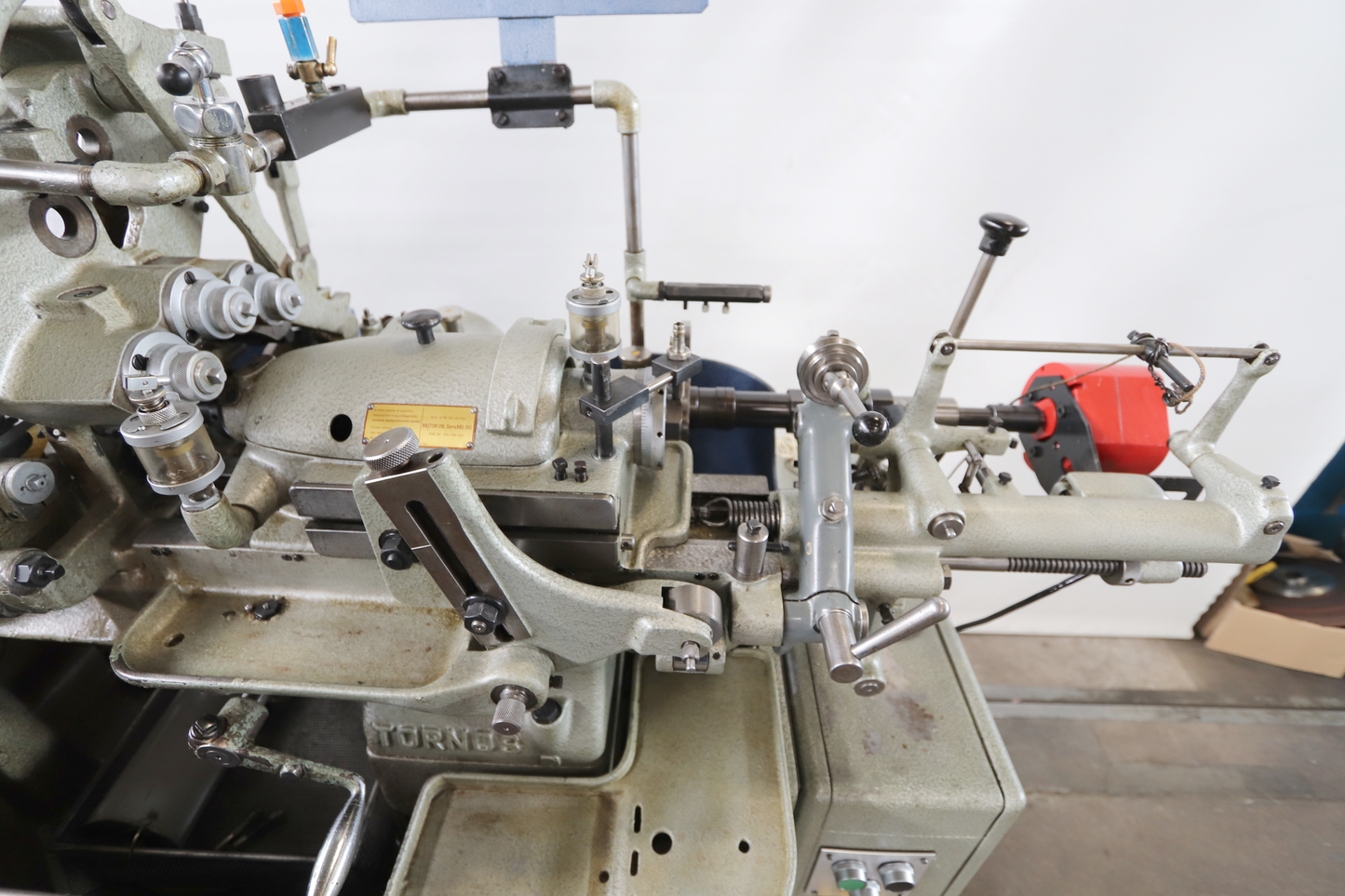

TORNOS M 7 is an automatic lathe, a high‑precision, highly accurate and reliable machine. Admits material Ø up to 7 mm; spindle hole 8 mm; with flat cames max turning length 60 mm; max threading diameter 6 M; 5 tool cutters. 20 spindle speeds from 1,400 to 10,000 t/min; 50 Hz 3x380 V; total power 2 CV; weight ≈520 kg; dimensions L1200×W700×H1400 mm. 3‑spindle drilling attachment: 13 Y. Achieves tight tolerances and suits precision sectors (e.g., watchmaking, medical, automotive, tooling).
| Diameter of work admitted | 7 mm |
| Max. turning length: | |
| with flat cames | 60 mm |
| Spindle hole | 8 mm |
| Max. treading diameter | 6 M |
| Number of tool cutters | 5 |
| Spindle speeds: | |
| Number of spindle speeds | 20 |
| from | 1400 t/min |
| up to | 10000 t/min |
| Voltage 50 Hz 3x | 380 Volt |
| Total power required | 2 CV |
| Machine's weight about | 520 kg |
| Overall dimensions machine: | |
| Length | 1200 mm |
| Width | 700 mm |
| Height | 1400 mm |
| Various accessories: | |
| 3-spindle drilling attachment | 13 Y |
