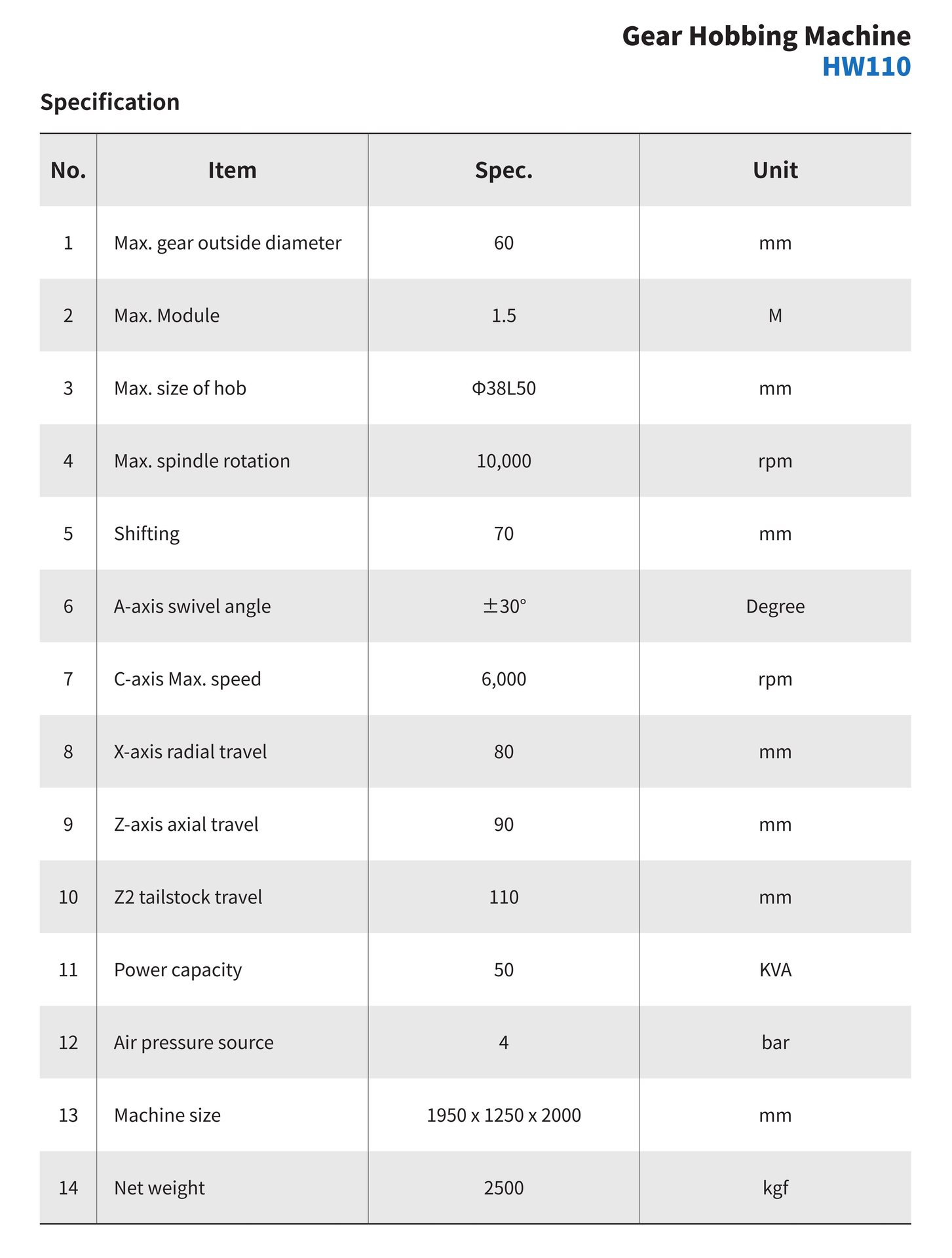

| Work capacity:max. diameter | 60 mm |
| Max. module | 1.5 |
| Pitch min. | 6 |
| max. | 390 |
| Working way: | |
| X axis | 80 mm |
| Z axis | 90 mm |
| Cutter diameter | 38 mm |
| Max. milling cutter displac. | 70 mm |
| Milling cutter speeds: | |
| up to | 10000 t/min |
| Max. milling head inclination | +/- 30 ° |
| Feeds: | |
| axial from | mm/min |
| up to | 1000 mm/min |
| radial from | mm/min |
| up to | 1000 mm/min |
| Power | 0.75 kW |
| Total power required | 50 kVA |
| Machine's weight about | 2500 kg |
| Overall dimensions machine: | |
| Length | 1950 mm |
| Width | 1250 mm |
| Height | 2000 mm |
| Various accessories: | |
| Set of gears | |
| Lamp | |
| Coolant system |

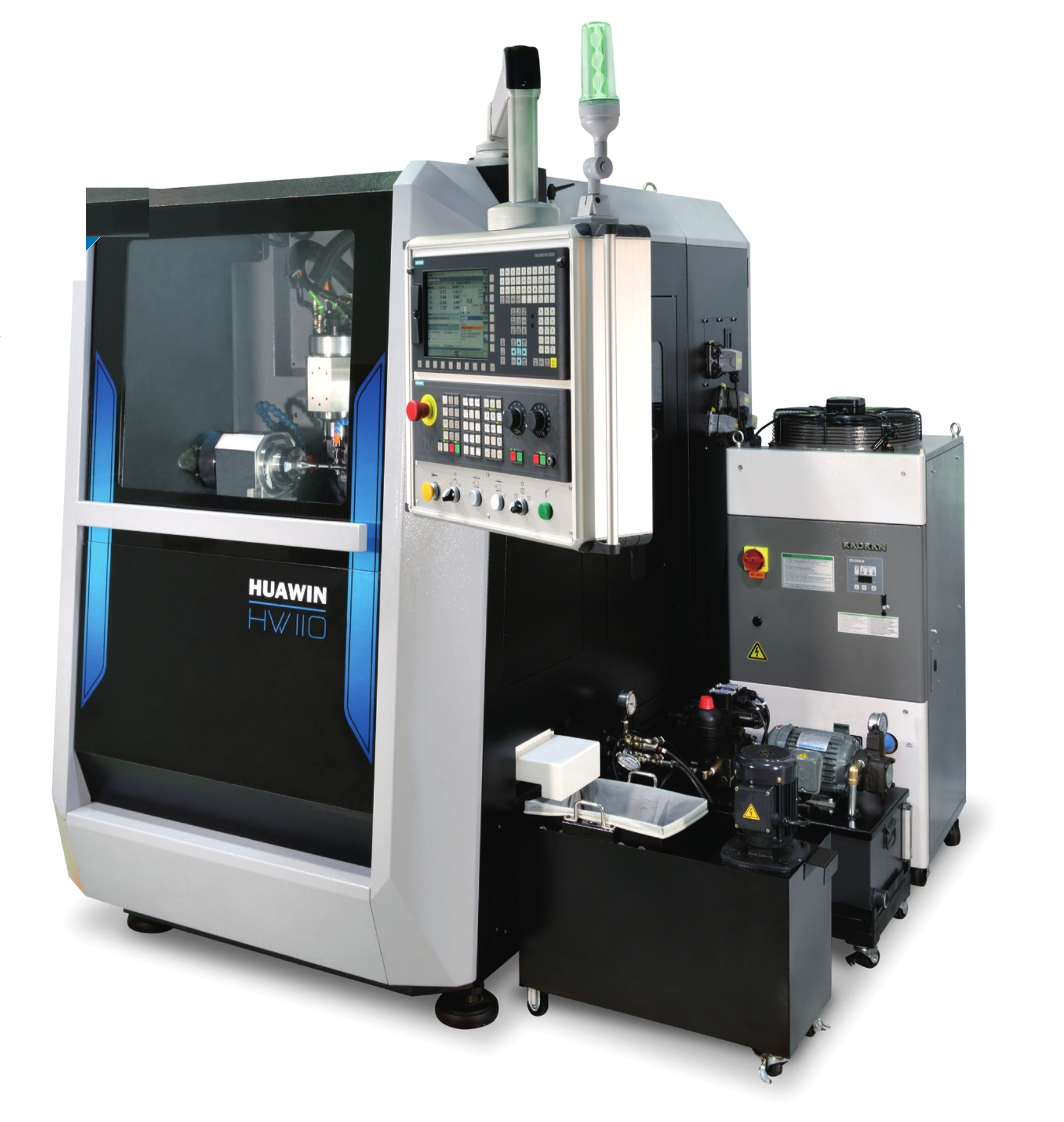

HUAWIN HW 110 is a CNC Gear Hobbing Machine engineered for precision, high accuracy and reliability. Work capacity: max diameter 60 mm; max module 1 / 1.5; teeth 6–390; max cutter displacement 60 mm; head inclination +/-45°. Cutter speeds 300–3000 t/min; axial and radial feeds up to 1000 mm/min. Power 0.75 kW; machine weight ≈1250 kg; dimensions L1800×W1730×H2300 mm. Accessories: set of gears, lamp, coolant system. Achieves tight tolerances; suited to automotive, watchmaking, machine tools, aerospace and medical sectors.
Technical specifications are subject to change without notice
