HAUSER OP 2 is a jig boring machine offering precision, high accuracy and reliable operation. Working capacities: table 400×300 mm, travels X 200 mm, Y 200 mm, Z 250 mm; drill capacity in steel 10 mm, drill depth 70 mm, distance table to spindle 320 mm; spindle speeds stepless from 150 to 3000 t/min. Main specs: spindle motor 1 CV, voltage 50 Hz 3x380 V, machine weight ≈700 kg, overall dimensions L1200×W1000×H1800 mm. Equipment: 2‑axis digital readout (PHILIPS), drill chuck, set of boring heads, centering microscope, set of drills, layout device. Achieves tight tolerances; ideal for automotive, watchmaking, machine‑tool, aerospace and medical sectors.
| Table length | 400 mm |
| Table width | 300 mm |
| Longitudinal travel (X-axis) | 200 mm |
| Transversal travel (y-axis) | 200 mm |
| Vertical travel (z axis) | 250 mm |
| Drill capacity in steel | 10 mm |
| Taper in spindle: MT | |
| Drill depth (spindle stroke) | 70 mm |
| Distance table to spindle | 320 mm |
| Spindle speeds: | |
| stepless | |
| from | 150 t/min |
| up to | 3000 t/min |
| Feeds: | |
| Drill spindle slide: | |
| from | mm/t |
| Voltage 50 Hz 3x | 380 Volt |
| Spindle motor | 1 CV |
| Machine's weight about | 700 kg |
| Overall dimensions machine: | |
| Length | 1200 mm |
| Width | 1000 mm |
| Height | 1800 mm |
| Various accessories: | |
| Digital readout number of axis: | 2 |
| Manufacturer | PHILIPS |
| Drill chuck | |

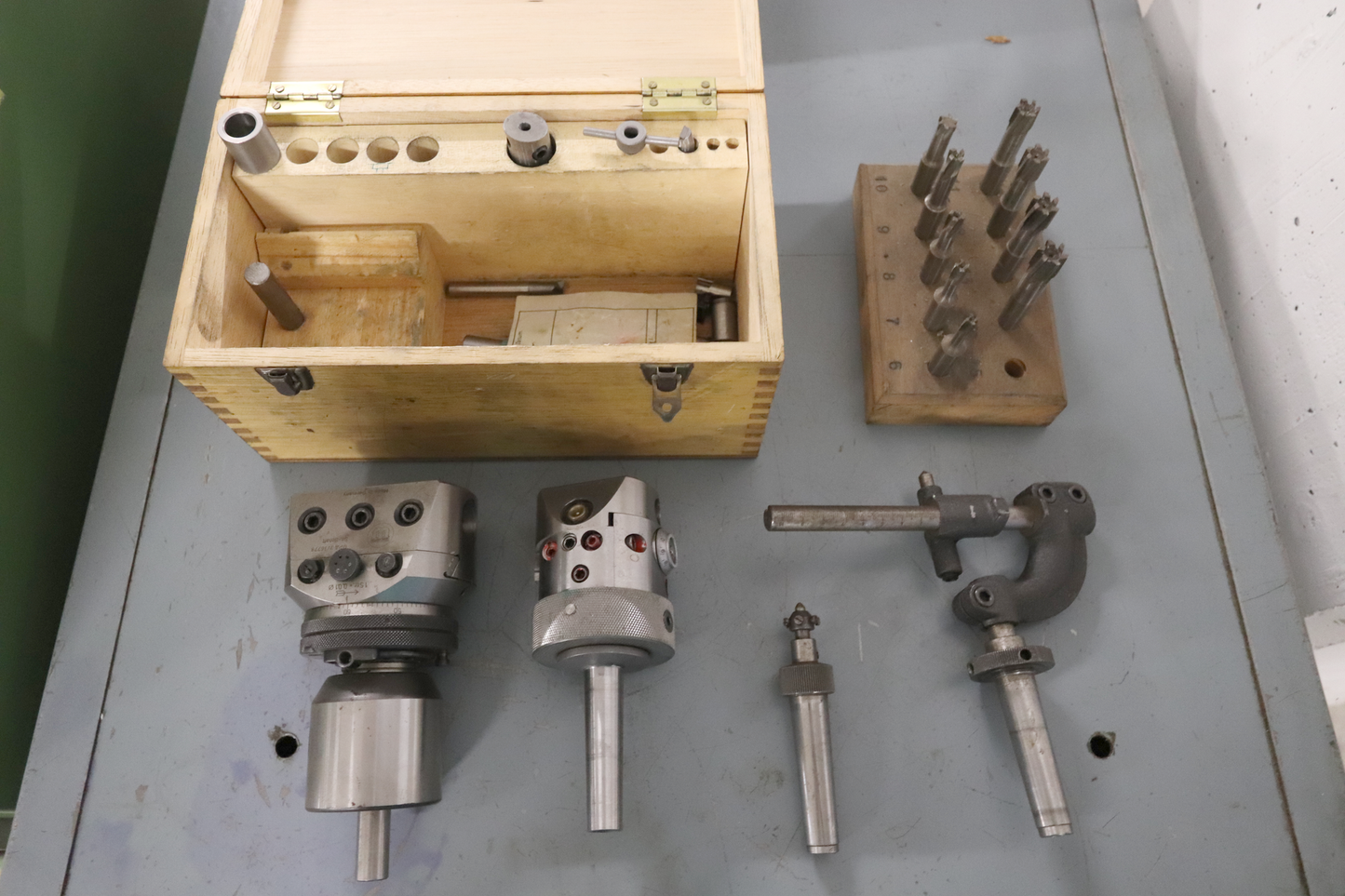

| Set of boring head | |
| Centering microscop | |
| Set of drills | |
| Device for laying out |
