TRIPET MUS 100 is an internal grinding machine of high precision, engineered for superior accuracy and reliability. Capacities: min internal diameter 1 mm, max 20 mm, grinding depth 100 mm, centre height 60 mm, distance between centres 150 mm. Main specs: workpiece spindle 3 steps 560–1000 t/min; grinding spindle 90.000–120.000 t/min; spindle hole 12 mm; taper 12 W; rotatable grinding spindle head (B) ±45°; supply 50 Hz 3x380 V; weight ≈250 kg; overall L900×W750×H1300 mm. Accessories: AMI 25, set of flanges, collets W12, lamp, air spindle, service tool set. Achieves tight tolerances; typical applications: automotive, watchmaking, machine tools, aerospace, medical.
| Min. internal grinding diameter | 1 mm |
| Max. internal grinding diameter | 20 mm |
| Grinding depth | 100 mm |
| Centre height | 60 mm |
| Distance between centres | 150 mm |
| Workpiece spindle speeds: | |
| number (steps) | 3 |
| from | 560 t/min |
| up to | 1000 t/min |
| Spindle hole | 12 mm |
| Taper in spindle: | 12 W |
| Grinding spindle speeds: | |
| from | 90000 t/min |
| up to | 120000 t/min |
| Rotatable grinding spindle head (b-axis) | + 45 / - 45 ° |
| Voltage 50 Hz 3x | 380 Volt |
| Machine's weight about | 250 kg |
| Overall dimensions machine: | |
| Length | 900 mm |
| Width | 750 mm |
| Height | 1300 mm |
| Various accessories: | |
| Automatic internal grinding support | AMI 25 |
| Set of flanges | |

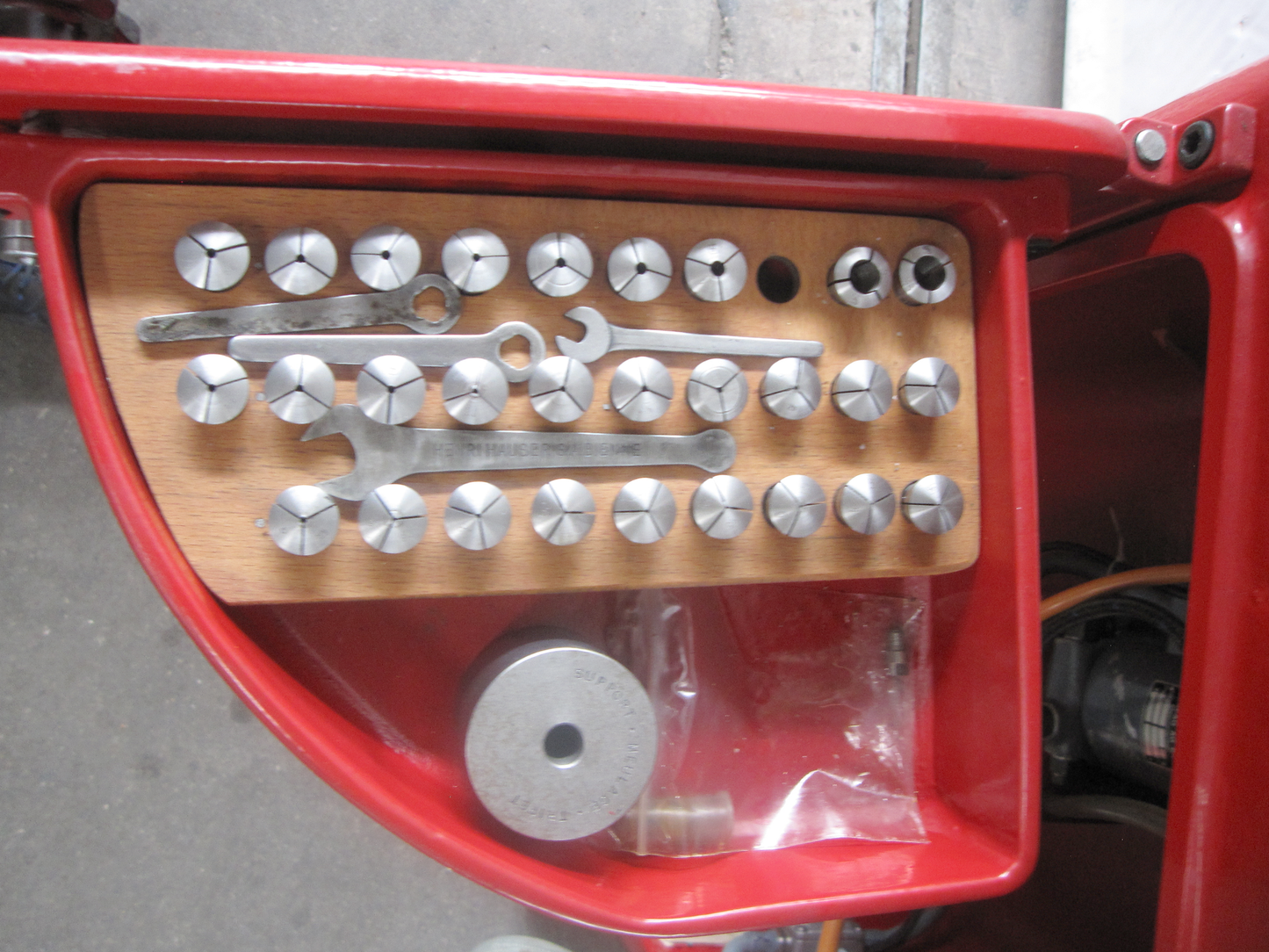

| Set of collets | W 12 |
| Lamp | |
| Air spindle | |
| Set of service tools |
