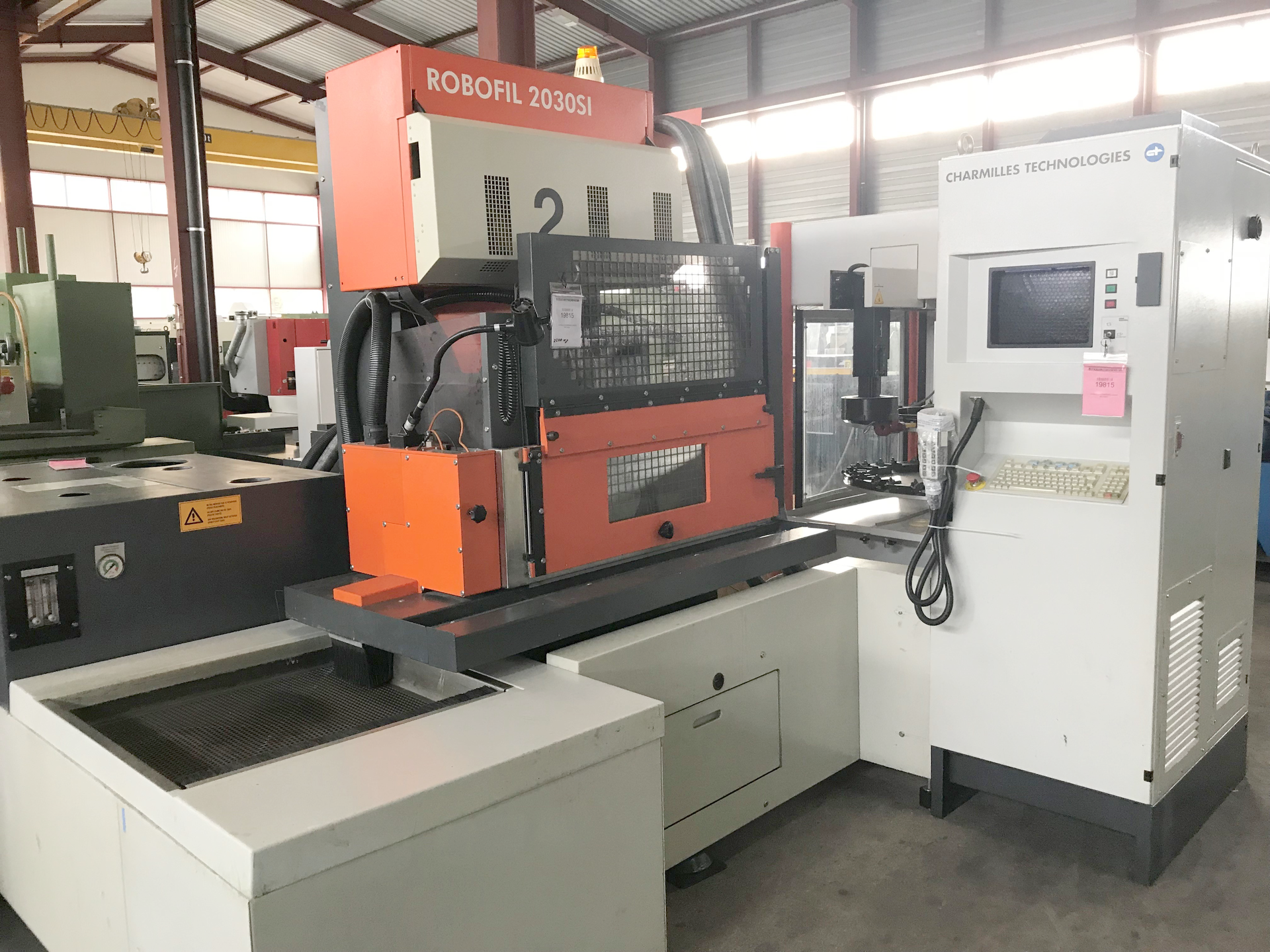

AGIE CHARMILLES ROBOFIL 2030 SI
Type: ROBOFIL 2030 SI
Manufacturer: AGIE CHARMILLES
Group: Wire cutting machine
Subgroup: Wire cutting machine

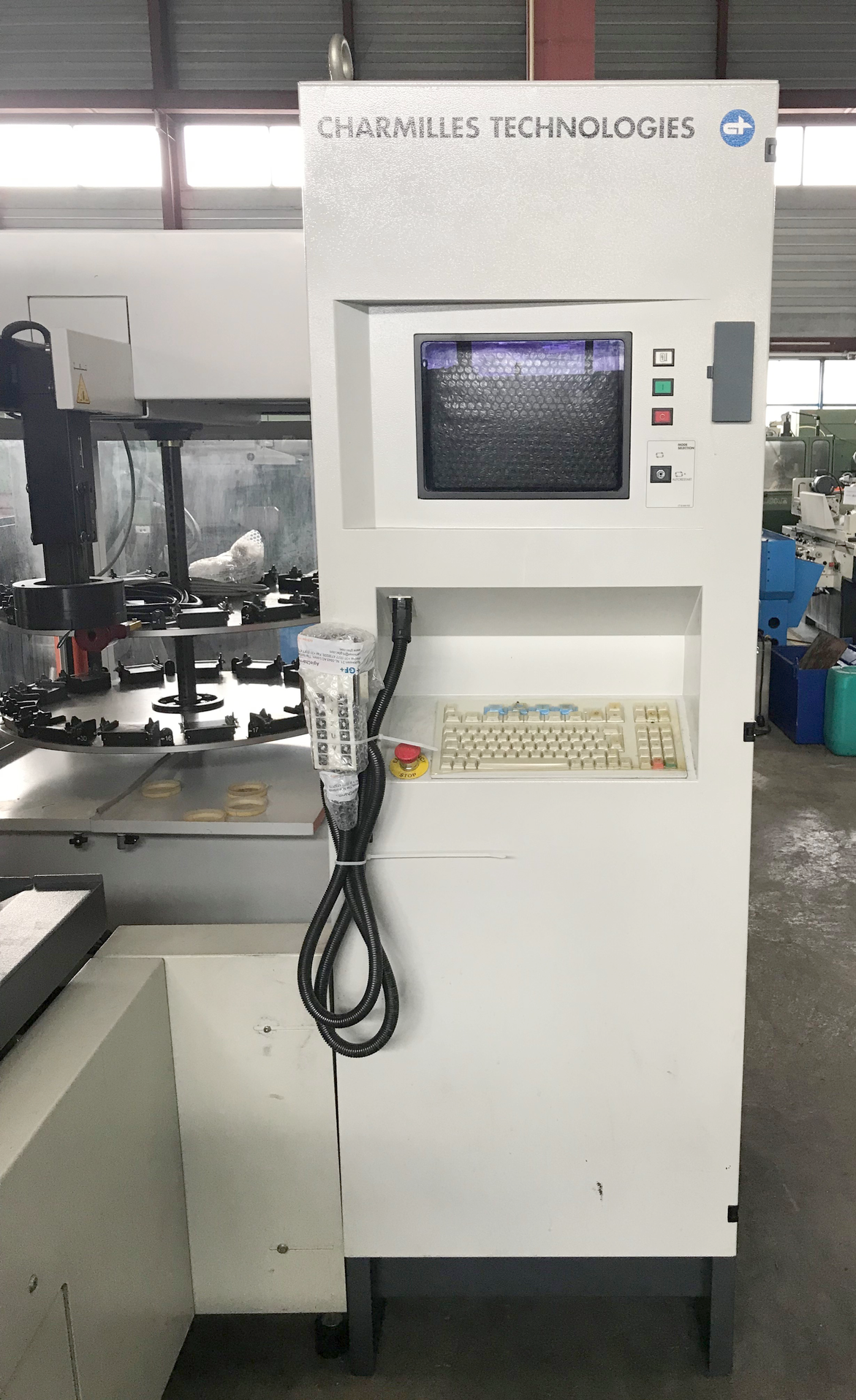

Control: CHARMILLES
Year: 2000
Stock: 019815
Special Price
CHF 14 000
Special offer machines are sold as-is, without any warranty or inspection from us.

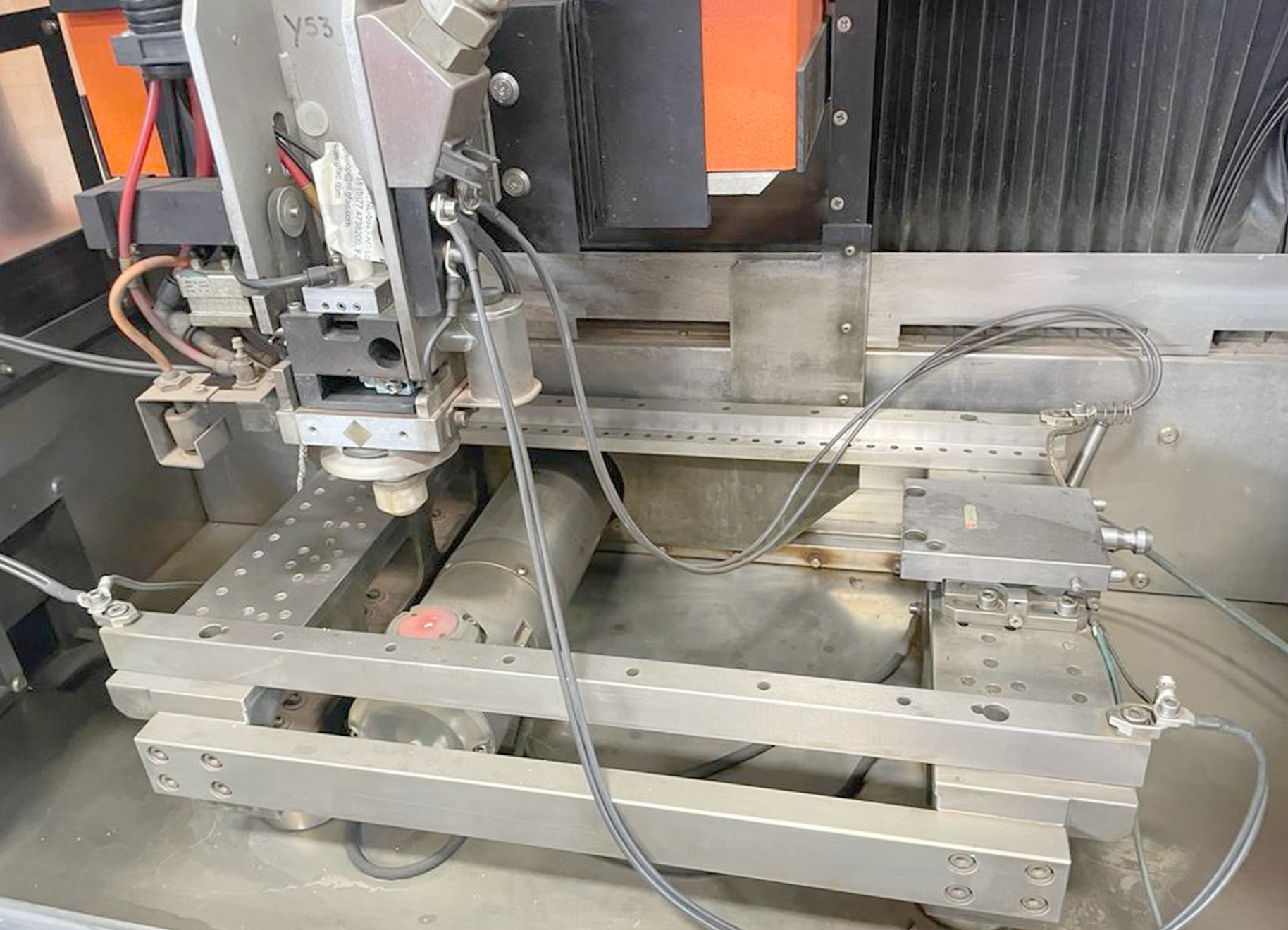

AGIE CHARMILLES ROBOFIL 2030 SI is a wire cutting machine engineered for precision, high accuracy and reliable performance. Working capacities: table 560x440 mm; max workpiece 1130x510x260 mm; table load 500 kg; travels X 318 mm, Y 218 mm, Z 114 mm; U/V axes ±48 mm; taper cut ±30/65°. Main specs: electrode wire from 0.1 mm (upper limit not specified); wire feed up to 15 m/min; max coil weight 16 kg; cut capacity up to 300 mm2/min; dielectric 240 L; empty weight 4400 kg; supply 3x380 V 50 Hz; total power 12 kVA; machine size 3700x2600x2300 mm; total weight ≈4500 kg. Accessories: automatic wire threading; clamping set 3 pcs; EROWA pallet changer 30 positions; 3 workpiece holders. Delivers tight tolerances; suited to automotive, aerospace, watchmaking, medical and machine tool sectors
| Working table: | |
| Length | 560 mm |
| Width | 440 mm |
| Max. dimensions of work piece: | |
| Length | 1130 mm |
| Width | 510 mm |
| Height | 260 mm |
| Table load max. | 500 kg |
| Longitudinal traverse (X-axis) | 318 mm |
| Cross traverse (Y-axis) | 218 mm |
| Vertical travel (Z axis) | 114 mm |
| U axis | +/-48 mm |
| V-axis | +/-48 mm |
| U/V axis travel | 48 mm |
| Taper-cut +/- | 30/65mm ° |
| Diameter of electrode wire: | |
| from | 0.1 mm |
| up to | mm |
| Forward feed for wire elctrode: | |
| from | m/min |
| up to | 15 m/min |
| Max. coil weigth | 16 kg |
| Dielectric aggregate: | |
| Empty weight | 4400 kg |
| Contents | 240 l |
| Generator: | |
| Cut capacity max. from | 300 mm2/min |
| Voltage 50 Hz 3x | 380 Volt |
| Total power required | 12 kVA |
| Weight total installation approx. | 4500 kg |
| Overall dimensions machine: | |
| Length | 3700 mm |
| Width | 2600 mm |
| Height | 2300 mm |
| Various accessories: | |

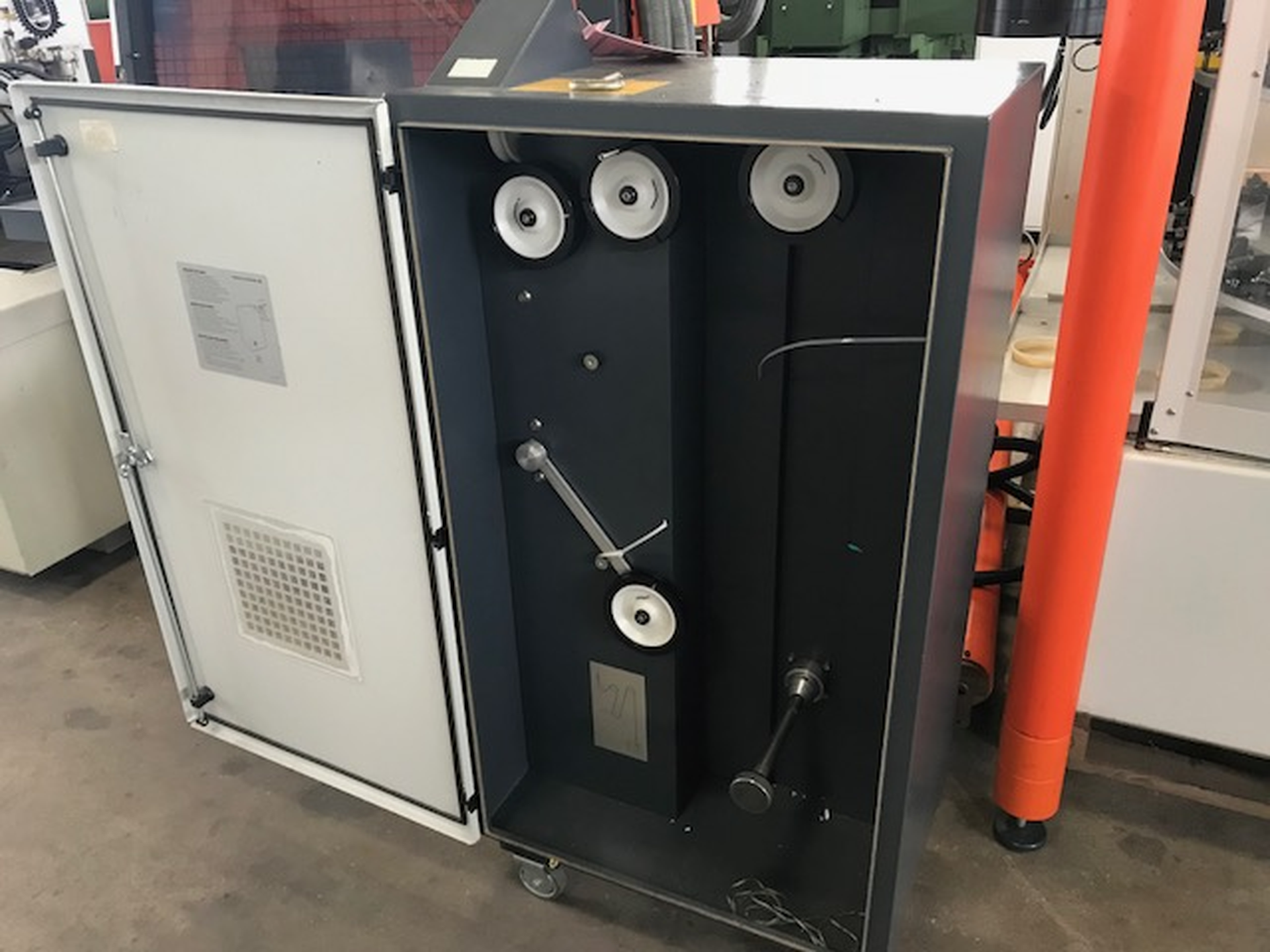

| Automatic wire treading | |

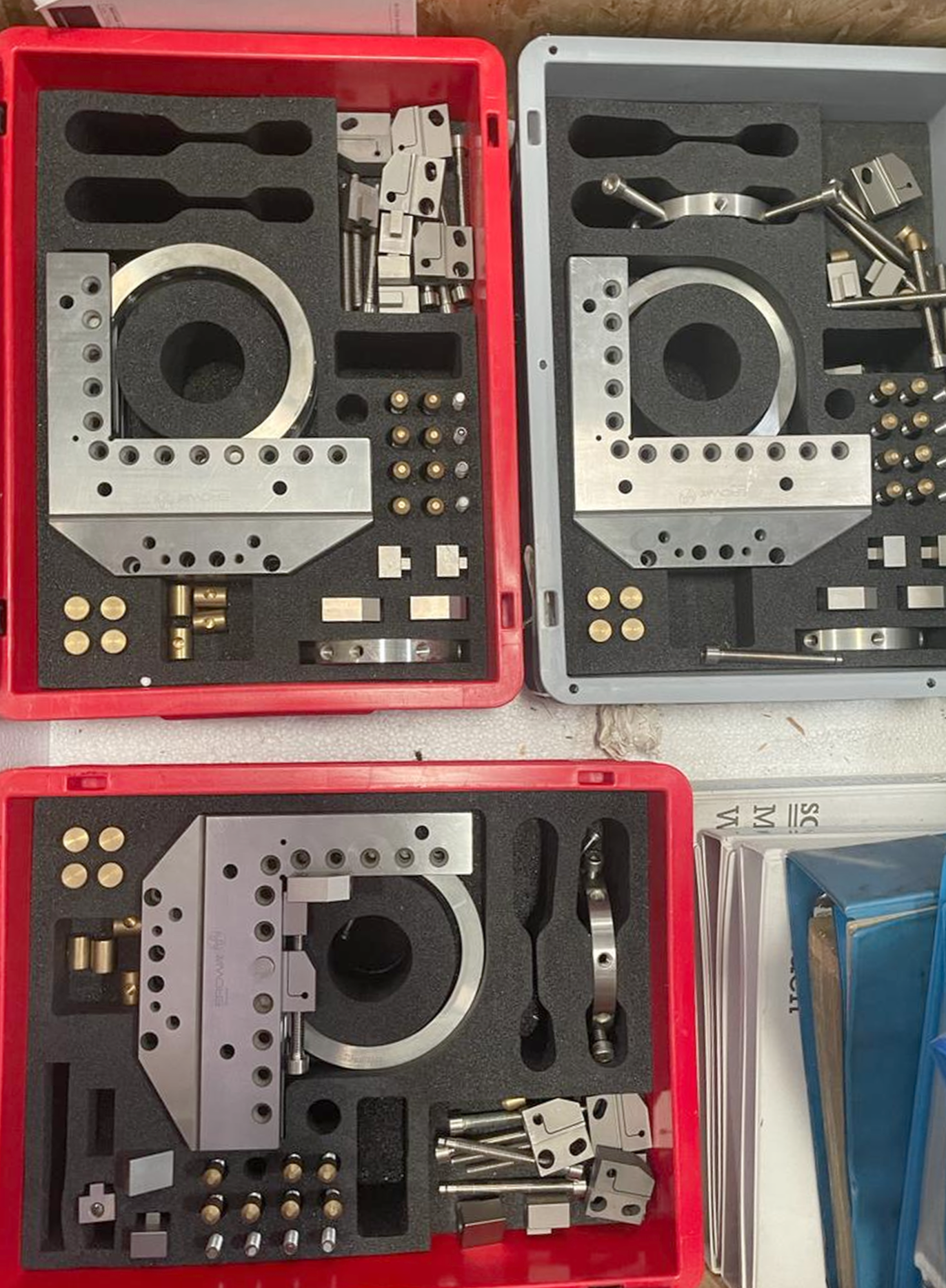

| Clamping set | 3 pce |

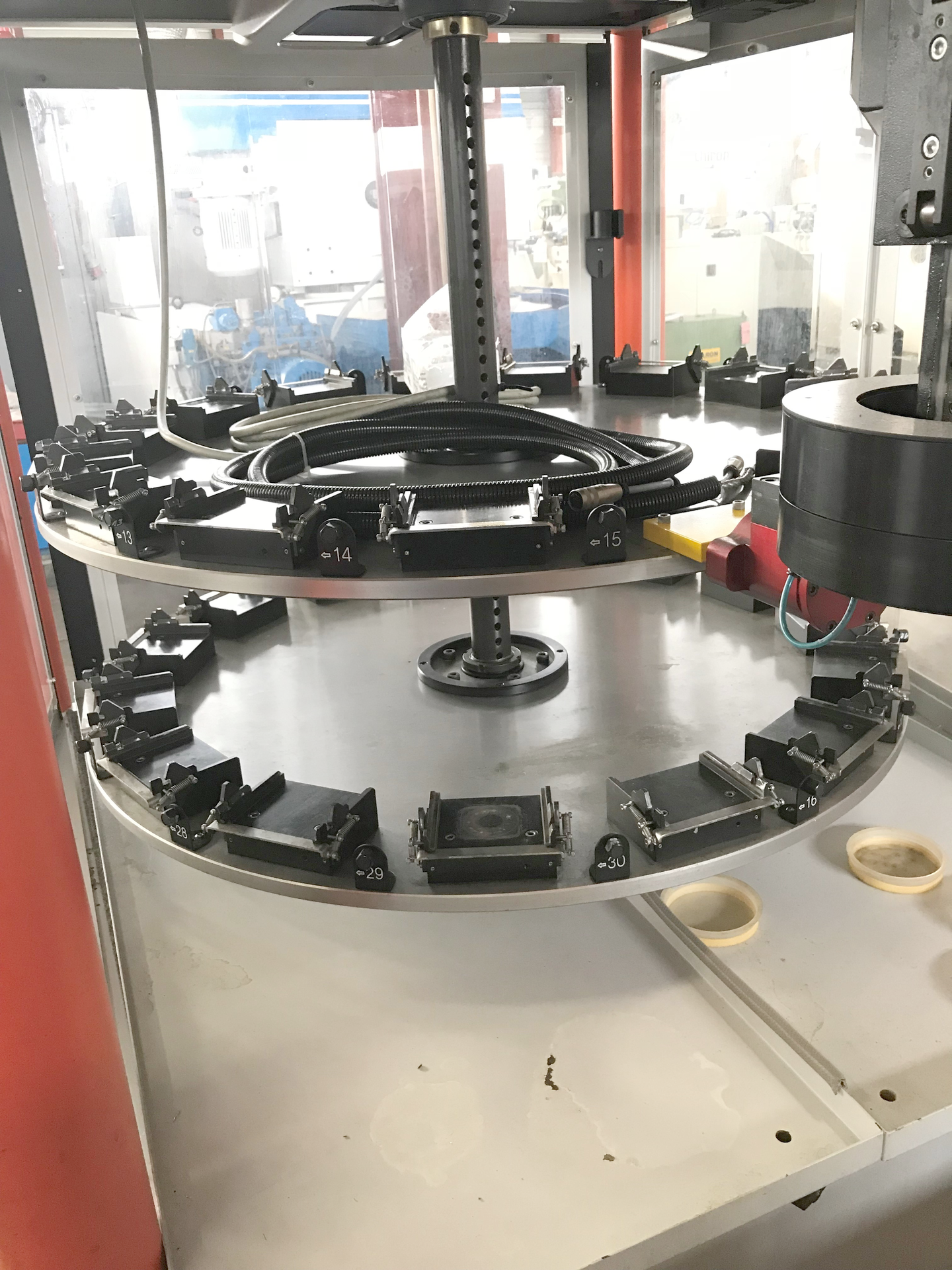

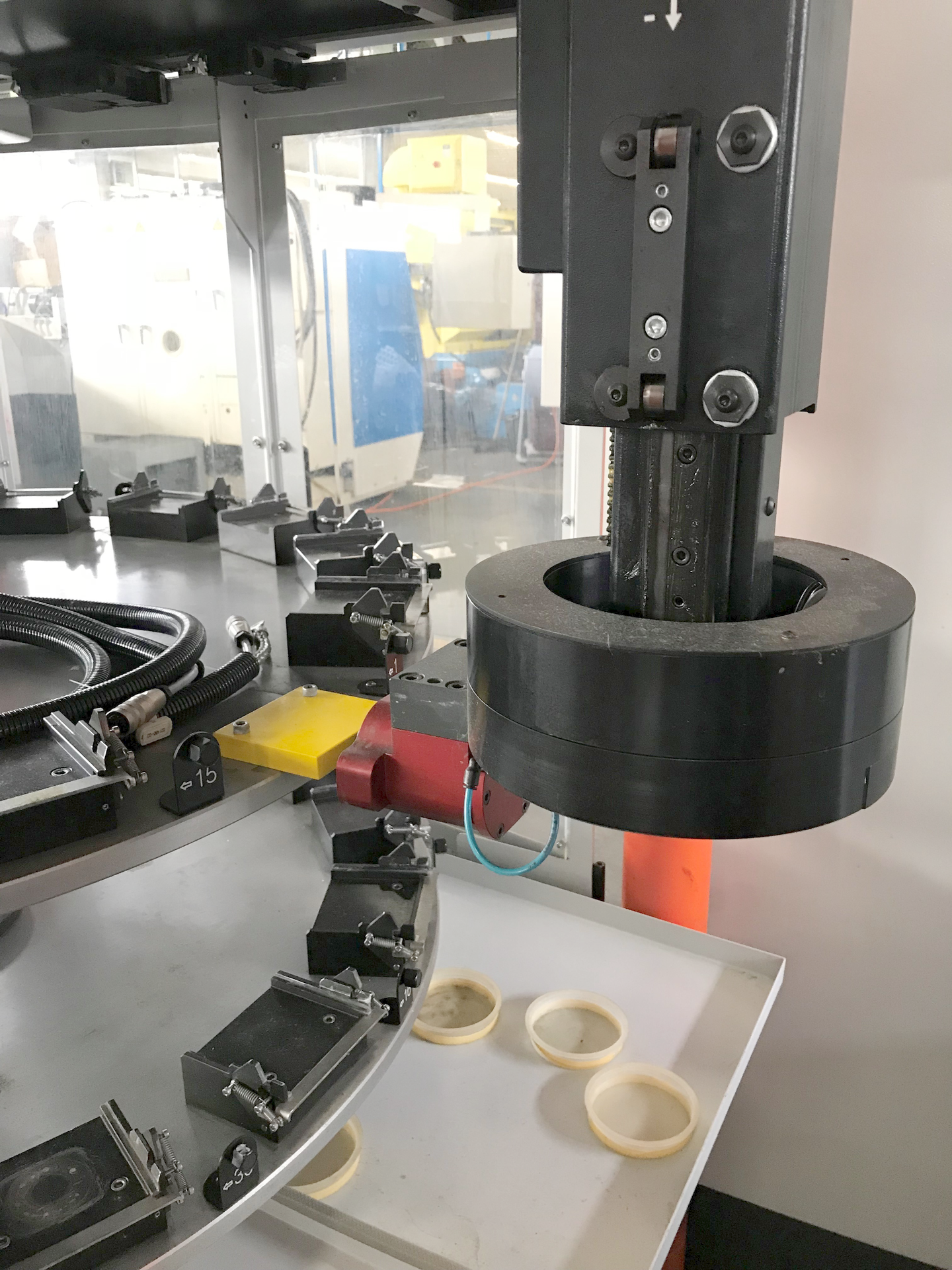

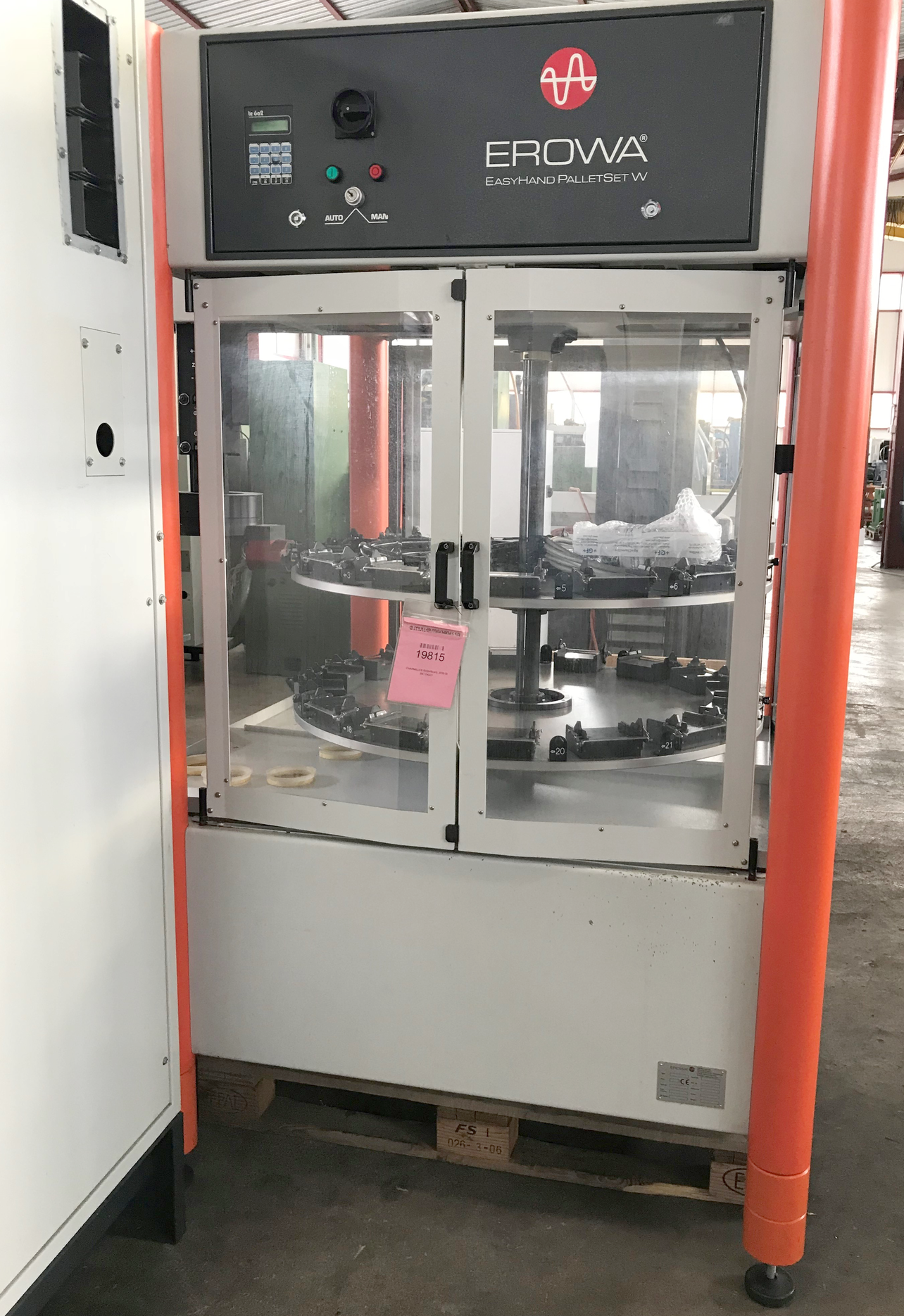

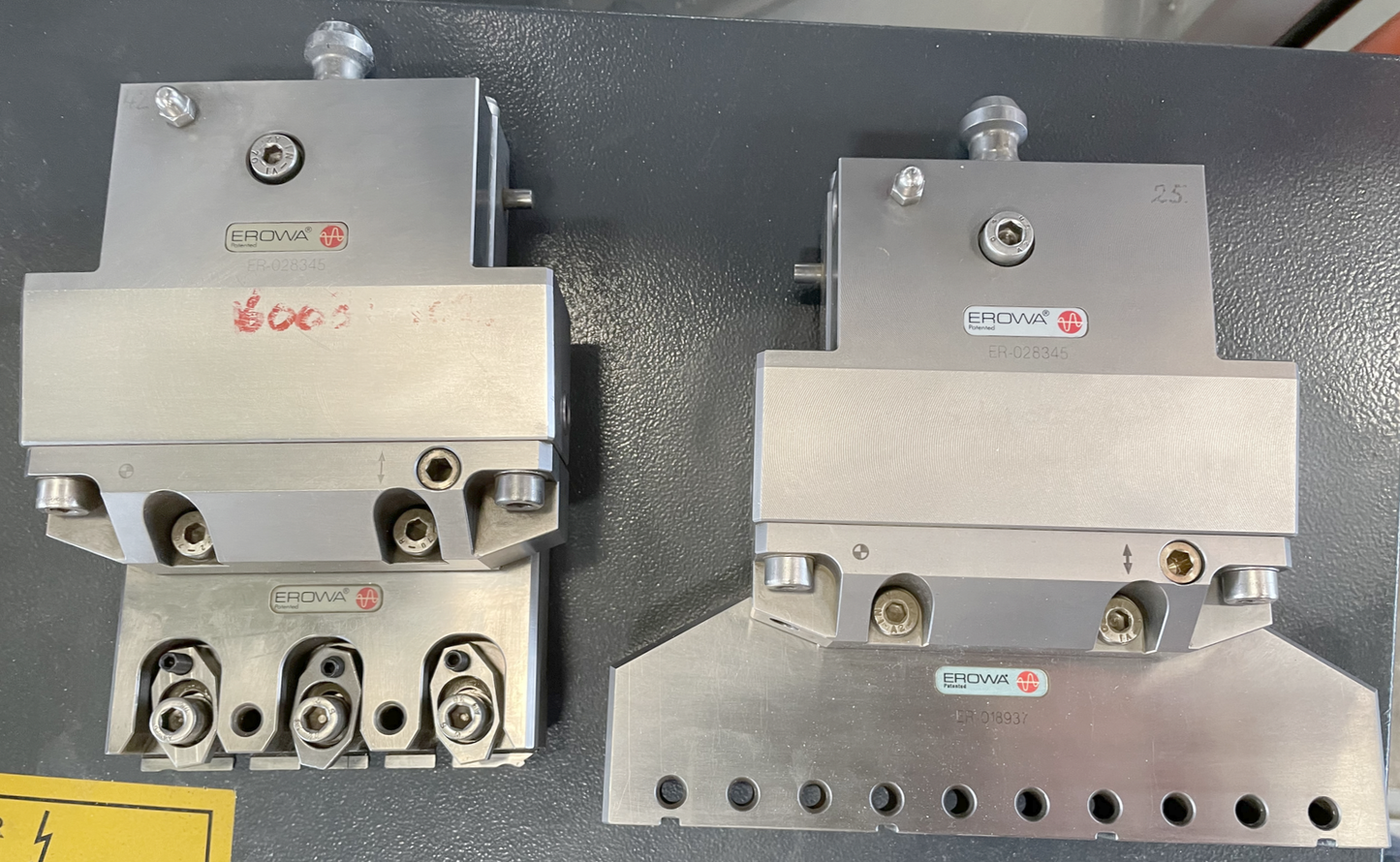

| Pallets chanching device: | EROWA |
| Number of positions | 30 |

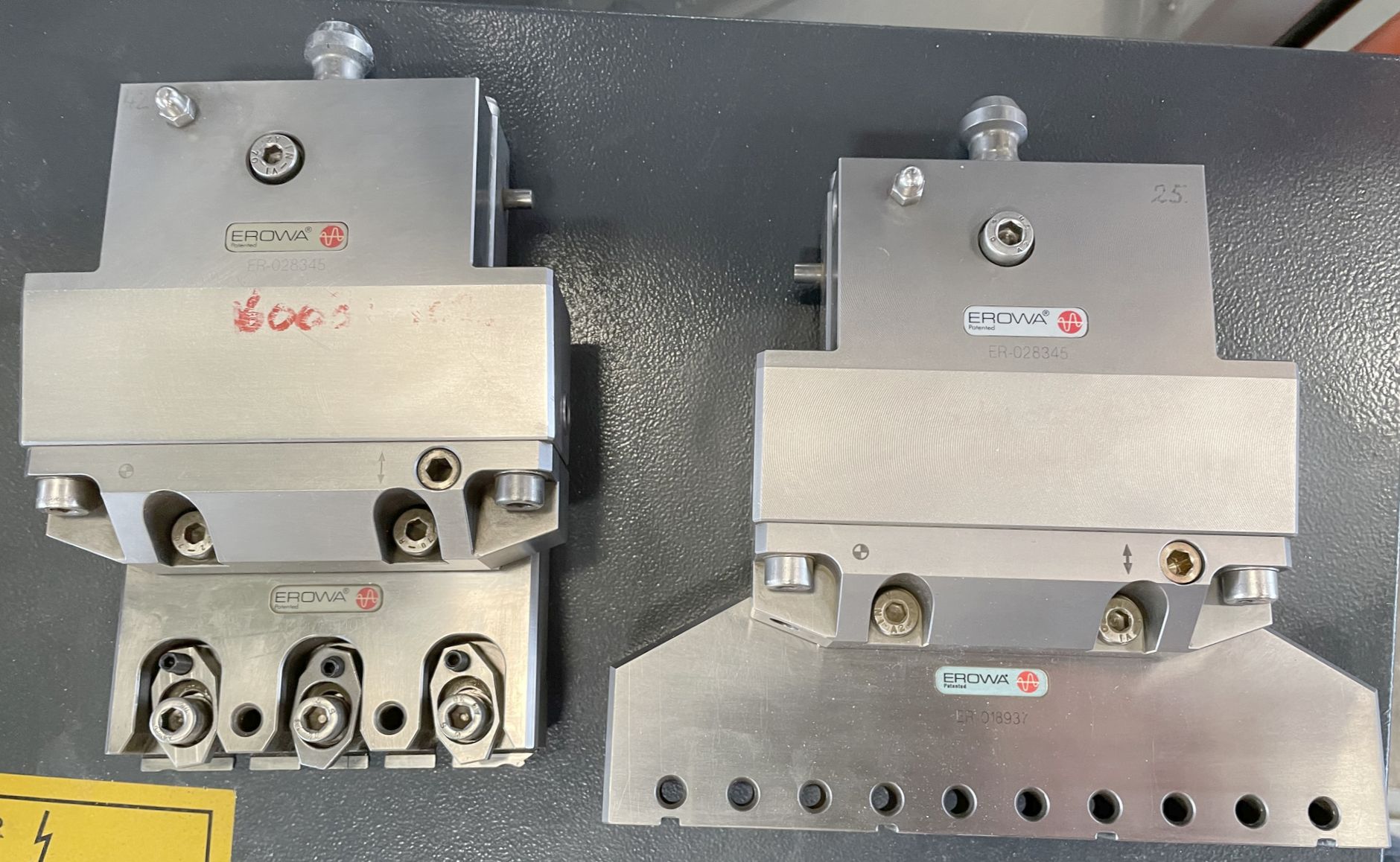

| Work piece holder | 3 pce |
