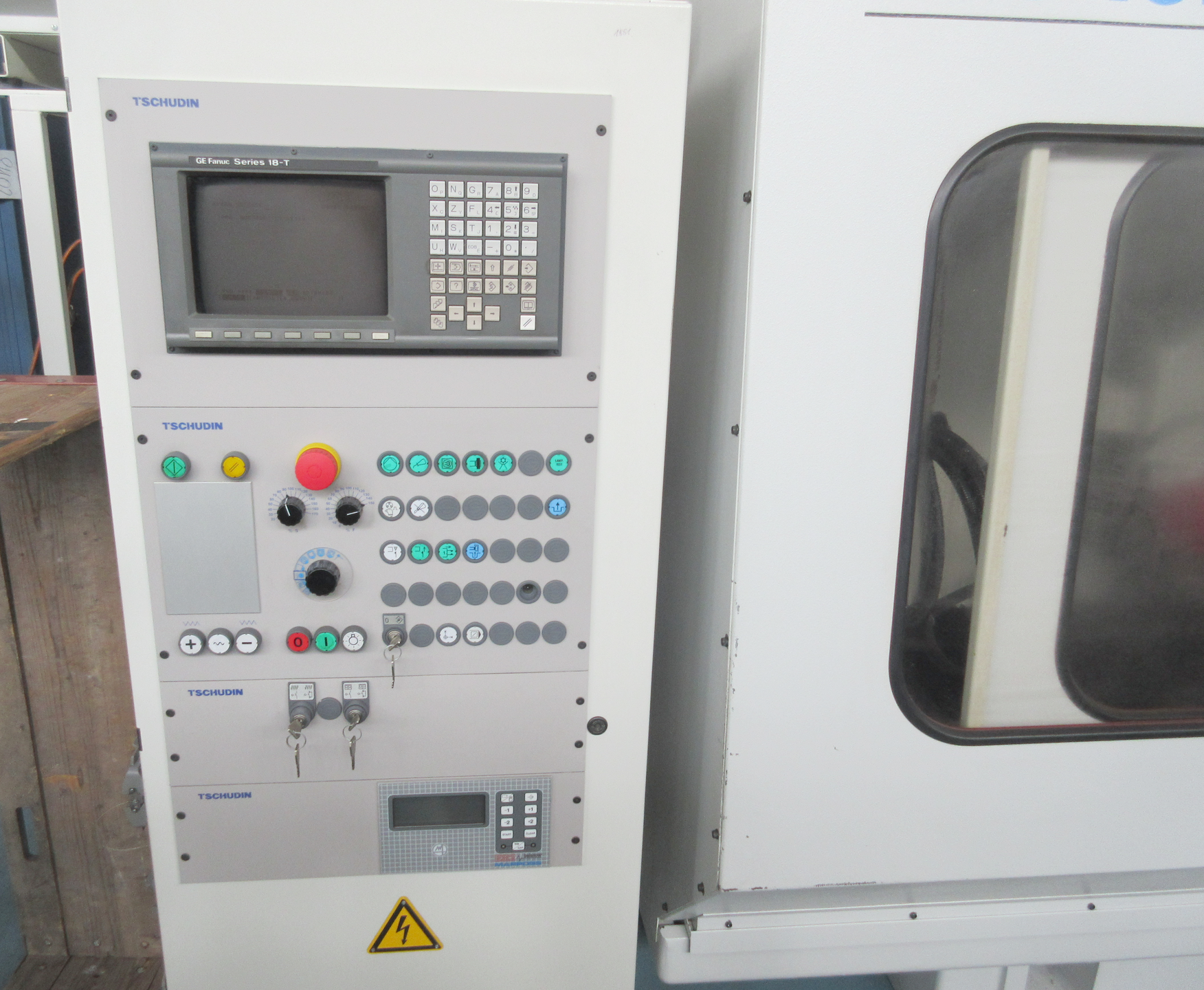

TSCHUDIN PL 105 A
Special Price
CHF 39 000
Special offer machines are sold as-is, without any warranty or inspection from us.
Need Assistance? Just WhatsApp Us!

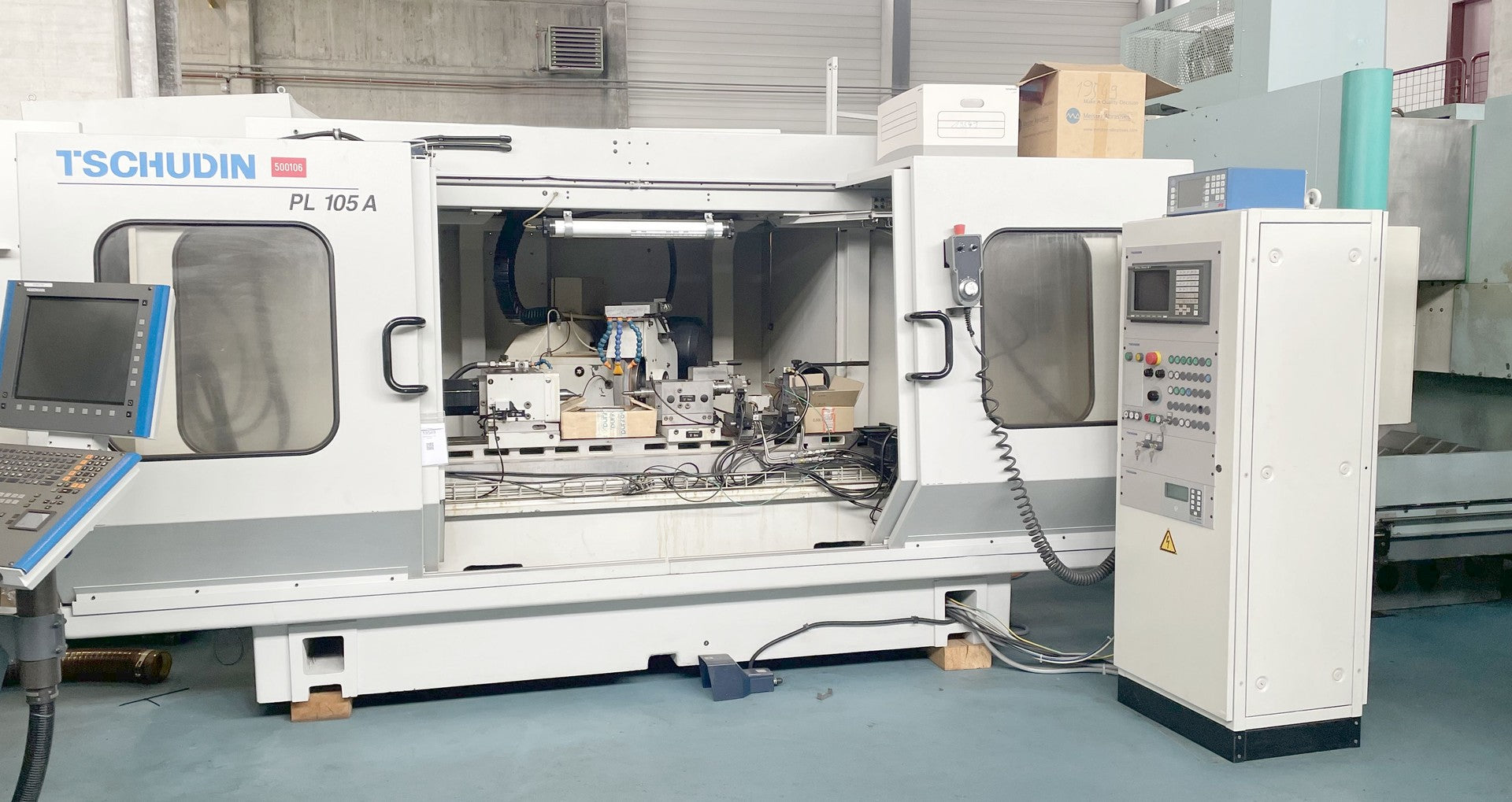

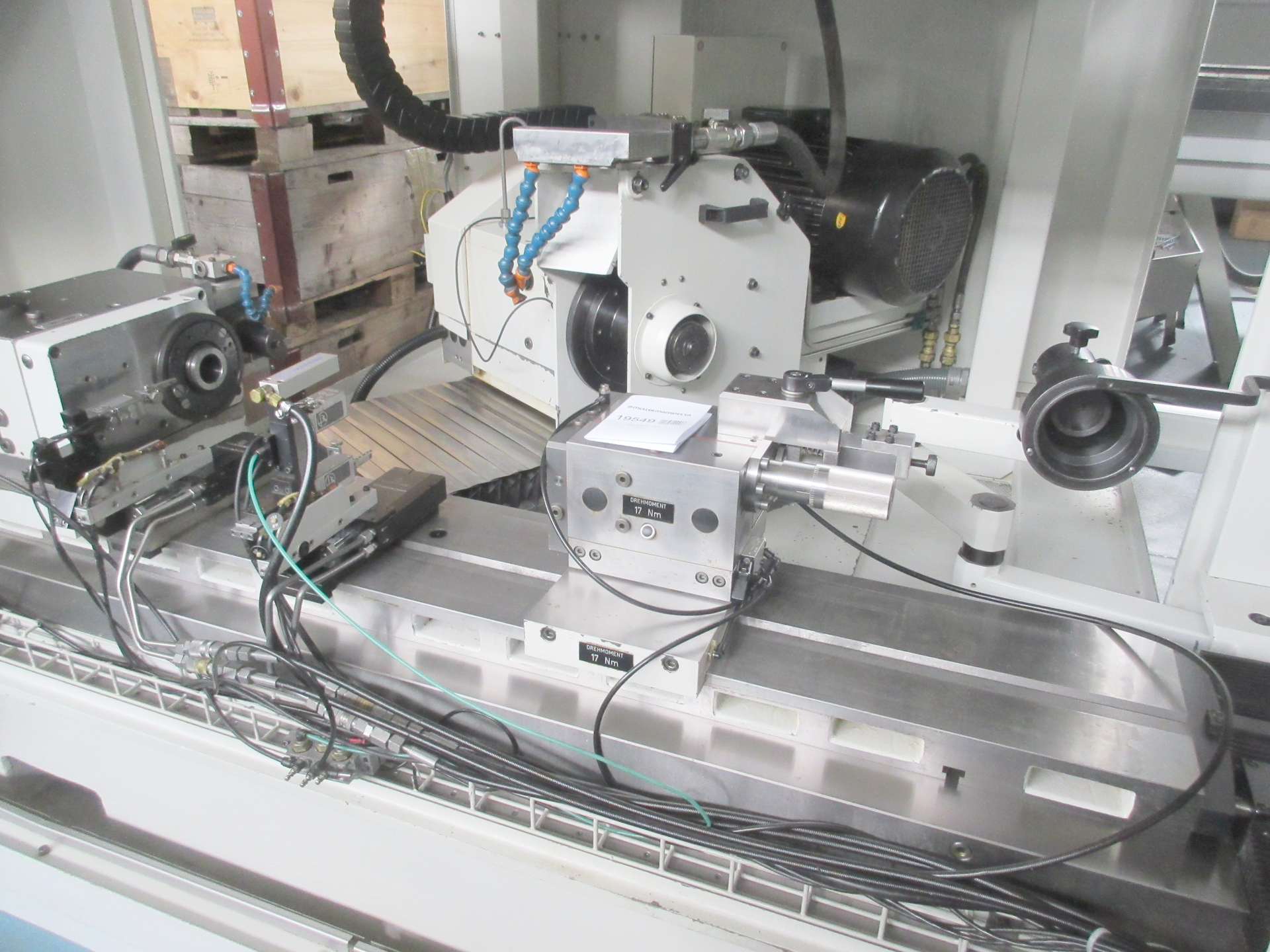

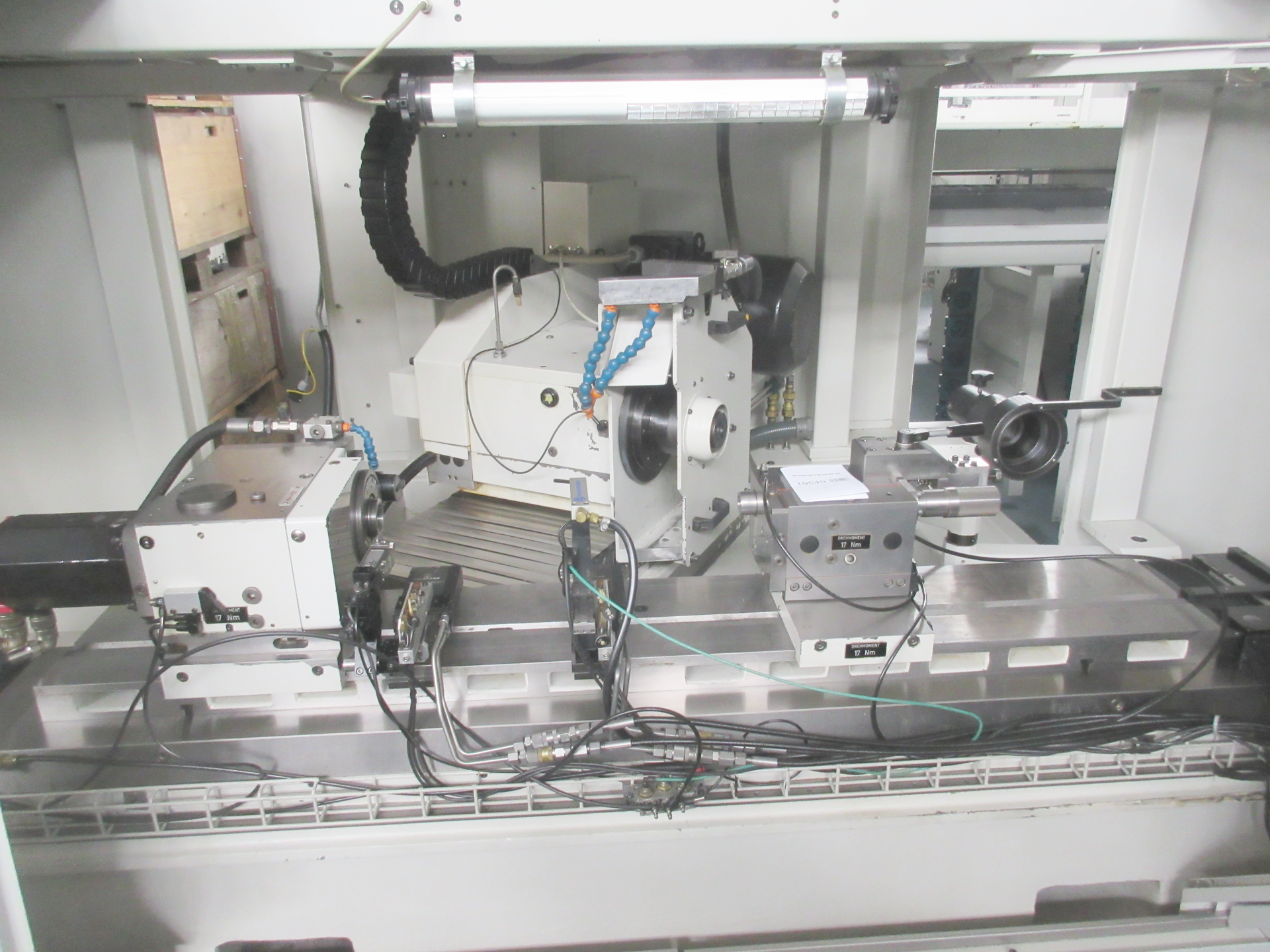

TSCHUDIN PL 105 A is a CNC cylindrical grinder built for precision, high accuracy and reliability. Capacities: centre height 175 mm, between centres 1000 mm, max grinding Ø 348 mm, grinding length 1000 mm, workpiece weight max 250 kg; wheel Ø500x100 mm, 45 m/s; X travel 1400 mm, Y travel 340 mm, swivel +9/-9°. Specs: speeds 20–1000 rpm, rotatable +30/-45°, taper MT/CM 6, grinding motor 15 kW, 3x400 V 50 Hz, installed power 27 kW (16 kVA), weight ≈5100 kg, dims 4410x3550x1900 mm. Accessories: angular infeed, MARPOSS measuring head, set of grinding wheels. Enables tight tolerances; sectors: automotive, watchmaking, machine tools, aerospace, medical.

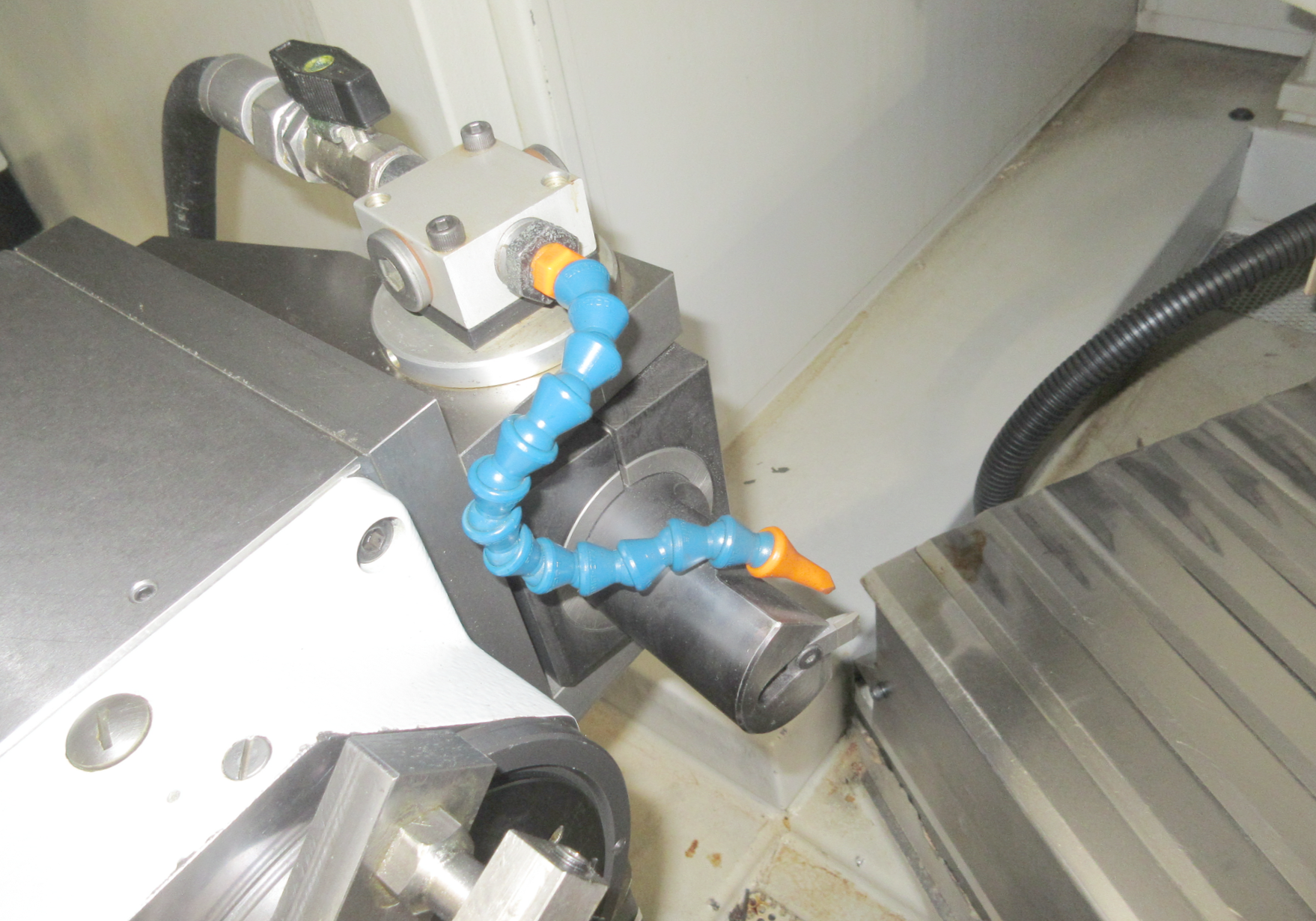

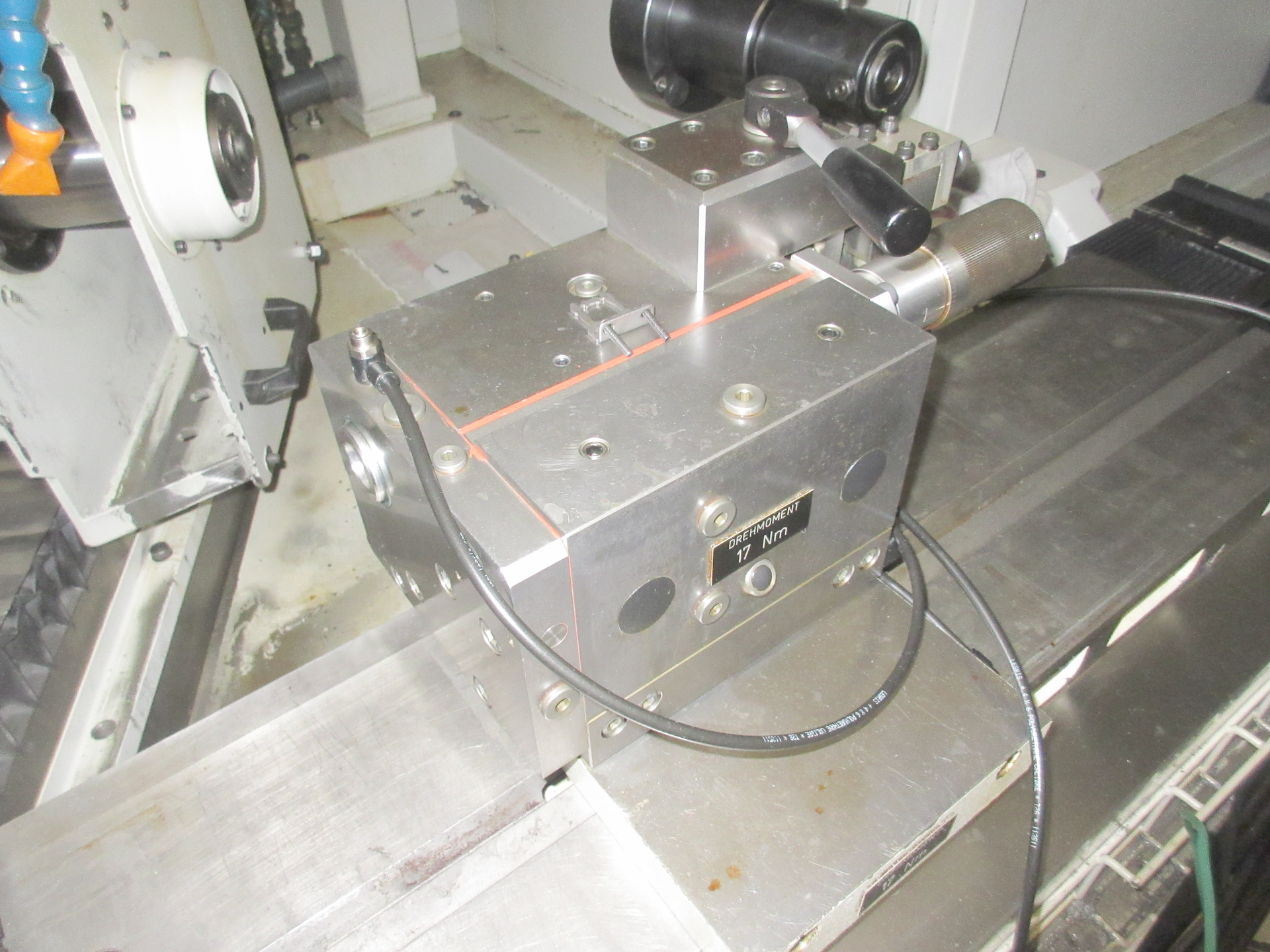

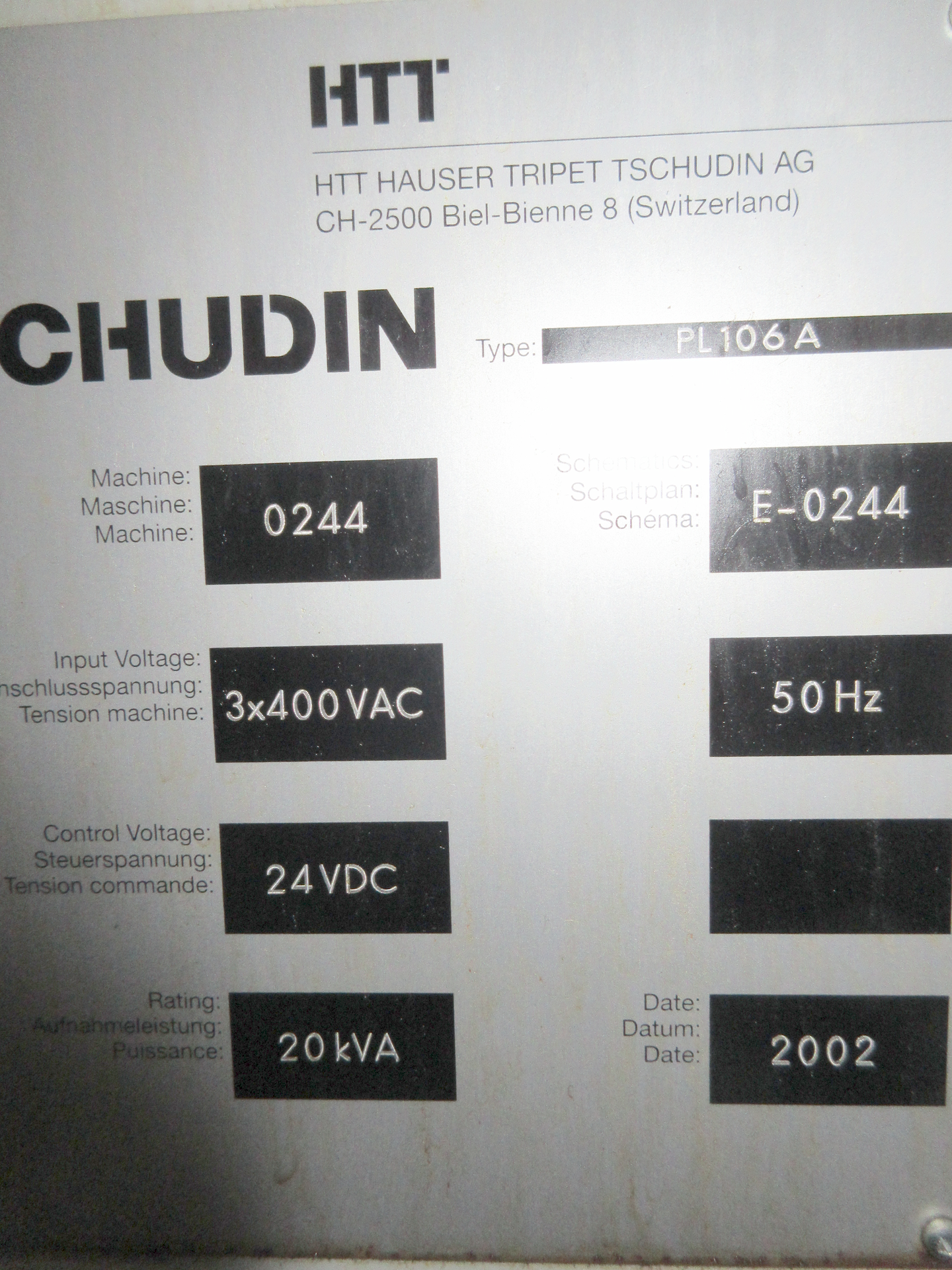

| Centre height | 175 mm |
| Distance between centres | 1000 mm |
| Max. grinding diameter | 348 mm |
| Grinding length | 1000 mm |
| Workpiece weight on centres max. | 250 kg |
| Grinding wheel: | |
| Diameter | 500 mm |
| Width | 100 mm |
| Peripheral speed | 45 m/s |
| Longitudinal slide: | |
| Max. travel | 1400 mm |
| Resolution | mm |
| Feed speed up | 8000 mm/min |
| Transversal slide: | |
| Max. travel | 340 mm |
| Resolution | mm |
| Swivelling range | +9/-9 ° |
| Feed speed up | 8000 mm/min |
| Work piece spindle head: | |
| speeds: | |
| from | 20 t/min |
| up to | 1000 t/min |
| rotatable | +30/-45 ° |
| Précision d'usinage | mm |
| taper in spindle: MT | 6 |
| Tailstock: | |
| Taper in tailstock: | 4 CM |
| Tailstock travel of barrel | 50 mm |
| Voltage 50 Hz 3x | 400 Volt |
| Grinding spindle motor | 15 kW |
| Total power required | 27 kW |
| Total power required | 16 kVA |
| Machine's weight about | 5100 kg |
| Overall dimensions machine: | |
| Length | 4410 mm |
| Width | 3550 mm |
| Height | 1900 mm |
| Various accessories: | |

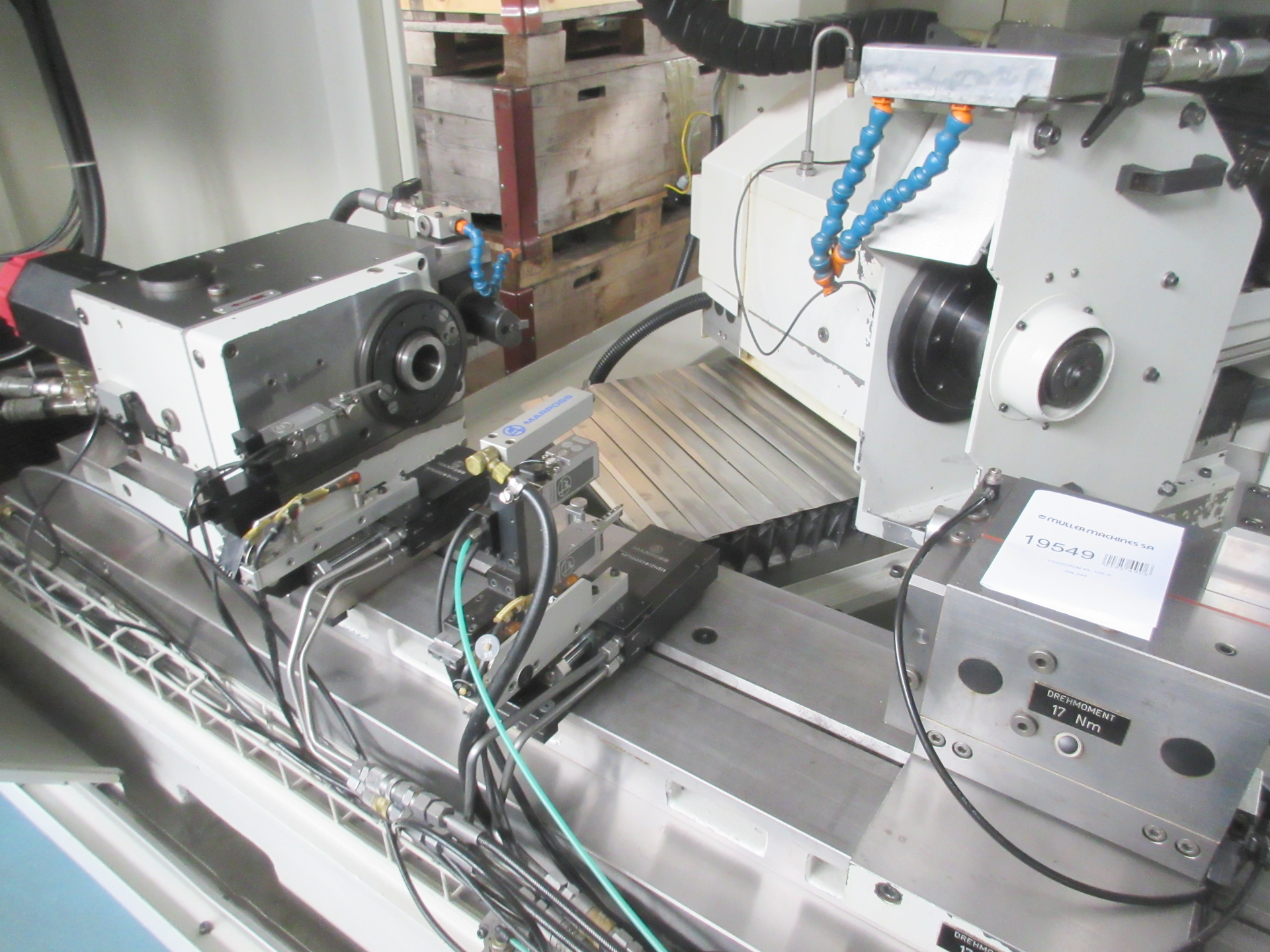

| Angular infeed | |

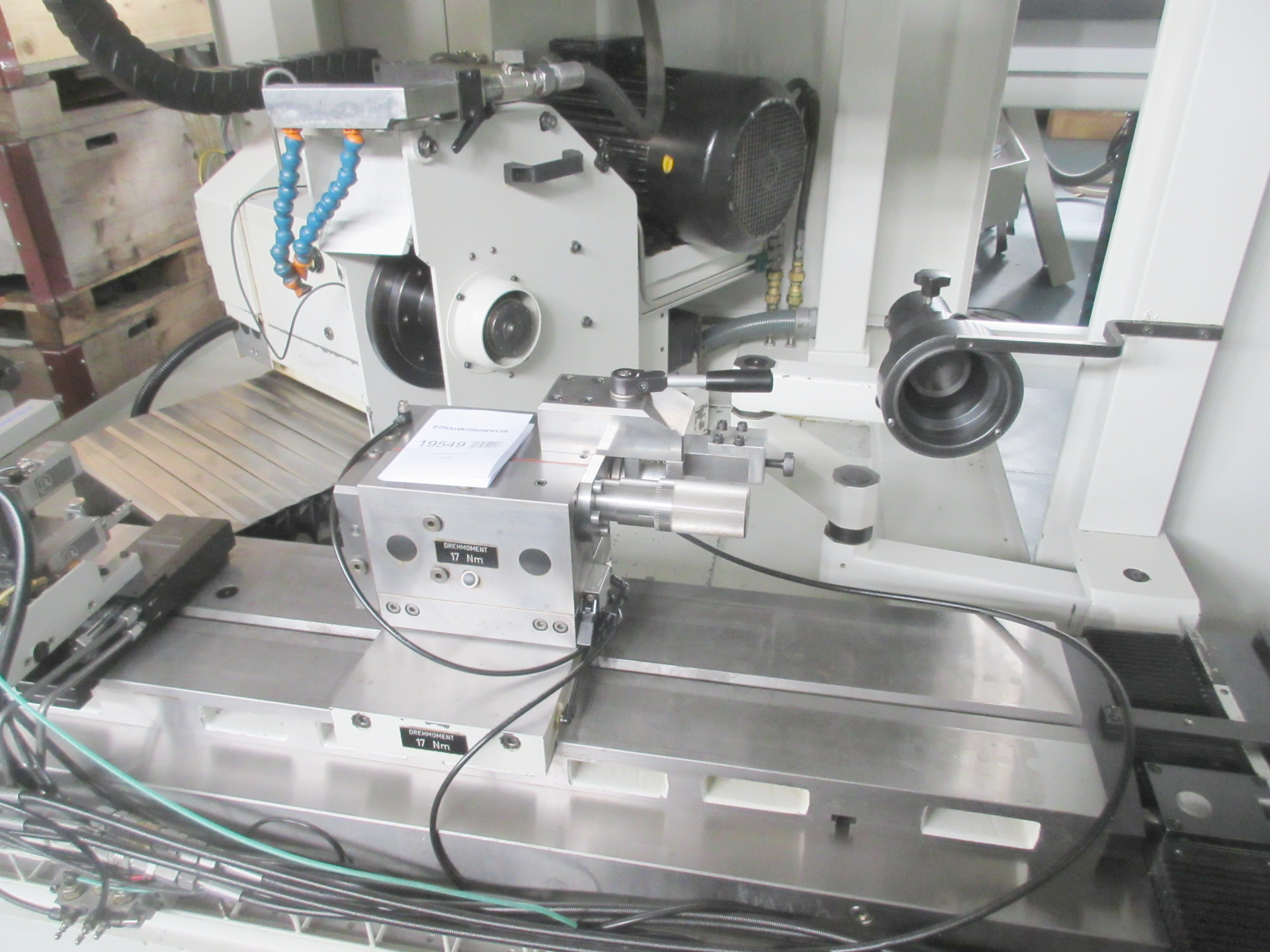

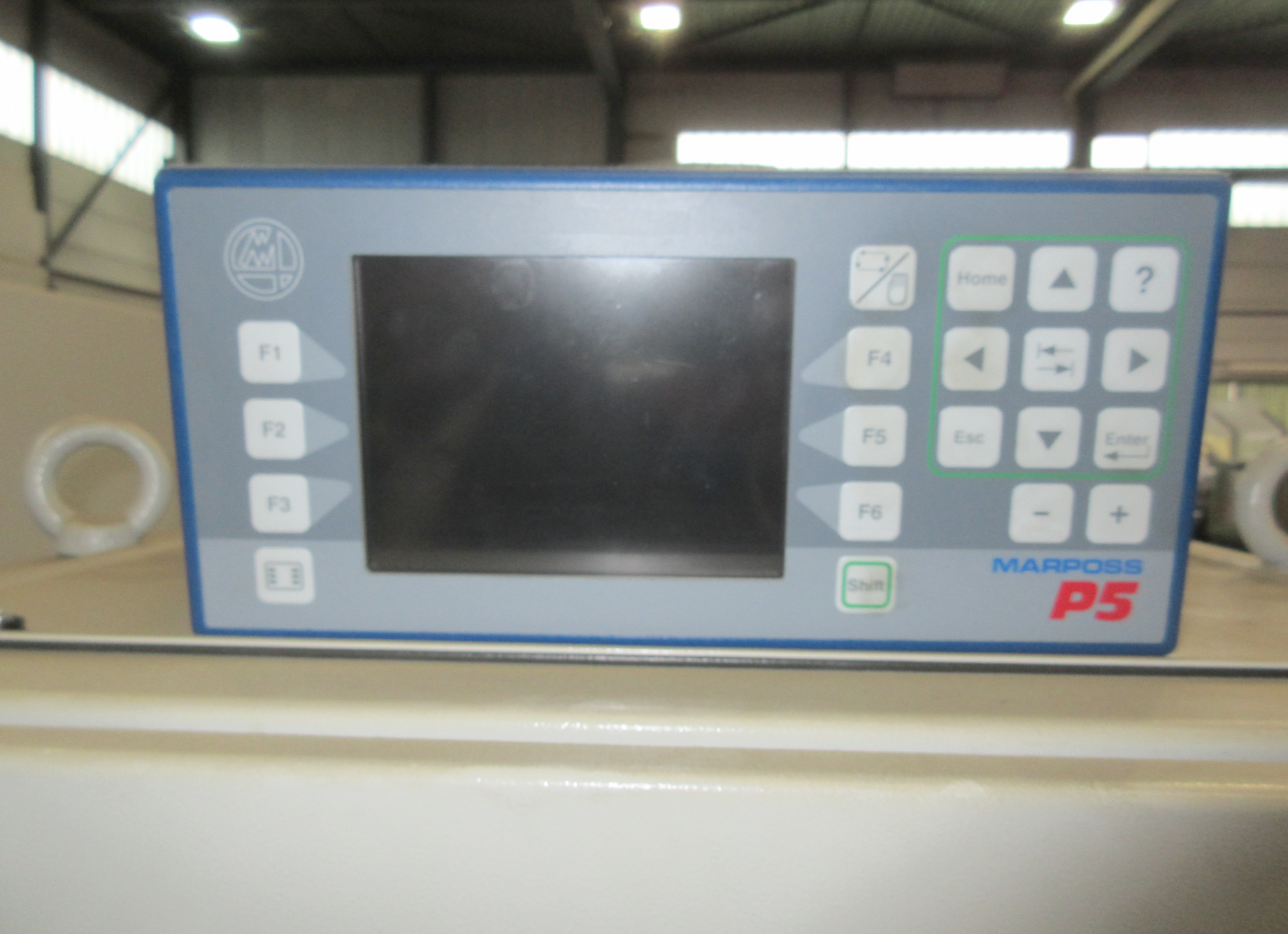

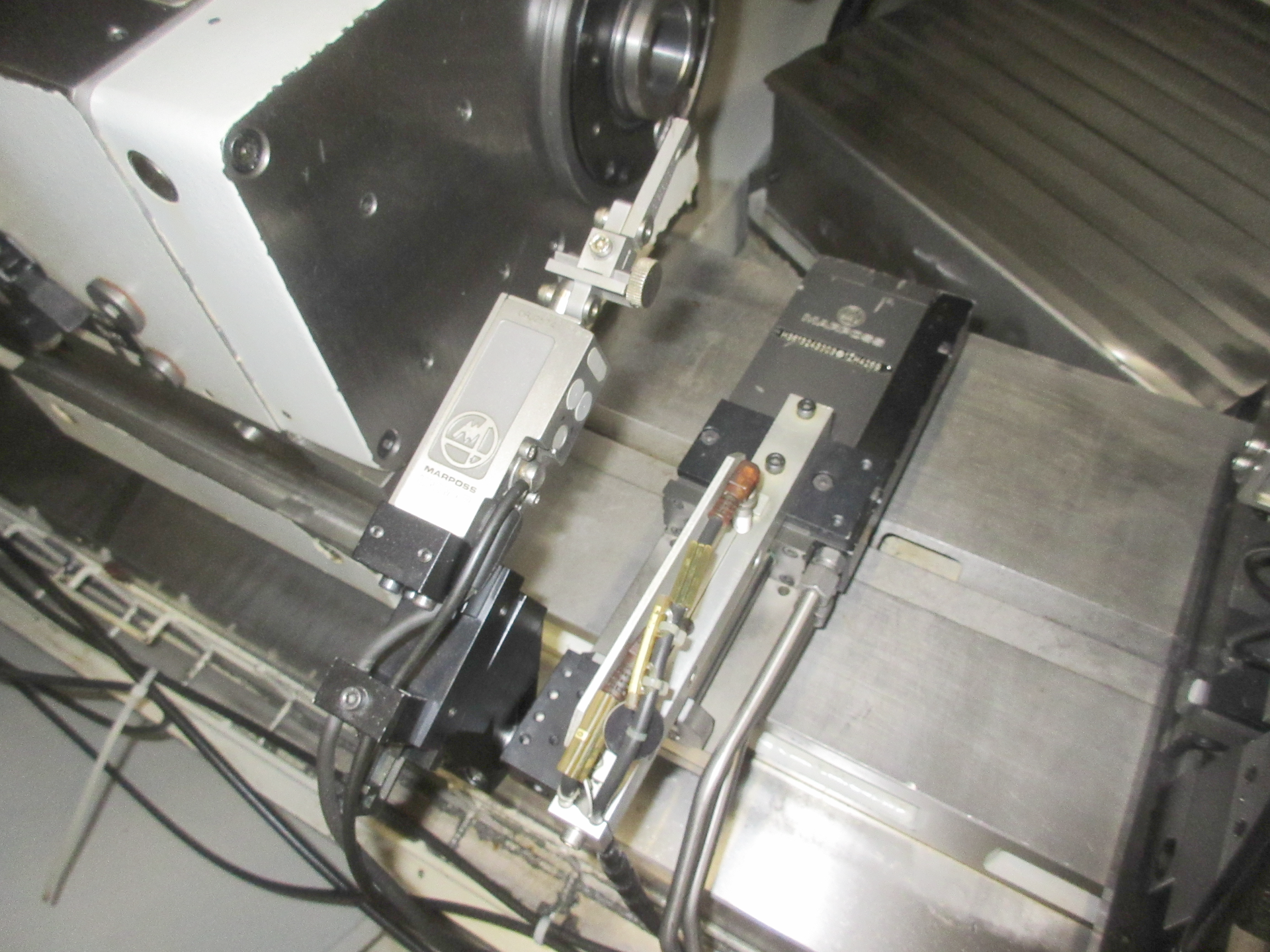

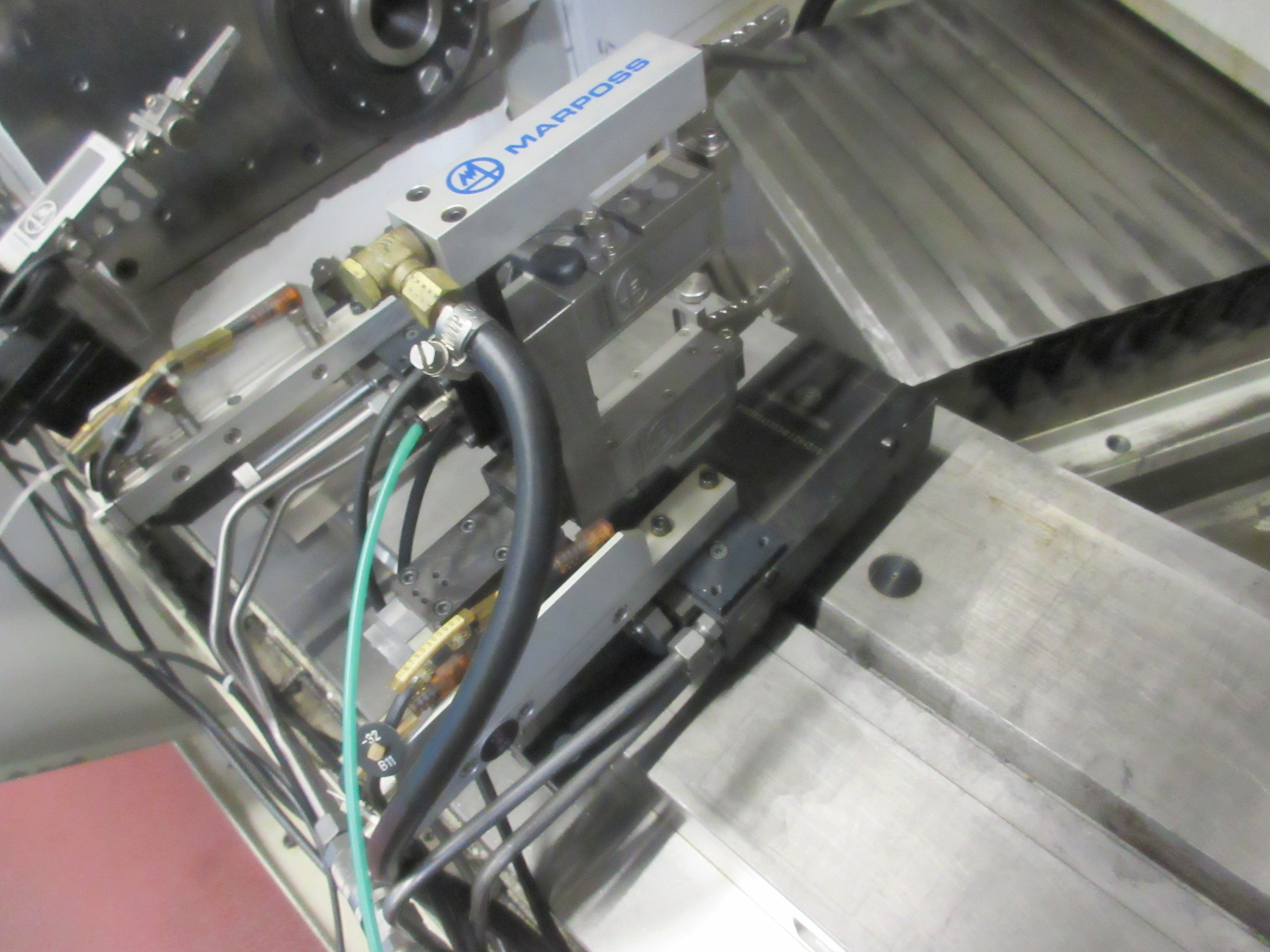

| Measuring head MARPOSS | |

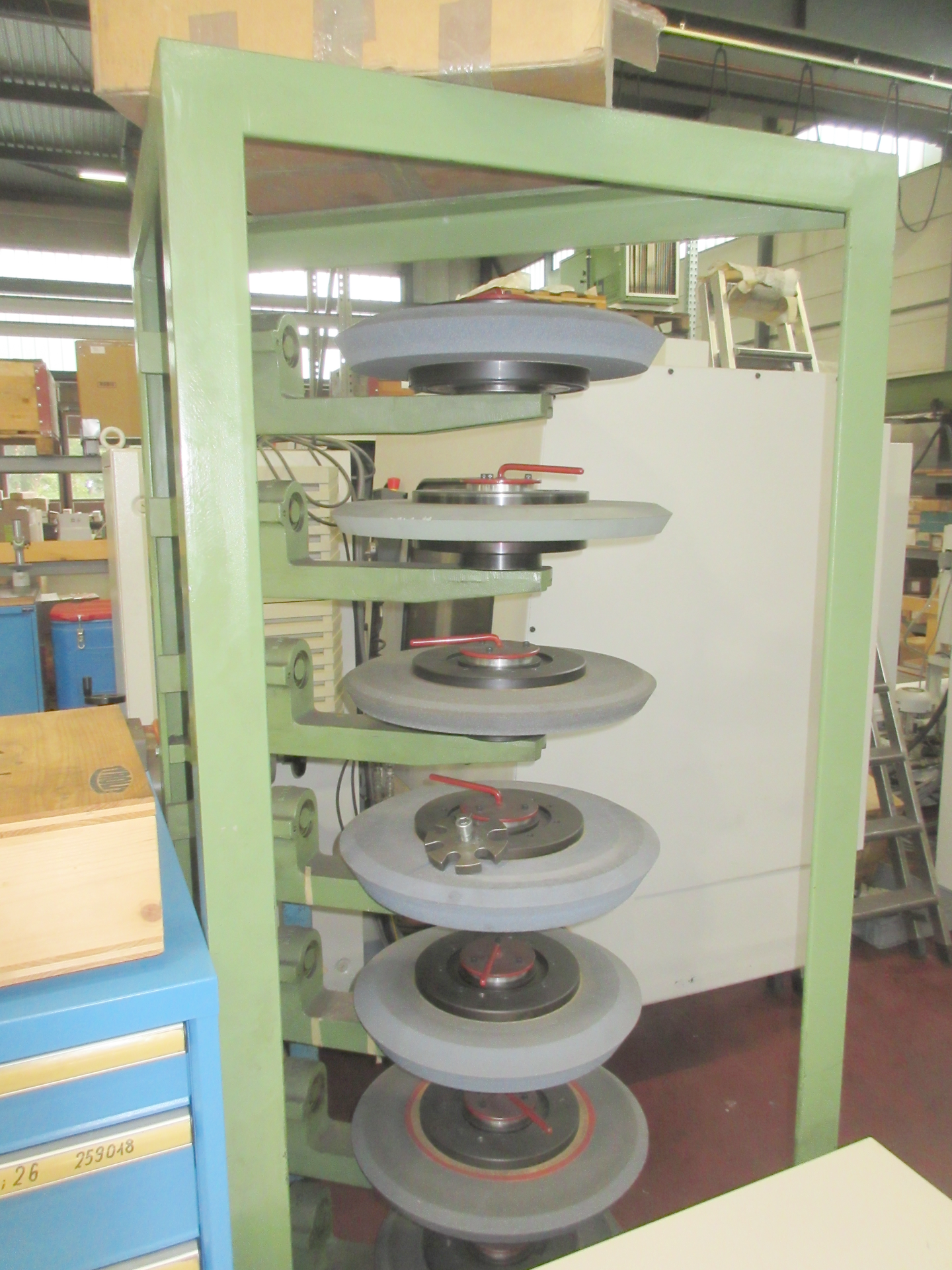

| Set of grinding wheels |
