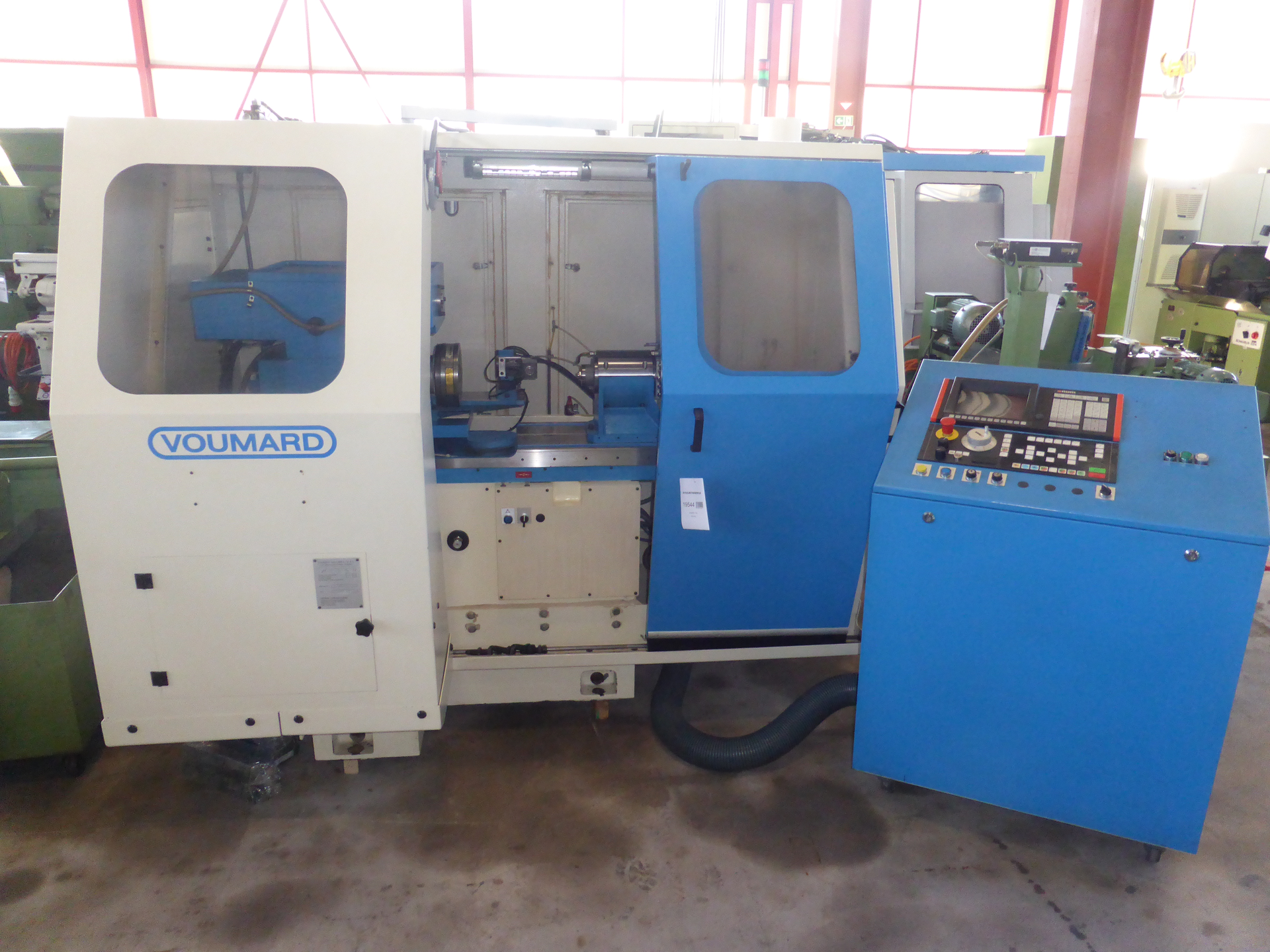

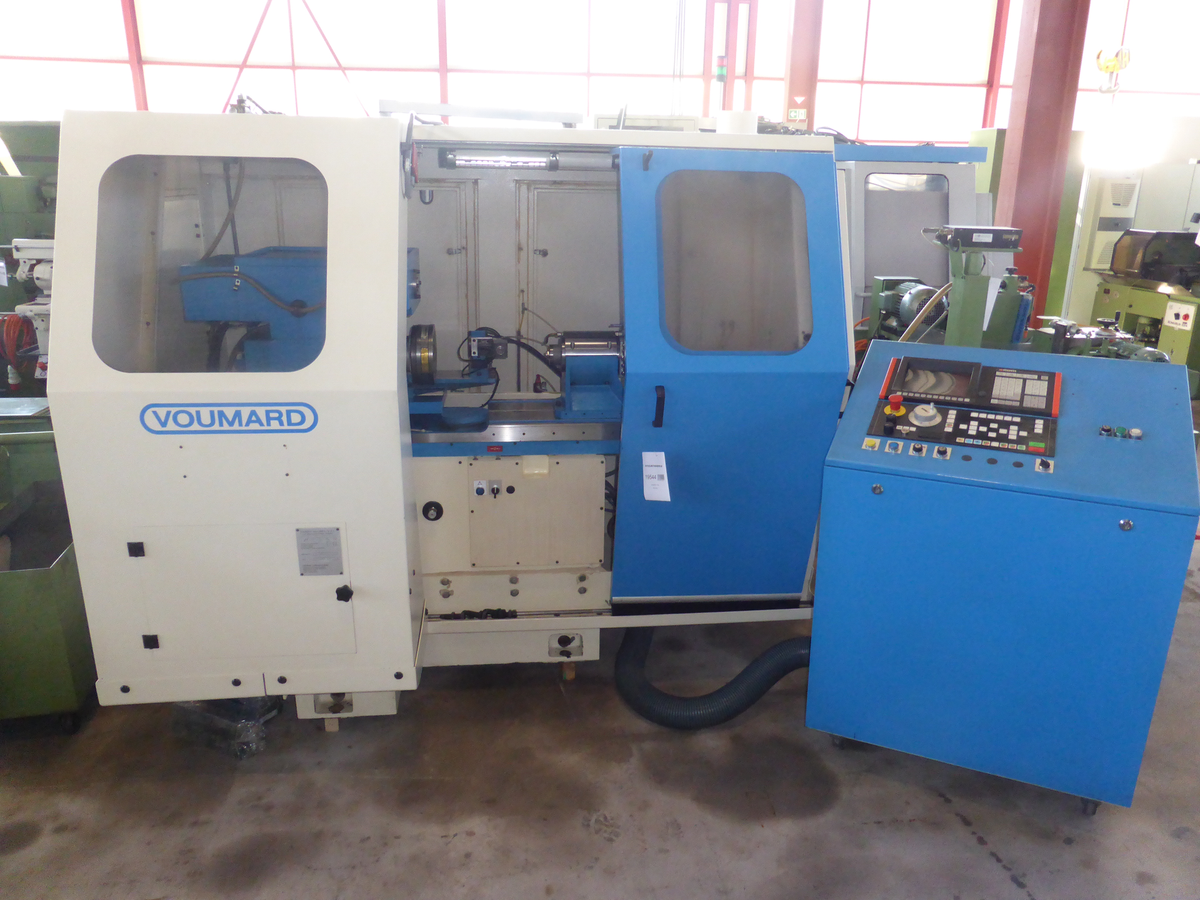

VOUMARD 3 CNC is a CNC internal grinder engineered for high-precision, very accurate and reliable machining. Capacities: min Ø 3 mm, max Ø 50 mm; centre height 200 mm; longitudinal travel Z 300 mm; cross travel X 90 mm; swivelling range -5/60°. Specs: grinding spindle from 55000 t/min; voltage 50 Hz 3x: 400 Volt; total power 10–15 kW; weight ~2800 kg; dimensions L3000×W2300×H2200 mm. Accessories: redressing device, magnetic chuck Ø200 mm. Delivers tight tolerances; typical applications: automotive, watchmaking, machine tools, aerospace, medical.
| Min. grinding diameter | 3 mm |
| Max. grinding diameter | 50 mm |
| Centre height | 200 mm |
| Axial motion: | |
| Longitudinal travel (Z-axis) | 300 mm |
| Cross travel (x-axis) | 90 mm |
| Work piece spindle head (B-axis) | |
| Swivelling range | -5 / 60 ° |
| Possible grinding-spindle speeds: | |
| from | 55000 t/min |

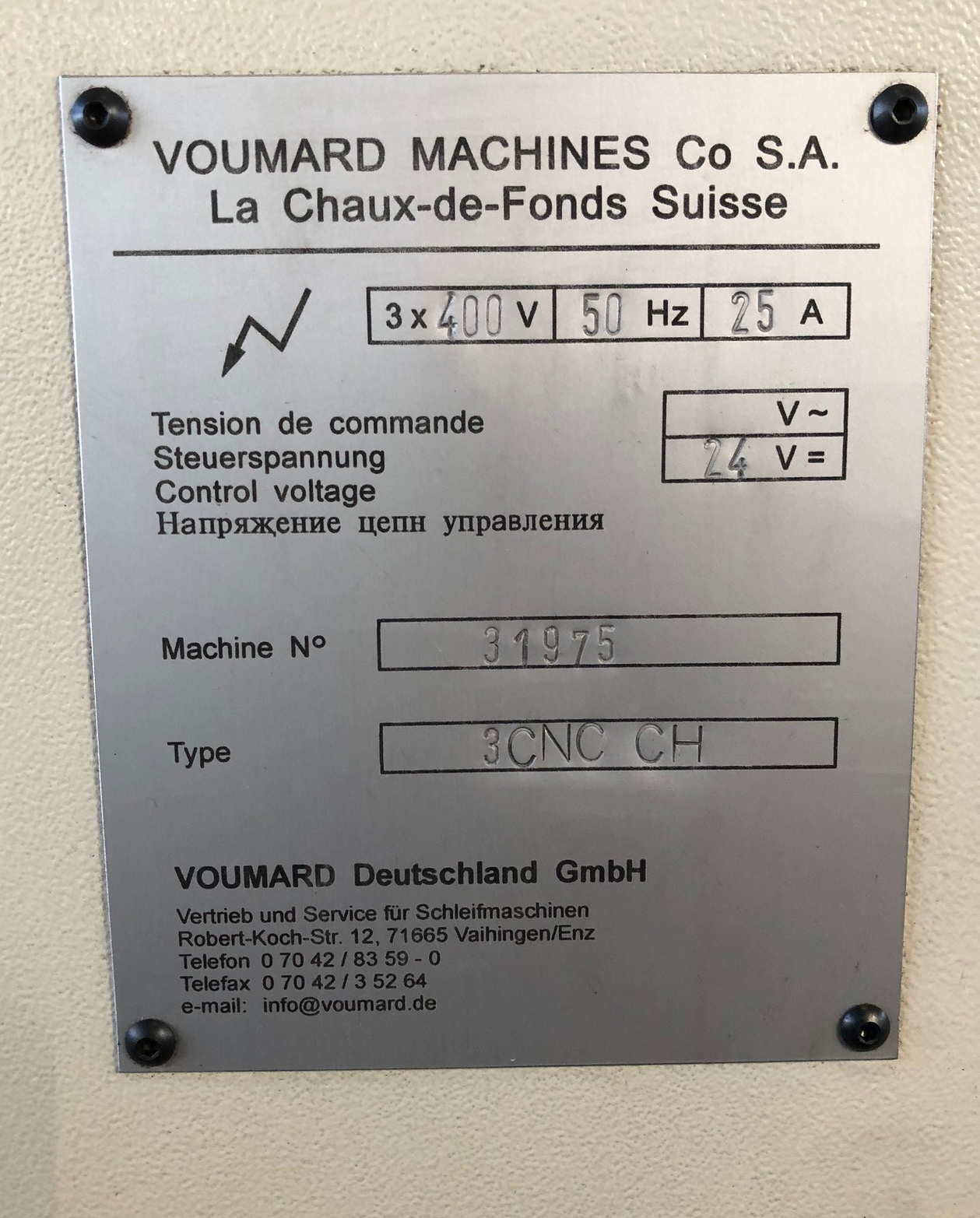

| Voltage 50 Hz 3x | 400 Volt |
| Total power required | 10-15 kW |
| Machine's weight about | 2800 kg |
| Overall dimensions machine: | |
| Length | 3000 mm |
| Width | 2300 mm |
| Height | 2200 mm |
| Various accessories: | |
| Redressing device | |
| Macnetic chuck diameter | 200 mm |
