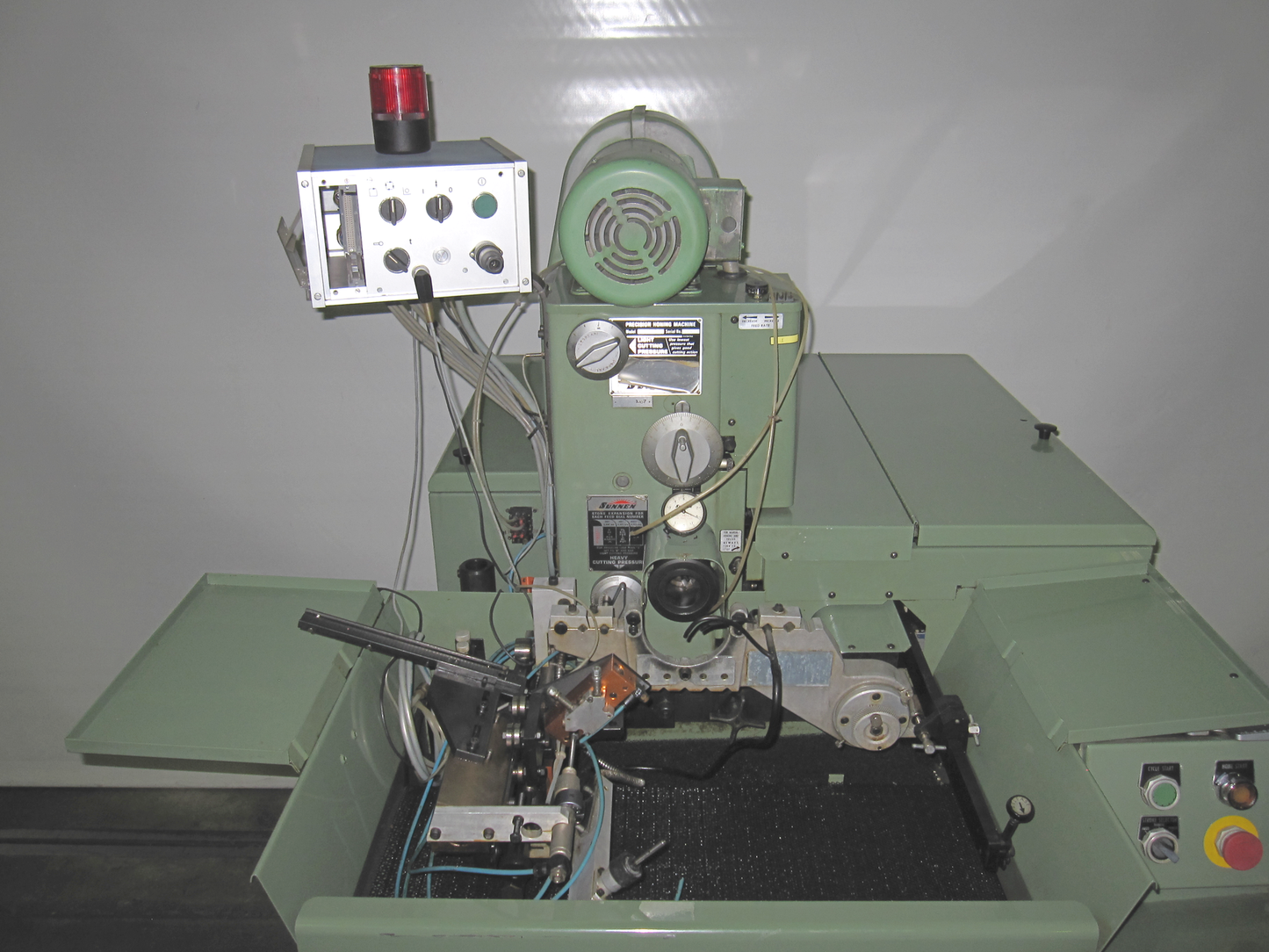

SUNNEN MBC-1804-G
Download technical sheet (PDF)
Need Assistance? Just WhatsApp Us!
SUNNEN MBC-1804-G is a honing machine designed for precision, high accuracy and reliability. Capacities: 2–165 mm diameter; max honing length 406 mm; total stroke 80–310 mm. Spindle speeds: 12 steps 200–2500 t/min; stroke speed: 5 steps 80–310 c/min. Voltage: 50 Hz 3x 380 V; spindle motor 0.73 kW; weight ≈530 kg; dimensions L1830×W1250×H1700 mm. Achieves tight tolerances; typical applications include automotive, aerospace, machine tools and medical.
| Min. diameter | 2 mm |
| Max. diameter | 165 mm |
| Max. honing length | 406 mm |
| Spindle speeds: | |
| number (steps) | 12 |
| from | 200 t/min |
| up to | 2500 t/min |
| Total stroke | 80 - 310 mm |
| Stroke speed: | |
| number (steps) | 5 |
| from | 80 c/min |
| up to | 310 c/min |
| Voltage 50 Hz 3x | 380 Volt |
| Spindle motor | 0.73 kW |
| Machine's weight about | 530 kg |
| Overall dimensions machine: | |
| Length | 1830 mm |
| Width | 1250 mm |
| Height | 1700 mm |
| Automatic workpiece honing unit |
