REIDEN FU 150 A is a universal milling machine for precision, high accuracy and reliability. Table 1250×350 mm; travels X850 Y250 Z470 mm; table load 400 kg. Spindle ISO40, 12 steps 45–2000 t/min. Feeds X/Y 18–800 mm/min, Z 7.2–320 mm/min; rapid X2.70 Y2.75 Z1.10 m/min. Power 50Hz 3×380V; motor 10 CV; total power 7 CV; weight ~1950 kg; dims 2000×1700×2000 mm. Accessories: set of toolholders, lamp. Suitable for tight tolerances in automotive, aerospace, watchmaking and medical sectors.
Technical specifications are subject to change without notice
| Table length | 1250 mm |
| Table width | 350 mm |
| Longitudinal travel (X-axis) | 850 mm |
| Transversal travel (y axis) | 250 mm |
| Vertical travel (z axis) | 470 mm |
| Table load max. | 400 kg |
| Spindle speeds: | |
| number (steps) | 12 |
| from | 45 t/min |
| up to | 2000 t/min |
| Taper in spindle | 40 ISO |
| Feeds steps: | 12 |
| longitudinal from | 18 mm/min |
| up to | 800 mm/min |
| transversal from | 18 mm/min |
| up to | 800 mm/min |
| vertical from | 7.2 mm/min |
| up to | 320 mm/min |
| Rapid traverse: | |
| longitudinal | 2.70 m/min |
| transversal | 2.75 m/min |
| vertical | 1.10 m/min |
| Voltage 50 Hz 3x | 380 Volt |
| Motor output | 10 CV |
| Total power required | 7 CV |
| Machine's weight about | 1950 kg |
| Overall dimensions machine: | |
| Length | 2000 mm |
| Width | 1700 mm |
| Height | 2000 mm |
| Various accessories: | |

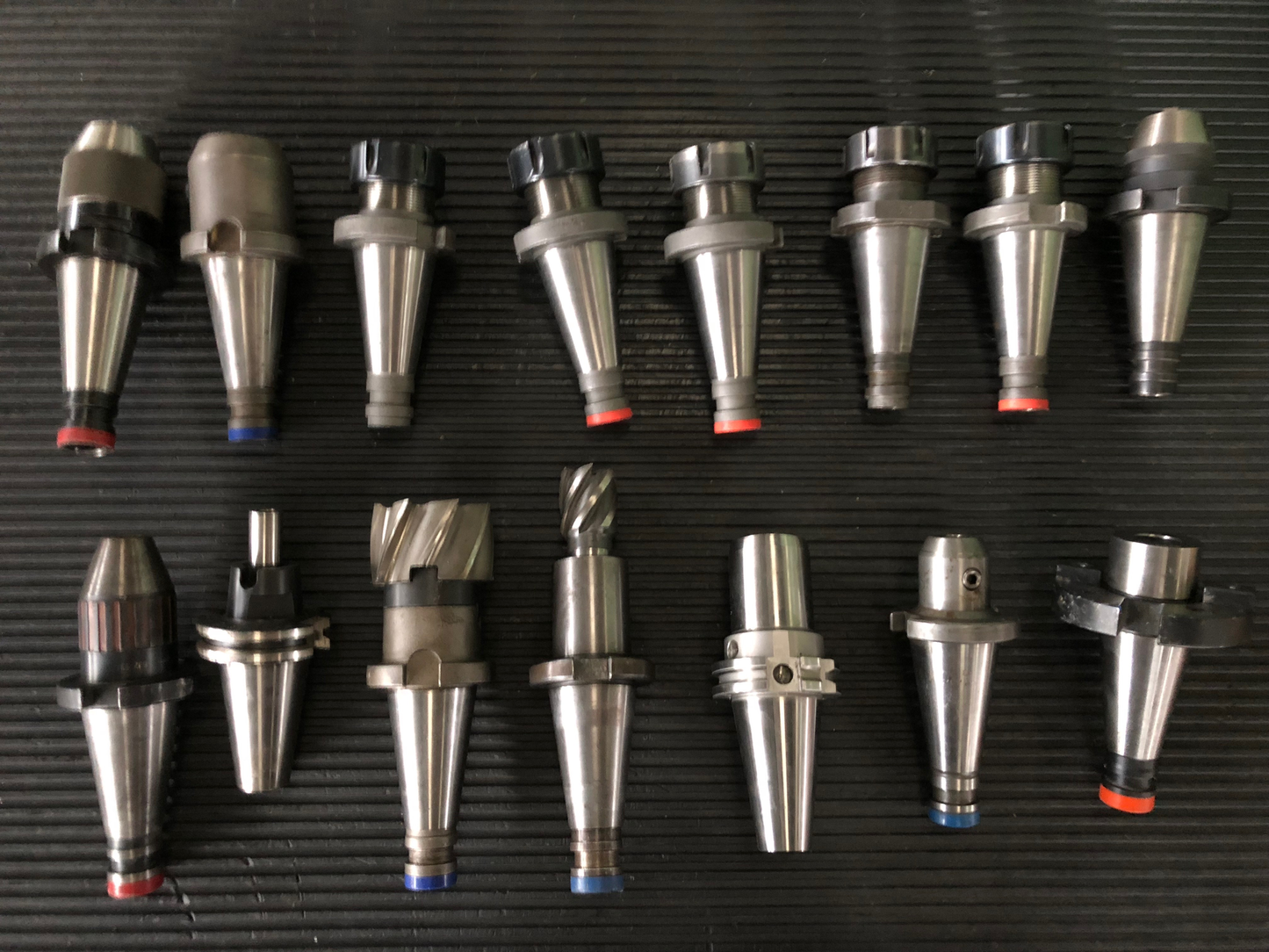

| Set of toolholders | |
| Lamp |
