TSCHUDIN HTG 412
Special Price
CHF 6 000
Special offer machines are sold as-is, without any warranty or inspection from us.
Need Assistance? Just WhatsApp Us!

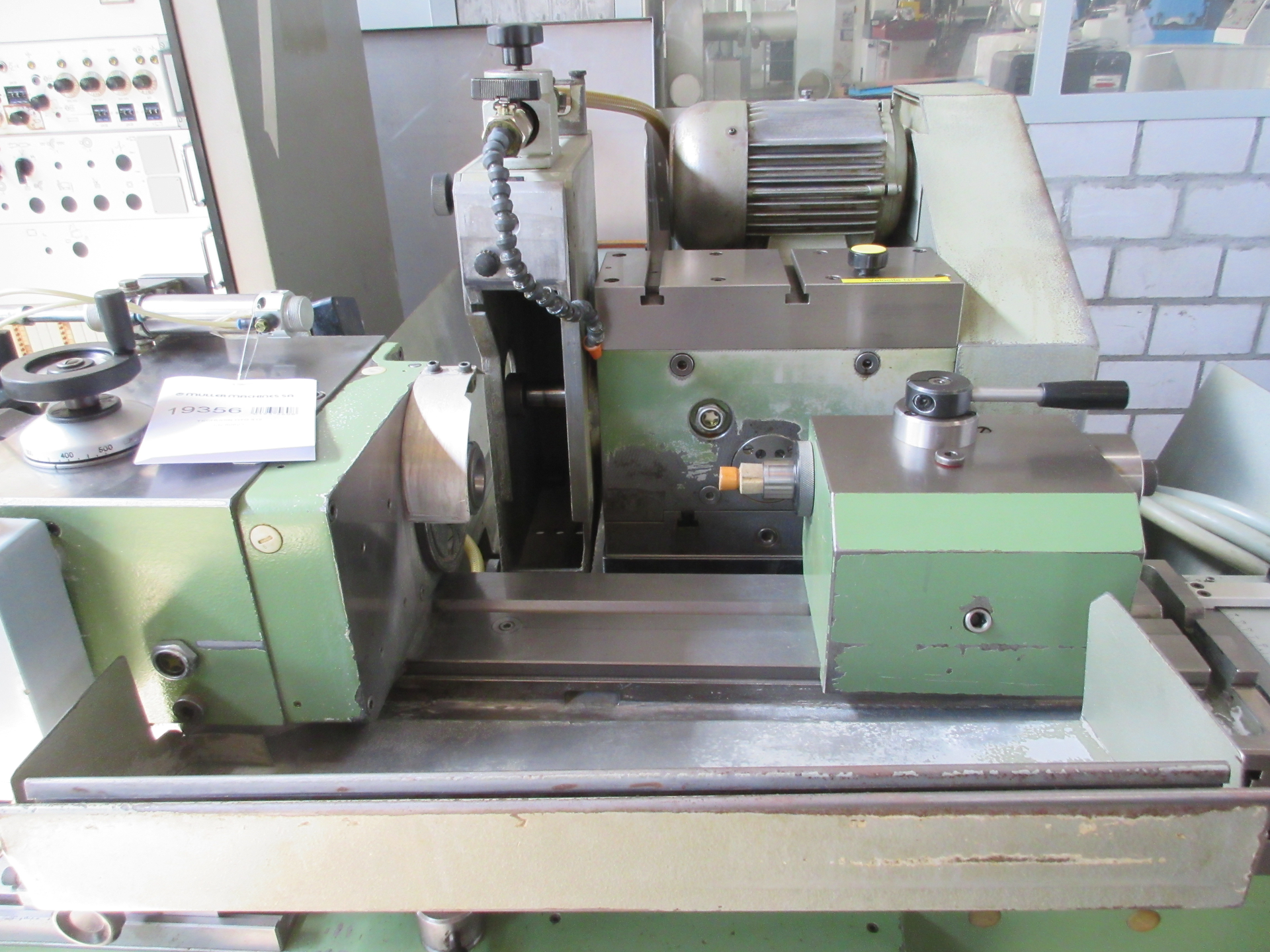

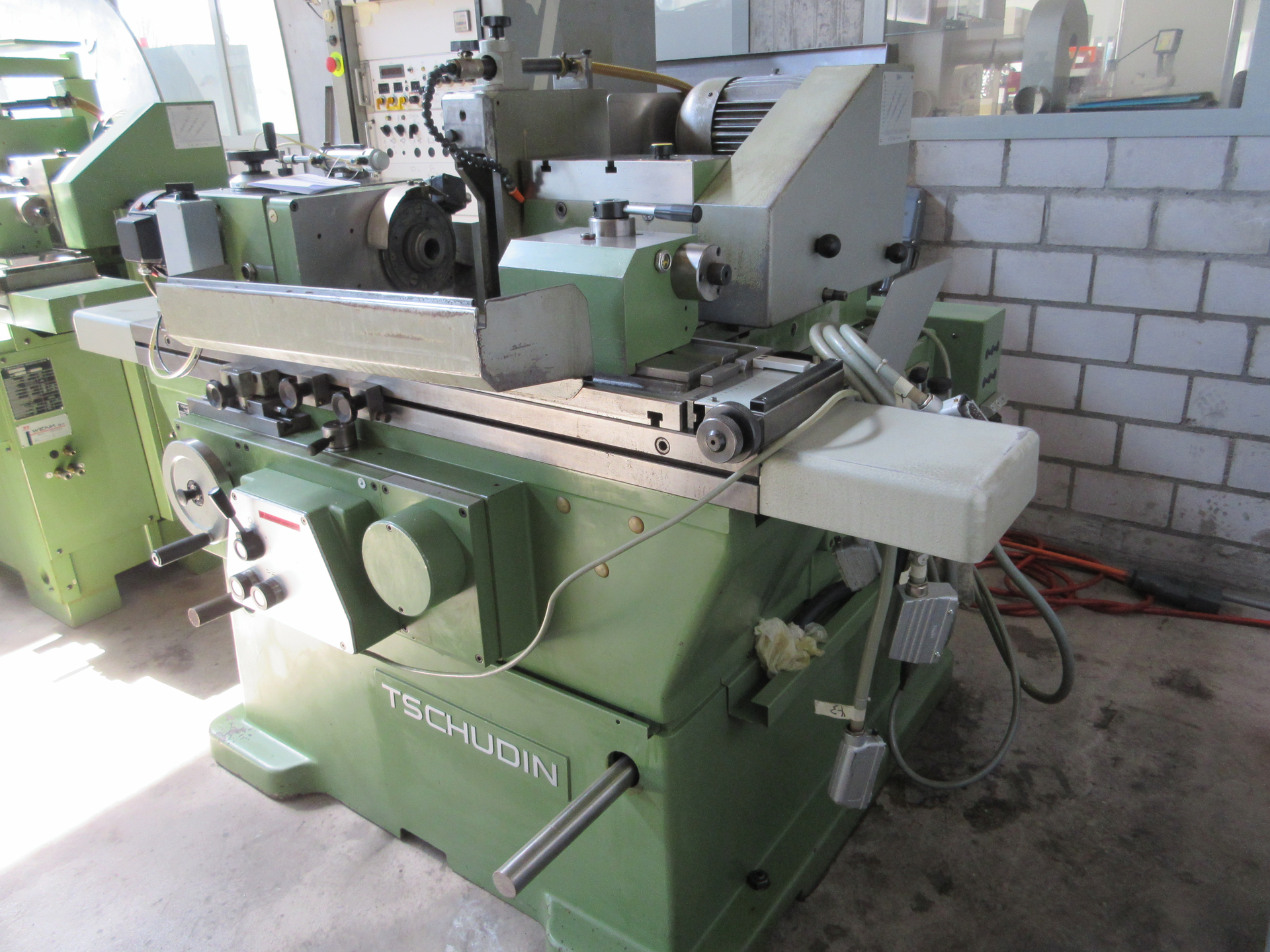

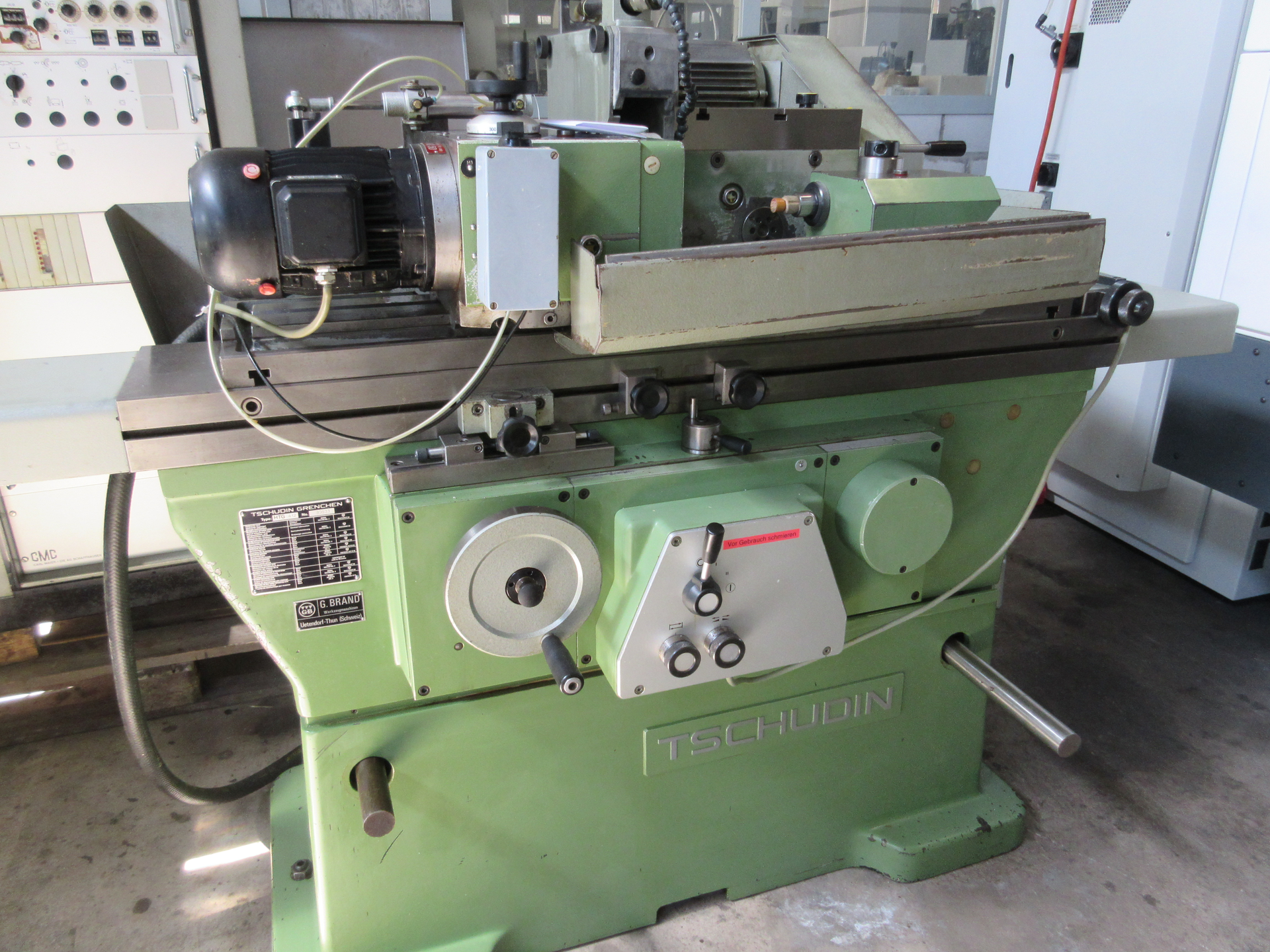

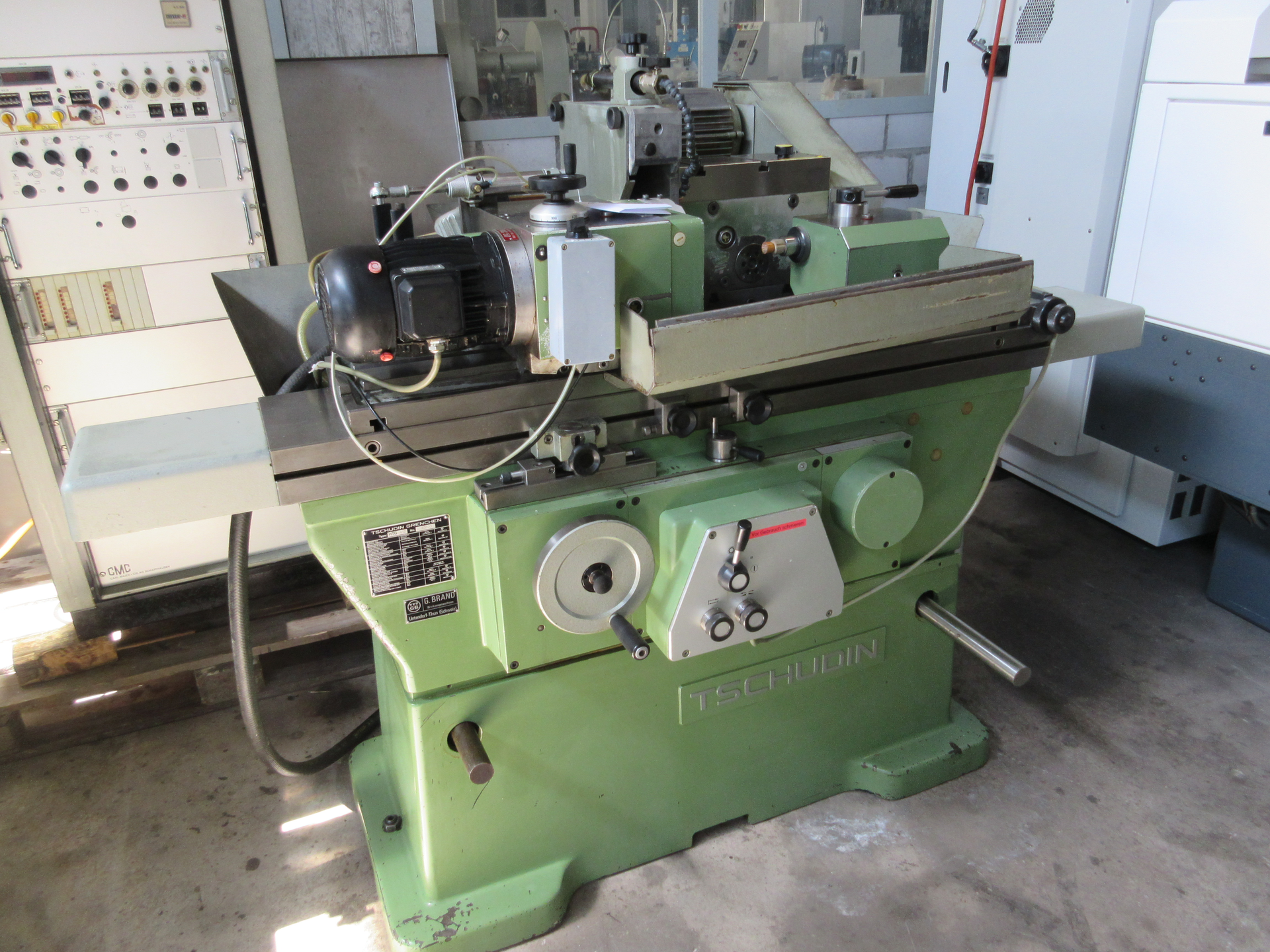

TSCHUDIN HTG 412 is a cylindrical grinder of high precision, designed to deliver high accuracy and reliability. Working capacities: centre height 100 mm, distance between centres 480 mm; grinding wheel Ø350 mm, width 50 mm, bore 127 mm. Main technical specs: grinding wheel speeds 3 steps 1640–2300 t/min; workpiece spindle stepless 65–500 t/min, rotatable 360°; spindle taper 5 CM, tailstock taper 3 CM; table angular displacement 9°; table speed up to 5 m/min. Voltage 3x380 V 50 Hz; external grinding wheel motor 3 kW; workpiece spindle motor 1 kW; total power 5 kVA. Machine weight ≈2300 kg; dimensions L1800×W1200×H1500 mm. Enables tight tolerances; suitable for automotive, aerospace, machine tools, medical and watchmaking applications.
| Centre height | 100 mm |
| Distance between centres | 480 mm |
| Grinding wheel: | |
| Diameter | 350 mm |
| Width | 50 mm |
| Bore | 127 mm |
| Grinding wheel speeds: | |
| number (steps) | 3 |
| from | 1640 t/min |
| up to | 2300 t/min |
| Work piece spindle head: | |
| speeds: | |
| stepless | |
| from | 65 t/min |
| up to | 500 t/min |
| rotatable | 360 ° |
| Spindle taper | 5 CM |
| Taper in tailstock: | 3 CM |
| Table angular displacement | 9 ° |
| Table speed: | |
| stepless | |
| from | m/min |
| up to | 5 m/min |
| Voltage 50 Hz 3x | 380 Volt |
| External Grinding wheel motor | 3 kW |
| Workpiece spindle motor | 1 kW |
| Total power required | 5 kVA |
| Machine's weight about | 2300 kg |
| Overall dimensions machine: | |
| Length | 1800 mm |
| Width | 1200 mm |
| Height | 1500 mm |
