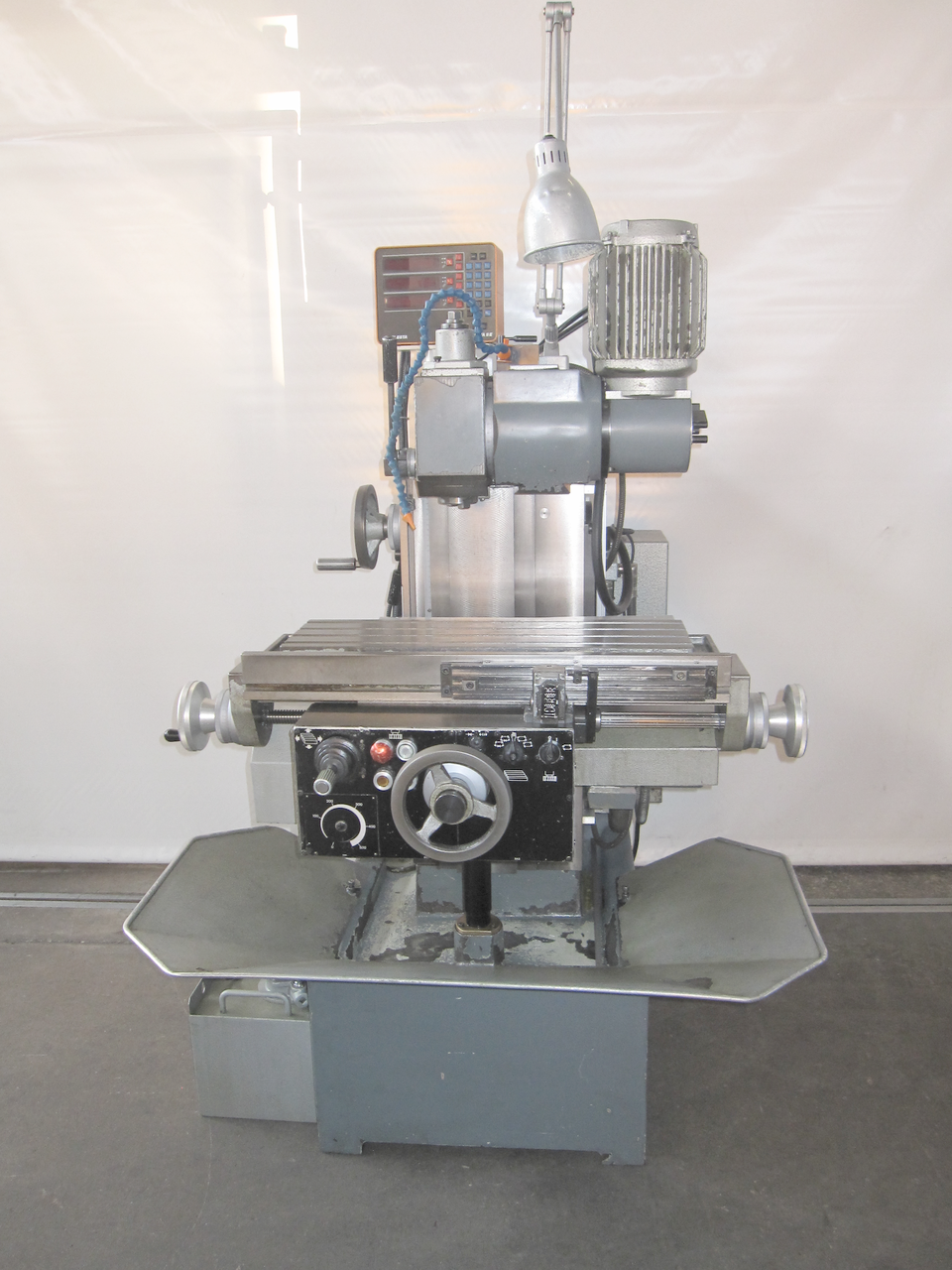

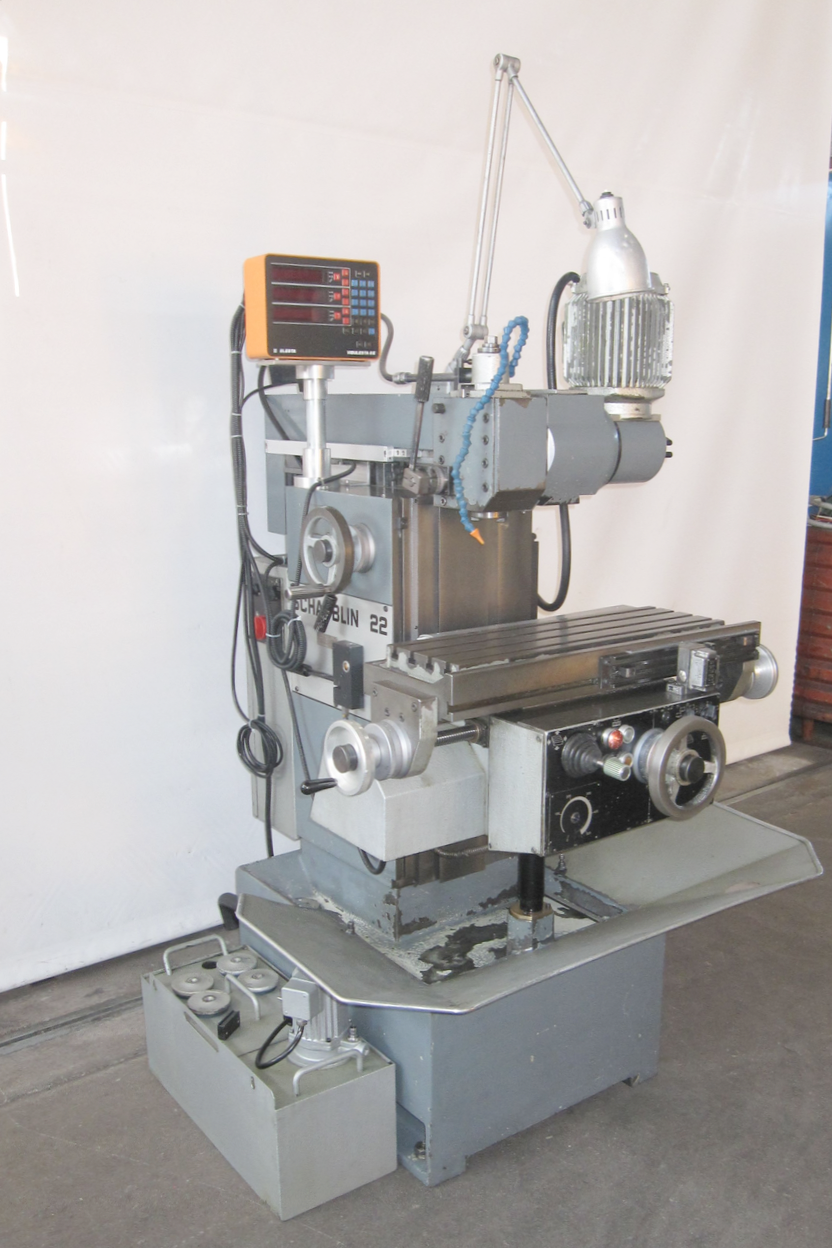

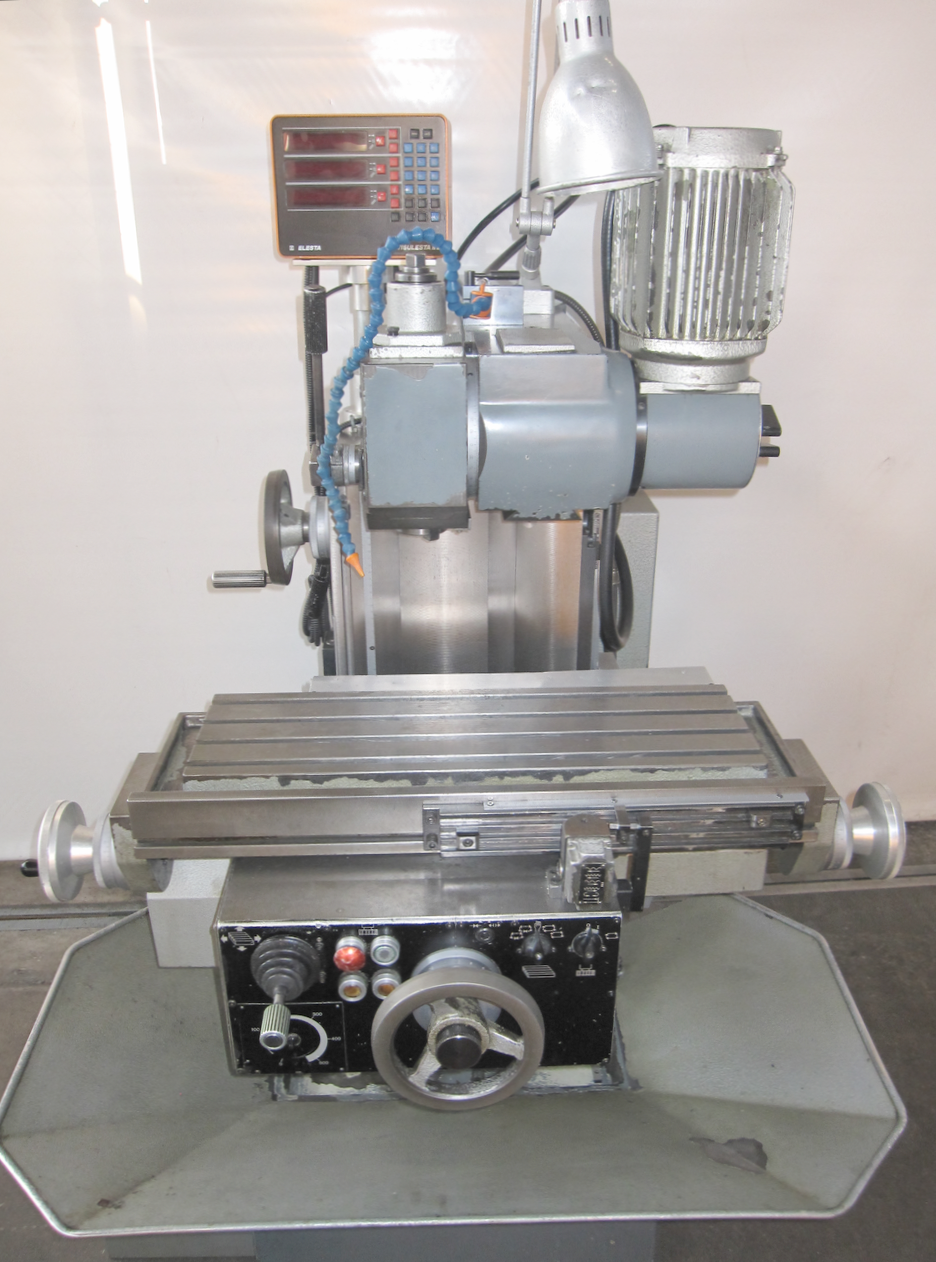

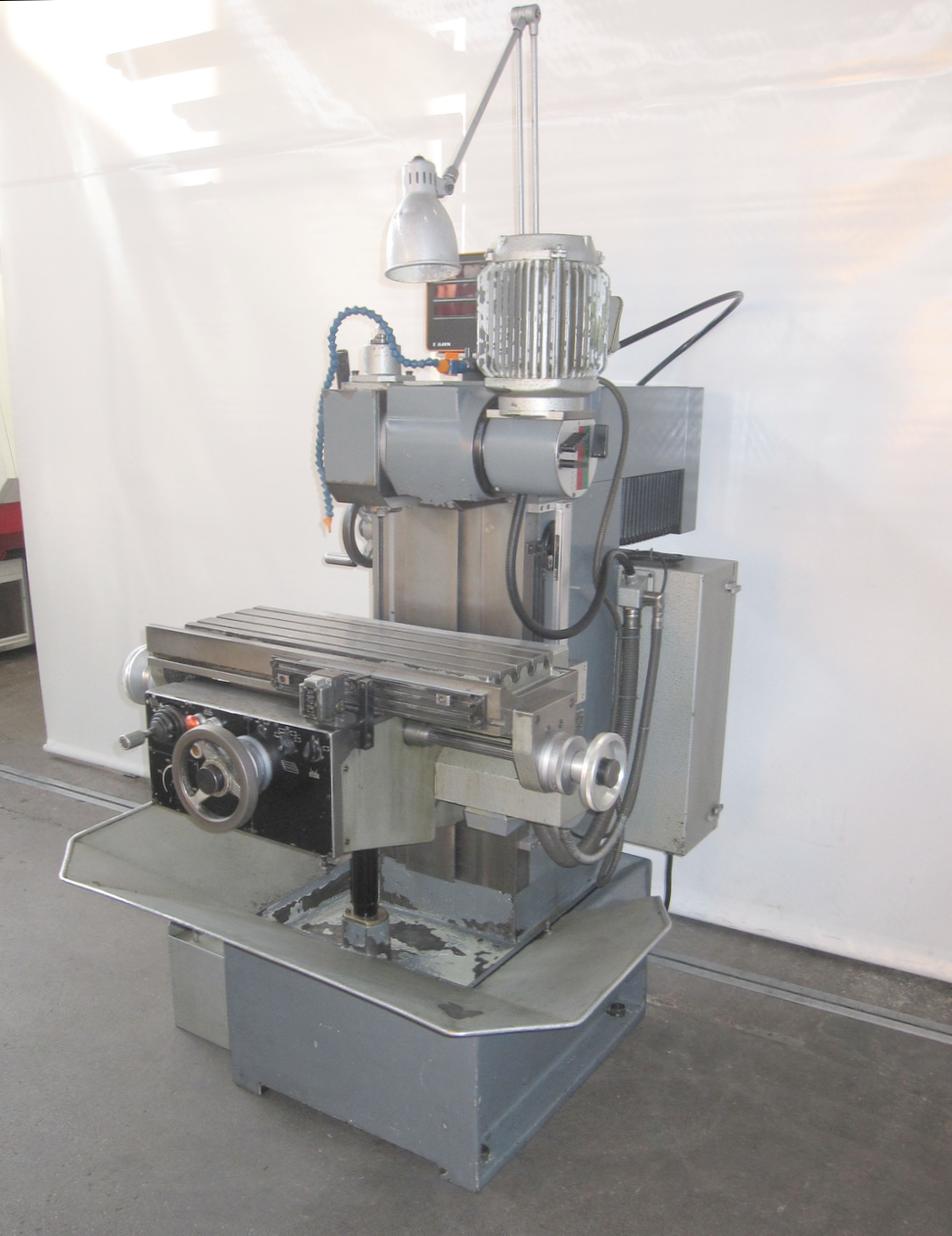

SCHAUBLIN 22 is a universal milling machine for precision machining, offering high accuracy and reliability. Table 650×250 mm; travels X330, Y400, Z475 mm; quill 60 mm; spindle 12 steps 63–2800 t/min. Feeds stepless 4–500 mm/min (X), 2–200 mm/min (Z); rapid 2.5 m/min (X), 1.0 m/min (Z); ISO30; 3×380 V 50 Hz; motor 2.2 CV; weight ≈950 kg; overall 1600×1100×1650 mm. Equipment: positioning/travel control and 3‑axis digital readout (Elesta). Suitable for tight tolerances in watchmaking, toolmaking, automotive, aerospace and medical sectors.
| Table length | 650 mm |
| Table width | 250 mm |
| Longitudinal travel (X-axis) | 330 mm |
| Transversal travel (y axis) | 400 mm |
| Vertical travel (z axis) | 475 mm |
| Spindle speeds: | |
| number (steps) | 12 |
| from | 63 t/min |
| up to | 2800 t/min |
| Taper in spindle | 30 ISO |
| Feeds stepless: | |
| longitudinal from | 4 mm/min |
| up to | 500 mm/min |
| vertical from | 2 mm/min |
| up to | 200 mm/min |
| Vertical quill travel | 60 mm |
| Rapid traverse: | |
| longitudinal | 2.5 m/min |
| vertical | 1.0 m/min |
| Voltage 50 Hz 3x | 380 Volt |
| Motor output | 2.2 CV |
| Machine's weight about | 950 kg |
| Overall dimensions machine: | |
| Length | 1600 mm |
| Width | 1100 mm |
| Height | 1650 mm |
| Various accessories: | |
| Positionier- und Streckensteuerung | |
| Digital readout number of axis: | 3 |
| Manufacturer | ELESTA |
| Coolant system | |
| Lamp | |
| Chip tray |
