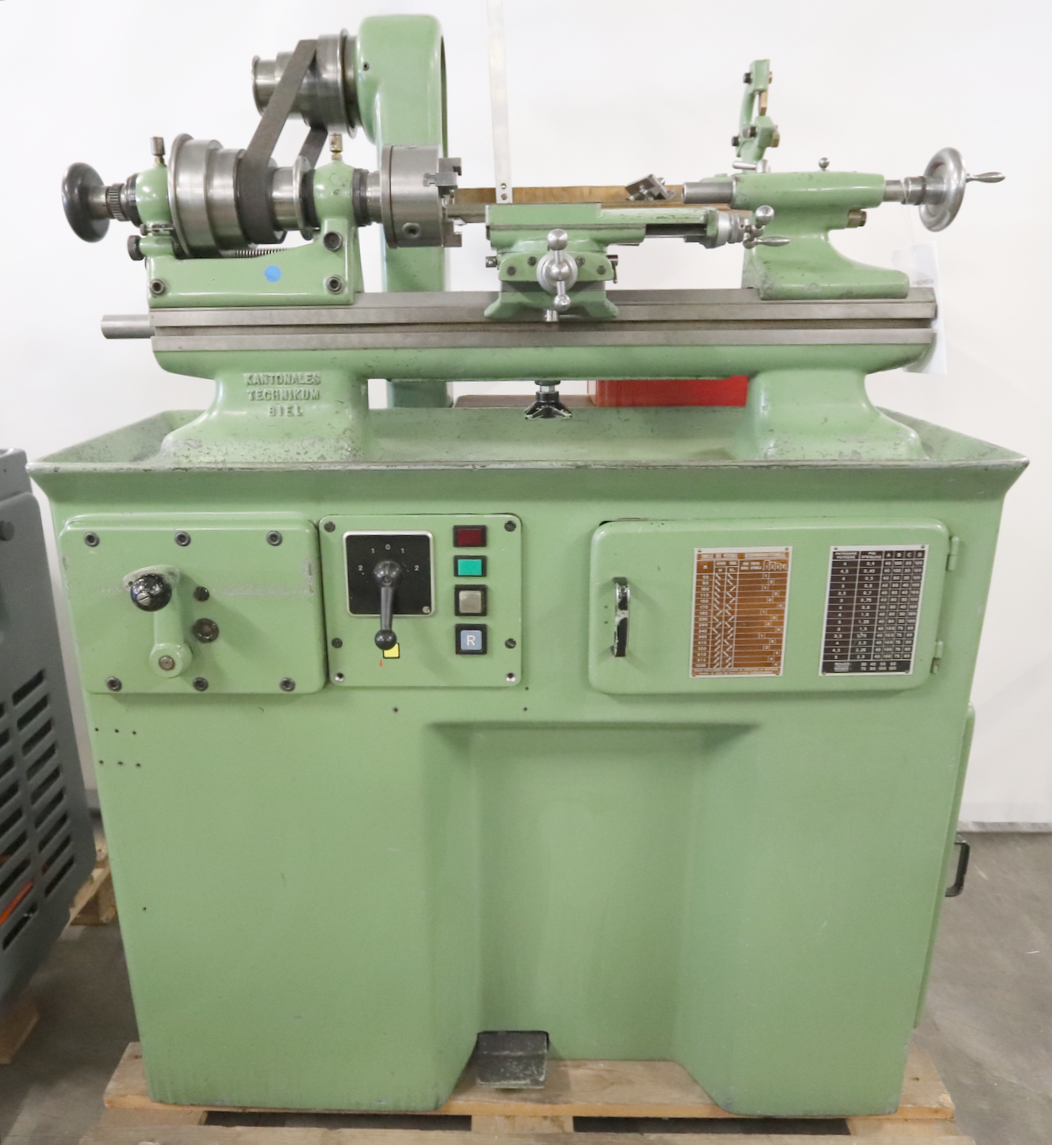

018932 - TECHNIKUM BIEL 102
Download technical sheet (PDF)
Message us on WhatsApp
| Centre height | 102 mm |
| Distance between centres | 370 mm |
| Inner taper type | 20 W |
| Spindle speeds: | |
| from | 50 t/min |
| up to | 1200 t/min |
| Voltage 50 Hz 3x | 380 Volt |
| Machine's weight about | 450 kg |
| Overall dimensions machine: | |
| Length | 1200 mm |
| Width | 700 mm |
| Height | 1500 mm |
| Various accessories: | |
| 3-jaw chuck diameter | 160 mm |

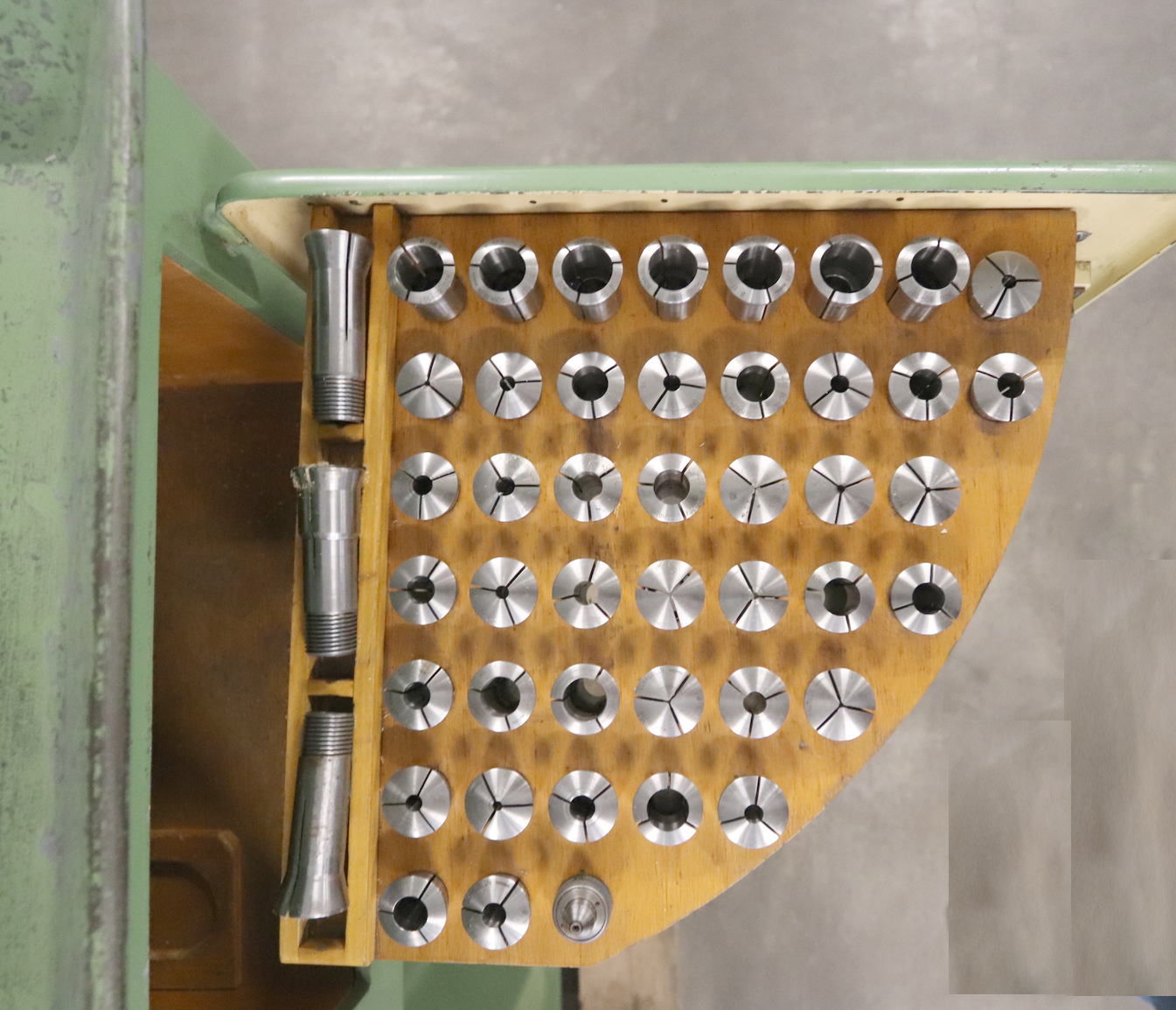

| Set of collets | W 20 |
| Drilling tailstock | |
| Fixed steady |
